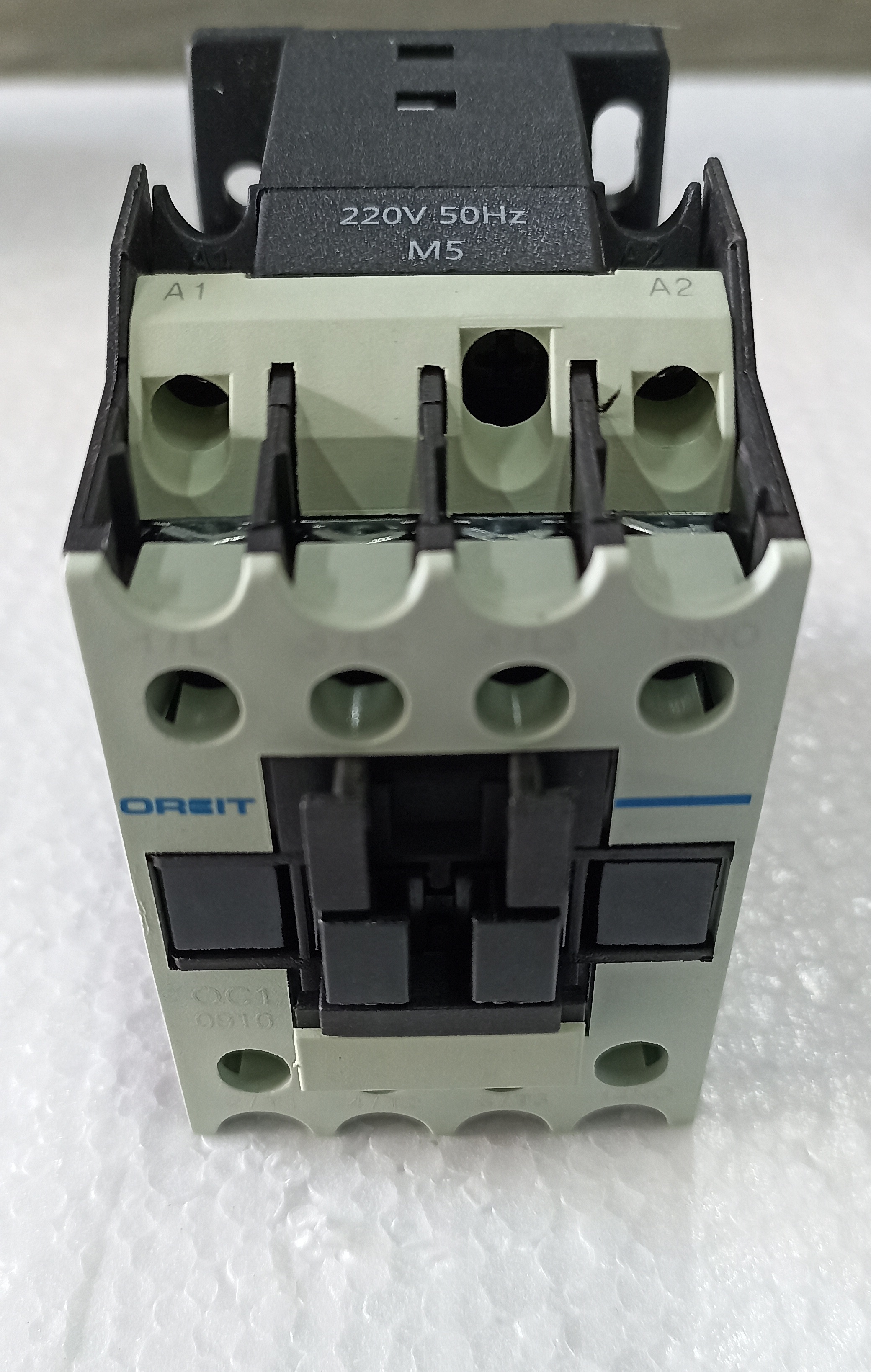

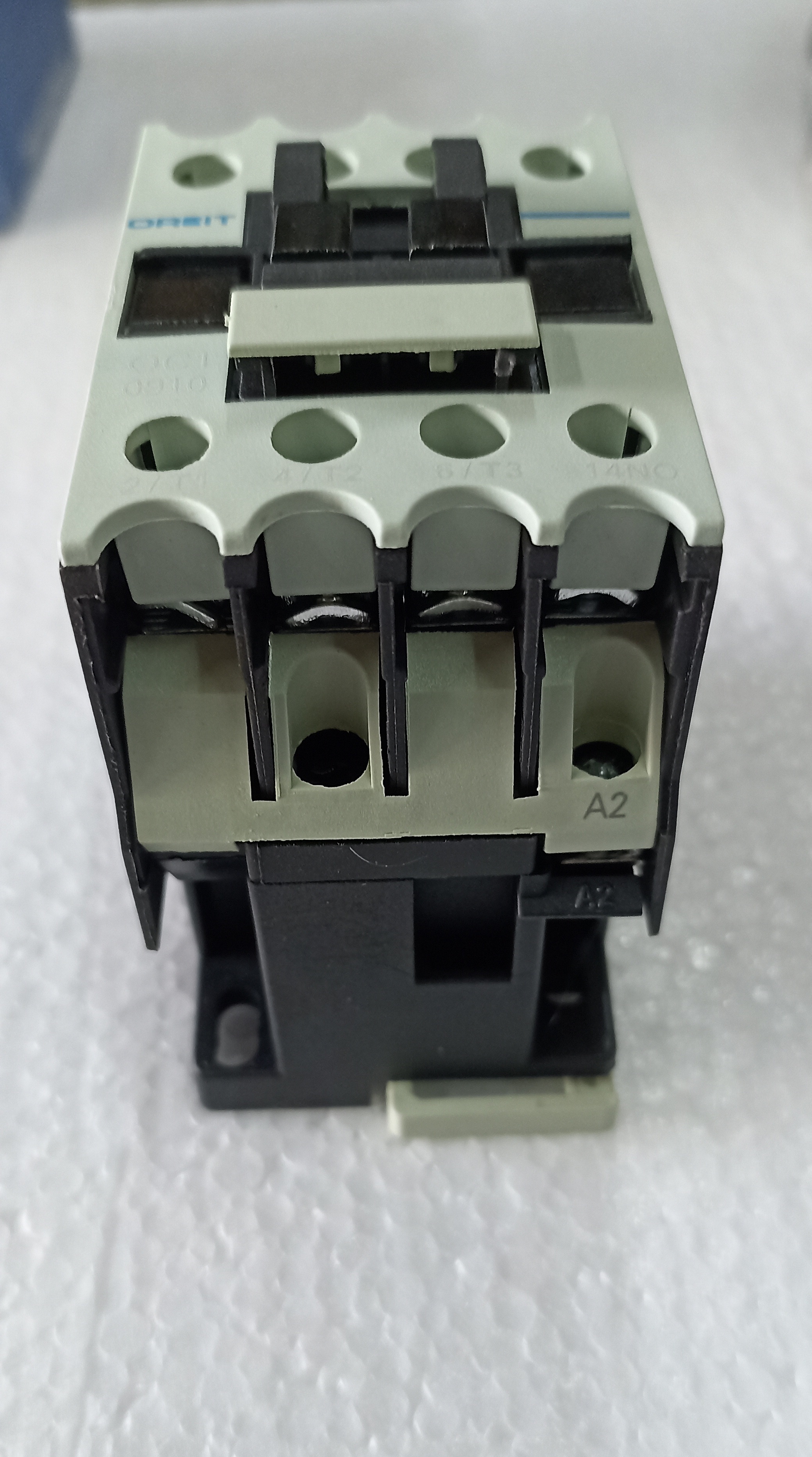

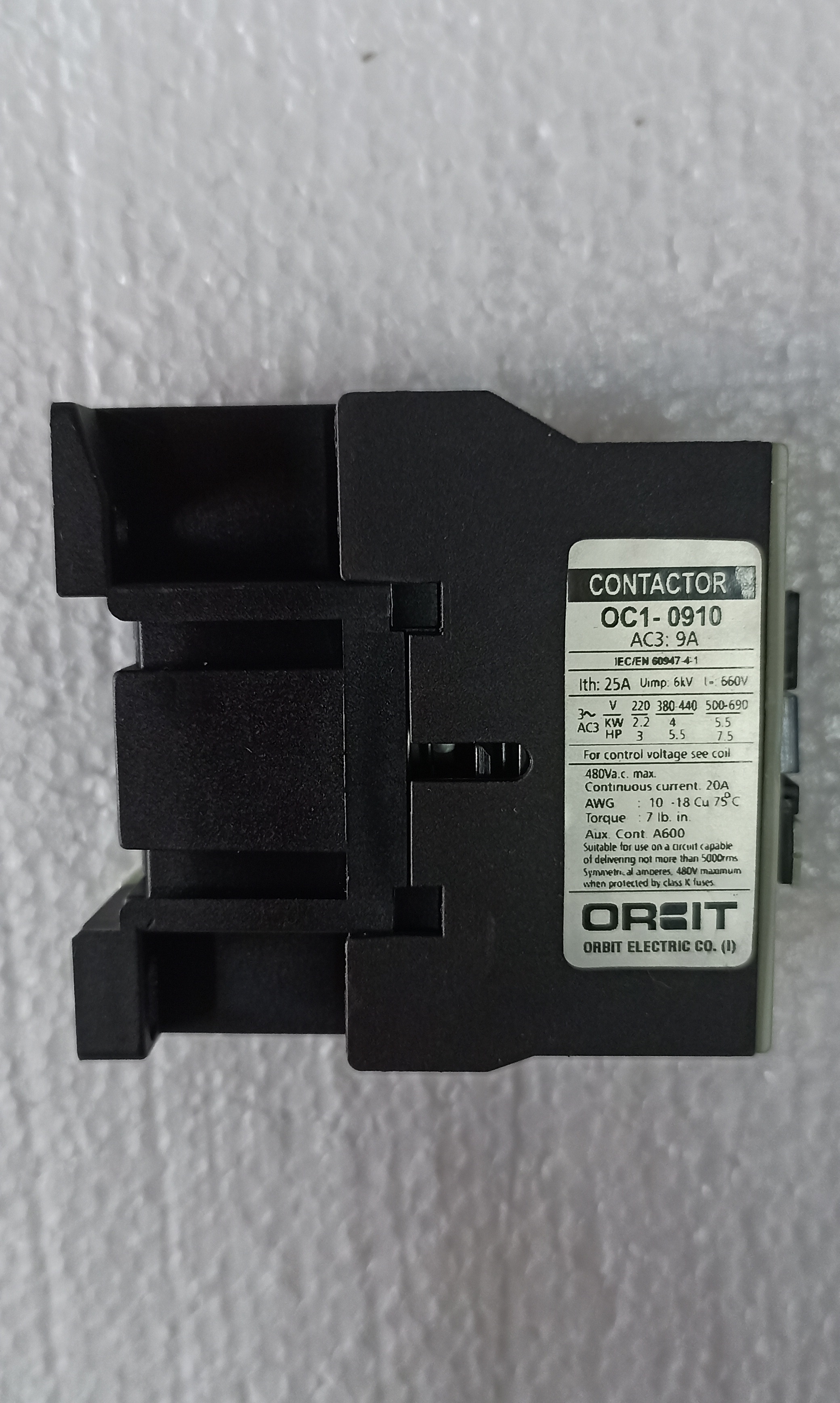

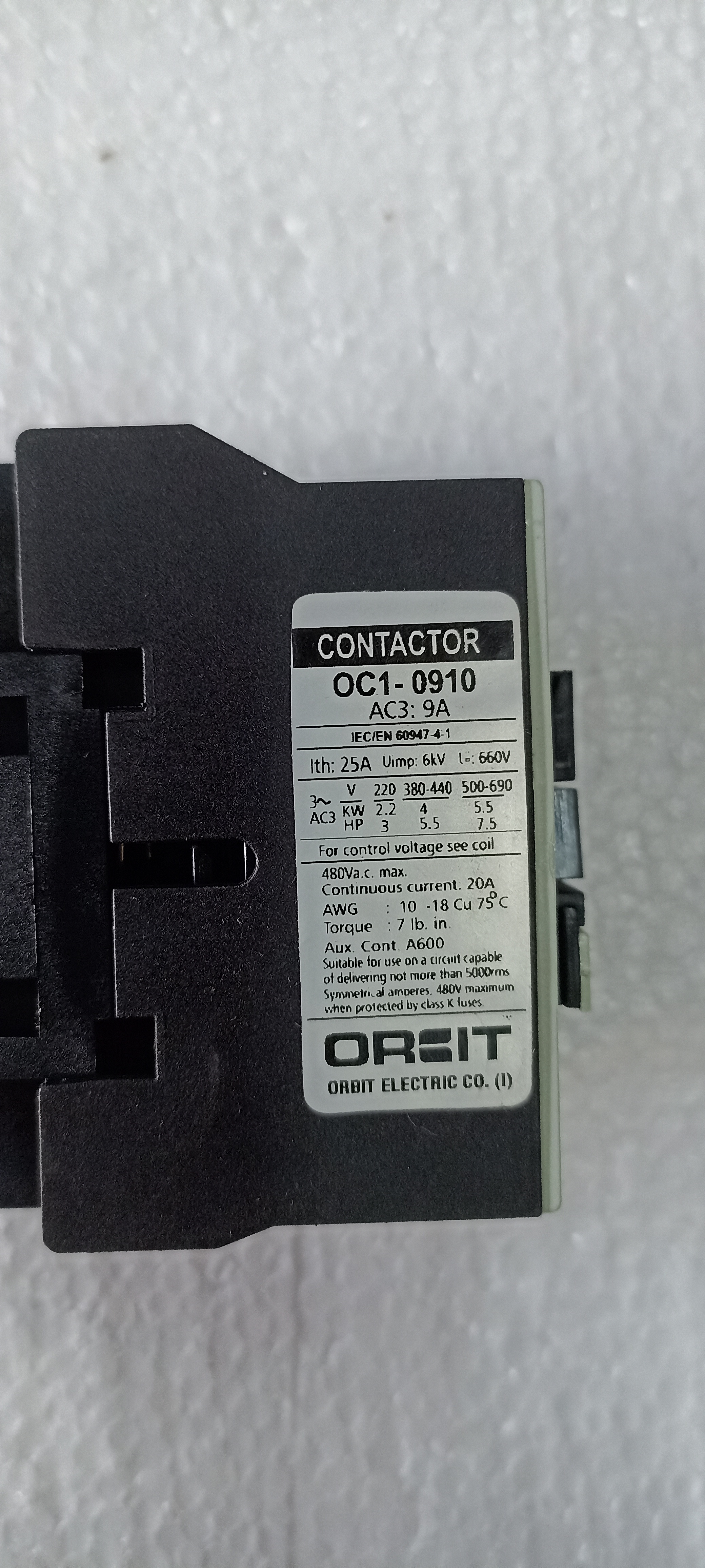

ORBIT 9A CONTACTOR

Get a Price/Quote

ORBIT 9A CONTACTOR Specification

Connector Type
Screw Terminals

Insulation Material
Thermoplastic

Surface Finish
Matte

Overheating Protection
Provided

IP Rating
IP20

Power Factor
0.7 – 0.8

Efficiency
High

Operating Temperature
-5°C to +55°C

Shape
Rectangular

Humidity %
< 95% RH (Non-condensing)

Mounting Type
DIN Rail / Panel Mount

Feature
Compact Size, Low Power Consumption, High Durability

Product Type
Electrical Contactor

Application
Industrial Automation, Motor Starting, Control Panels

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
690 V AC

Energy Consumption
4 VA (Holding)

Output Type
SPDT (Single Pole Double Throw)

Color
Grey & Black

Dimension (L*W*H)
78 mm x 45 mm x 82 mm

Weight
360 g

Phase
Three Phase

Input Voltage
230 V AC Coil

Size
Standard

Connection Type
Screw Type Terminals

No Of Poles
3 Pole

Material
Flame Retardant Plastic

Altitude
Up to 2000 m

Electrical Life
1 Million Operations

Coil Voltage Range
230 V AC

Auxiliary Contacts
1 NO + 1 NC

Contact Material
Silver Alloy

Standards Compliance
IEC 60947-4-1

Conventional Thermal Current (Ith)
20A

Mechanical Life
10 Million Operations

Shock Resistance
15g (11 ms)

Vibration Resistance
5g (10 - 150 Hz)

Short Circuit Protection
To be used with Proper Fuses

Rated Current
9A

ORBIT 9A CONTACTOR Trade Information

Minimum Order Quantity
10 Number

Sample Available
Yes

Main Domestic Market
All India

About ORBIT 9A CONTACTOR

Raj Electricals Offering Orbit 9A Contactor At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Electric Contactor

Make :- Orbit

Ampere :- 9A

Aux. Contact :- 1 NO

Coil Voltage :- 220V/50 Hz

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Outstanding Durability and Longevity

Built for extended service, the ORBIT 9A Contactor boasts a mechanical life of 10 million operations and an electrical life of 1 million operations. Its robust design ensures consistent performance even in demanding industrial environments, offering peace of mind for continuous operation.

Safety and Compliance Assured

The contactor meets global safety standards, adhering to IEC 60947-4-1. Its flame-retardant casing and overheating protection add another layer of operational safety. The IP20-rated enclosure prevents accidental contact while maintaining user accessibility for installation and maintenance.

FAQ's of ORBIT 9A CONTACTOR:

Q: How can the ORBIT 9A Contactor be installed in a control panel?

A: The ORBIT 9A Contactor supports both DIN rail and panel mounting, making it flexible for installation in various control panels or control systems. Its screw-type terminals allow for secure and straightforward wiring connections.

Q: What are the primary applications for the ORBIT 9A Contactor?

A: This contactor is ideal for industrial automation, motor starting, and control panels, particularly in three-phase systems. Its compact size, high durability, and ability to handle up to 9A make it suitable for a wide range of automated industrial processes.

Q: When does the ORBIT 9A Contactor require short circuit protection?

A: Short circuit protection must be provided externally using proper fuses. Installing the correct fuses ensures both the safety and extended lifespan of the contactor and the connected equipment.

Q: Where can the ORBIT 9A Contactor be used considering environmental factors?

A: The unit can be reliably operated at altitudes up to 2000 meters and within an ambient temperature range of -5C to +55C. It is also suitable for environments with humidity levels of less than 95% RH (non-condensing).

Q: What benefits does the silver alloy contact material provide?

A: Silver alloy contacts offer enhanced electrical conductivity and resistance to wear and arcing, resulting in reliable performance, reduced contact resistance, and longer operational life of the contactor.

Q: How does the contactor ensure energy efficiency during operation?

A: The ORBIT 9A Contactor consumes only 4 VA in the holding state, ensuring low power consumption while maintaining high efficiency in operation, contributing to lower running costs.
