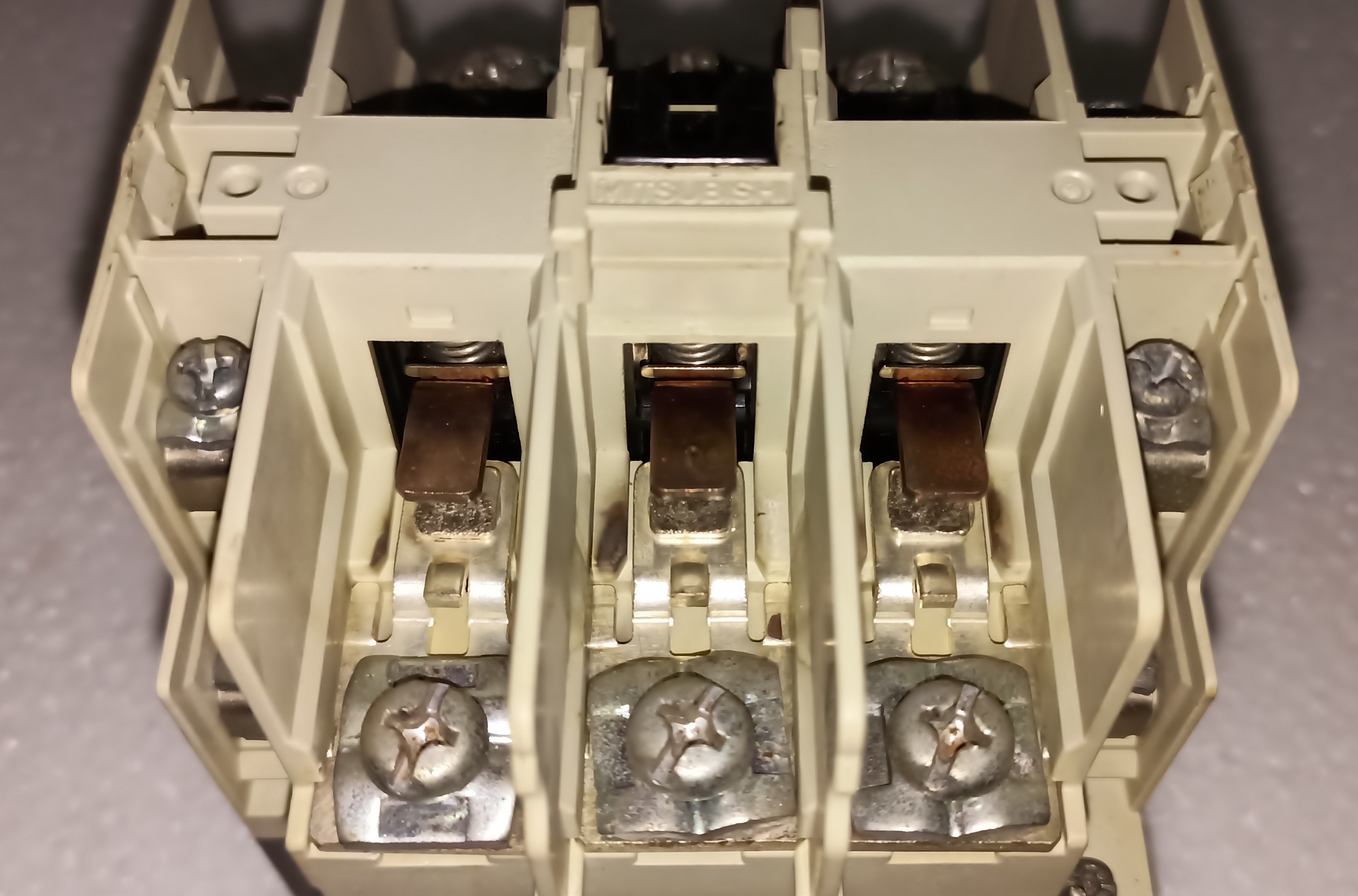

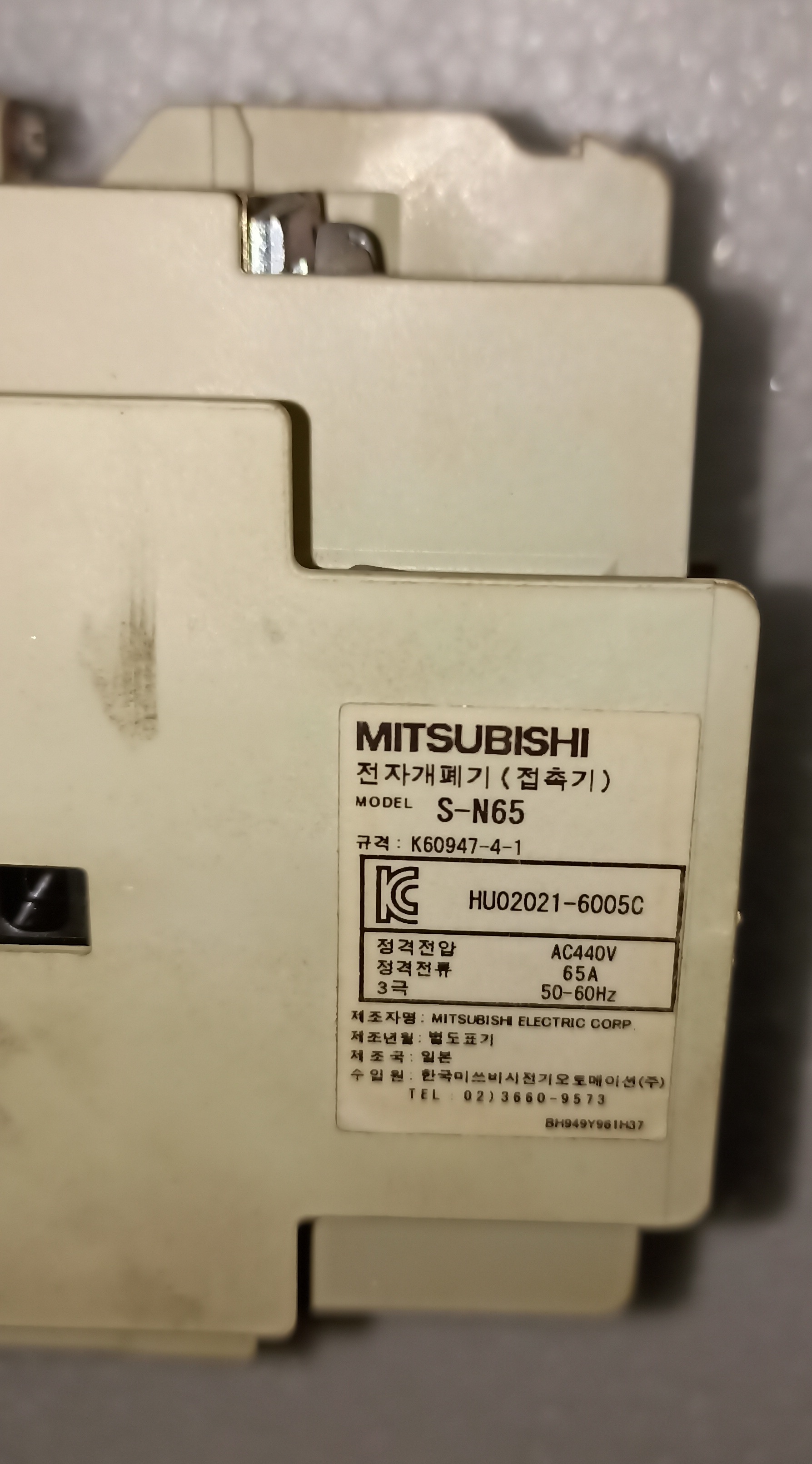

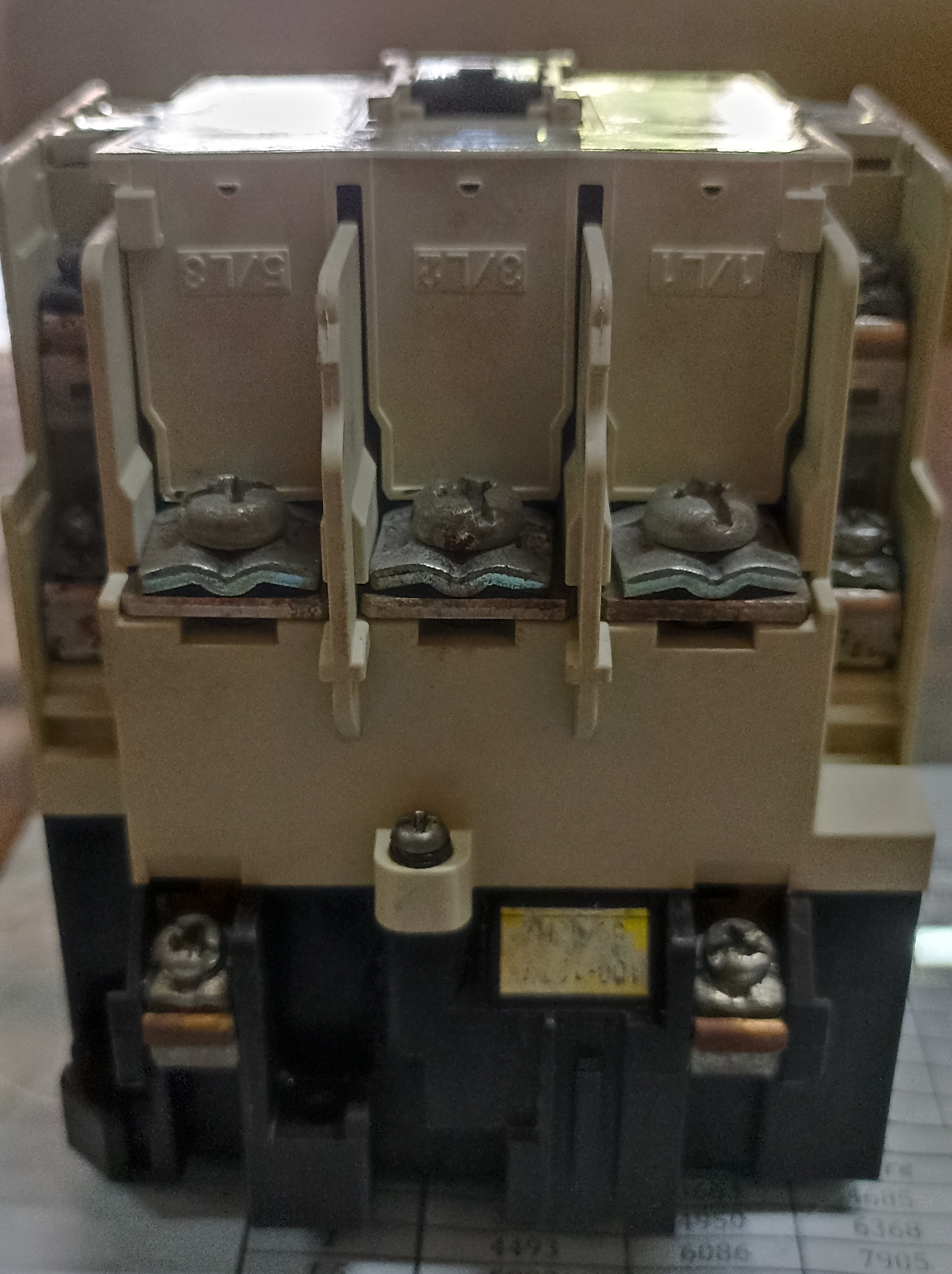

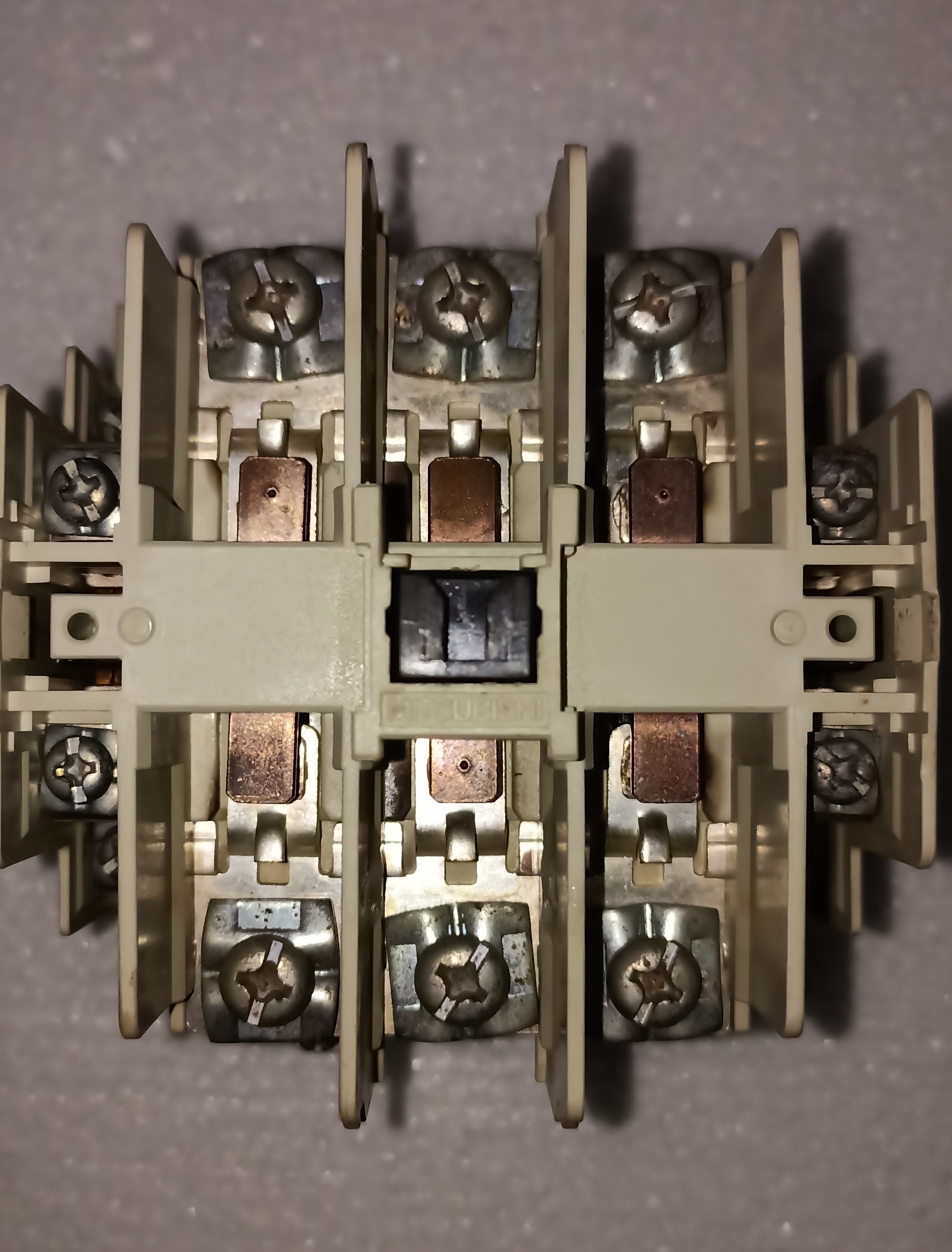

MITSUBISHI S-N65 CONTACTOR

Get a Price/Quote

MITSUBISHI S-N65 CONTACTOR Specification

Efficiency
High

Feature
Compact Design, Long Electrical Life

Operating Temperature
-5°C to +40°C

Overheating Protection
Yes (With Auxiliary Relay)

IP Rating
IP20

Power Factor
0.85

Connector Type
Screw Type

Humidity %
45% – 85% RH

Insulation Material
Thermoplastic Resin

Mounting Type
DIN Rail / Panel Mounted

Surface Finish
Matte

Shape
Rectangular

Product Type
Electromagnetic Contactor

Application
Motor Control, Industrial Automation

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
AC 690V

Energy Consumption
Approx. 8 VA (hold) / 80 VA (inrush)

Output Type
Power Switching

Color
White / Black

Dimension (L*W*H)
105 x 132 x 138 mm

Weight
2.5 kg

Phase
Three Phase

Size
Standard

Input Voltage
AC 220V

Material
High-grade Plastic and Metal

Connection Type
Screw Terminal

No Of Poles
3 Poles

Storage Temperature
-25°C to +60°C

Electrical Endurance
Over 1 Million Operations

Mechanical Endurance
Over 10 Million Operations

Auxiliary Contacts
1NO + 1NC (Standard)

Rated Current
65A

Coil Voltage Range
AC 24V to 600V

Contact Material
Silver Alloy

Maximum Switching Power
22 kW (AC-3, 400V)

Short-Circuit Protection
Coordinate with type 2 protection

Standards Compliance
IEC 60947-4-1

MITSUBISHI S-N65 CONTACTOR Trade Information

Minimum Order Quantity
5 Number

Payment Terms
Cash Advance (CA), Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque

Sample Available
Yes

Main Export Market(s)
Australia, Central America, North America, South America, Western Europe, Middle East, Eastern Europe, Asia, Africa

Main Domestic Market
All India

About MITSUBISHI S-N65 CONTACTOR

Mitsubishi S-N65 Contactor Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- AC Contactor

Make :- Mitsubishi

Ith :- 100A

Pole :- 3P

Model :- S-N 65

Condition :- Refurbished

Voltage :- 110, 220, 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Long-Lasting Reliability

The Mitsubishi S-N65 Contactor ensures dependable performance for industrial applications, boasting mechanical endurance of over 10 million operations and electrical endurance exceeding 1 million operations. These figures highlight its durability and suitability for continuous use, minimizing downtime and maintenance costs in demanding environments.

Flexible and Safe Operation

Designed with safety and versatility in mind, the S-N65 conforms to the IEC 60947-4-1 standards. It operates within a wide coil voltage range (AC 24V-600V), offers efficient screw-type connections, and includes coordinated type 2 short-circuit protection. Its compact build and selectable DIN rail or panel mounting allow easy integration into various setups.

FAQ's of MITSUBISHI S-N65 CONTACTOR:

Q: How can I install the Mitsubishi S-N65 Contactor in my industrial setup?

A: The S-N65 Contactor supports both DIN rail and panel mounting options. Simply secure it using the provided screw terminals, ensuring proper connection as per the three-phase supply requirements. It is recommended to follow manufacturer instructions for safe and optimal installation.

Q: What benefits does the Mitsubishi S-N65 Contactor offer for motor control?

A: With its high rated current (65A), superior switching power (22kW at AC-3, 400V), and reliable auxiliary contacts (1NO + 1NC), the S-N65 ensures precise and effective motor control. Its long electrical and mechanical life also reduces maintenance frequency and improves operational efficiency.

Q: When should I consider replacing the S-N65 Contactor?

A: While the contactor offers over 10 million mechanical and 1 million electrical operations, replacement is needed if you experience unacceptable wear, frequent faults, or damage due to environmental factors outside the specified operating or storage temperatures.

Q: Where can I purchase genuine Mitsubishi S-N65 Contactors?

A: You can obtain authentic S-N65 Contactors through authorized Mitsubishi distributors, exporters, manufacturers, suppliers, and traders in Japan or from global partners who specialize in industrial automation components.

Q: What safety features are incorporated into the S-N65 Contactor?

A: The contactor includes coordinated short-circuit protection with type 2 protection, an overheating relay on auxiliary contacts, and an IP20 protection level. These features, along with thermoplastic insulation and robust design, enhance operational safety and reliability.

Q: How efficient is the S-N65 Contactor in terms of energy consumption?

A: The S-N65 is built for energy efficiency, consuming only about 8 VA in hold mode and 80 VA during inrush, with a high power factor of 0.85. Its design supports reduced energy wastage during operation, fitting well into modern energy-conscious systems.
