MITSUBISHI 100A 3P MCCB

Get a Price/Quote

MOQ : 5 Pieces

MITSUBISHI 100A 3P MCCB Specification

Rated Short Circuit Breaking Current
36kA

Rated Short Circuit Making Current
36kA

Phase
Three Phase

Mechanical Life
10,000 operations

Breaking Capacity
36kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel mounting

Function
Automatic protection against overload, short circuit

Poles Number
3 Poles

Rated Voltage
AC 415V

Rated Current
100A

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
Yes, thermal and magnetic trip

Weight
Approx. 2.5 kg

Color
Black

Mounting Type
DIN Rail / Fixed mounting

Terminal Type
Screw terminal

Auxiliary Contacts
Optional

Model
NF100-CS

Dimensions
Approx. 175mm x 105mm x 70mm

Ambient Temperature Range
-5°C to +40°C

Body Material
Flame retardant plastic

IP Rating
IP20

MITSUBISHI 100A 3P MCCB Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About MITSUBISHI 100A 3P MCCB

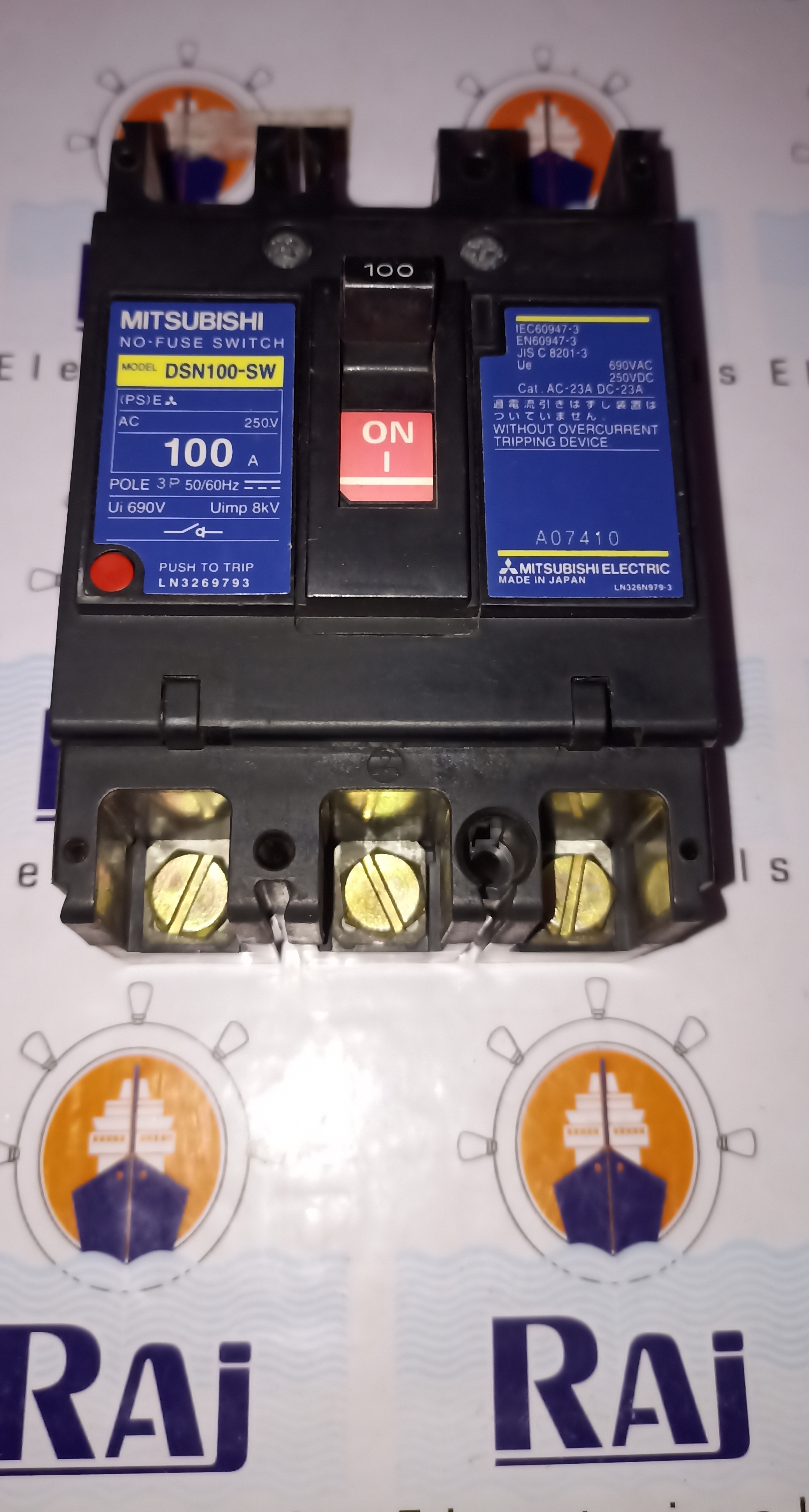

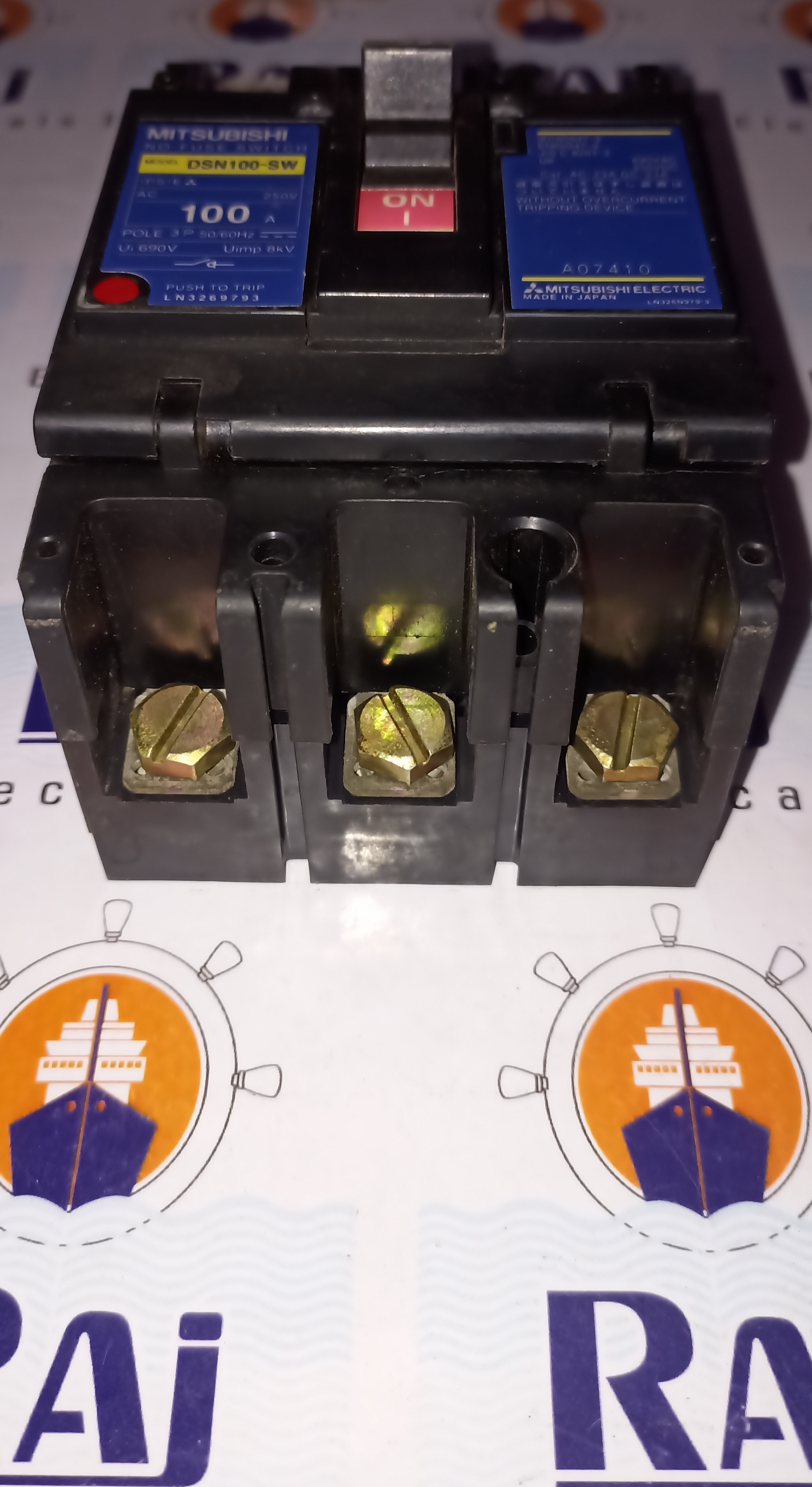

MITSUBISHI (DSN100-SW) 100A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Mitsubishi

Ampere :- 100A

Pole :- 3P

Model :- DSN100-SW

Condition :- Refurbished

Breaking Capacity :- 36 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

Robust Electrical Protection Designed for Reliability

The NF100-CS MCCB from Mitsubishi incorporates both thermal and magnetic trip features, providing automatic protection against overloads and short circuits. Its durable flame-retardant body and impressive breaking capacity make it suitable for demanding environments. Panel mounting and DIN rail compatibility allow versatile installation in a variety of settings. The MCCB is engineered with precision in Japan, adhering to industry standards for quality and safety.

Flexible Mounting and Safe Operation

Designed to support both DIN rail and fixed mounting, the NF100-CS offers installation flexibility for system integrators. The IP20 rating and flame-retardant construction enhance user safety during operation. With optional auxiliary contacts and screw terminals, wiring and functionality expansions are straightforward. Its compact dimensions and moderate weight make it ideal for both new projects and retrofit applications.

FAQ's of MITSUBISHI 100A 3P MCCB:

Q: How does the MITSUBISHI NF100-CS MCCB provide automatic electrical protection?

A: The NF100-CS model delivers automatic protection using integrated thermal and magnetic trip mechanisms, which quickly disconnect the circuit under overload or short-circuit conditions, safeguarding connected equipment and wiring.

Q: What are the installation options available for this MCCB?

A: You can install the NF100-CS MCCB using either panel mounting or DIN rail mounting, providing flexibility to suit various electrical panel configurations and requirements.

Q: Where is the ideal application environment for this MCCB?

A: This MCCB is suitable for industrial and commercial electrical distribution systems operating within an ambient temperature range of -5C to +40C, and is used where three-phase, 100A protection is required, such as in factories, buildings, and infrastructure projects.

Q: What are the benefits of its flame-retardant plastic body and IP20 rating?

A: The flame-retardant housing and IP20 ingress protection enhance the safety of installation and operation by minimizing risks related to fire and accidental contact with live parts.

Q: When is it necessary to use optional auxiliary contacts with this MCCB?

A: Optional auxiliary contacts are used when additional signaling or control functions are required, such as remote indication of breaker status or interlocking with other devices in automation systems.

Q: What process should be followed for the wiring of terminals?

A: Wiring is completed using screw terminals, ensuring a secure and stable connection. For optimal performance and safety, use properly rated conductors and follow the manufacturer's installation guidelines.

Q: How does its mechanical life and breaking capacity benefit long-term operation?

A: With a mechanical life of up to 10,000 operations and a breaking capacity of 36kA, the NF100-CS MCCB offers reliable performance and longevity, minimizing service interruptions and enhancing system resilience.
