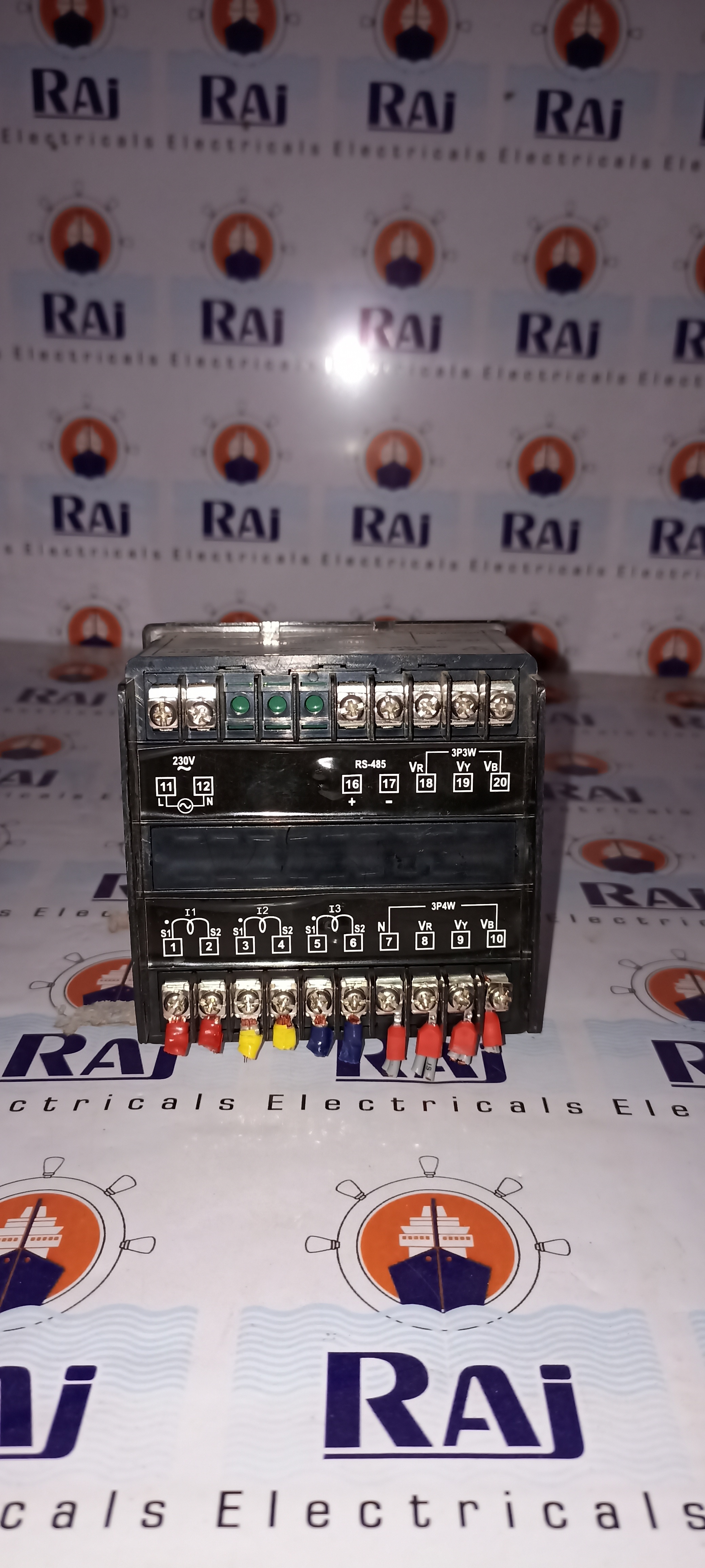

MFM443-TX DIGITAL MULTI FUNCTION METER

Get a Price/Quote

MFM443-TX DIGITAL MULTI FUNCTION METER Specification

IP Rating
IP54

Feature
Multi-parameter Measurement, High Accuracy, RS485 Communication

Humidity %
80% RH

Surface Finish
Matte

Mounting Type
Flush Mount

Overheating Protection
YES

Operating Temperature
-10C to +55C

Power Factor
0.5~1.0

Efficiency
High

Connector Type
Screw Terminal

Insulation Material
ABS

Shape
Rectangular

Product Type
Digital Multi Function Meter

Application
Panel Meter, Industrial Control Equipment

Protection Level
Overload, Short Circuit

Frequency (MHz)
50 Hz

Rated Voltage
230/415 V AC

Energy Consumption
0.2 VA

Output Type
Digital

Color
Black

Dimension (L*W*H)
96 x 96 x 70 mm

Weight
220 g

Phase
Three Phase

Input Voltage
100-277 V AC

Size
Standard

No Of Poles
3 Pole

Material
ABS Plastic

Connection Type
Panel Mount

Measuring Parameters
V, A, Hz, PF, kW, kWh, kVAR, kVA

Accuracy
Class 0.5

Current Rating
1A/5A CT Programmable

Display Type
4 Digit LED

Communication Port
RS485 MODBUS

Auxiliary Supply
80-270 V AC/DC

MFM443-TX DIGITAL MULTI FUNCTION METER Trade Information

Minimum Order Quantity
10 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Domestic Market
All India

About MFM443-TX DIGITAL MULTI FUNCTION METER

Raj Electricals Offering Digital Multi Function Meter MFM443 At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

The Sub-Zero Digital Multi Function Meter MFM443-TX is a 96 x 96mm digital multi function meter with memory capabilities that can store up to 6 different CT readings. This meter has many unique features, including a backlight that turns on automatically when you press a key, and non-volatile memory which means the last reading is held even if power is removed or disconnected.

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Comprehensive Multi-Parameter Monitoring

Designed for industrial control equipment and panels, the MFM443-TX provides simultaneous measurement of voltage, current, frequency, power factor, and various power parameters. Its high accuracy and wide operating range ensure reliable monitoring in a diverse set of industrial applications.

Durable and Efficient Design

Housed in a robust, matte-finished ABS plastic enclosure with IP54 protection, this meter is built to endure demanding industrial conditions. Weighing just 220g and sized at 96 x 96 x 70 mm, it offers space-efficient installation, high efficiency, and operational stability.

User-Friendly Integration and Communication

With RS485 MODBUS connectivity, the MFM443-TX can be effortlessly integrated into modern automated control and monitoring systems. The clear LED display and programmable CT inputs make installation and configuration straightforward for electricians and engineers alike.

FAQ's of MFM443-TX DIGITAL MULTI FUNCTION METER:

Q: How do I install the MFM443-TX Digital Multi Function Meter in a control panel?

A: To install the MFM443-TX, prepare a flush-mount opening of 96 x 96 mm in your panel, insert the meter, and secure it using the mounting brackets. Connect the wiring according to the schematic, ensuring correct phase and auxiliary power connections. Use screw terminals for secure connections and set the appropriate CT ratio as required for your application.

Q: What parameters can the MFM443-TX meter measure and display?

A: The meter measures and displays voltage (V), current (A), frequency (Hz), power factor (PF), active power (kW), reactive power (kVAR), apparent power (kVA), and energy consumption (kWh). It is suitable for three-phase systems and enables real-time monitoring of all key electrical parameters.

Q: When should I use RS485 MODBUS communication on the MFM443-TX?

A: You should use RS485 MODBUS when you need remote monitoring, integration with SCADA systems, or automated data logging. The MODBUS protocol ensures reliable data transmission over long distances in industrial environments, making it ideal for modern automation needs.

Q: Where is the MFM443-TX typically used?

A: The MFM443-TX is commonly deployed in industrial control panels, energy management systems, distribution boards, and machinery panels requiring precise electrical monitoring. It is widely adopted in manufacturing facilities, power generation, and distribution sectors across India and globally.

Q: What is the process for programming the current transformer (CT) input on the meter?

A: Programming the CT input involves accessing the meter's setup mode via the front panel, selecting the correct current rating (1A or 5A), and saving the configuration. Refer to the user manual for detailed step-by-step instructions on navigating the display menu and setting CT ratios for accurate current measurement.

Q: How does the MFM443-TX benefit industrial applications?

A: By offering high-accuracy multi-parameter measurement, overload and short-circuit protection, and seamless integration through RS485 communication, the MFM443-TX helps ensure the safe, efficient, and reliable operation of electrical infrastructure. Its energy monitoring capabilities also support cost optimization and predictive maintenance.
