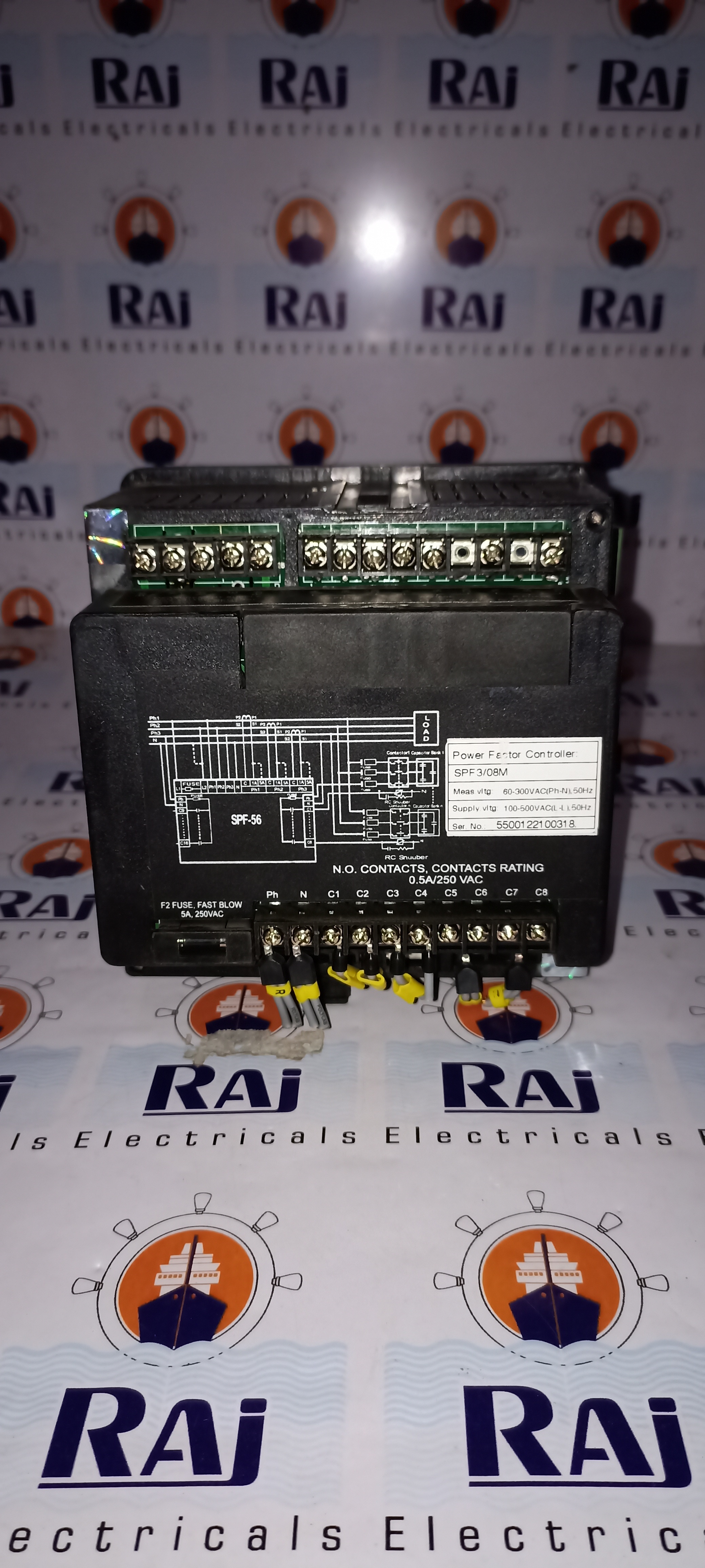

Apfc Relay And Power Monitor Meter

Get a Price/Quote

Apfc Relay And Power Monitor Meter Specification

Humidity %
Up to 95% RH Non-Condensing

Surface Finish
Glossy

Insulation Material
Polycarbonate & ABS Blend

Overheating Protection
Yes, Inbuilt Thermal Protection

Connector Type
Fixed Screw Type Terminal Block

Power Factor
0.5 Lag to 0.5 Lead

Operating Temperature
-10C to +55C

Mounting Type
DIN Rail / Panel Mountable

Shape
Rectangular

Efficiency
>98%

IP Rating
IP20

Feature
Auto Calibration, Real-Time Monitoring, LCD Digital Display

Product Type
Automatic Power Factor Correction (APFC) Relay & Power Monitor Meter

Application
Industrial, Commercial, Power Distribution Automation

Protection Level
Over/Under Voltage, Overload, Reverse Phasing, Neutral Loss

Frequency (MHz)
50/60 Hz

Rated Voltage
415V AC

Energy Consumption
Low Power Consumption

Output Type
Relay Output

Color
White & Grey

Dimension (L*W*H)
110 mm x 90 mm x 65 mm

Weight
350 g

Size
Standard Compact

Input Voltage
230V / 415V AC

Phase
3 Phase

Connection Type
Panel Mounting, Screw Terminal

Material
Flame Retardant ABS Plastic

No Of Poles
3 / 4 Pole (Selectable)

Alarm Indication
Audible & Visual

Data Logging
Event Recording Capable

Response Time
<200 ms

Display Type
Segment LCD Display with Backlight

Programming
User Programmable Thresholds / Delay

Compliance
IEC/IS Standards Conformity

Control Stages
6/8/12 Steps (Configurable)

Auxiliary Supply
90-270V AC Universal

Reset Type
Auto/Manual Reset Option

Apfc Relay And Power Monitor Meter Trade Information

Minimum Order Quantity
10 Number

Sample Available
Yes

Main Domestic Market
All India

About Apfc Relay And Power Monitor Meter

Raj Electricals Offering All Types Of Apfc Meter That Used In Electrical Control Panel Board.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

We Supply Our Product In All Over India And Also In Foreign Countries.

Universal Compatibility & Flexible Control

Designed to fit seamlessly into varied installation scenarios, this meter supports a wide auxiliary supply range (90-270V AC) and accommodates both 3 and 4-pole configurations. Its DIN rail or panel mountable design, along with a compact, flame-retardant build, makes it adaptable to diverse industrial and commercial environments.

Advanced Monitoring and Protection Features

With real-time LCD digital display, low power consumption, and multiple alarm indications, the meter ensures efficient monitoring of power factors, voltages, and frequency (50/60 Hz). Protection mechanisms include over/under voltage, overload, phase reversal, neutral loss, and even inbuilt thermal protection for comprehensive safety.

User Programmability and Compliance

Easily programmable thresholds and delays allow users to tailor settings as needed, with auto-calibration and event logging to monitor system health. The relay strictly complies with IEC/IS standards, offering peace of mind regarding quality and operational safety across demanding applications.

FAQ's of Apfc Relay And Power Monitor Meter:

Q: How is the APFC Relay and Power Monitor Meter installed?

A: The device can be easily installed using DIN rail or panel mounting, with electrical connections made through fixed screw-type terminal blocks. Its compact dimensions and flame-retardant housing ensure a secure fit in standard industrial or commercial panels.

Q: What types of protection does this meter offer?

A: It provides comprehensive protection against over and under voltage, overload, reverse phase sequencing, neutral loss, and includes inbuilt thermal and overheating safeguards, ensuring safe operation in critical environments.

Q: When should I use the event recording feature?

A: Utilize the event recording capability to track power anomalies or alarm events in your system. This data can help with troubleshooting, maintenance, and performance optimization by providing a historical log of significant incidents.

Q: Where can the meter be applied?

A: It is suitable for use in industrial and commercial settings, specifically in power distribution automation, factories, and large office complexes requiring efficient power factor correction and real-time electrical monitoring.

Q: What user programming options are available?

A: Users can configure control stage steps (6/8/12), set specific threshold values, and customize delay times to match operational requirements. The relay also supports both auto and manual reset for flexible system control.

Q: How does the audible and visual alarm indication work?

A: On detecting a fault or threshold breach, the device triggers an audible alarm and illuminates a visible alert on the display, ensuring immediate attention for quick remediation by maintenance personnel.

Q: What are the main benefits of using this APFC Relay and Power Monitor Meter?

A: The meter enhances power quality, minimizes energy wastage, and improves operational reliability. Its real-time monitoring, low energy consumption, rapid response, and compliance with international standards deliver efficient and safe power management solutions.
