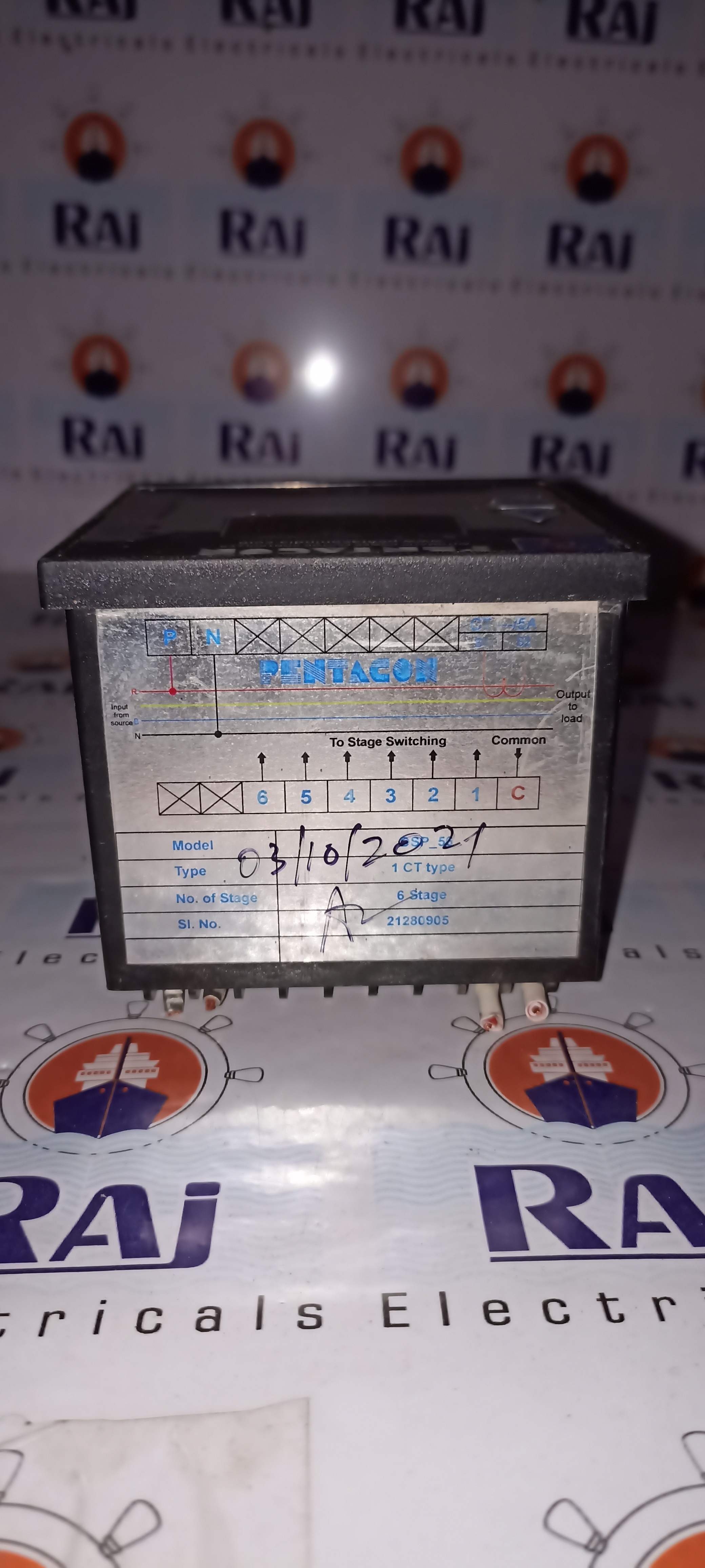

PENTACON APFC Relay

Get a Price/Quote

PENTACON APFC Relay Specification

Operating Temperature
-10C to 55C

Power Factor
Automatic Correction 0.85-1.00

Shape
Rectangular

Overheating Protection
YES

Insulation Material
Polycarbonate

IP Rating
IP20

Connector Type
Screw Type

Surface Finish
Matte

Efficiency
High

Mounting Type
Panel Mount

Humidity %
< 95% RH, Non-condensing

Feature
Auto Manual Operation

Product Type
APFC Relay

Application
Automatic Power Factor Correction Panel

Protection Level
IP20

Frequency (MHz)
50 Hz

Rated Voltage
230V AC

Energy Consumption
< 3VA

Output Type
Relay Contact

Color
Grey

Dimension (L*W*H)
120 x 98 x 46 mm

Weight
350g

Input Voltage
230V AC

Phase
Three Phase

Size
Standard

No Of Poles
1

Material
Flame Retardant Plastic

Connection Type
Screw Terminal

Alarm Output
Over/Under Voltage, Overload

Compliance
RoHS Compliant

Display Type
LED Digital Display

Control Method
Microcontroller Based

Programming
User Programmable Settings

Current Measurement Input
5A Standard CT

Sampling Technique
True RMS Measurement

Response Time
< 200 ms

Firmware Update
On Request

Relay Output Contact Rating
5A at 250V AC

Auxiliary Supply
230V AC ±10%

Hysteresis
Adjustable

Relative Humidity (Operation)
To 95% RH, non-condensing

Supported Languages
English

Panel Cutout Size
112 x 92 mm

Voltage Measurement Range
100-440V AC

Number of Steps
12-Step

LED Indication
Step and Status Indication

PENTACON APFC Relay Trade Information

Minimum Order Quantity
10 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Domestic Market
All India

About PENTACON APFC Relay

Raj Electricals Offering PENTACON DSP_56 APFC RELAY At Bhavnagar, Gujarat, India.
We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.
Product Specification :-
Available in 4, 6, 8 stages
Display Power Factor, Voltage and Ampere
True RMS measurment of Ampere and Voltage
Adjustable Current Sensing, minimum 1%
Model with Ferrite CT is available for very small load users
No need to enter CT ratio or any parameter for PF controlling
Reset Function on Factory setting is available
Direct setting of PF and Dead Band is possible by front keys
Other setting are as follows
Step Delay
On Delay
Off Delay
CT Ratio (Primary CT Rating)
Standard DPM size 96mm X 96mm X 87mm panel flush mount
We Supply Our Product In All Over India And Also In Foreign Countries.
For More Details Contact :9426838080.
Website:www.rajelectrics.com
Email: raj_electricals@hotmail.com.

Advanced Microcontroller-Based Power Factor Correction

The PENTACON APFC Relay delivers precise automatic power factor management, employing a responsive microcontroller platform. It effectively compensates between 0.85 and 1.00 power factor, making it a reliable cornerstone in contemporary power panels. Easily adjustable settings and step-by-step LED indication allow quick configuration and monitoring, enabling users to optimize their system's performance seamlessly.

User-Friendly Design and Robust Protection

Built for ease-of-use, the APFC relay features a clear digital LED display, straightforward screw terminal connections, and a durable flame retardant enclosure. Its IP20 protection, adjustable hysteresis, and multi-alarm system for over/under voltage or overload ensure safe operation under challenging industrial conditions. Firmware can be updated upon request, keeping the device evolving with your changing requirements.

FAQ's of PENTACON APFC Relay:

Q: How does the PENTACON APFC Relay improve the efficiency of a power factor correction panel?

A: The APFC Relay continuously monitors system parameters with true RMS measurement and automatically switches capacitance steps via its 12-step relay control to optimize the power factor. This reduces reactive power losses, lowers energy consumption, and safeguards electrical equipment.

Q: What is the process for programming and operating the relay's settings?

A: Settings such as hysteresis and step parameters can be easily programmed via the user-accessible interface and LED digital display. The relay supports both auto and manual operation, allowing flexibility during initial setup or when adapting to system changes.

Q: Where can the PENTACON APFC Relay be installed and what panel cutout is required?

A: This relay is designed for standard panel mount installations, requiring a panel cutout size of 112 x 92 mm. Its rectangular, compact body fits securely, making it suitable for new installations or upgrades in industrial control panels.

Q: What are the key benefits of using true RMS measurement and microcontroller control?

A: True RMS measurement delivers precise readings regardless of waveform distortions, while microcontroller-based control ensures accurate, rapid responses and resists false triggers. Together, these features enhance system reliability and accuracy in dynamic load environments.

Q: When should the alarm outputs be expected to activate?

A: Alarm outputs will trigger in cases of over or under voltage and in the event of overloads. These alarms help operators take swift action to protect equipment and maintain stable operations.

Q: How can firmware be updated or upgraded?

A: Firmware updates are available upon request from the manufacturer or authorized distributor. This ensures the device can adapt to new features or bug fixes without replacing hardware.

Q: What is the recommended operating environment for reliable performance?

A: The relay functions optimally within an operating temperature range of -10C to 55C and humidity levels up to 95% RH (non-condensing). The IP20-rated enclosure offers basic protection against dust and accidental contact in controlled environments.
