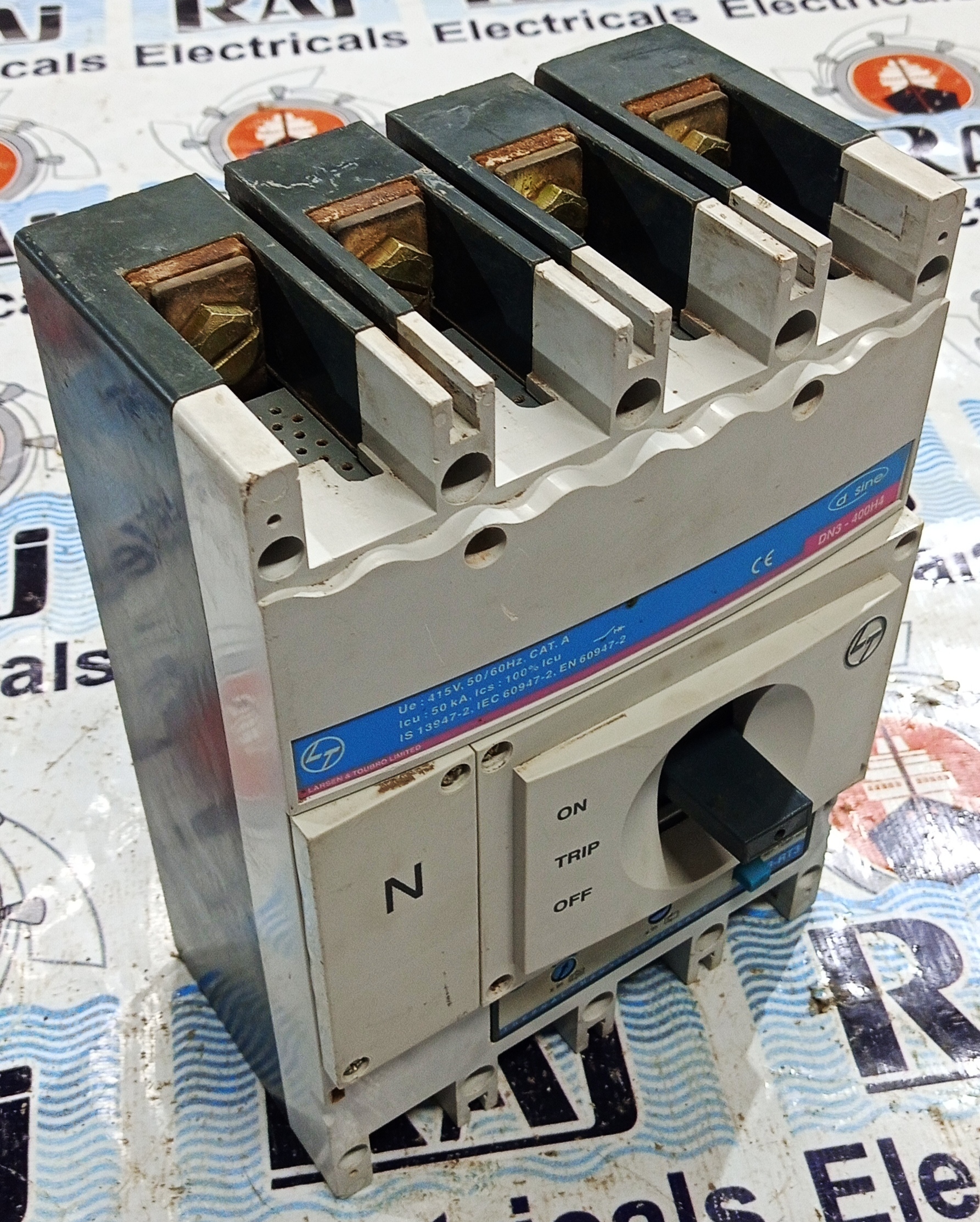

LT (D SINE - WHITE MODEL) 400A 4P MCCB

Get a Price/Quote

MOQ : 1 Number

LT (D SINE - WHITE MODEL) 400A 4P MCCB Specification

Phase
Three Phase

Mechanical Life
10,000 Operations

Breaking Capacity
36 kA

Rated Short Circuit Breaking Current
36 kA at 415V AC

Rated Short Circuit Making Current
72 kA (Peak)

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Fixed or Plug-in Mounting

Function
Protection Against Overload and Short Circuit

Poles Number
4 Pole (4P)

Rated Voltage
415V AC

Rated Current
400A

Rated Frequency
50/60 Hz

Curves
D SINE Curve

Temperature Protection
Thermal and Magnetic Trip Unit

Weight
Approx. 6.5 kg

Color
White

Reference Standard
IS/IEC 60947-2

Trip Unit Type
Fixed Thermal & Magnetic

Operating Temperature Range
-5°C to +50°C

Mounting Orientation
Vertical/Horizontal

IP Rating
IP20 (Rear Terminals)

Auxiliary Contacts
Optional

Frame Size
400A

Type
Manual Reset

Connection

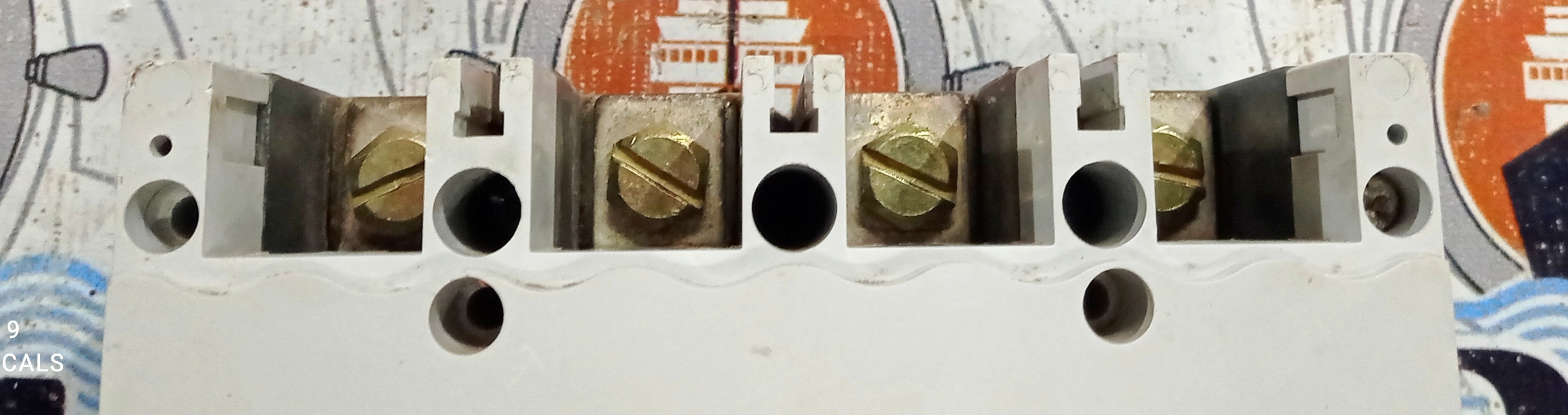

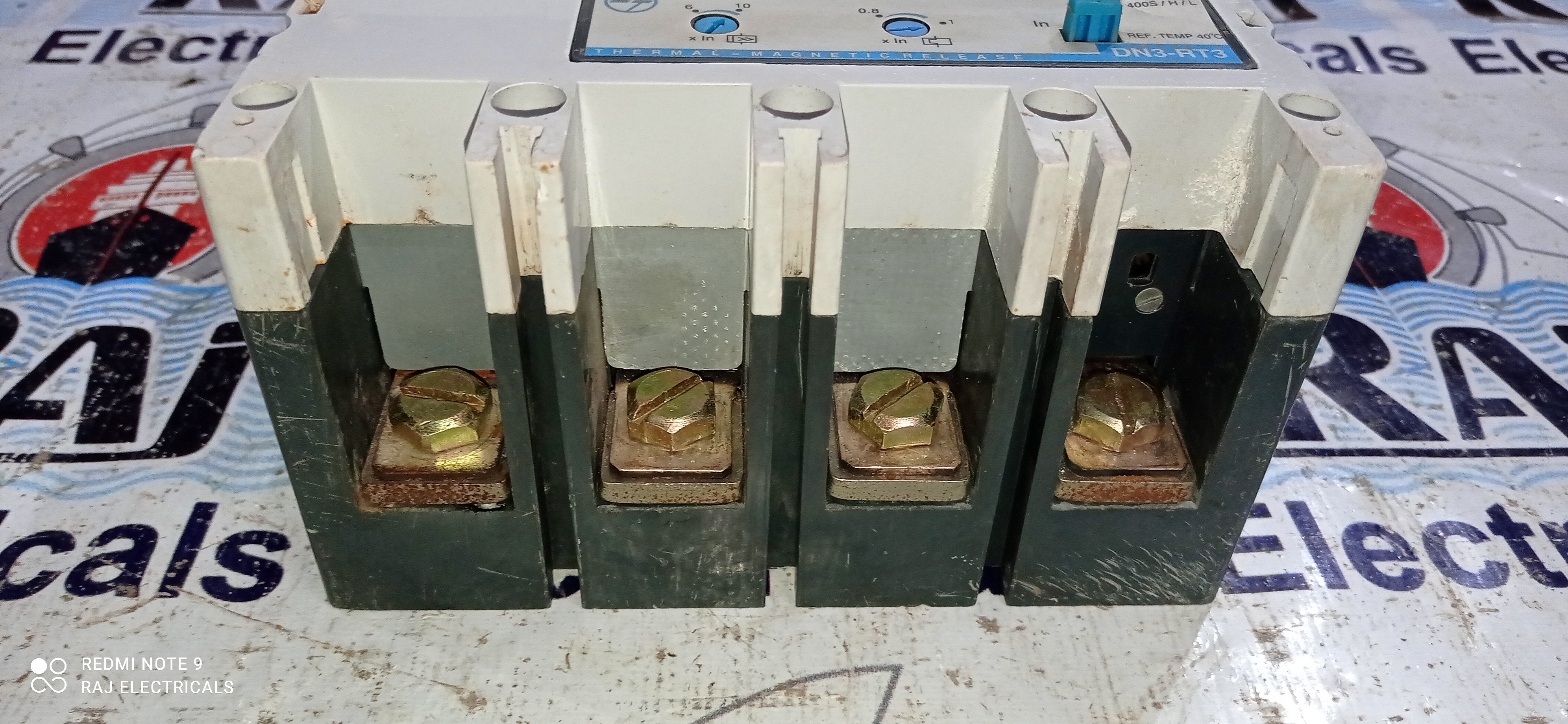

Bolt-on Terminals

LT (D SINE - WHITE MODEL) 400A 4P MCCB Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About LT (D SINE - WHITE MODEL) 400A 4P MCCB

Raj Electricals Offering L&T 400A 4P (White Model) At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Type :- Moulded Case Circuit Breaker

Brand :- L&T

Ampere :- 400A

Number Of Pole :- 4

Model Number :- d sine (DN3-400H4) White Model

Breaking Capacity :- 50 kA

Voltage :- 415 V

Frequency :- 50 Hz

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com

Email: raj_electricals@hotmail.com

Advanced Protection and High Performance

Rely on the LT (D SINE - WHITE MODEL) 400A 4P MCCB for uninterrupted electrical safety. Engineered with D SINE curve characteristics, this breaker is ideal for applications requiring precise overload and short-circuit protection. Its durable design, with a mechanical life of 10,000 operations, suits demanding industrial and commercial environments alike.

Flexible Installation and Versatile Use

Thanks to its compatibility with both vertical and horizontal mounting, as well as options for fixed or plug-in installation, this MCCB ensures convenient integration into varied panel designs. The bolt-on terminals simplify the connection, while optional auxiliary contacts provide adaptability for remote monitoring or control.

FAQ's of LT (D SINE - WHITE MODEL) 400A 4P MCCB:

Q: How does the LT (D SINE - WHITE MODEL) 400A 4P MCCB protect electrical systems?

A: This MCCB uses a fixed thermal and magnetic trip unit that automatically disconnects the circuit when it detects overloads or short circuits. Its 36 kA breaking capacity ensures that even severe faults are safely interrupted to safeguard your equipment and minimize downtime.

Q: What installation orientations are supported for this MCCB?

A: The unit permits both vertical and horizontal mounting, making it versatile for a range of distribution board layouts and configurations.

Q: When should I use the D SINE curve model?

A: The D SINE curve is recommended for applications with high inrush currents, like motors or transformer circuits, as it offers greater tolerance before tripping on short-duration high surges while still providing reliable short-circuit protection.

Q: Where is the LT 400A 4P MCCB typically installed?

A: It is widely installed in three-phase industrial and commercial electrical panels where consistent overload and short-circuit protection is essential, particularly within the rated voltage of 415V AC and frequency of 50/60 Hz.

Q: What is the process for resetting the MCCB after a trip?

A: The breaker features a manual reset mechanism. Once the fault is cleared and the trip cause addressed, simply switch the handle to the 'off' position and then to 'on' to restore operation.

Q: How can optional auxiliary contacts enhance usage?

A: Auxiliary contacts can be added to enable remote signaling or interlock with other systems, offering greater operational flexibility and monitoring capabilities within automated or networked environments.

Q: What benefits does the 400A 4P MCCB offer in demanding applications?

A: Offering solid reliability, a high breaking capacity, long mechanical life, and flexible installation options, this MCCB delivers dependable protection and ensures operational continuity even in intensive or high-load settings.
