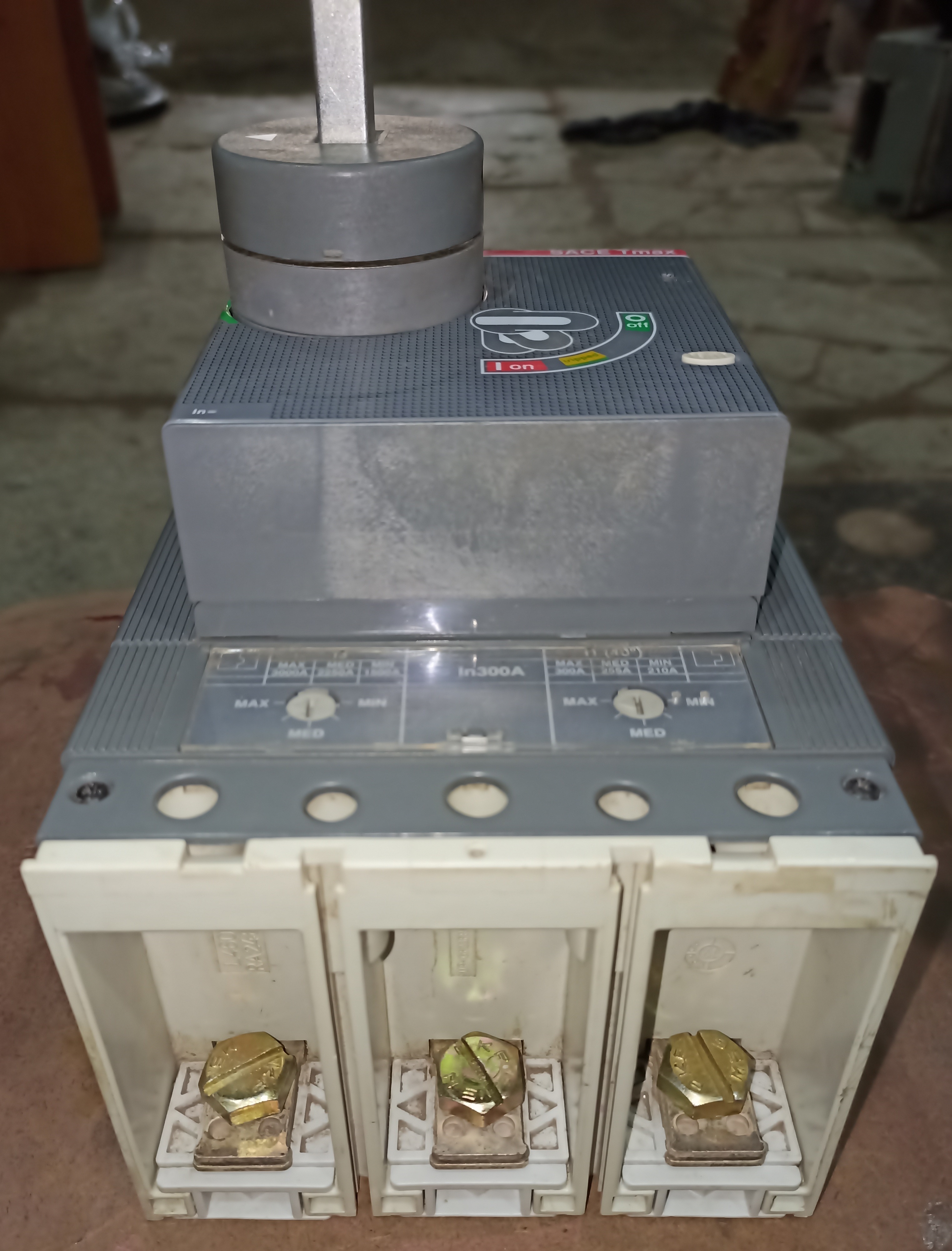

ABB SACE TMAX 300A 3P MCCB

Get a Price/Quote

MOQ : 3 Pieces

ABB SACE TMAX 300A 3P MCCB Specification

Rated Short Circuit Making Current
70 kA

Rated Short Circuit Breaking Current
35 kA

Mechanical Life
20,000 Operations

Phase
Three Phase

Breaking Capacity
35 kA @ 415V AC

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Fixed, Plug-in, Draw-out

Function
Protection Against Overload and Short Circuit

Poles Number
3 Pole

Rated Voltage
690V AC

Rated Current
300A

Rated Frequency
50/60 Hz

Curves
Adjustable Thermal & Fixed Magnetic

Temperature Protection
Built-in Thermal Release

Weight
Approx. 4.2 kg

Color
Grey / Black

Mounting Orientation
Vertical / Horizontal

Auxiliary Contacts Option
Available as Accessory

Suitable for Isolation
Yes

Environmental Temperature Range
-25C to +70C

Series
TMAX (T4 Series)

Terminal Type
Screw / Bolt connection

Electrical Life
10,000 Operations

Protection Degree
IP20

Trip Unit
Thermal Magnetic (TMD)

Interruption Type
High-breaking capacity

ABB SACE TMAX 300A 3P MCCB Trade Information

Minimum Order Quantity
3 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ABB SACE TMAX 300A 3P MCCB

ABB SACE TMAX 300A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- ABB

Ampere :- 300A

Pole :- 3P

Model :- SACE TMAX

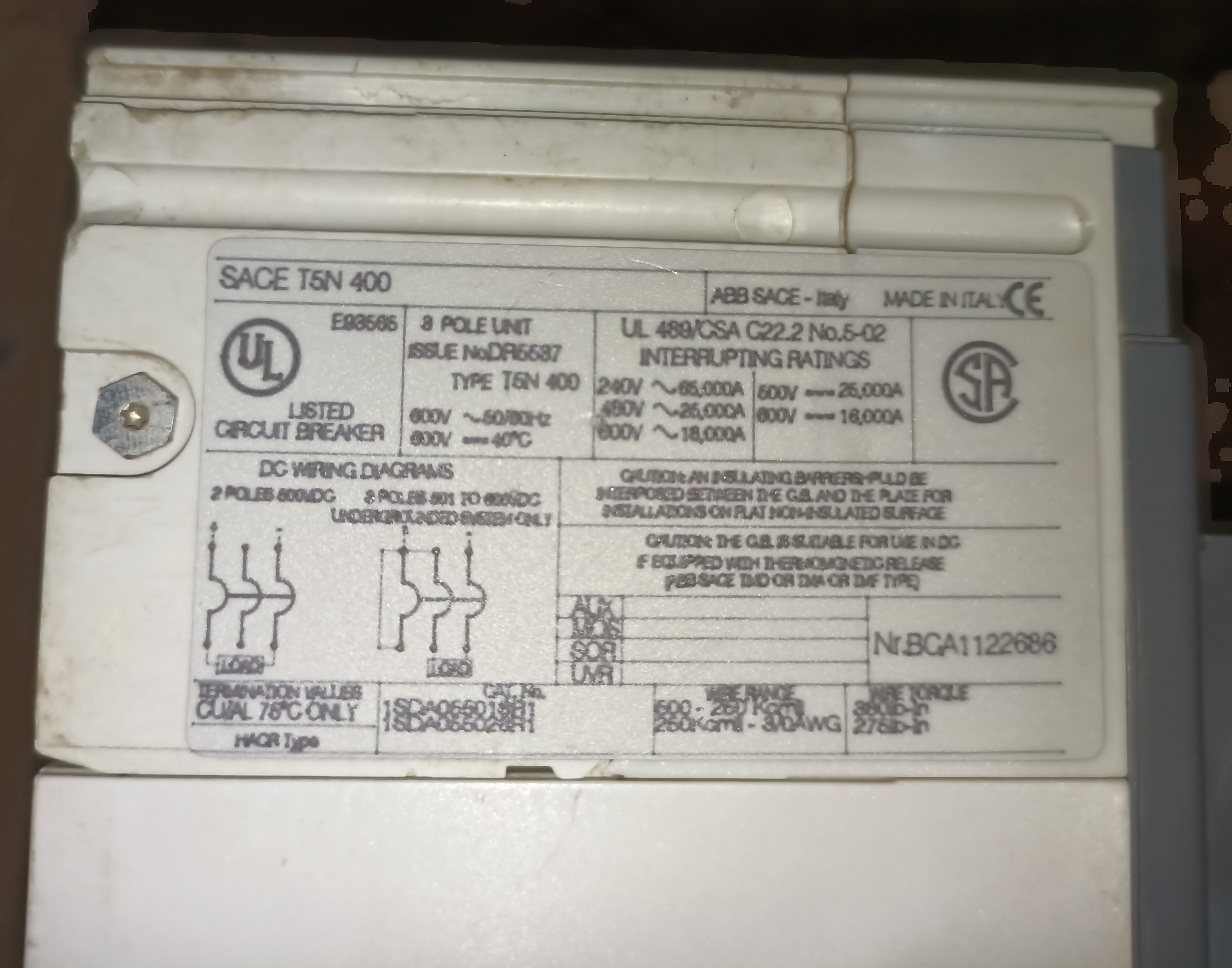

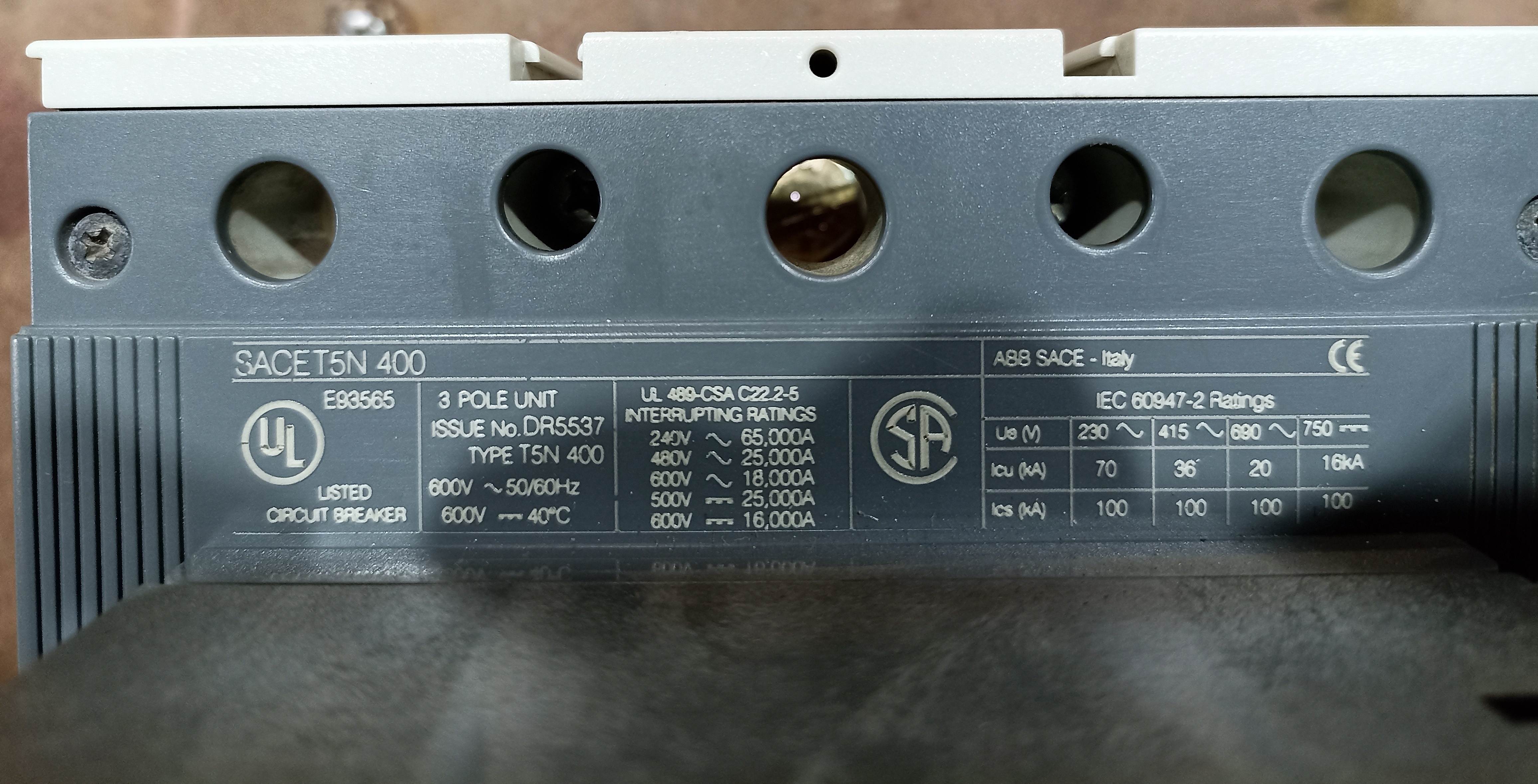

Model Number :- SACE T5N 400

Condition :- Refurbished

Breaking Capacity :- 36 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Exceptional Electrical and Mechanical Performance

The ABB SACE TMAX 300A 3P MCCB boasts an impressive electrical life of up to 10,000 operations and a mechanical life of 20,000 operations. Its high-breaking capacity and built-in thermal release ensure robust and consistent circuit protection for a wide range of applications, making it a dependable solution for demanding environments.

Versatile Installation and Connectivity Options

This MCCB supports various installation configurations-fixed, plug-in, or draw-out-catering to diverse project requirements. Its screw/bolt terminal connections provide secure and reliable wiring. The device is suitable for both vertical and horizontal mounting, adding flexibility to panel design and retrofit projects.

Advanced Safety and Adaptability

Equipped with an IP20 protection degree, the TMAX 300A MCCB safeguards personnel and equipment from accidental contact. Its adjustable thermal and fixed magnetic trip settings allow for fine-tuned protection against overloads and short circuits, while auxiliary contacts and suitability for isolation enhance operational convenience and safety.

FAQ's of ABB SACE TMAX 300A 3P MCCB:

Q: How does the ABB SACE TMAX 300A 3P MCCB enhance protection in electrical systems?

A: This MCCB is equipped with a thermal magnetic (TMD) trip unit and an adjustable thermal & fixed magnetic curve. It provides robust protection against both overloads and short circuits, enabling high reliability in safeguarding equipment and personnel.

Q: What installation options are available for this MCCB, and where can it be used?

A: The TMAX 300A 3P MCCB supports fixed, plug-in, and draw-out mounting configurations, making it suitable for a wide variety of electrical panels in industrial and commercial facilities. It can be mounted vertically or horizontally for flexible installation.

Q: When is it appropriate to use the auxiliary contacts accessory with this MCCB?

A: Auxiliary contacts are available as an accessory and can be used when signaling, remote indication, or interlocking functions are required in the control circuit, enhancing operational monitoring and automation.

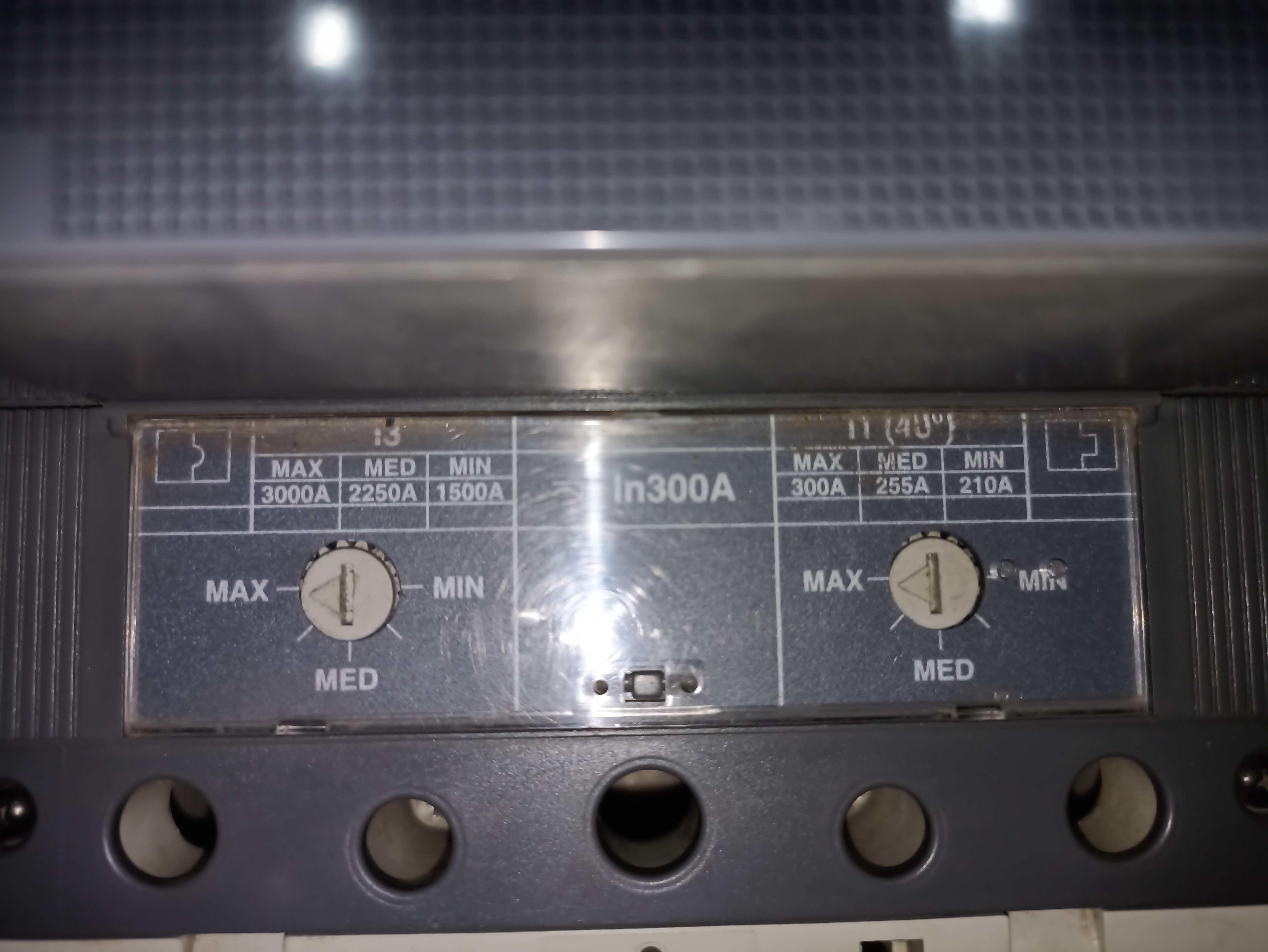

Q: What is the process for adjusting the thermal trip settings on this breaker?

A: The MCCB features adjustable thermal trip settings. Adjustments can be made according to the application's specific current requirements by referencing the device's front panel or user manual to ensure optimal protection against overloads.

Q: How does the high-breaking capacity benefit my electrical system?

A: With a breaking capacity of 35 kA at 415V AC, the MCCB can safely interrupt high fault currents, minimizing damage to other equipment and reducing the risk of downtime during electrical faults.

Q: What environmental conditions is this MCCB suited for?

A: It operates reliably in a wide temperature range from -25C to +70C, making it ideal for various climatic conditions found in industrial or commercial installations across India.

Q: Where can this MCCB be sourced in India?

A: This MCCB is available through accredited exporters, manufacturers, suppliers, and traders throughout India, ensuring reliable sourcing for different project scales.
