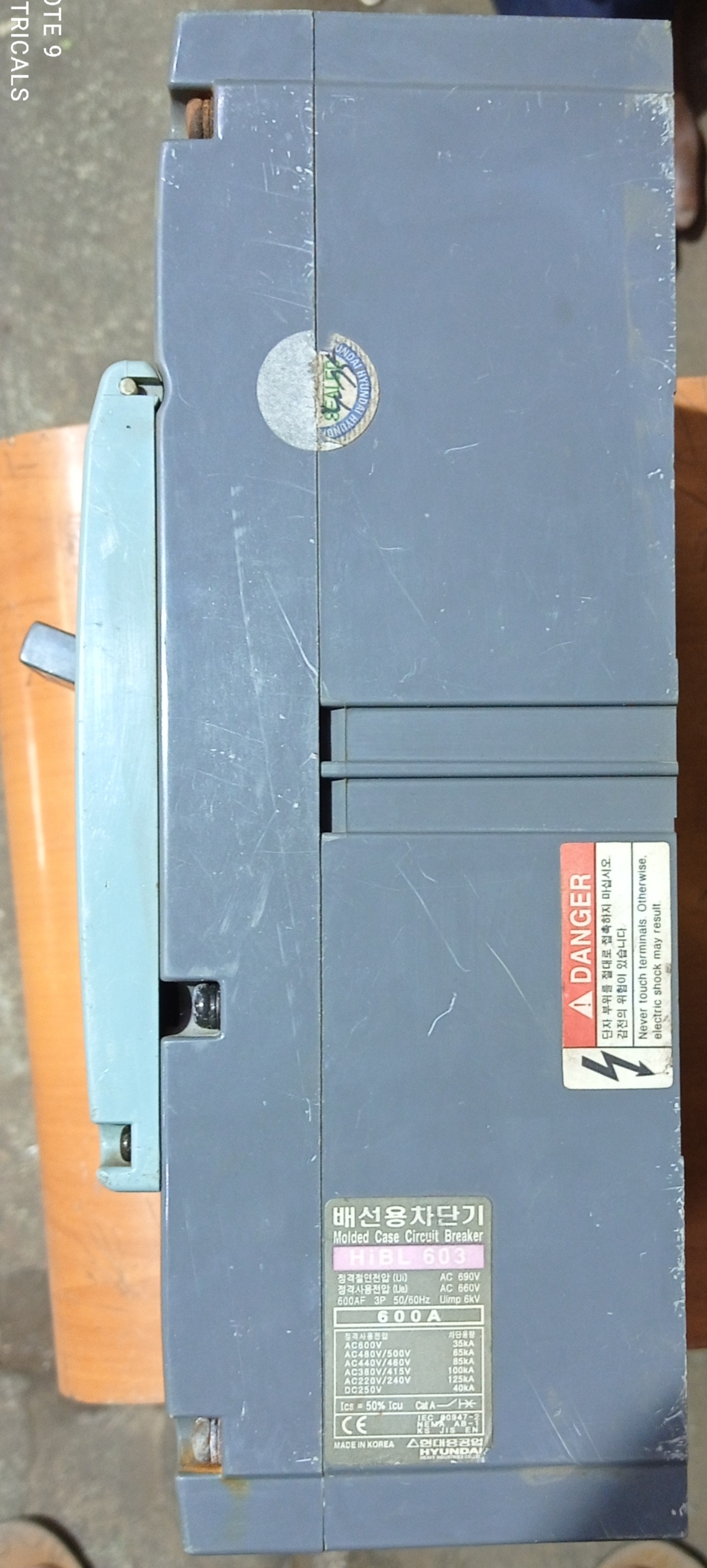

HYUNDAI 600A 3P MCCB

Get a Price/Quote

MOQ : 1 Number

HYUNDAI 600A 3P MCCB Specification

Mechanical Life
10,000 Operations

Rated Short Circuit Making Current
105 kA Peak

Breaking Capacity
50 kA

Rated Short Circuit Breaking Current
50 kA @ 415V AC

Phase
Three Phase

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Fixed Type, Panel Mounting

Function
Overload & Short Circuit Protection

Poles Number
3 Pole (3P)

Rated Voltage
AC 690V

Rated Current
600A

Rated Frequency
50/60 Hz

Curves
Type C (Standard)

Temperature Protection
Built-in Thermal/Magnetic Trip

Weight
Approx. 9.8 kg

Color
Grey/Black

Trip Unit
Thermal Magnetic

Service Voltage
690V AC Maximum

Frequency Endurance
6000 Electrical Operations

Protection Class
IP20

Frame Size
600AF

Mounting
Horizontal / Vertical

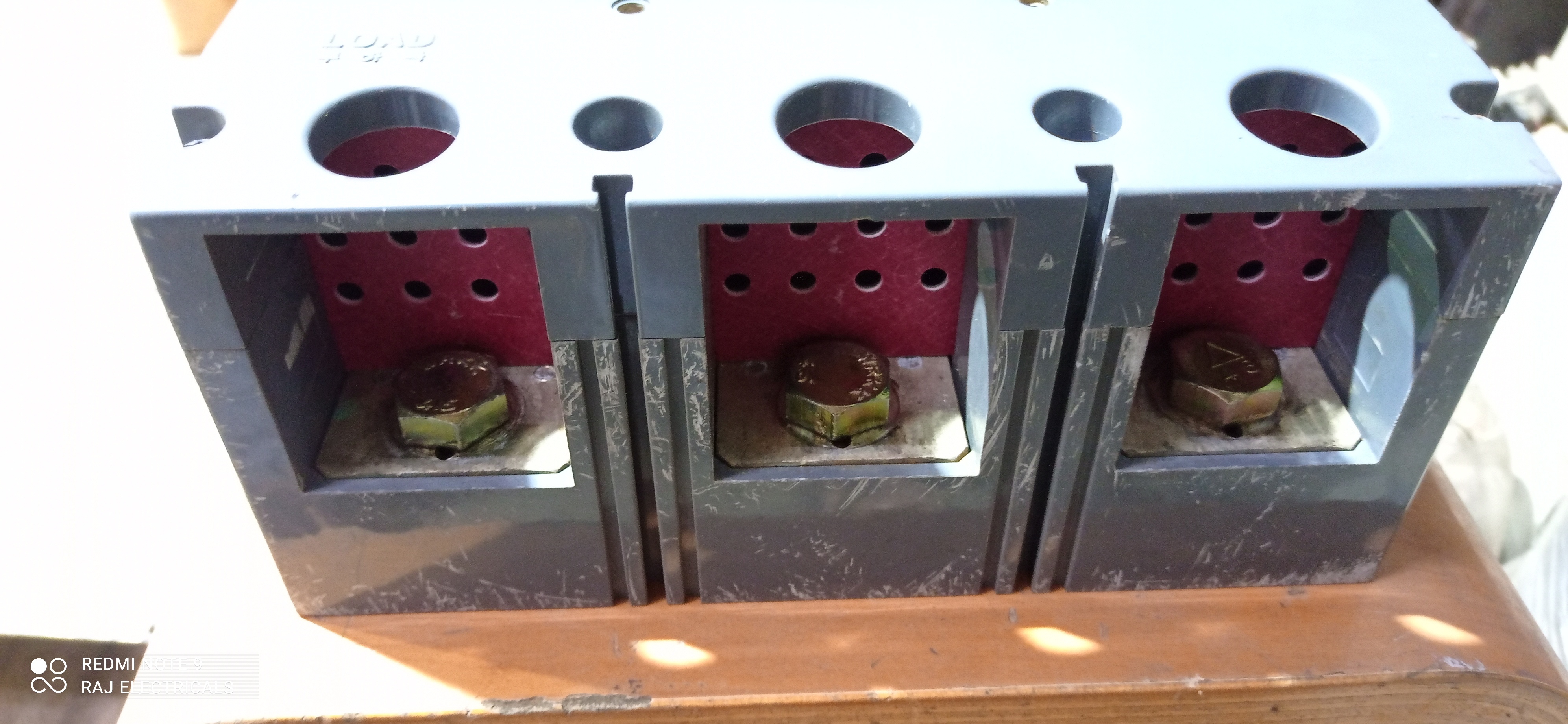

Terminal Type
Box Type Terminals

Ambient Temperature
-5°C to +40°C

Insulation Voltage
1000V AC

Operation Mode
Manual

Rated Impulse Withstand Voltage (Uimp)
8 kV

Surface Finish
Corrosion Resistant Paint

HYUNDAI 600A 3P MCCB Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About HYUNDAI 600A 3P MCCB

Raj Electricals Offering Hyundai 600A 3P Mccb At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Type :- Moulded Case Circuit Breaker

Make :- Hyundai

Ampere :- 600A

Number Of Pole :- 3P

Model Number :- HiBL 603

Current Voltage :- 440V AC

Frequency :- 50 Hz

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Exceptional Protection and Durability

Designed for reliability, the HYUNDAI 600A 3P MCCB offers comprehensive protection against overloads and short circuits. Boasting thermal magnetic trip technology and a rated short circuit breaking capacity of 50 kA, it ensures dependable operation in demanding applications. The corrosion-resistant paint and IP20 ingress protection further guarantee longevity and safety.

Flexible Installation and Mounting Options

This MCCB supports both horizontal and vertical mounting, making it adaptable for diverse panel configurations. Its fixed panel mounting and box-type terminals streamline installation, saving valuable time for engineers and electricians. Its compact footprint allows for ease of use in modern, space-constrained electrical cabinets.

Enhanced Performance and Endurance

Rated for 10,000 mechanical operations and 6,000 electrical cycles, the HYUNDAI MCCB is engineered for consistent performance over its service life. With a wide ambient operating temperature range (-5C to +40C) and high impulse withstand voltage (8 kV), it reliably supports continuous operation in various environments.

FAQ's of HYUNDAI 600A 3P MCCB:

Q: How does the HYUNDAI 600A 3P MCCB provide protection in electrical systems?

A: The HYUNDAI 600A 3P MCCB employs a thermal magnetic trip unit that detects both overloads and short circuits, rapidly disconnecting the circuit to prevent equipment damage and ensure operator safety.

Q: What are the mounting and installation options available for this MCCB?

A: The MCCB supports horizontal or vertical installation, fixed panel mounting, and uses box-type terminals for secure electrical connections, making it adaptable to a wide variety of electrical panels and cabinet designs.

Q: When should I choose a 600A 3-pole MCCB for my installation?

A: A 600A 3-pole MCCB is ideal for three-phase systems requiring reliable protection for circuits with high current ratings, especially in industrial and large commercial buildings where robust safety and high breaking capacity (50 kA) are needed.

Q: Where can the HYUNDAI MCCB operate in terms of environmental conditions?

A: This MCCB operates reliably in environments with ambient temperatures between -5C and +40C, and its IP20-rated enclosure protects against accidental contact with live parts, suitable for indoor electrical panels.

Q: What is the process for resetting the HYUNDAI 600A MCCB after a trip?

A: To reset the breaker, first ensure the source of overload or fault has been addressed, then manually return the operating handle to the ON position. This restores protection while maintaining system integrity.

Q: What are the benefits of the box-type terminal and corrosion resistant surface finish?

A: Box-type terminals facilitate secure connections and easier wiring, while the corrosion-resistant paint ensures a long operational life, even in harsh, industrial environments.

Q: How does the high breaking capacity improve the safety of my electrical system?

A: With a 50 kA breaking capacity at 415V AC, the MCCB can safely interrupt substantial fault currents, minimizing the risk of fire, equipment damage, or extended downtime during short circuit events.
