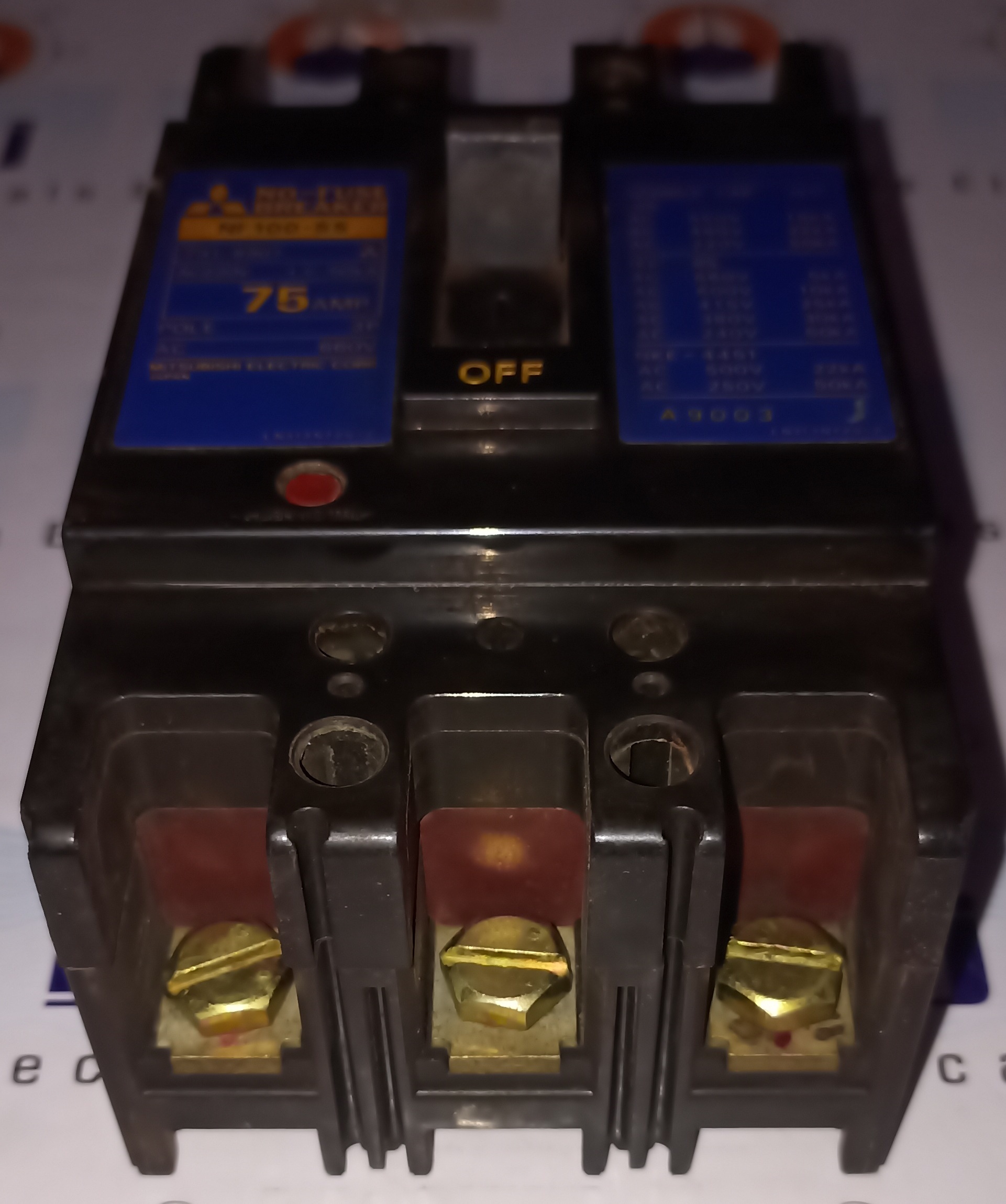

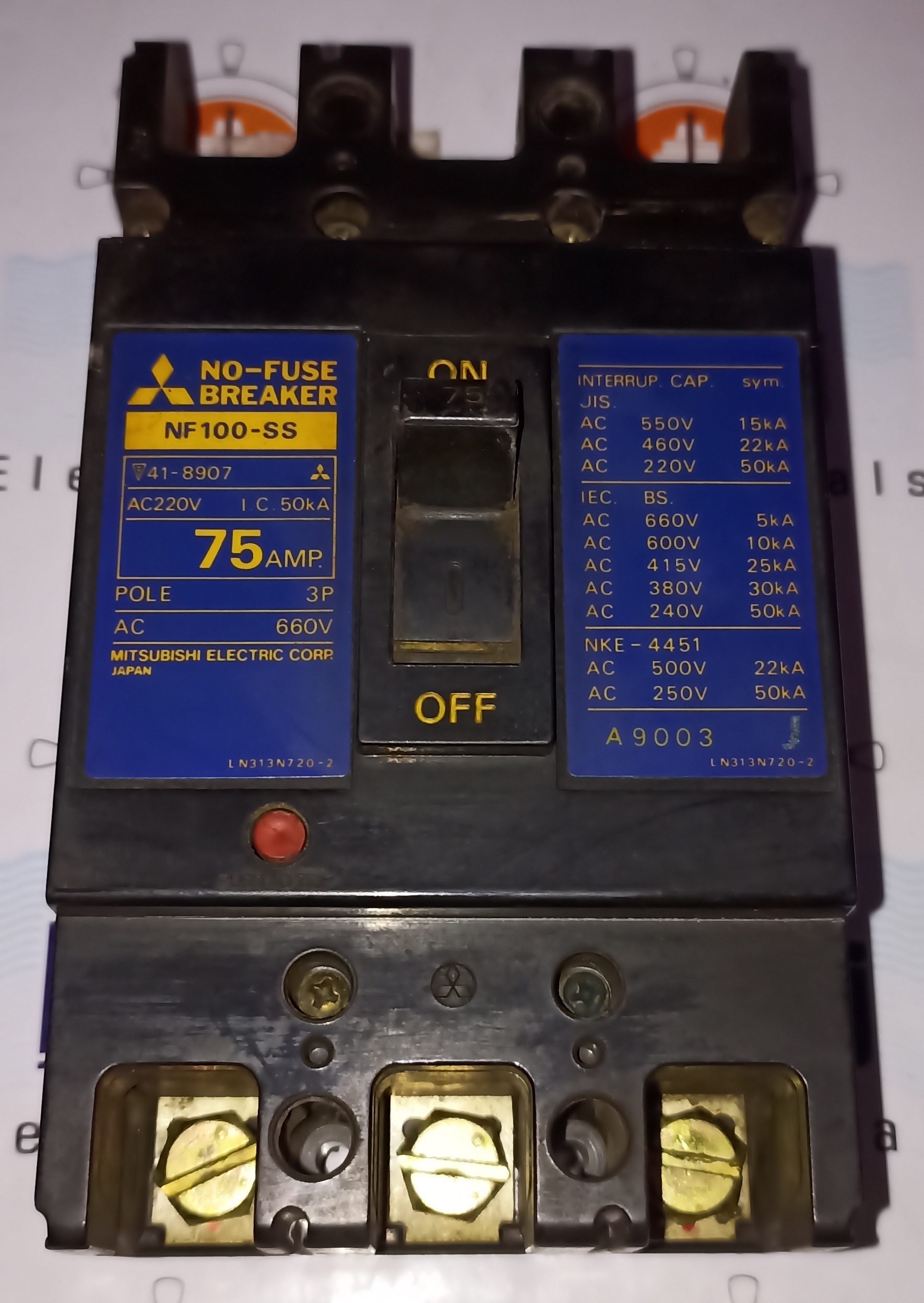

MITSUBISHI (NF100-SS) 75A 3P MCCB

Name: MITSUBISHI (NF100-SS) 75A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

MITSUBISHI (NF100-SS) 75A 3P MCCB Specification

Phase
Three Phase

Rated Short Circuit Breaking Current
35 kA

Breaking Capacity
35 kA at 415V AC

Rated Short Circuit Making Current
105 kA (Based on IEC Standard)

Mechanical Life
10,000 operations min.

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting

Function
Circuit Protection, Overload and Short Circuit Protection

Poles Number
3 Poles

Rated Voltage
AC 415V

Rated Current
75A

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
Yes (Ambient Temperature Compensation)

Weight
Approx. 1.35 kg

Color
Grey & Black

Terminal Type
Screw Terminal

Utilization Category
A

Electrical Life
2,000 operations min.

Operating Temperature Range
-5C to +40C

Altitude
Up to 2000 m

Standards
IEC 60947-2

Trip Type
Thermal-Magnetic

Model
NF100-SS

Insulation Voltage (Ui)
690V AC

Protection Degree
IP20 (from front)

Control Type
Manual

Rated Impulse Withstand Voltage (Uimp)
8kV

MITSUBISHI (NF100-SS) 75A 3P MCCB Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About MITSUBISHI (NF100-SS) 75A 3P MCCB

MITSUBISHI (NF100-SS) 75A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- MITSUBISHI

Ampere :- 75A

Pole :- 3P

Model :- NF100-SS

Condition :- Refurbished

Breaking Capacity :- 50 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Robust Circuit Protection Designed for Demanding Environments

The NF100-SS MCCB is crafted with advanced thermal-magnetic trip mechanisms to ensure both overload and short circuit protection. Its ambient temperature compensation technology guarantees consistent performance throughout a broad temperature range, making it suitable for varied climates and challenging installation conditions.

Flexible Installation and Prolonged Operational Life

With panel mounting options and a tough build, this MCCB delivers ease of integration in diverse setups. The product is engineered for long-term use-boasting a minimum electrical life of 2,000 operations and a mechanical life of over 10,000 operations-thus ensuring longevity and cost-effectiveness for business applications.

FAQ's of MITSUBISHI (NF100-SS) 75A 3P MCCB:

Q: How is the MITSUBISHI NF100-SS 75A 3P MCCB typically installed?

A: This MCCB is designed for panel mounting using screw terminals, making it suitable for secure and straightforward installation in industrial or commercial switchboards.

Q: What are the main benefits of using the NF100-SS MCCB in electrical systems?

A: The NF100-SS offers reliable overload and short circuit protection, high breaking capacity (35kA at 415V AC), and ambient temperature compensation, ensuring stable performance and safety under various operating conditions.

Q: Where can the NF100-SS MCCB be utilized most effectively?

A: It is well-suited for industrial, commercial, and infrastructure projects, particularly in environments requiring three-phase circuit protection with high reliability and adherence to IEC 60947-2 standards.

Q: When should I consider replacing the MCCB?

A: Replacement is advised upon reaching the minimum electrical (2,000 operations) or mechanical (10,000 operations) life thresholds, or if periodic inspection detects wear or compromised functionality.

Q: What is the process for resetting the MCCB after a trip event?

A: After addressing and resolving the fault (such as overload or short circuit), manually reset the breaker by switching it back to the ON position using the front-mounted control handle.

Q: How does the NF100-SS handle temperature variations during operation?

A: The device features ambient temperature compensation, allowing stable tripping performance even when environmental temperatures fluctuate between -5C and +40C.
