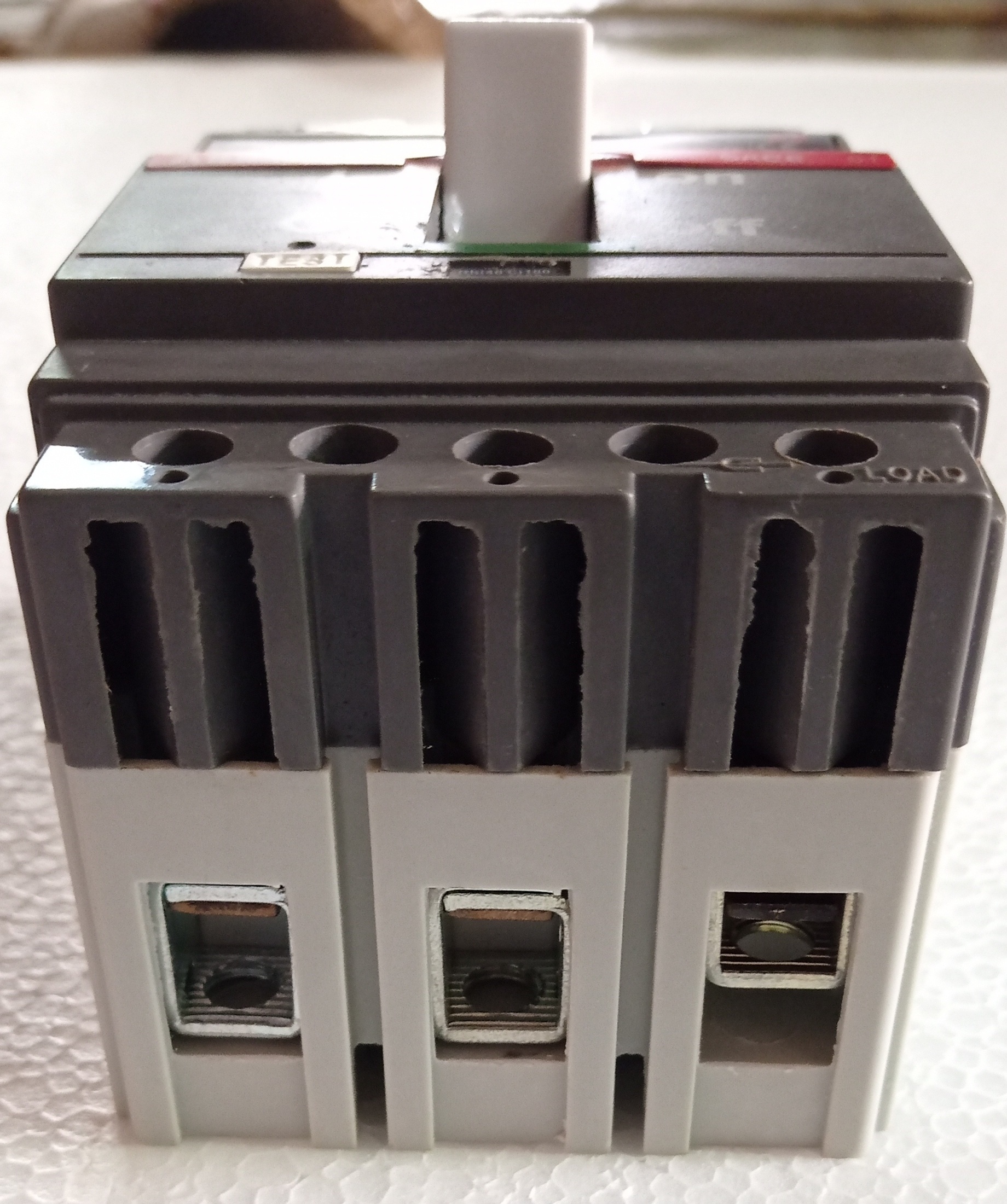

ABB NEW (SACE S1N) 100A 3P MCCB

Name: ABB NEW (SACE S1N) 100A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 10 Pieces

ABB NEW (SACE S1N) 100A 3P MCCB Specification

Rated Short Circuit Breaking Current
25kA at 415V AC

Rated Short Circuit Making Current
50kA

Mechanical Life
10,000 Operations

Breaking Capacity
25kA

Phase
Three Phase

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
DIN Rail / Panel Mounting

Function
Circuit Protection

Poles Number
3 Poles

Rated Voltage
415V AC

Rated Current
100A

Rated Frequency
50/60 Hz

Curves
Standard Thermal Magnetic

Temperature Protection
Integral Thermal Overload Protection

Weight
Approx. 1.3 kg

Color
Grey/Black

Impulse Withstand Voltage (Uimp)
6kV

Accessory Options
Shunt Trip, Aux Contacts, Undervoltage Release (optional)

Mounting Position
Any Position

Ambient Temperature Range
-25C to +70C

Electric Life
5,000 Operations

Standards
IEC 60947-2, IS/IEC 60947-2

Utilization Category
A

Terminal Connection
Screw Type

Enclosure Protection
IP20

Insulation Voltage (Ui)
690V

Trip Unit Type
Fixed Thermal Magnetic

ABB NEW (SACE S1N) 100A 3P MCCB Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ABB NEW (SACE S1N) 100A 3P MCCB

Raj Electricals Offering ABB NEW (SACE S1N) 100A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- ABB

Ampere :- 100A

Pole :- 3P

Model :- SACE S1N

Condition :- NEW

Breaking Capacity :- 25 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Comprehensive Circuit Protection

Engineered with fixed thermal magnetic trip units, the SACE S1N ensures solid protection against overloads and short circuits. Equipped with an integral thermal overload safeguard, it maintains safe operation, enhancing facility reliability.

Versatile Installation & Accessories

The MCCB's ability to be installed in any mounting position-via panel or DIN rail-offers great flexibility during setup. Expand its capability with accessory options like shunt trip, auxiliary contacts, or undervoltage release for enhanced monitoring and control.

Built for Harsh Environments

Tested for operation within a wide ambient temperature range of -25C to +70C and protected to IP20 standards, the SACE S1N is dependable even in demanding industrial or outdoor environments.

FAQ's of ABB NEW (SACE S1N) 100A 3P MCCB:

Q: How does the ABB SACE S1N MCCB provide circuit protection?

A: The ABB SACE S1N uses a fixed thermal magnetic trip unit, which enables it to disconnect circuits during overloads or short circuits, ensuring reliable protection for equipment and infrastructure.

Q: What installation options are available for this MCCB?

A: This MCCB supports both panel mounting and DIN rail installation, allowing for flexible integration into various electrical distribution systems.

Q: When should optional accessories like the shunt trip or undervoltage release be considered?

A: Accessories such as shunt trip or undervoltage release are recommended when remote disconnection or automatic tripping is required for safety or system integration with control panels.

Q: Where can the ABB SACE S1N be installed?

A: Thanks to its ability to operate in any mounting position and withstand temperatures from -25C to +70C, it can be installed in a wide range of industrial, commercial, or utility settings.

Q: What is the process for connecting cables to this MCCB?

A: The breaker features screw-type terminal connections, making the cable connection process straightforward using standard tools for secure and reliable attachment.

Q: What benefits does the integral thermal overload protection provide?

A: Integral thermal overload protection automatically interrupts power in case of excessive current, preventing equipment damage and increasing operational safety and reliability.
