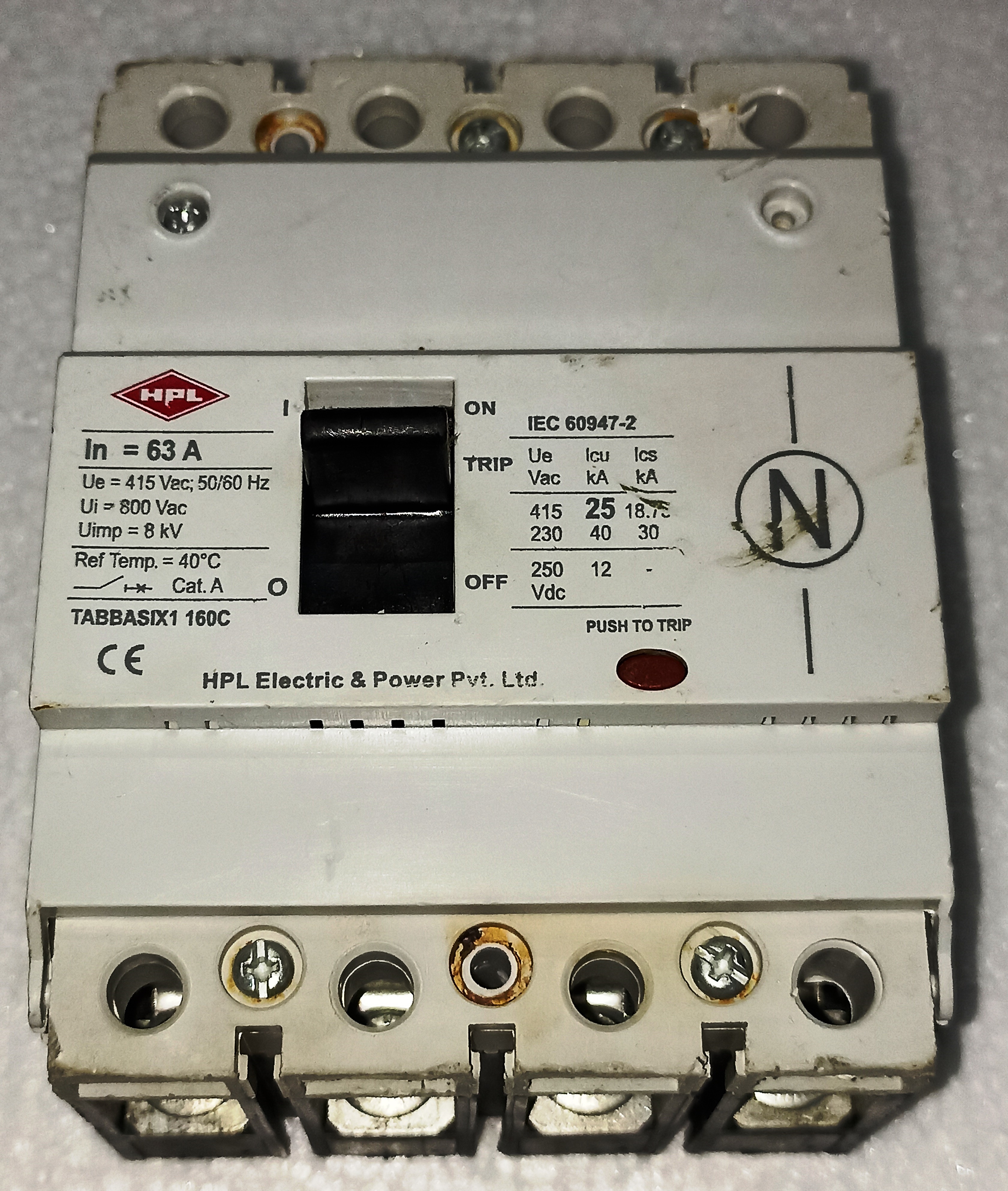

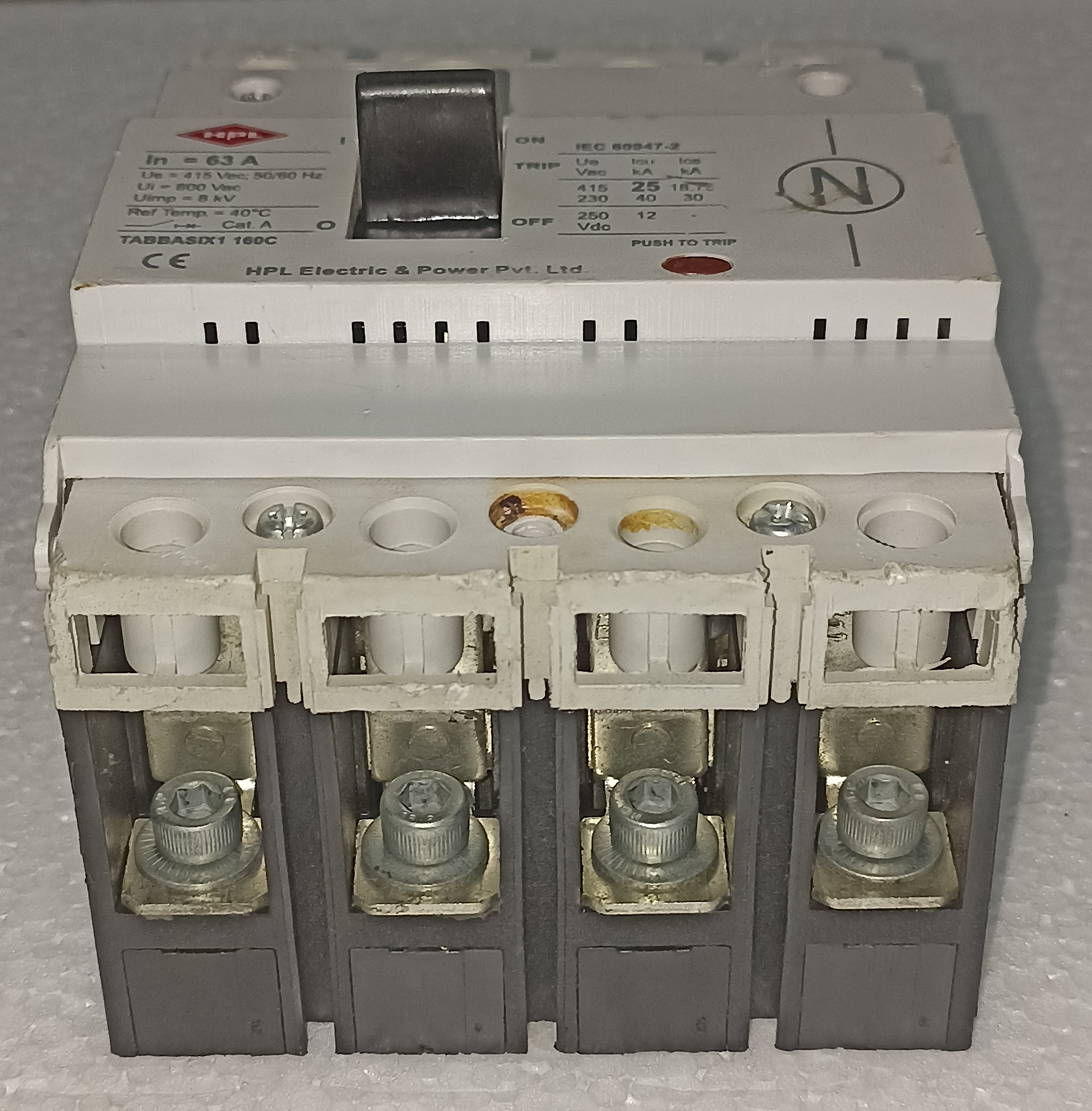

HPL 63A 4P MCCB

Name: HPL 63A 4P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

HPL 63A 4P MCCB Specification

Rated Short Circuit Making Current
30 kA

Rated Short Circuit Breaking Current
25 kA

Phase
Three Phase

Mechanical Life
10,000 Operations

Breaking Capacity
25 kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Suitable for DIN Rail and Panel Mounting

Function
Protection Against Overload and Short Circuit

Poles Number
4 Pole (4P)

Rated Voltage
415V AC

Rated Current
63A

Rated Frequency
50/60 Hz

Curves
C Curve (Standard)

Temperature Protection
Provided (Thermal-Magnetic Release)

Weight
Approx. 1.4 kg

Color
Grey & Black

Auxiliary Contacts
Optional

Rated Insulation Voltage (Ui)
690V

Frequency Tolerance
5%

Terminal Type
Box Type (Screw Terminal)

Trip Mechanism
Thermal-Magnetic

Storage Temperature
-25C to +70C

Contact Position Indicator
Yes

Operating Temperature
-5C to +55C

Degree of Protection
IP20 (Terminal), IP40 (Enclosure)

Standards Compliance
IS/IEC 60947-2

Frame Size
100A Frame

Ambient Temperature Compensation
Yes

Service Type
AC

Mounting Orientation
Vertical & Horizontal

HPL 63A 4P MCCB Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About HPL 63A 4P MCCB

HPL 63A 4P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- HPL

Ampere :- 63A

Pole :- 4 pole

Condition :- Refurbished

Breaking Capacity :- 25 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Comprehensive Electrical Protection

The HPL 63A 4P MCCB safeguards your electrical systems from overloads and short circuits using its thermal-magnetic trip mechanism. Its breaking and making capacities empower it to handle high fault currents, ensuring system integrity and personnel safety. IP-rated protection and robust materials allow it to perform reliably in demanding environments.

Flexible Installation Options

This MCCB offers versatile installation with support for both DIN rail and panel mounting. Its box type screw terminals and compact 100A frame size make connection and mounting straightforward, accommodating a range of distribution and control panels without requiring extensive modifications.

Compliant and Durable Design

Complying with IS/IEC 60947-2 standards, the HPL MCCB is engineered for performance and longevity, boasting a mechanical life of up to 10,000 operations. It operates effectively in an ambient range from -5C to +55C, with temperature compensation ensuring reliable tripping. The device's enclosure provides IP40 protection, supporting safe operation in varied environments.

FAQ's of HPL 63A 4P MCCB:

Q: How does the HPL 63A 4P MCCB provide overload and short circuit protection?

A: The MCCB employs a thermal-magnetic trip mechanism that detects excess current due to overload or short circuits. Upon detection, it automatically disconnects the circuit, preventing damage to connected equipment and reducing fire risks.

Q: What are the installation options for the HPL 63A 4P MCCB?

A: This MCCB can be installed both vertically and horizontally using DIN rail or panel mounting, providing flexibility for integration into different electrical systems and panels.

Q: Where can the HPL 63A 4P MCCB be used?

A: It is designed for three-phase systems in industrial, commercial, and infrastructure applications where reliable circuit protection is essential. Its robust features make it suitable for a wide range of distribution boards and control panels.

Q: What are the main benefits of choosing this MCCB?

A: Key advantages include high breaking capacity (25 kA), proven reliability, compliance with international standards, ambient temperature compensation, and versatile installation. These features maximize both user safety and electrical system stability.

Q: How does ambient temperature compensation enhance performance?

A: Ambient temperature compensation ensures the MCCB trips accurately across a wide temperature range, from -5C to +55C, providing reliable protection even in varying environmental conditions.
