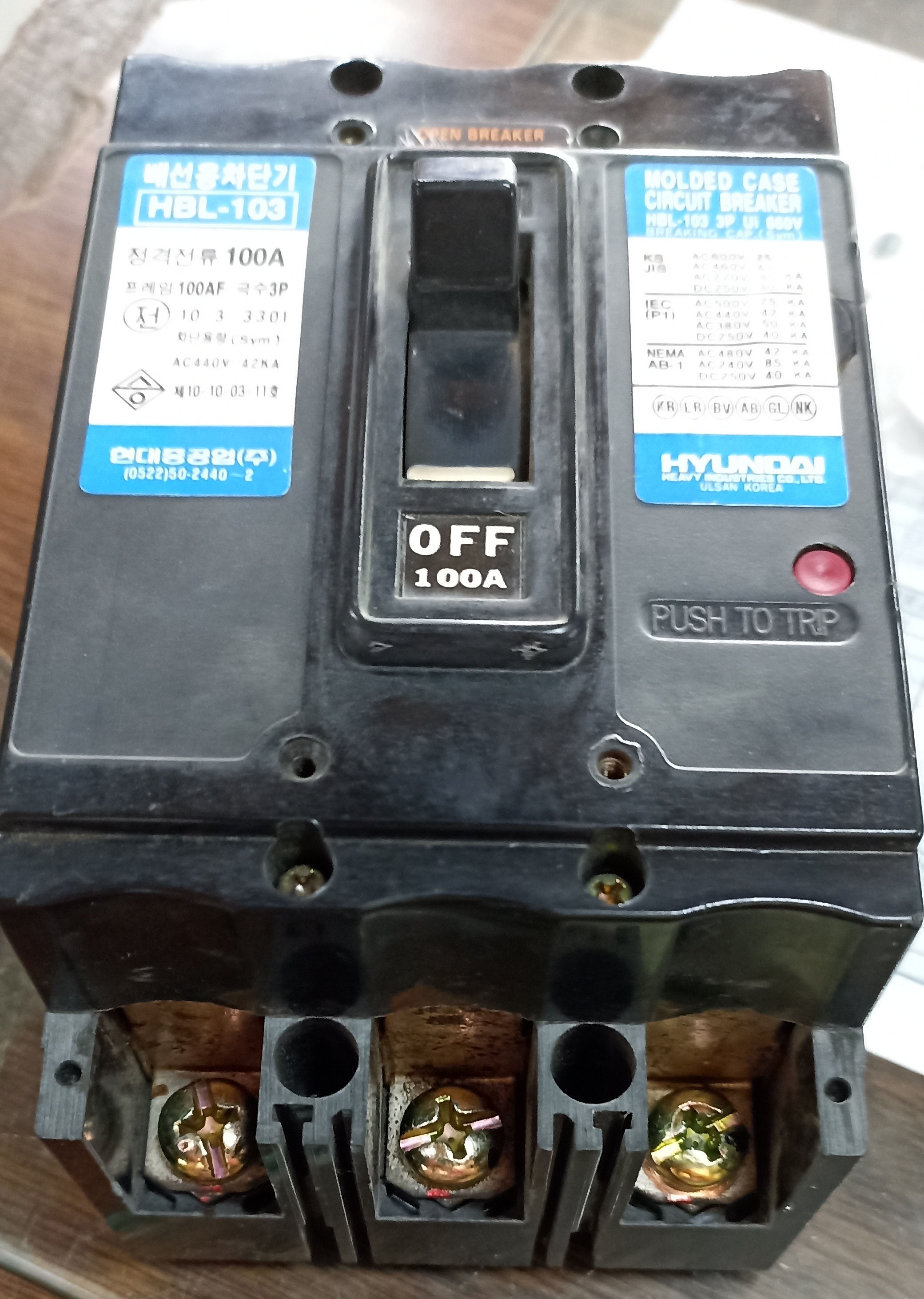

HYUNDAI 100A 3P MCCB

Get a Price/Quote

HYUNDAI 100A 3P MCCB Specification

Phase
Three Phase

Rated Short Circuit Making Current
Up to 35 kA

Mechanical Life
10,000 operations

Rated Short Circuit Breaking Current
25 kA

Breaking Capacity
25 kA

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting

Function
Circuit protection against overload and short circuit

Poles Number
3 Poles (3P)

Rated Voltage
415V AC

Rated Current
100A

Rated Frequency
50/60 Hz

Curves
C / D Curve (as per variant)

Temperature Protection
Yes

Weight
Approx. 1.7 kg

Color
Grey/Black

Utilization Category
AC-23

Trip Unit Type
Thermal Magnetic

Terminal Type
Box Type Terminals

Connection Type
Fixed

Insulation Voltage
690V AC

Operating Temperature
-5°C to 55°C

Contact Position Indicator
Yes

Protection Degree
IP20

HYUNDAI 100A 3P MCCB Trade Information

Minimum Order Quantity
10 Number

Payment Terms
Cheque, Telegraphic Transfer (T/T), Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Western Europe, Central America, North America, South America, Middle East, Eastern Europe, Asia, Australia, Africa

Main Domestic Market
All India

About HYUNDAI 100A 3P MCCB

HYUNDAI (HBL-103) 100A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Hyundai

Ampere :- 100A

Pole :- 3P

Model :- HBL-103

Condition :- Refurbished

Breaking Capacity :- 42 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Advanced Circuit Protection

Built with a reliable thermal magnetic trip unit, the HYUNDAI 100A 3P MCCB delivers exceptional safety by instantly disconnecting circuits in case of overload or short circuit events. The device supports both C and D trip curves, providing flexibility for diverse load requirements, and guaranteeing lasting electrical protection.

Robust Engineering for Industrial Use

Featuring IP20 degree protection and mechanical endurance rated for 10,000 operations, this MCCB is ideal for heavy-duty settings. Its grey/black design and sturdy construction make it resilient to frequent switching and harsh conditions, ensuring continuity and performance in panel-mounted installations.

Flexible Installation and Maintenance

This MCCB offers a straightforward panel mounting option and intuitive box-type terminals for hassle-free setup. The contact position indicator aids in fast system diagnostics and safer maintenance routines, minimizing downtime and supporting operational efficiency in three-phase infrastructures.

FAQ's of HYUNDAI 100A 3P MCCB:

Q: How does the HYUNDAI 100A 3P MCCB operate to protect electrical circuits?

A: The HYUNDAI 100A 3P MCCB utilizes a thermal magnetic trip unit to sense overloads and short circuits. If abnormal conditions are detected, it quickly disconnects the circuit, preventing equipment damage and fire hazards.

Q: What types of applications is this MCCB suitable for?

A: This MCCB is designed for three-phase commercial and industrial applications that require reliable protection, such as switchboards, motor feeders, and panel boards-especially where high breaking capacity and robust protection are critical.

Q: When should the MCCB be installed in an electrical system?

A: The HYUNDAI 100A 3P MCCB should be installed when electrical circuits require protection against overload and short-circuit conditions, or when upgrading old protection devices to improve safety and compliance with modern standards.

Q: Where can this MCCB be mounted and installed?

A: It is suited for panel mounting in electrical enclosures or switchboards. Its compact, fixed-type design allows it to fit seamlessly into industrial control panels and distribution boards.

Q: What is the process for resetting the MCCB after it trips?

A: After a trip due to overload or short circuit, ensure the fault is cleared. Then, move the contact position indicator to the 'off' position and firmly switch the MCCB back 'on' to resume operation.

Q: What benefits does the IP20 protection rating offer?

A: IP20 ensures protection against solid foreign objects over 12.5 mm, providing a safe barrier against accidental contact while not being fully waterproof, making it suitable for indoor environments.
