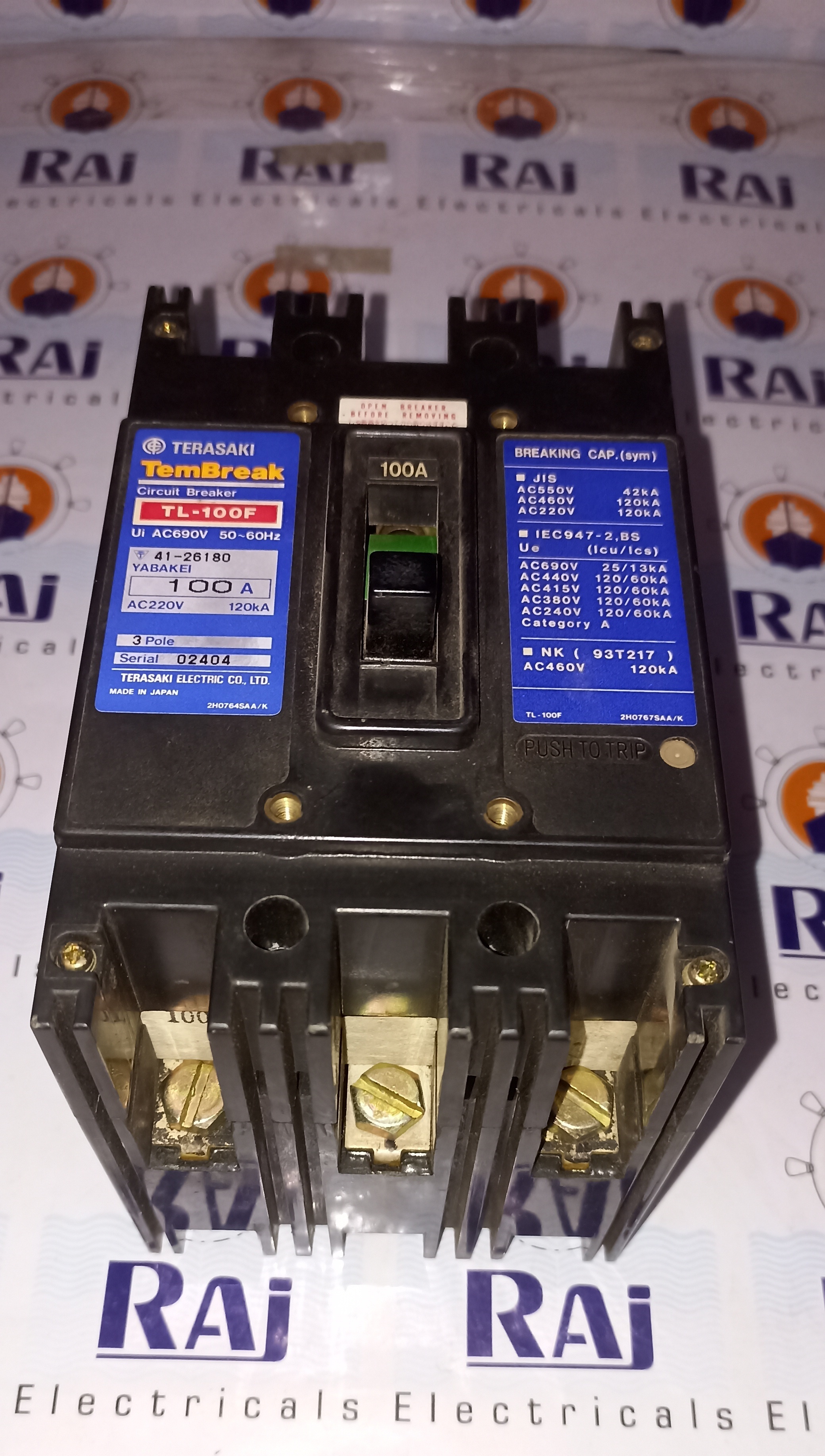

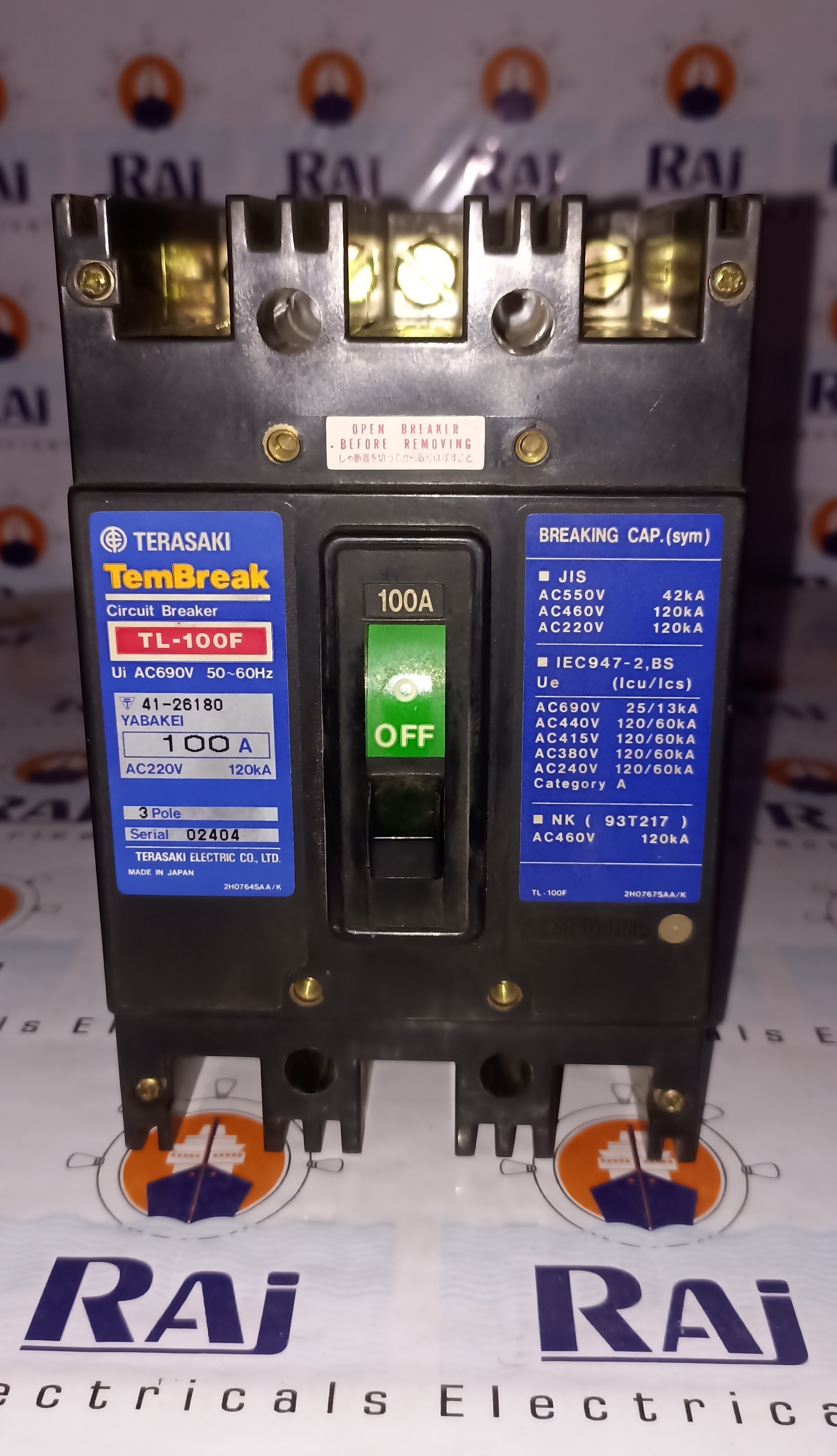

TERASAKI (TL-100F) 100A 3P MCCB

Name: TERASAKI (TL-100F) 100A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 3 Pieces

TERASAKI (TL-100F) 100A 3P MCCB Specification

Mechanical Life
10,000 operations

Rated Short Circuit Breaking Current
36 kA

Phase
Three Phase

Breaking Capacity
36 kA

Rated Short Circuit Making Current
36 kA

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting

Function
Overcurrent Protection, Short Circuit Protection

Poles Number
3 Poles

Rated Voltage
415V AC

Rated Current
100A

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
Integrated thermal-magnetic trip unit

Weight
Approx. 1.2 kg

Color
Grey

Adjustment Range of Thermal Release
0.8~1.0 In

Frame Size
TL-100F

Degree of Protection
IP20

Operating Temperature Range
-5C to +40C

Dimension (H x W x D)
Approx. 150mm x 105mm x 60mm

Auxiliary Contacts Option
Available (optional)

Terminal Type
Screw type terminals

Trip Unit Type
Thermal Magnetic

TERASAKI (TL-100F) 100A 3P MCCB Trade Information

Minimum Order Quantity
3 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About TERASAKI (TL-100F) 100A 3P MCCB

Terasaki (TL-100F) 100A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Terasaki

Ampere :- 100A

Pole :- 3P

Model :- TL-100F

Condition :- Refurbished

Breaking Capacity :- 60 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Reliable Protection and Performance

The TL-100F MCCB delivers steadfast circuit protection with both thermal and magnetic trip mechanisms. Its impressive breaking capacity of 36kA ensures safe disconnection during fault conditions, while the adjustable thermal release allows tailored protection according to system requirements. The device withstands up to 10,000 mechanical operations, making it a lasting protection solution for critical electrical installations.

Flexible Installation and Integration

This MCCB is designed with panel mounting in mind, and its compact dimensions facilitate easy integration into a variety of switchboards. The screw-type terminals ensure secure connections, and the optional auxiliary contacts support enhanced monitoring or control needs. With an IP20 protection rating, it is well-suited for indoor industrial environments.

FAQ's of TERASAKI (TL-100F) 100A 3P MCCB:

Q: How is the TERASAKI TL-100F MCCB installed in an electrical system?

A: The TL-100F MCCB is intended for panel mounting using its designated fitting points. Electricians should connect cables through the screw-type terminals and ensure the unit is securely fixed, following all standard electrical safety procedures.

Q: What applications benefit most from using the TL-100F 100A 3P MCCB?

A: This MCCB is ideal for industrial and commercial settings requiring reliable three-phase protection up to 100A, such as distribution boards, control panels, and machinery circuits, thanks to its robust overcurrent and short circuit protection.

Q: When should the thermal release adjustment range be set on the MCCB?

A: Adjustment of the thermal release (between 0.8 to 1.0 times the rated current) should be made during installation or system commissioning, based on the specific protection requirements of the connected load or system segment.

Q: Where can I use the TL-100F MCCB considering environmental conditions?

A: The breaker can be used in environments where the temperature is maintained between -5C and +40C and where an IP20 degree of protection suffices, typically indoors within industrial or commercial switchboards.

Q: What process activates the MCCB's trip unit in the event of a fault?

A: The integrated thermal-magnetic trip unit responds to overcurrent or short circuit situations. The thermal element reacts to sustained overcurrent, while the magnetic element responds instantly to high short circuit currents, ensuring rapid circuit interruption.

Q: How does having auxiliary contact options benefit users?

A: Optional auxiliary contacts allow the breaker's status to be remotely monitored or interfaced with other control or alarm systems, improving operational oversight and safety management.
