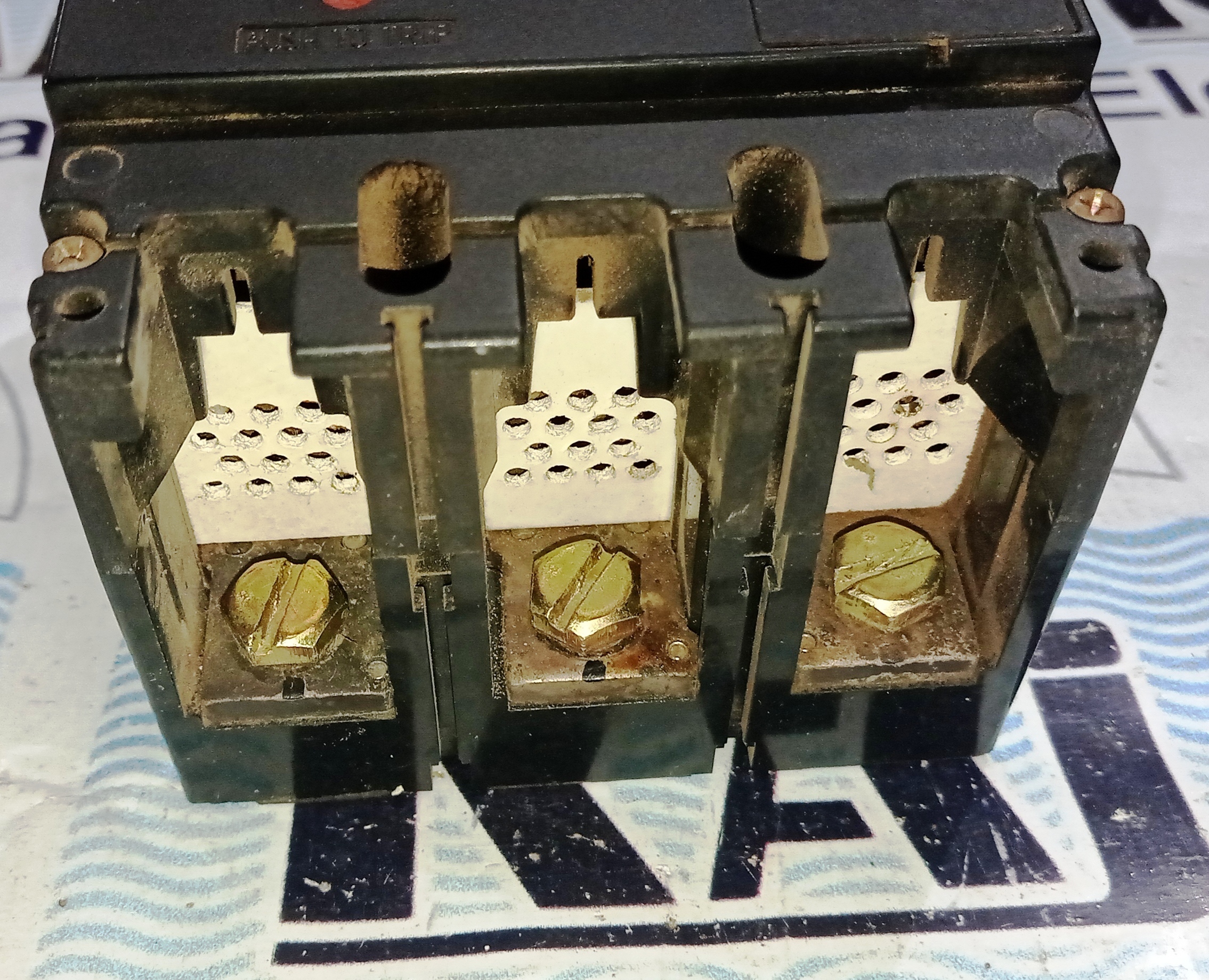

TERASAKI (XS225NS) 225AMP MCCB

Get a Price/Quote

MOQ : 100 Pieces

TERASAKI (XS225NS) 225AMP MCCB Specification

Phase
Three Phase

Breaking Capacity
36 kA (at 415V AC)

Mechanical Life
10,000 operations

Rated Short Circuit Breaking Current
36 kA (Icu)

Rated Short Circuit Making Current
Up to 80 kA (peak)

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting

Function
Overcurrent and Short Circuit Protection

Poles Number
3 Pole

Rated Voltage
AC 415V

Rated Current
225A

Rated Frequency
50/60 Hz

Curves
Standard Trip (NS Series)

Temperature Protection
Thermal and Magnetic Trip Units

Weight
Approximately 3.2 kg

Color
Grey/Black

Operating Temperature
-5°C to +40°C

Protection Class
IP20

Terminal Connection
Screw Type Terminal

Environmental Suitability
Suitable for Industrial and Commercial Use

Rated Insulation Voltage (Ui)
690V AC

Service Life
20 Years (typical)

Dimensions (Approx.)
115 mm (W) x 150 mm (H) x 86 mm (D)

Adjustment Range
Thermal Trip: 0.8-1 x In

Trip Unit Type
Fixed Thermal; Fixed Magnetic

TERASAKI (XS225NS) 225AMP MCCB Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
100 Pieces Per Day

Delivery Time
2 Days

Sample Available
Yes

Main Domestic Market
All India

About TERASAKI (XS225NS) 225AMP MCCB

MCCB stands forA Molded Case Circuit Breaker. It is another type of electrical protection device which is used when load current exceeds the limit of a miniature circuit breaker. The MCCB provides protection against overload, short circuit faults and is also used for switching the circuits.

Superior Overcurrent Protection

Built with fixed thermal and magnetic trip units, the XS225NS MCCB delivers precise and reliable overcurrent and short circuit protection. Its thermal trip can be adjusted from 0.8 to 1 times the rated current, allowing for application flexibility while preventing electrical hazards.

Versatility for Demanding Applications

The XS225NS is engineered for a wide range of industrial and commercial installations. Rated for 225A, supporting both 50/60 Hz frequency, and suitable for environments with temperatures between -5C and +40C, it excels in challenging operational conditions.

Robust and Long-lasting Design

Designed with a service life of up to 20 years and mechanical endurance for 10,000 operations, this MCCB is both durable and reliable. The unit's IP20 protection guards internal components, ensuring safe and long-term operation.

FAQ's of TERASAKI (XS225NS) 225AMP MCCB:

Q: How is the TERASAKI XS225NS MCCB typically installed?

A: This MCCB is designed for panel mounting, making it straightforward to integrate into industrial or commercial electrical panels using the provided screw-type terminals.

Q: What types of protection does the XS225NS provide?

A: The XS225NS offers overcurrent and short circuit protection through its fixed thermal and magnetic trip units, ensuring quick response to electrical faults.

Q: When should I use a 225AMP, 36kA MCCB like the XS225NS?

A: Use this MCCB for protecting circuits in mid- to heavy-duty industrial and commercial applications where high breaking capacity and reliable current regulation are necessary.

Q: Where can the XS225NS MCCB be used?

A: It is suitable for installation in indoor environments such as factories, commercial complexes, and other settings that require robust circuit protection and comply with IP20 standards.

Q: What is the adjustment range for the thermal trip unit?

A: The thermal trip unit on the XS225NS can be adjusted from 0.8 to 1 times the rated current, allowing the user to tailor the protection to specific application requirements.

Q: How long is the service life and mechanical life of the XS225NS?

A: This MCCB offers a typical service life of 20 years and can endure up to 10,000 mechanical operations, ensuring lasting dependability.

Q: What are the benefits of using the XS225NS MCCB?

A: It provides dependable circuit protection, flexibility through adjustable trip settings, high breaking capacity for safety, and a durable design that reduces the need for frequent replacement.
