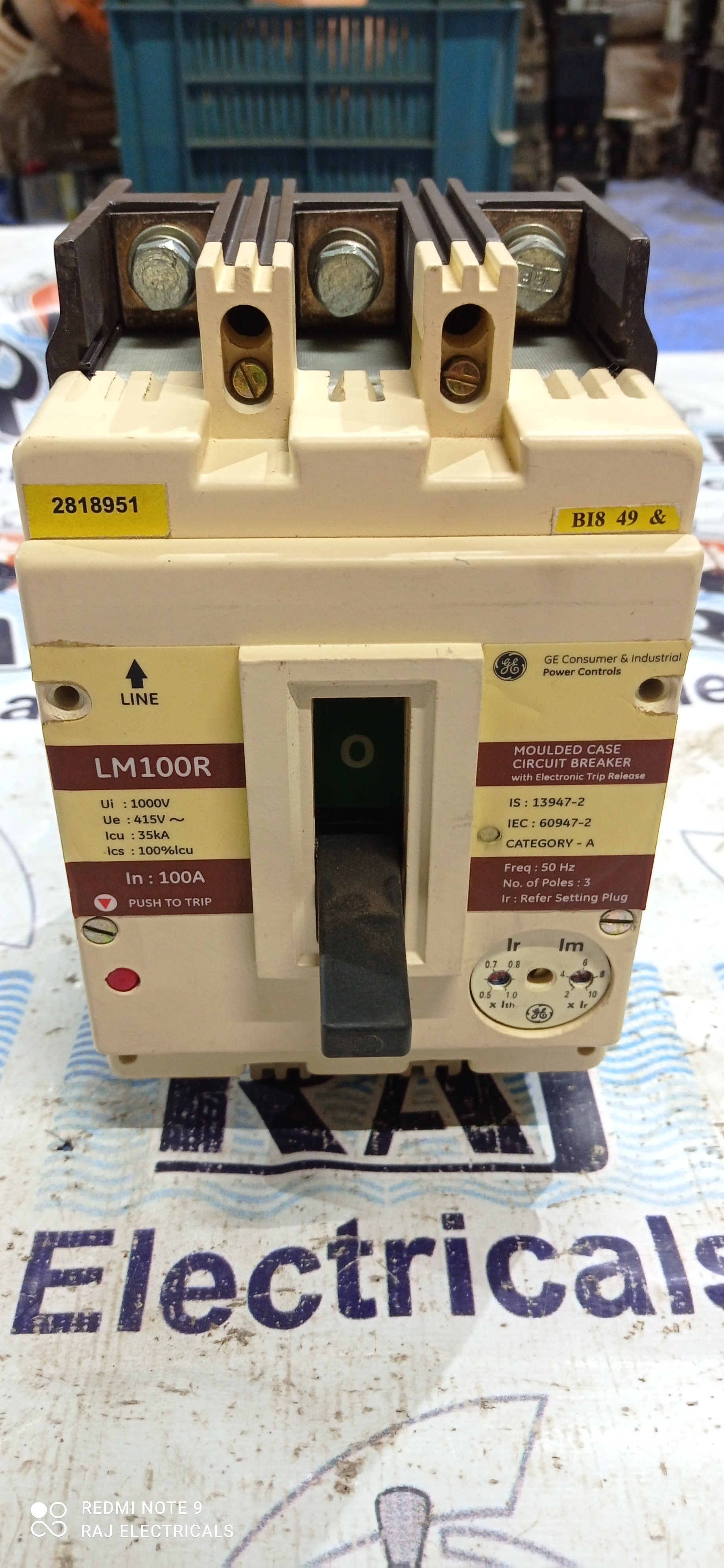

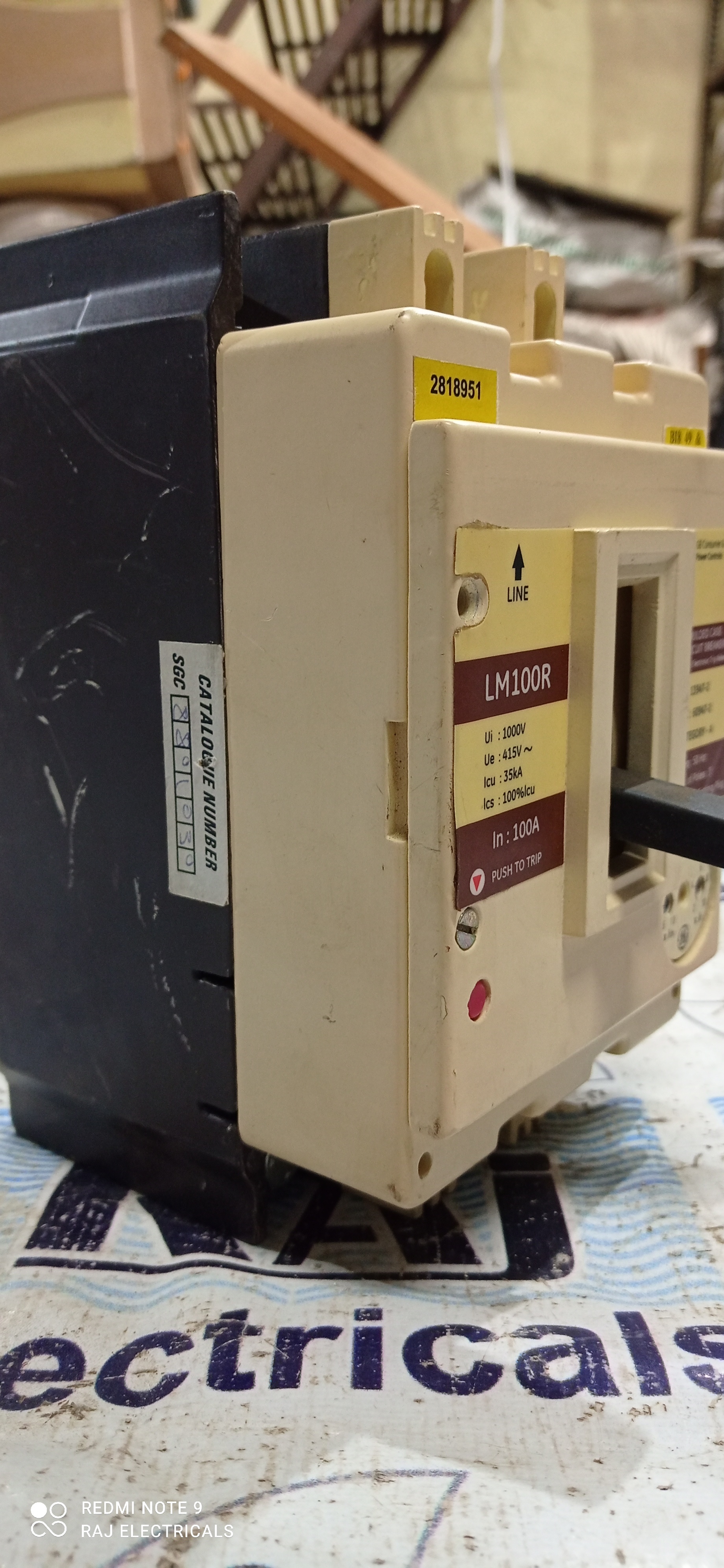

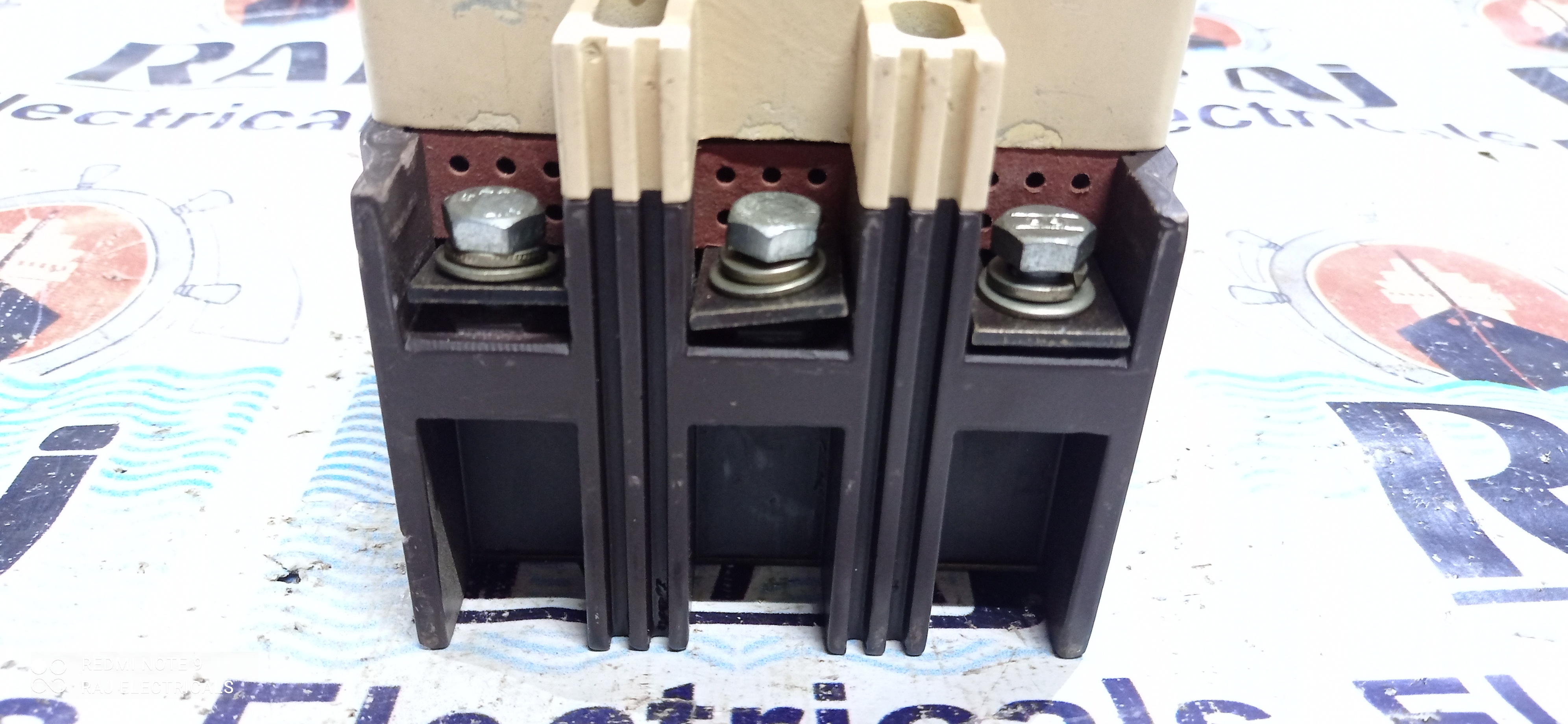

GE 100A 3P MCCB

Get a Price/Quote

GE 100A 3P MCCB Specification

Rated Short Circuit Breaking Current
36 kA

Breaking Capacity
Up to 36 kA

Phase
Three Phase

Rated Short Circuit Making Current
Not less than 36 kA

Mechanical Life
10,000 operations

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting / DIN Rail Mounted

Function
Protection against overload and short circuit

Poles Number
3 Poles

Rated Voltage
415V AC

Rated Current
100A

Rated Frequency
50/60 Hz

Curves
C, D (as per model variant)

Temperature Protection
With integrated thermal-magnetic protection

Weight
Approx. 1.4 kg

Color
Grey/Black

Operating Voltage Range
Up to 690V AC

Trip Unit Type
Thermo-magnetic

Frequency Tolerance
±5%

Mounting Orientation
Vertical & Horizontal

Terminal Type
Screw type terminals

Connection Type
Front connection

Arc Chute Material
High-strength insulated plastic

Utilization Category
Category A

Ambient Temperature Range
-25°C to +70°C

Insulation Voltage
800V

Conformity Standards
IEC 60947-2

Degree of Protection
IP20 (front),

GE 100A 3P MCCB Trade Information

Minimum Order Quantity
5 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About GE 100A 3P MCCB

GE 100A 3P Mccb Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Moulded Case Circuit Breaker (MCCB)

Make :- GE

Ampere :- 100A

Number Of Pole :- 3P

Model Number :- LM100R

Network Type :- AC

Ui :- 1000V

Ue :- 415V

Icu :- 35 kA

Frequency :- 50 Hz

We Supply Industrial Product In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Reliable Overload and Short Circuit Protection

The GE 100A 3P MCCB safeguards your electrical infrastructure with reliable support against overload and short-circuit events. Its integrated thermal-magnetic technology responds effectively to abnormal current flow, preventing equipment damage. Rated up to 36 kA breaking capacity, this breaker maintains consistent power protection for demanding industrial environments.

Versatile Installation and Robust Design

With panel and DIN rail mounting options, installation is streamlined for both new and retrofit projects. The MCCB's compact form factor, screw-type terminals, and adaptable mounting (vertical or horizontal) facilitate easy integration. The IP20 front protection and highly durable insulated plastic arc chute enhance safety and longevity in varied settings.

Compliance and Performance Standards

Built in conformity with IEC 60947-2 standards, the GE 100A 3P MCCB meets international benchmarks for safety and performance. Rated for utilization category A, it operates reliably between -25C to +70C, and its color-coded grey/black design signifies professional compliance. Its mechanical endurance ensures repeated safe operation for up to 10,000 cycles.

FAQ's of GE 100A 3P MCCB:

Q: How is the GE 100A 3P MCCB installed?

A: The MCCB can be installed using either panel mounting or DIN rail methods. Its front connection and screw-type terminals simplify wiring, and the unit's design supports both vertical and horizontal orientations to suit diverse panel layouts.

Q: What are the main benefits of using a thermo-magnetic trip unit in this MCCB?

A: The integrated thermo-magnetic trip unit ensures sensitive and reliable protection. It detects overloads via thermal sensing and reacts swiftly to short circuits with its magnetic response, reducing risks to connected equipment and minimizing downtime.

Q: When should the GE 100A 3P MCCB be selected for electrical systems?

A: This MCCB is ideal for three-phase systems requiring protection up to 100A, especially in industrial or commercial settings needing conformity to IEC 60947-2 and a high breaking capacity of up to 36 kA. Selection is recommended when robust safety and flexible installation are priorities.

Q: Where is the GE 100A 3P MCCB typically used?

A: Common applications include industrial power distribution panels, commercial switchboards, and machinery requiring reliable protection against overloads and short circuits. Its design supports use in environments across the United States and international markets.

Q: What process is involved in maintaining the MCCB for optimal performance?

A: Regular visual inspections, periodic testing of the trip unit, and ensuring terminal connections remain tight are essential for maintaining the MCCB. Adhering to manufacturer guidelines helps sustain its mechanical life of up to 10,000 operations.

Q: How does the IP20 degree of protection benefit installation environments?

A: IP20 front degree of protection limits the entry of solid objects, such as fingers, providing enhanced safety for users and maintenance personnel when interacting with the breaker's front surface, particularly in controlled panel installations.
