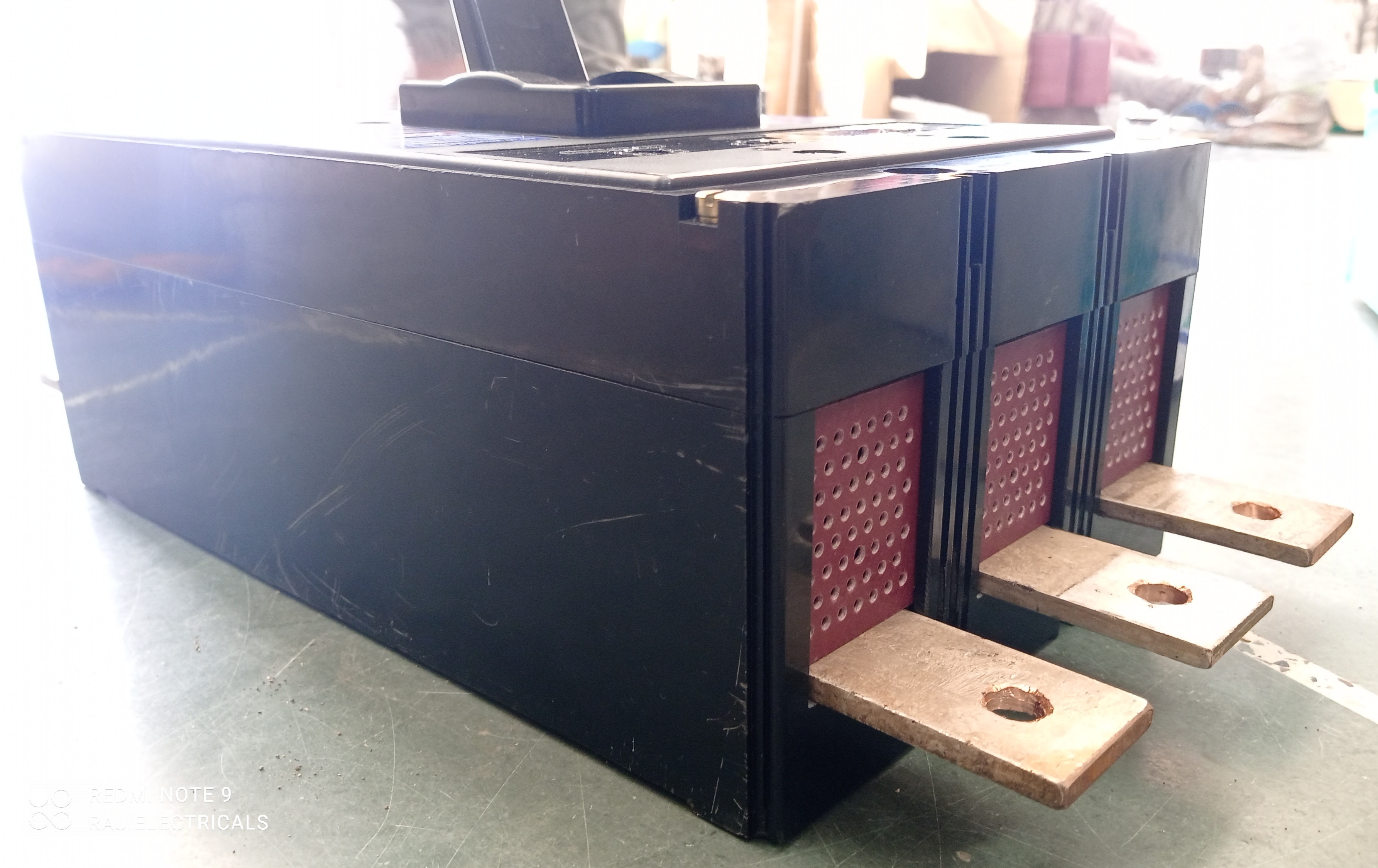

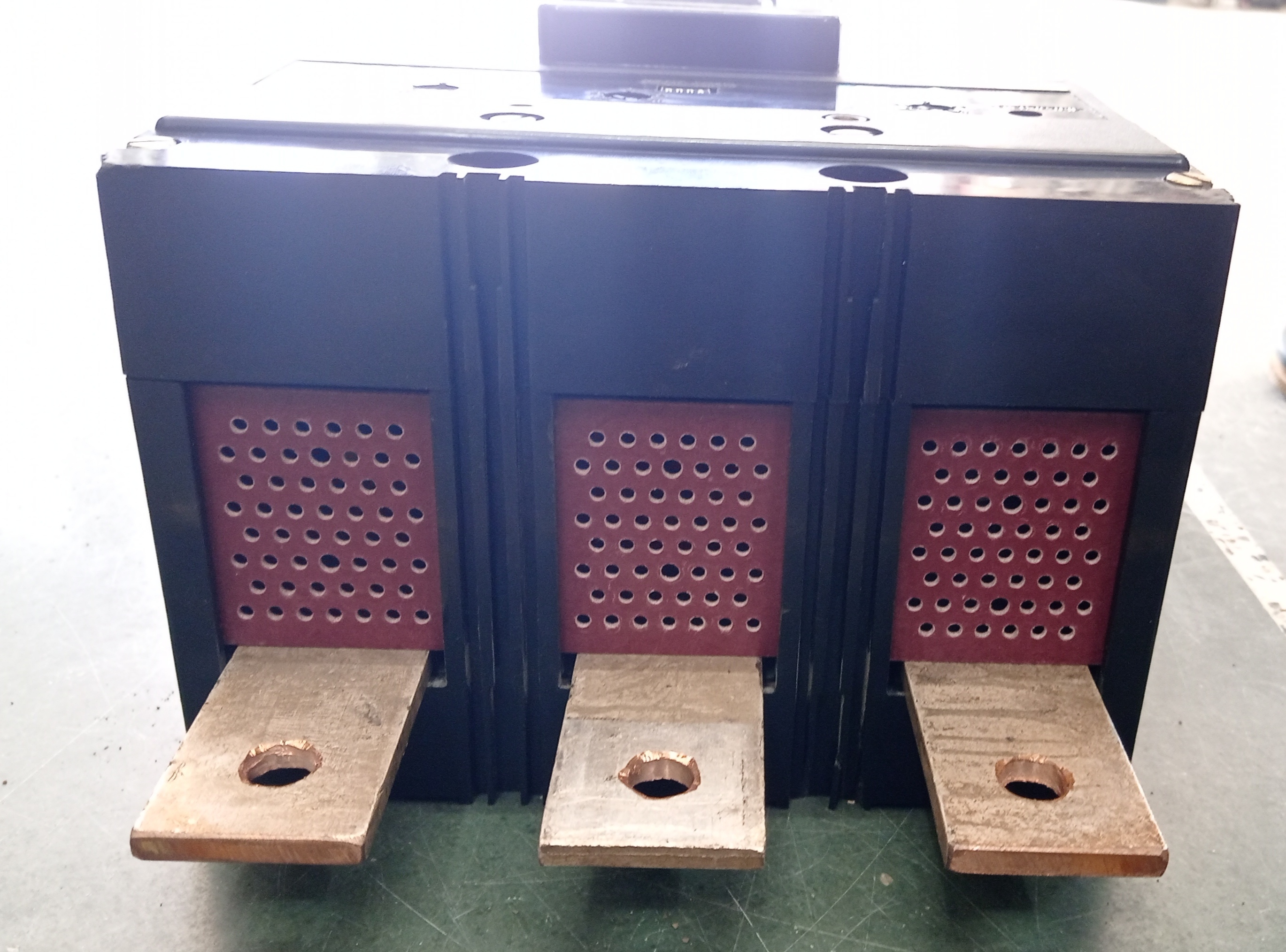

TERASAKI (TL-600F) 600A 3P MCCB

Name: TERASAKI (TL-600F) 600A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Piece

TERASAKI (TL-600F) 600A 3P MCCB Specification

Breaking Capacity
50 kA @ AC 415V

Phase
Three Phase

Rated Short Circuit Breaking Current
50 kA

Mechanical Life
10,000 operations

Rated Short Circuit Making Current
75 kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel/flush mounting

Function
Protection of circuits from overload & short circuit

Poles Number
3P

Rated Voltage
AC 690V

Rated Current
600A

Rated Frequency
50/60 Hz

Curves
Fixed type

Temperature Protection
Thermal-magnetic release

Weight
Approx. 8 kg

Color
Black/Grey

Service Life
Long service life

Terminal Type
Screw or bolt connection

Interlocking Facility
Available

Utilization Category
A

Operating Ambient Temperature Range
-5C to +40C

Rated Insulation Voltage
AC 800V

Mounting Position
Any Position

Auxiliary Contact Option
Available (optional)

Trip Unit Type
Fixed thermal-magnetic

TERASAKI (TL-600F) 600A 3P MCCB Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About TERASAKI (TL-600F) 600A 3P MCCB

Raj Electricals Offering TERASAKI (TL-600F) 600A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Terasaki

Ampere :- 600A

Pole :- 3P

Model :- TL-600F

Condition :- Refurbished

Breaking Capacity :- 60 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Advanced Circuit Protection

Equipped with a fixed thermal-magnetic trip unit and a breaking capacity of 50 kA at AC 415V, the TERASAKI TL-600F ensures reliable disconnection in case of overloads or short circuits. This protection mechanism guarantees safety and prevents damage to equipment in diverse industrial environments.

Flexible Installation and Long Service Life

The TL-600F MCCB can be installed in any orientation, offering both panel and flush mounting options and accommodating various system designs. With a mechanical life of up to 10,000 operations and robust construction, the breaker provides extended reliability and low maintenance requirements.

Adaptable Features and Accessories

This MCCB includes a screw or bolt terminal connection and offers an optional auxiliary contact and an interlocking facility. These enhancements enable seamless integration with control systems and improved safety in more complex distribution panels or automated setups.

FAQ's of TERASAKI (TL-600F) 600A 3P MCCB:

Q: How is the TERASAKI TL-600F MCCB installed in electrical panels?

A: The TL-600F can be installed in any orientation using either panel or flush mounting methods. Its terminal design supports connection by screw or bolt, providing flexibility for different panel configurations.

Q: What types of circuit protection does the TL-600F provide?

A: This MCCB is equipped with a fixed thermal-magnetic trip unit that safeguards electrical circuits against overload and short-circuit conditions, ensuring reliable protection for three-phase power systems.

Q: When should I consider using the auxiliary contact and interlocking options?

A: Auxiliary contacts and the interlocking facility are beneficial when integration with external signaling or control systems is needed, or when enhanced operational safety is required in your installation.

Q: Where can the TL-600F be utilized within an electrical system?

A: It is suitable for use in a wide range of industrial, commercial, and institutional settings, where three-phase protection and high breaking capacity are essential, such as main distribution boards, control panels, and machinery circuits.

Q: What is the process for maintaining the TL-600F MCCB?

A: Routine maintenance involves visual inspections for physical integrity, checking terminal connections, and verifying tripping functionality. Due to its robust design and long mechanical life, maintenance is generally straightforward.

Q: How does the TL-600F benefit power distribution systems?

A: Offering dependable protection, extended service life, and versatile installation options, the TL-600F enhances operational safety and system reliability, reducing downtime and maintenance costs.
