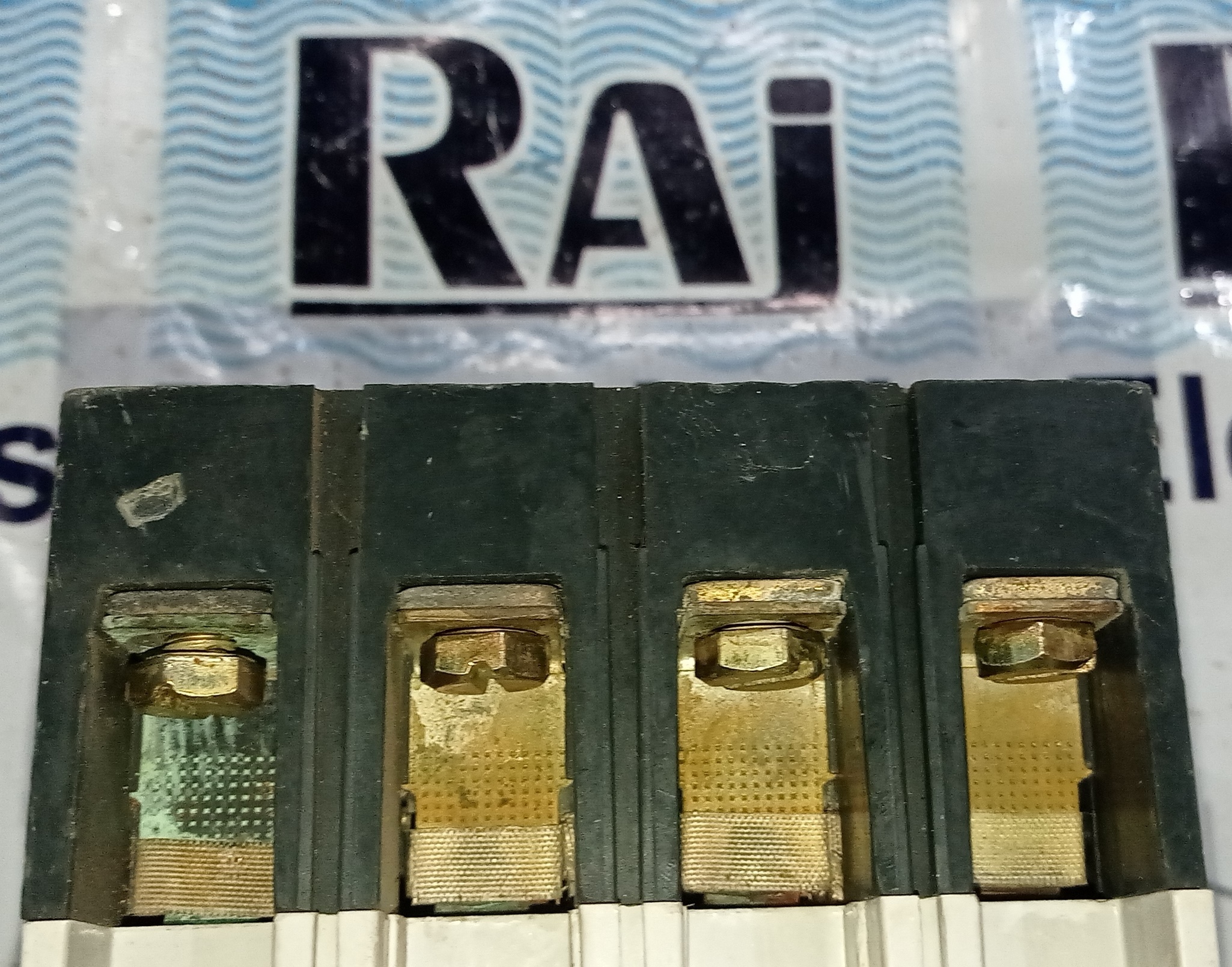

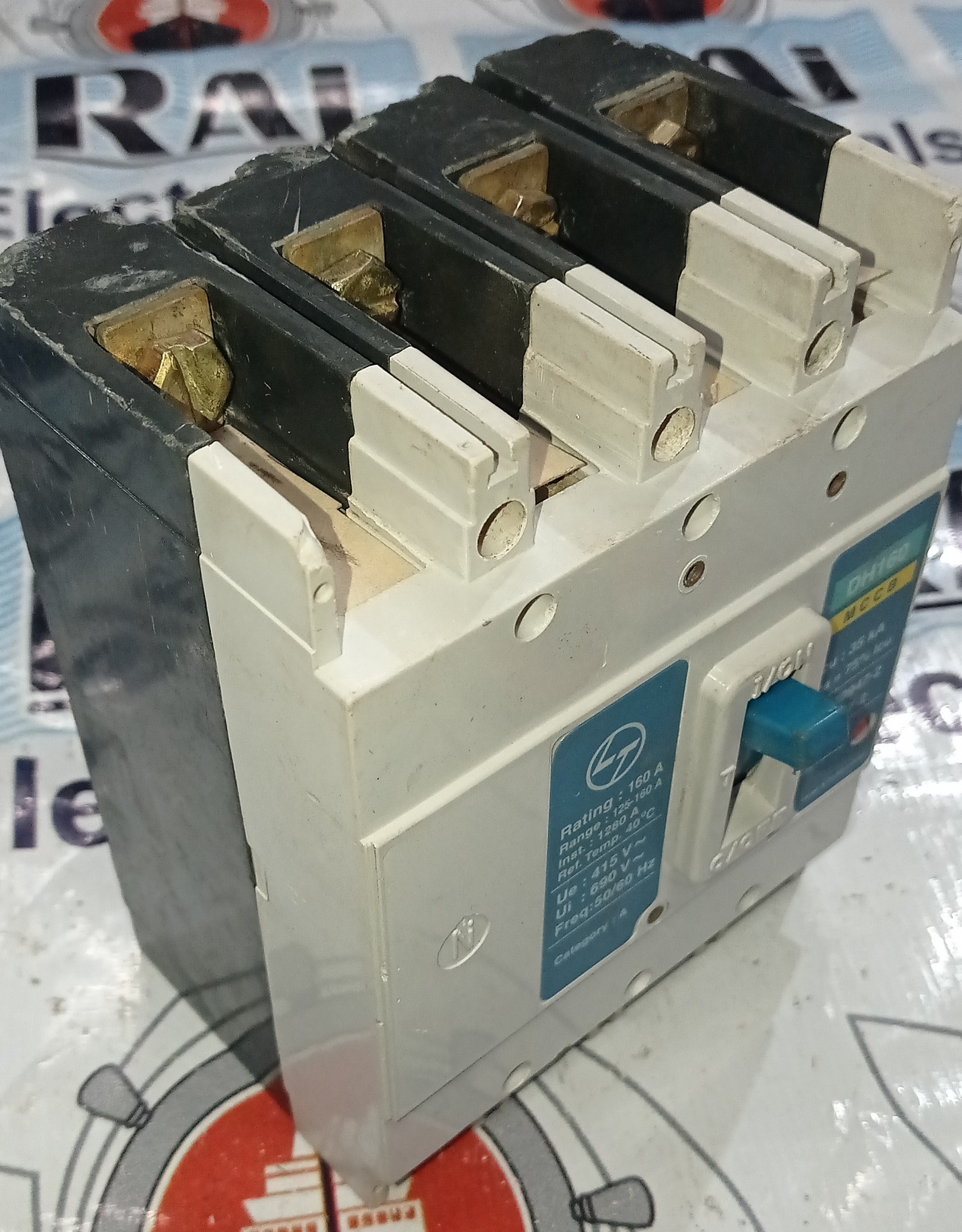

LT (DH 160) 160A 4P MCCB

Name: LT (DH 160) 160A 4P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 2 Pieces

LT (DH 160) 160A 4P MCCB Specification

Mechanical Life
10,000 Operations

Breaking Capacity
36kA at 415V AC

Phase
Three Phase

Rated Short Circuit Making Current
Approx. 72 kA

Rated Short Circuit Breaking Current
36 kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting

Function
Overload & Short Circuit Protection

Poles Number
4 Pole

Rated Voltage
415V AC

Rated Current
160A

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
Integrated Thermal & Magnetic Trip Unit

Weight
Approx. 2.1 kg

Color
Grey / White

Reference Standard
IS/IEC 60947-2

Protection Class
IP20

Utilization Category
A

Mounting Orientation
Vertical/Horizontal

Accessories Compatibility
Auxiliary Contact, Shunt Trip, Under Voltage Release

Operating Temperature Range
-5C to +55C

Trip Unit Type
Fixed Thermal Magnetic

Adjustable Current Settings
None (Fixed)

LT (DH 160) 160A 4P MCCB Trade Information

Minimum Order Quantity
2 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About LT (DH 160) 160A 4P MCCB

L&T (DH 160) 160A 4P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- L&T

Ampere :- 160A

Pole :- 4P

Model :- DH 160

Condition :- Refurbished

Breaking Capacity :- 35 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Reliable Overload and Short-Circuit Protection

Engineered for three-phase power distribution systems, this MCCB is equipped with an integrated fixed thermal magnetic trip unit to swiftly detect and interrupt overloads and short circuits. Its consistent 36kA breaking capacity and sturdy build make it suitable for high-demand environments, ensuring optimal equipment and personnel safety.

Flexible Installation and Application

With the ability to mount both vertically and horizontally, the LT (DH 160) 160A 4P MCCB adapts to varied panel configurations. Its compatibility with essential accessories like auxiliary contacts, shunt trip, and under voltage release further enhances control and monitoring, making it a preferred option for exporters and system installers.

FAQ's of LT (DH 160) 160A 4P MCCB:

Q: How does the fixed thermal magnetic trip unit in the LT (DH 160) 160A 4P MCCB function?

A: The fixed thermal magnetic trip unit provides dual protection: the thermal element safeguards against overloads by responding to prolonged moderate overcurrents, while the magnetic element reacts instantly to severe short circuits, ensuring fast disconnection and electrical safety.

Q: What are the typical usage scenarios for this MCCB?

A: This MCCB is ideal for protecting main distribution panels, sub-distribution boards, and industrial machinery circuits requiring robust overload and short circuit protection in three-phase electrical systems up to 415V AC.

Q: When should I consider using this MCCB over a molded case circuit breaker with adjustable current?

A: Choose this MCCB when a standard, fixed protection setting suits your application, such as when consistent 160A protection across all circuits is required and there's no need for user-adjustable current thresholds.

Q: Where can the LT (DH 160) 160A 4P MCCB be mounted?

A: The unit supports both vertical and horizontal panel mounting, allowing easy integration into various electrical panel designs depending on the available space and configuration.

Q: What is the process for installing this MCCB and connecting accessories?

A: Installation involves securely mounting the MCCB onto the panel, wiring the line and load terminals, and optionally connecting compatible accessories (auxiliary contact, shunt trip, under voltage release) as per the manufacturer's guidelines.

Q: What are the benefits of the IP20 protection class for this MCCB?

A: IP20 ensures protection against solid objects over 12mm and basic contact, improving user safety during installation and maintenance, though the unit should be installed in enclosed panels for full protection.
