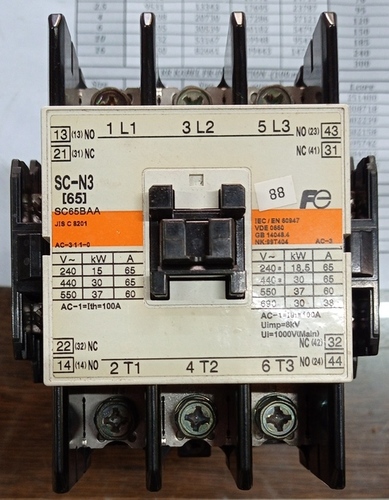

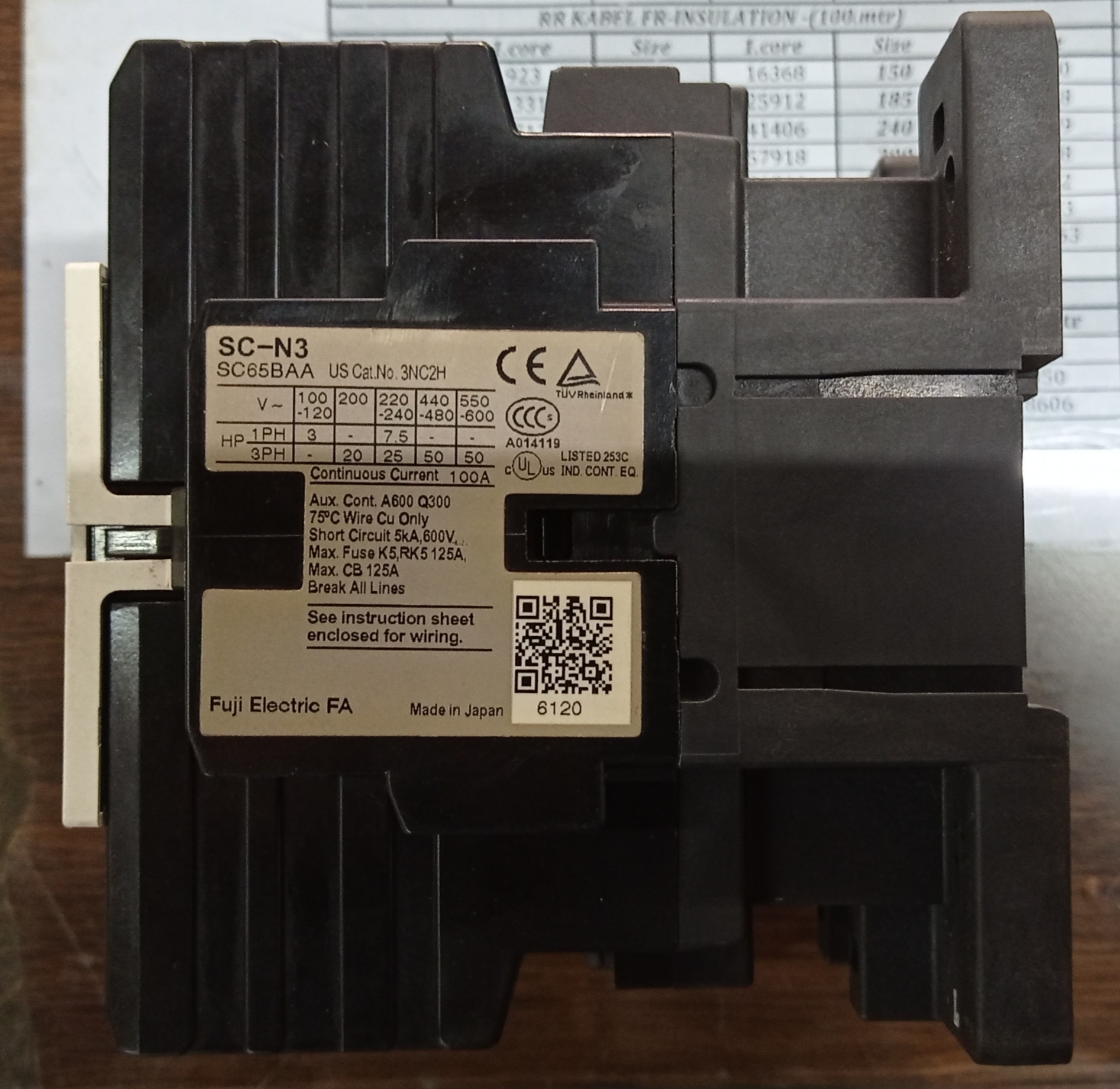

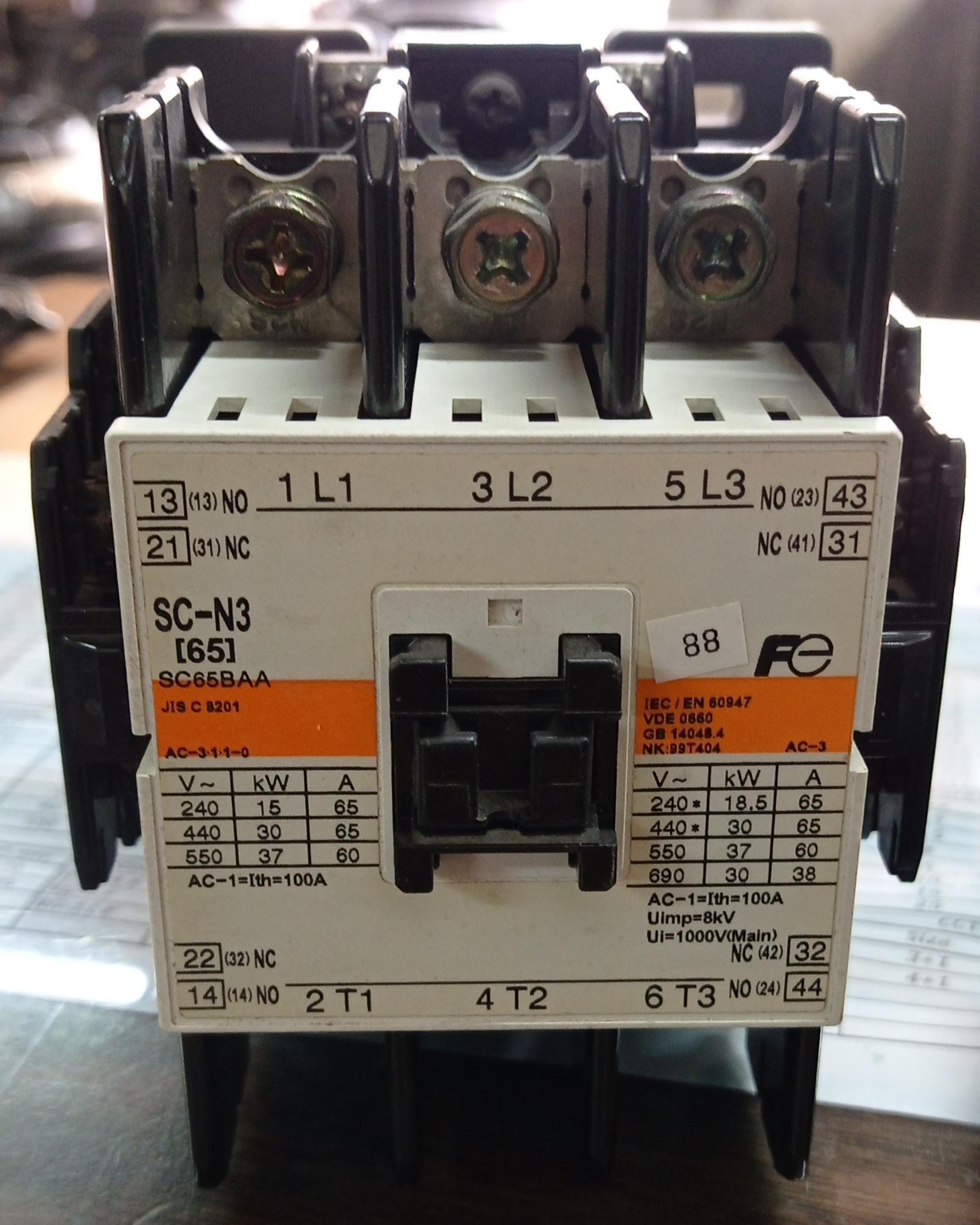

FUJI SC-N3 (65) CONTACTOR

Name: FUJI SC-N3 (65) CONTACTOR
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Piece

FUJI SC-N3 (65) CONTACTOR Specification

IP Rating
IP20

Humidity %
5% to 95% RH

Operating Temperature
-5C to +40C

Surface Finish
Matte & Glossy Finish

Insulation Material
Thermoplastic Resin

Power Factor
0.75

Connector Type
Screw Type

Efficiency
High Efficiency

Feature
Long Mechanical Life, Compact Design

Mounting Type
DIN Rail / Panel Mount

Overheating Protection
Yes (with compatible relay)

Shape
Rectangular

Product Type
Magnetic Contactor

Application
Motor Control, Switching Power Circuits

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
690 V AC

Energy Consumption
8.5 VA (Holding)

Output Type
AC Output

Color
Black & White

Dimension (L*W*H)
76 x 120 x 126 mm

Weight
1.15 kg

Size
SC-N3 (65A)

Phase
Three Phase

Input Voltage
220/240 V AC

Material
High-grade Plastic and Copper

No Of Poles
3 Poles

Connection Type
Screw Terminal

Auxiliary Contact
1 NO + 1 NC

Coil Consumption
Approx. 90-110 VA (pull-in)

Short Circuit Withstand Capacity
10 kA at 415V

Maximum Rated Current
65A

Electrical Endurance
1 Million operations

Mechanical Endurance
10 Million operations

Minimum Cross-section for Connection
2.5 mm2

FUJI SC-N3 (65) CONTACTOR Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About FUJI SC-N3 (65) CONTACTOR

FUJI SC-N3 (65) CONTACTOR Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Electric Contactor

Make :- Fuji

Ith :- 100A

Model :- SC-N3 (65)

Condition :- Refurbished

Voltage :- 220V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Exceptional Durability and Endurance

Designed for industrial usage, the FUJI SC-N3 (65) Contactors boast a mechanical endurance of up to 10 million operations and electrical life of 1 million operations. This ensures long-term reliability and reduces the frequency of replacements or maintenance.

Safety and Efficient Performance

With a short circuit withstand capacity of 10 kA at 415V and IP20-level protection, the contactor prioritizes operator safety and circuit stability. The inclusion of a compatible relay facilitates overheating protection, further enhancing equipment safety.

Versatile Application and Easy Installation

The SC-N3 (65) Contactors can be mounted on DIN rails or panels, and accommodate screw terminal connections with a minimum cross-section of 2.5 mm2. Their compact rectangular design and lightweight build (1.15 kg) make them suitable for a variety of motor control or switching power circuit applications.

FAQ's of FUJI SC-N3 (65) CONTACTOR:

Q: How is the FUJI SC-N3 (65) Contactor installed in electrical panels?

A: The SC-N3 (65) Contactors can be mounted either on DIN rails or directly on panels. They utilize screw-type connectors, requiring a minimum wire cross-section of 2.5 mm2 for secure connections, ensuring both easy installation and reliable performance.

Q: What types of applications are best suited for this contactor?

A: This contactor is primarily designed for motor control and switching power circuits in industrial environments. Its high durability and electrical endurance make it suitable for continuous operation in manufacturing facilities, commercial buildings, and automation systems.

Q: When should I use auxiliary contacts in my control circuits?

A: The SC-N3 (65) is equipped with 1 NO and 1 NC auxiliary contacts, which should be used when you need to signal the status of the contactor or interlock with other devices. This feature enhances safety and operational flexibility within your control or monitoring systems.

Q: Where can the contactor be used with regard to environmental conditions?

A: It is suitable for use in ambient temperatures ranging from -5C to +40C, and humidity levels from 5% to 95% RH. However, the installation should be in environments protected to at least IP20 to prevent intrusion by solid objects.

Q: What is the process for providing overheating protection with this contactor?

A: Overheating protection is achievable by using the contactor with a compatible relay. The relay monitors the load and disconnects the circuit if excess temperature is detected, thereby preserving the equipment's longevity and safety.

Q: How does the SC-N3 (65) ensure long operational life and high efficiency?

A: Its construction from high-grade plastic and copper, energy-saving coil (holding consumption of 8.5 VA), and a power factor of 0.75 all contribute to its efficiency. The impressive endurance figures (mechanical and electrical) mean minimal downtime and low maintenance costs.

Q: What are the main benefits of choosing this contactor model?

A: The main advantages include its long mechanical life, reliable switching performance, compact design, and flexible mounting options. Additionally, the SC-N3 (65) is efficient, safe, and built to perform under rigorous conditions, making it a sound investment for industrial control needs.
