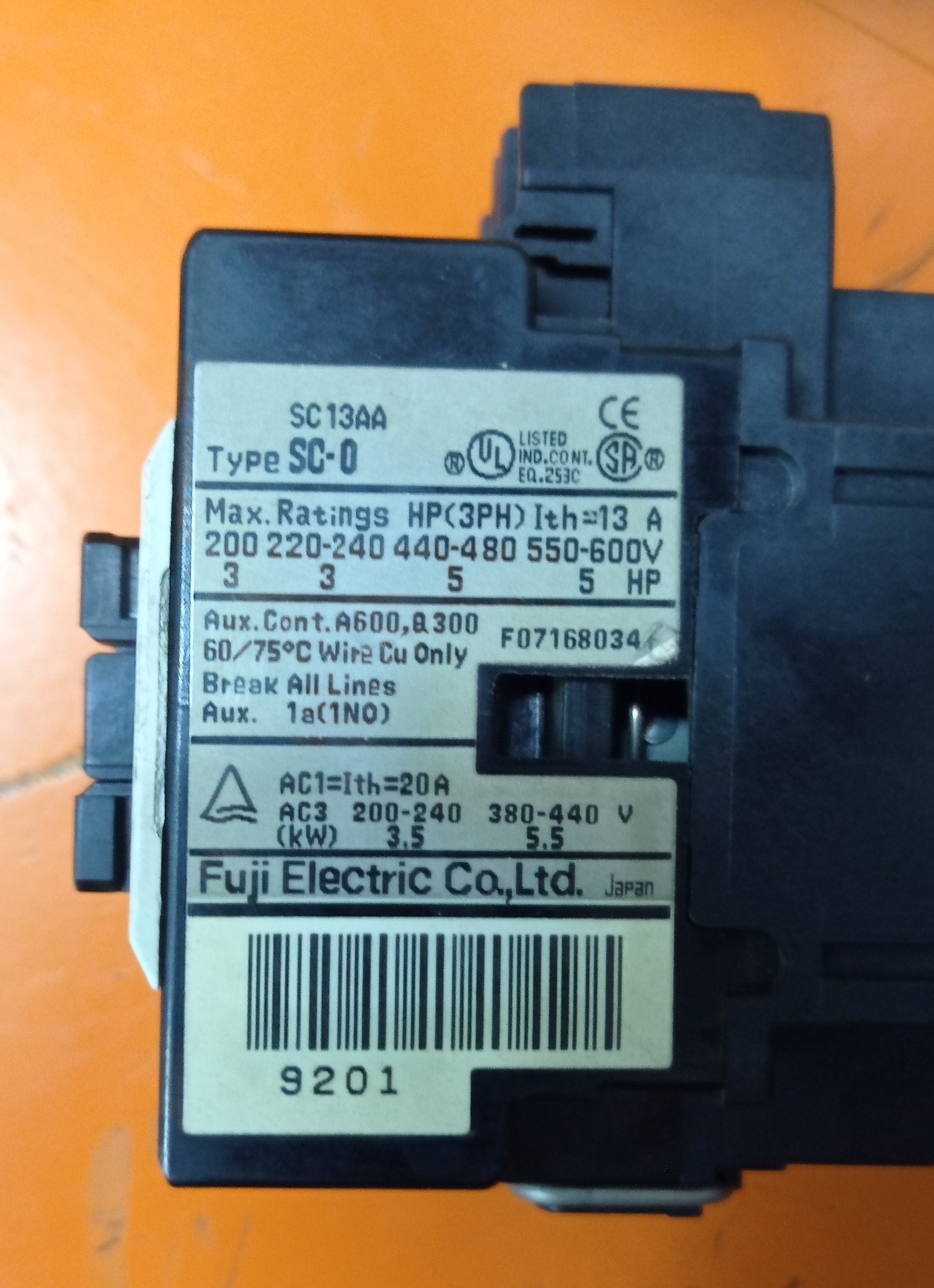

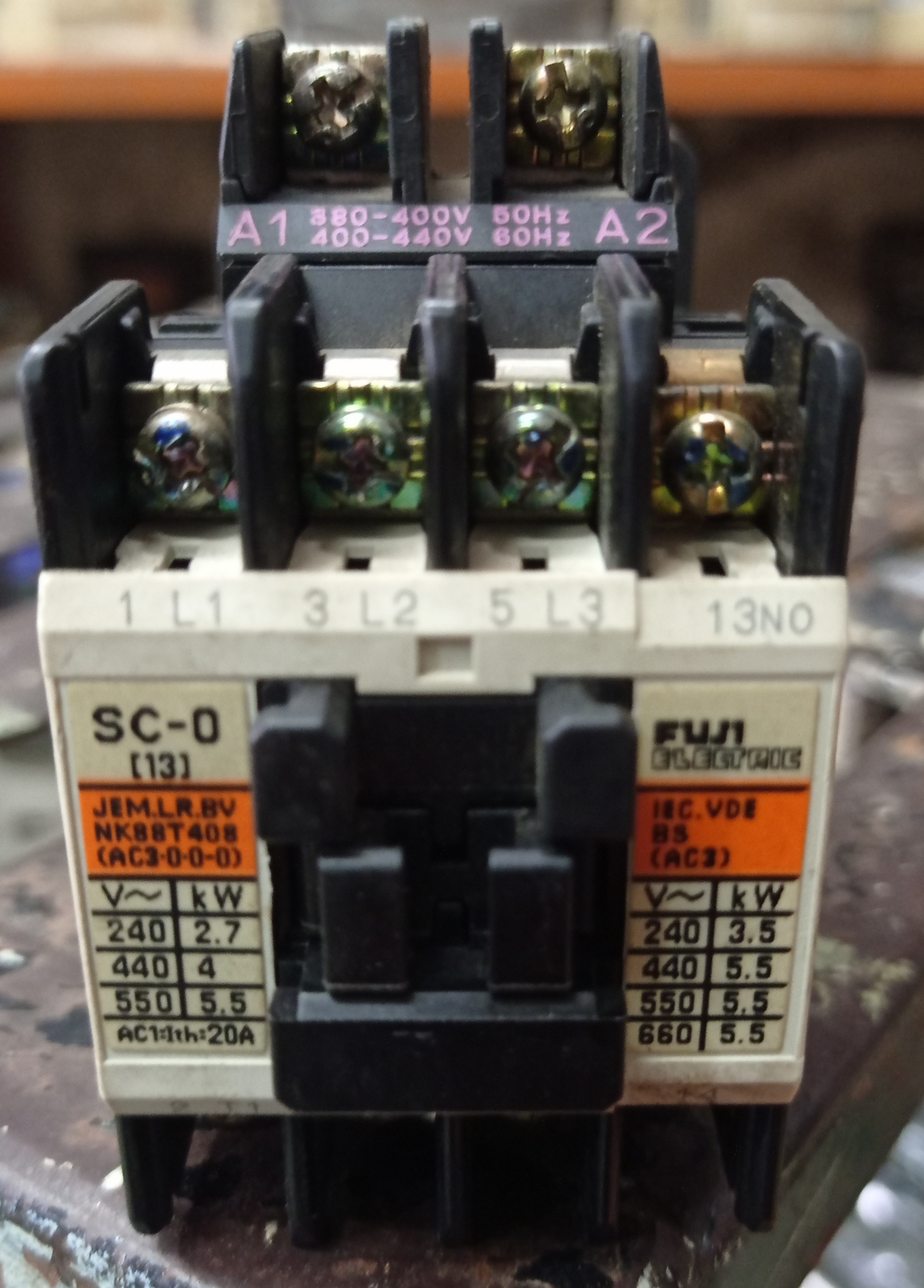

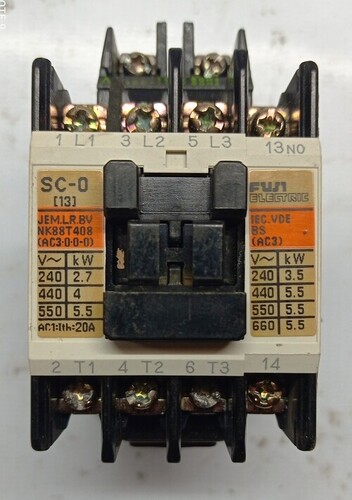

FUJI SC-0 (13) CONTACTOR

Name: FUJI SC-0 (13) CONTACTOR
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 10 Pieces

FUJI SC-0 (13) CONTACTOR Specification

Feature
Compact Design, High Mechanical Life

Efficiency
High

IP Rating
IP20

Shape
Rectangular

Surface Finish
Molded

Humidity %
Max 85% RH

Operating Temperature
-5C to +40C

Power Factor
High

Overheating Protection
No (to be used with external relay)

Connector Type
Screw Type

Mounting Type
DIN Rail / Panel Mount

Insulation Material
Thermoplastic Resin

Product Type
Magnetic Contactor

Application
Industrial Motor Control, Switching and Protection

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
AC 690V

Energy Consumption
2.7 VA (at 50 Hz), 2.3 VA (at 60 Hz)

Output Type
NO+NC

Color
Black & White

Dimension (L*W*H)
45x49x62 mm

Weight
230 g

Size
SC-0

Phase
Three Phase

Input Voltage
AC 24 V to 600 V (coil voltage variant)

Connection Type
Screw Terminal

Material
Plastic, Metal

No Of Poles
3 Pole

Making Capacity
10 times rated current

Electrical Endurance
1 Million Operations

Auxiliary Contacts
1 NO + 1 NC

Short Circuit Withstand
100 kA at 690V with suitable fuse

Rated Current
9A AC-3

Model Number
SC-0 (13)

Coil Consumption
2.3-2.7 VA (AC coil)

Mechanical Endurance
10 Million Operations

Standards Compliance
IEC 60947-4-1

Ambient Storage Temperature
-40C to +70C

Breaking Capacity
8 times rated current

Switching Duty
AC-3/AC-4

FUJI SC-0 (13) CONTACTOR Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About FUJI SC-0 (13) CONTACTOR

FUJI SC-0 (13) CONTACTOR Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Electric Contactor

Make :- Fuji

Ith :- 20A

Model :- SC-0 (13)

Condition :- Refurbished

Voltage :- 220V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Exceptional Durability for Industrial Applications

Designed with high mechanical and electrical endurance, the FUJI SC-0 (13) Contactor operates reliably for up to 10 million mechanical and 1 million electrical cycles. Its resilience against demanding conditions makes it a preferred choice in industrial motor control and protection scenarios, where reliability and longevity are paramount.

Safety and Standards Compliance

This contactor adheres to IEC 60947-4-1 standards, ensuring trusted operational safety and performance. With an IP20 protection level and short-circuit withstand capacity up to 100 kA (at 690V with suitable fuse), the SC-0 (13) offers significant security. Its molded finish and high-quality insulation provide additional safety in harsh environments.

Flexible Installation and Broad Compatibility

The SC-0 (13) supports both DIN rail and panel mounting for versatile installation. With a wide coil voltage range (AC 24V to 600V variant) and compatibility for 50/60 Hz systems, it adapts seamlessly to various setups. Its screw terminal design ensures quick, secure connections, making it suitable for manufacturers, exporters, and suppliers alike.

FAQ's of FUJI SC-0 (13) CONTACTOR:

Q: How is the FUJI SC-0 (13) Contactor typically installed in industrial settings?

A: The contactor supports both DIN rail and panel mounting methods. Its compact rectangular design and screw terminal connections allow for quick and secure installation into control panels, making it ideal for industrial environments requiring robust and flexible building options.

Q: What benefits does the SC-0 (13) offer for industrial motor control?

A: The SC-0 (13) provides high mechanical endurance (10 million operations) and electrical endurance (1 million operations), ensuring reliable switching and longevity. Its high breaking capacity and standards-compliant performance make it highly beneficial for tough motor control applications.

Q: When should external overheating protection be considered for this contactor?

A: While the SC-0 (13) is built for high performance, it does not include internal overheating protection. External relays or protection devices should be incorporated into your system when operating in environments prone to thermal overload to ensure comprehensive safety.

Q: Where is the SC-0 (13) contactor most effectively used?

A: It is best suited for industrial environments, specifically in motor control, switching, and protection applications. Its ability to handle up to 100 kA short-circuit current (with suitable fuses) and robust design make it ideal for manufacturing plants, process industries, and heavy-duty equipment control.

Q: What processes are supported by the auxiliary contacts (1 NO + 1 NC) in this contactor?

A: The auxiliary contacts enable auxiliary circuit control-facilitating signaling functions, status indication, or interfacing with control relays. This versatility enhances automation and safety by allowing additional operations to be performed concurrently with the main switching.

Q: How does the contactor maintain efficiency and performance in varied environments?

A: Constructed with high-quality thermoplastic resin and metal, the SC-0 (13) maintains high efficiency at ambient temperatures between -5C and +40C. It also operates effectively in humidities up to 85% RH, making it suitable for a wide range of industrial conditions.
