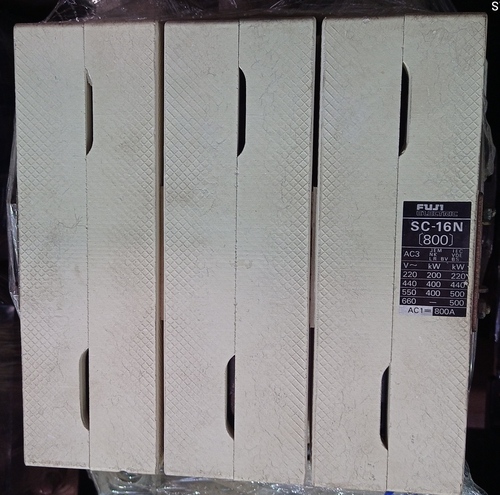

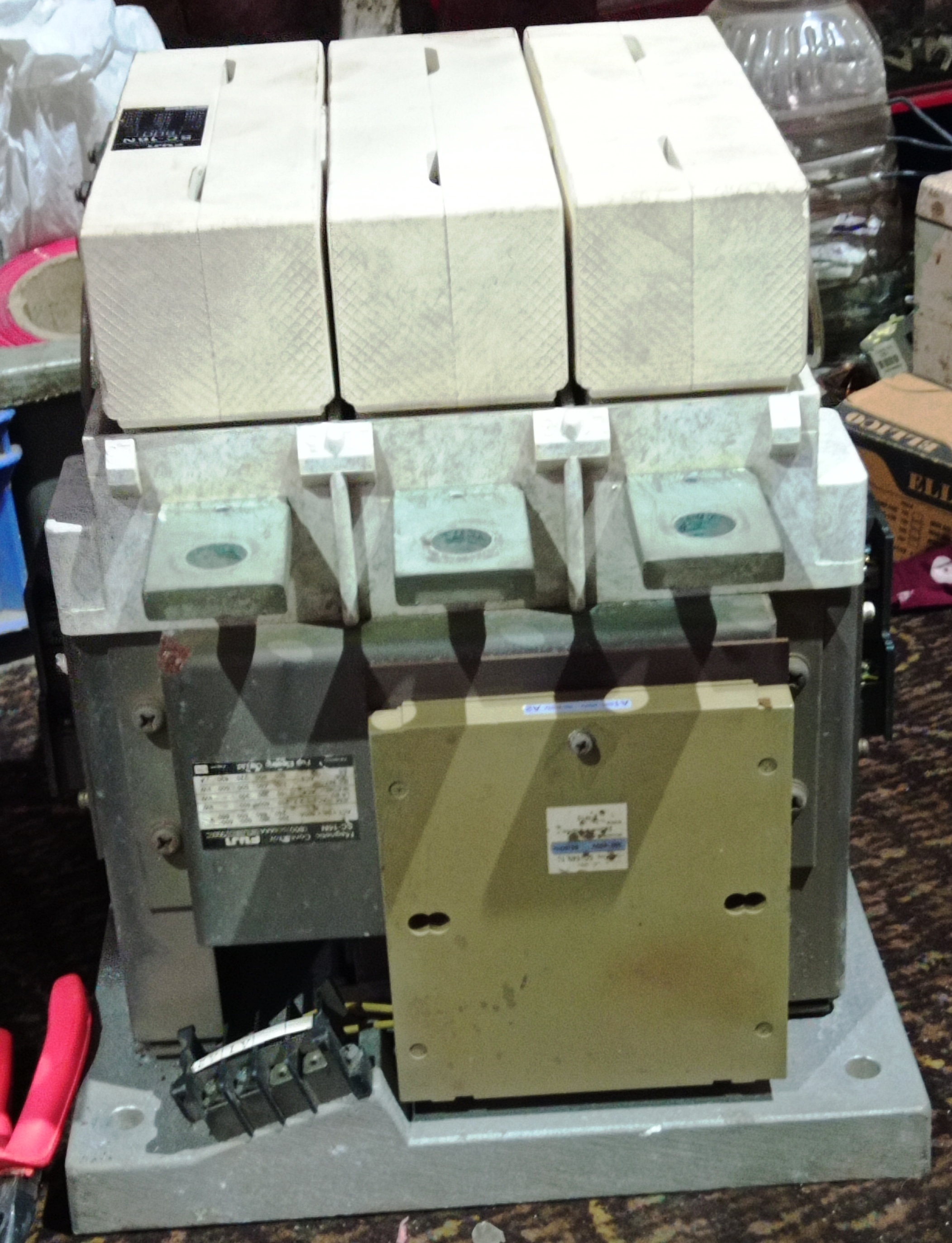

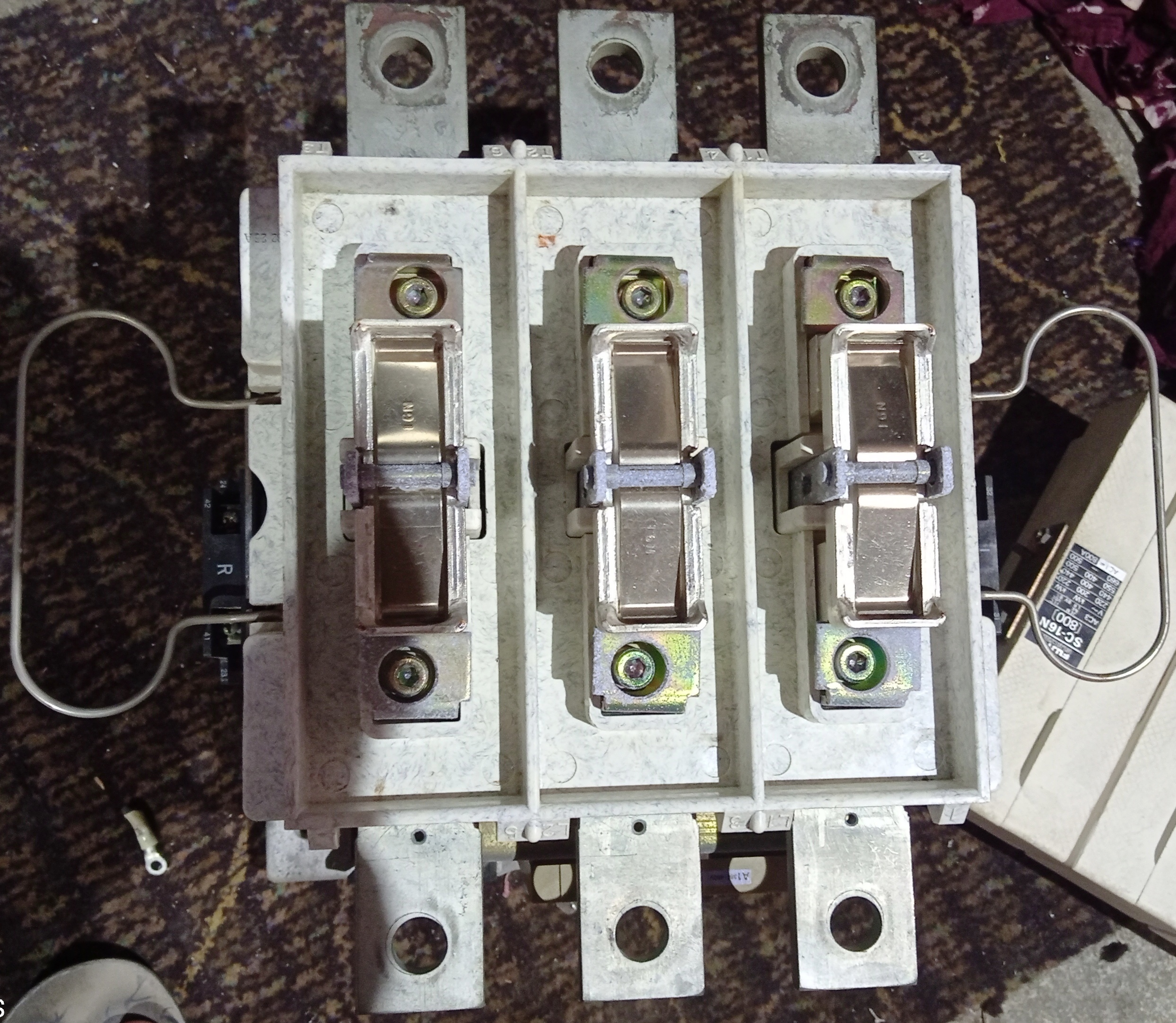

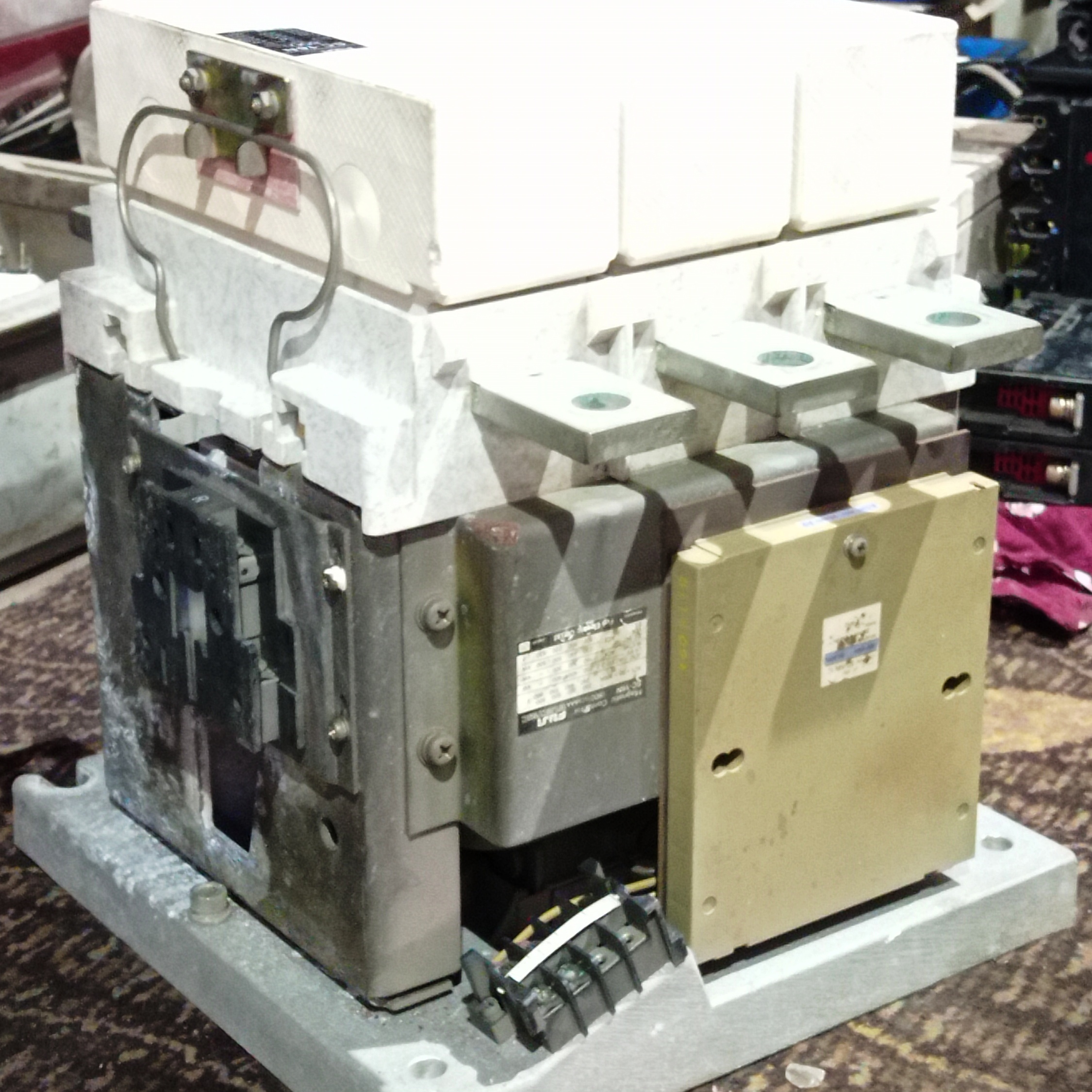

FUJI SC-16N (800) CONTACTOR

Get a Price/Quote

MOQ : 1 Piece

FUJI SC-16N (800) CONTACTOR Specification

Insulation Material
Plastic & Bakelite

Feature
Long Electrical Life, Compact Design

Shape
Rectangular

IP Rating
IP20

Mounting Type
DIN Rail, Panel Mount

Overheating Protection
YES

Connector Type
Screw Type

Surface Finish
Molded Plastic

Operating Temperature
-5C to +40C

Humidity %
95% RH Max

Efficiency
High

Power Factor
0.8

Product Type
Contactor

Application
Motor Protection, AC Control

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
220V AC

Energy Consumption
Low

Output Type
Switching

Color
Grey and Black

Dimension (L*W*H)
82 mm x 44 mm x 86 mm

Weight
380 g

Input Voltage
220V AC

Size
Standard

Phase
Three Phase

No Of Poles
3

Material
High Grade Plastic and Copper

Connection Type
Screw Terminal

Contact Material
Silver Alloy

Auxiliary Contact
1 NO + 1 NC

Rated Current (AC-3)
16A

Coil Voltage Range
200-240V AC

Short Circuit Rating
100kA (with proper fuse)

Conventional Thermal Current (Ith)
25A

Mechanical Endurance
10 Million Operations

FUJI SC-16N (800) CONTACTOR Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About FUJI SC-16N (800) CONTACTOR

Raj Electricals Offering FUJI SC-16N (800) CONTACTOR At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Electric Contactor

Make :- Fuji

AC1 :- 800A

Model :- SC-16N (800)

Condition :- Refurbished

Voltage :- 220V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Advanced Motor Protection

The FUJI SC-16N (800) CONTACTOR serves as a reliable safeguard for motors in demanding environments. Designed to handle currents up to 16A and short circuit conditions up to 100kA (with a proper fuse), it ensures safe start, stop, and operational protection for three-phase motors and various electrical loads. Its robust build and advanced contact materials minimize maintenance and extend service intervals.

Versatile and Compact Design

This contactor fits seamlessly into various panels or control cabinets thanks to its standardized dimensions (82mm x 44mm x 86mm) and compact rectangular shape. The device accommodates both DIN rail and panel mounting, offering flexibility for different installation needs. Made from high-grade plastic and copper, the FUJI SC-16N is built for durability, featuring a molded plastic finish and an IP20 protection level.

Enhanced Electrical Efficiency

Engineered for high efficiency and low energy consumption, the SC-16N (800) CONTACTOR is ideal for applications where dependable performance and energy savings are essential. The device operates over a broad temperature range (-5C to +40C) and withstands up to 95% relative humidity, making it suitable for a range of operating conditions across India and internationally.

FAQ's of FUJI SC-16N (800) CONTACTOR:

Q: How should the FUJI SC-16N (800) CONTACTOR be installed for optimal performance?

A: The FUJI SC-16N (800) CONTACTOR can be installed using either a DIN rail or panel mount, depending on your setup. Ensure the device is connected using the screw terminals, and always verify that the coil voltage matches your supply voltage (200-240V AC) before powering on.

Q: What are the main applications for this contactor model?

A: This contactor is primarily designed for motor protection and AC control in three-phase systems. It can be used in various industrial and commercial environments requiring efficient and reliable power switching for loads up to 16A.

Q: When is the best time to replace or maintain the contactor?

A: Periodic inspection is recommended, although the mechanical endurance rating of 10 million operations ensures a long service life. If you notice any abnormal sounds, overheating, or contact wear, consider replacing or servicing the contactor to maintain safety and efficiency.

Q: Where can the FUJI SC-16N (800) CONTACTOR be sourced in India?

A: As an exporter, manufacturer, supplier, and trader, FUJI and its authorized distributors offer the SC-16N (800) CONTACTOR throughout India. Check with FUJI's official channels or trusted industrial component suppliers for availability.

Q: What is the process for wiring the auxiliary contacts?

A: The contactor includes 1 NO (Normally Open) and 1 NC (Normally Closed) auxiliary contacts. These can be wired through the provided screw terminals as per your control circuit's requirements, enabling signaling, interlocking, or feedback functions as needed in your system.

Q: How does the built-in overheating protection benefit users?

A: Overheating protection helps prevent damage to the contactor and connected equipment by automatically disengaging the circuit in the event of excessive temperature, thus reducing downtime and extending overall equipment life.

Q: What makes the FUJI SC-16N (800) CONTACTOR energy-efficient compared to other models?

A: This model is designed with low energy consumption and a high power factor (0.8), ensuring that operational costs remain minimal while delivering consistent and reliable switching performance.
