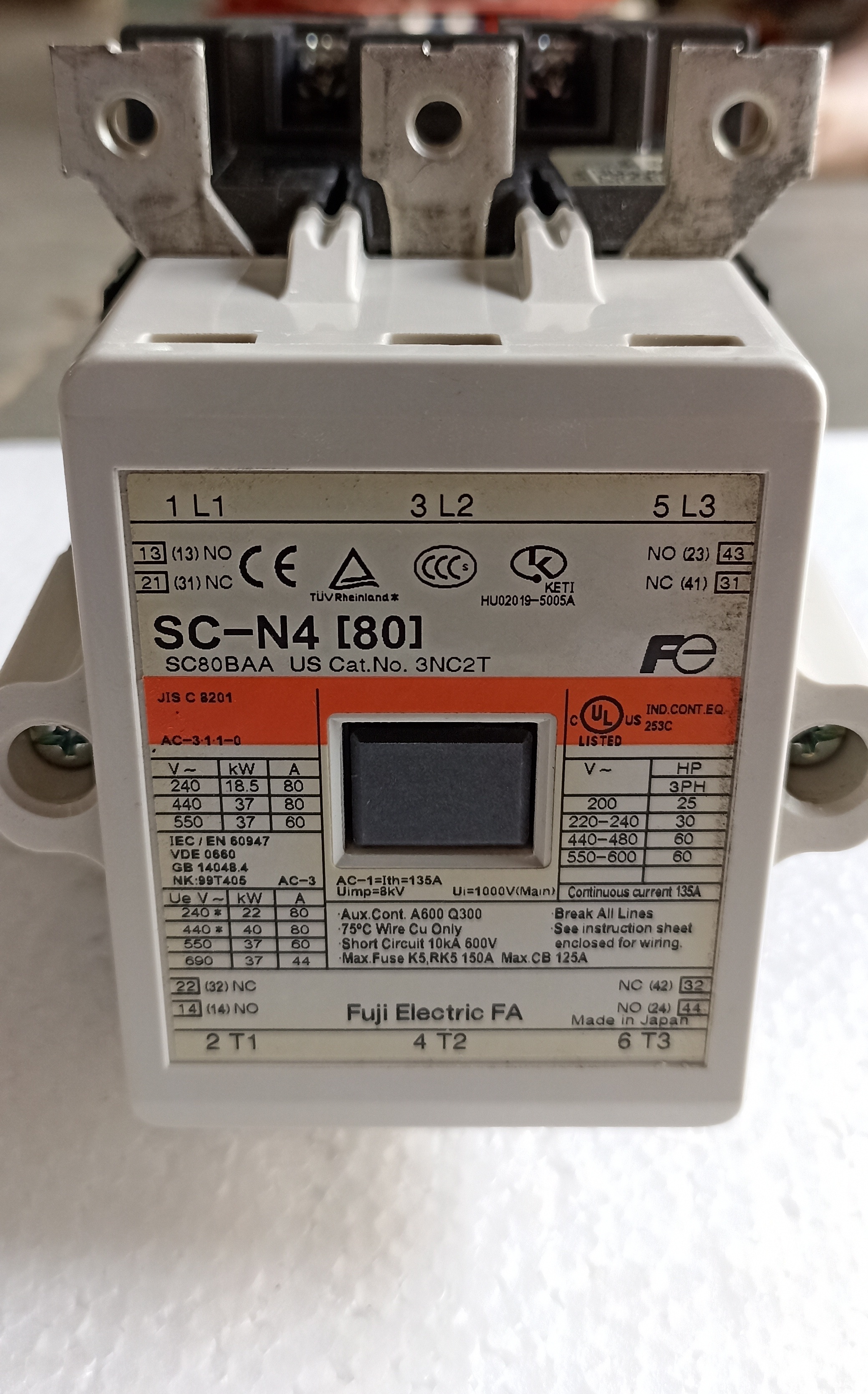

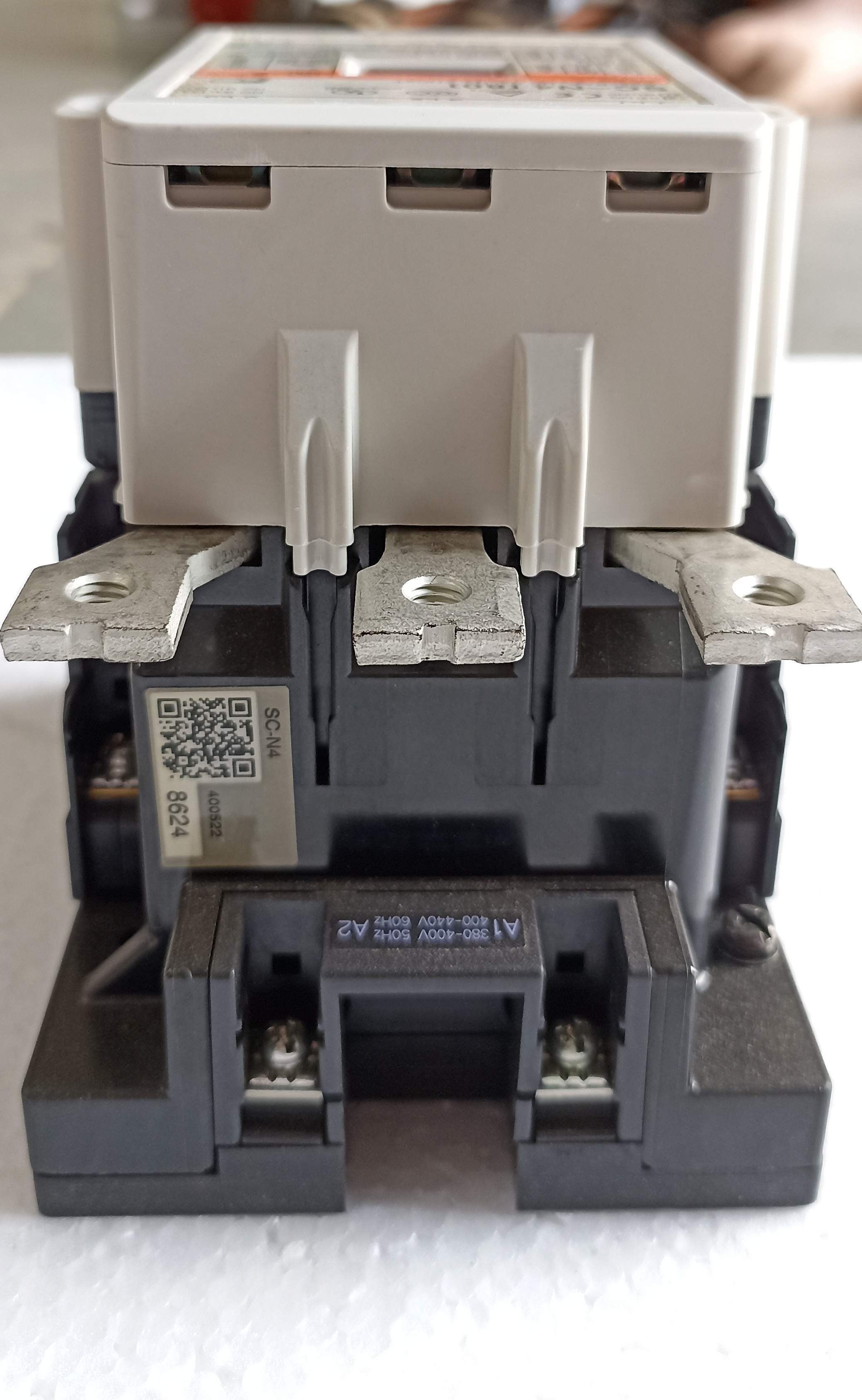

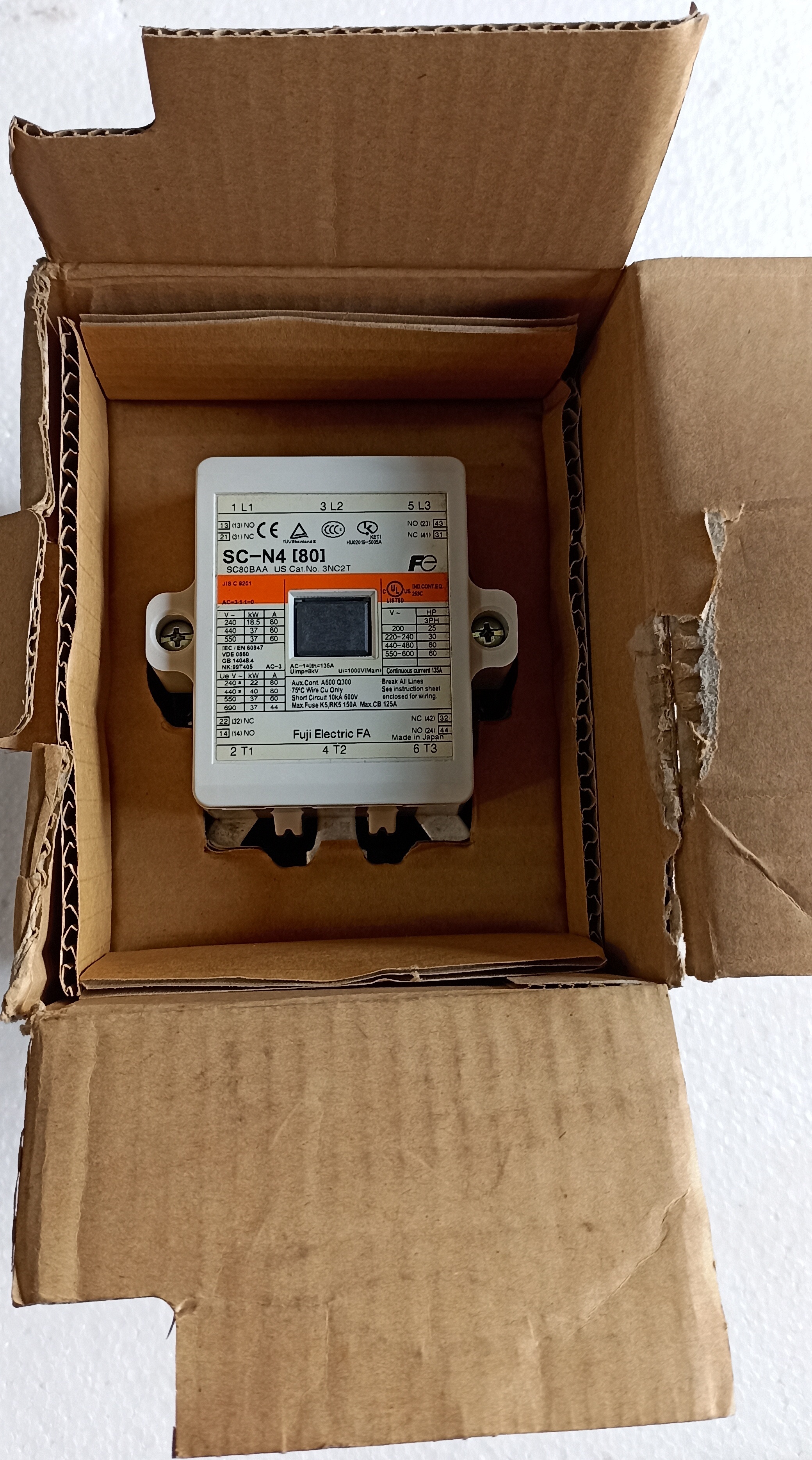

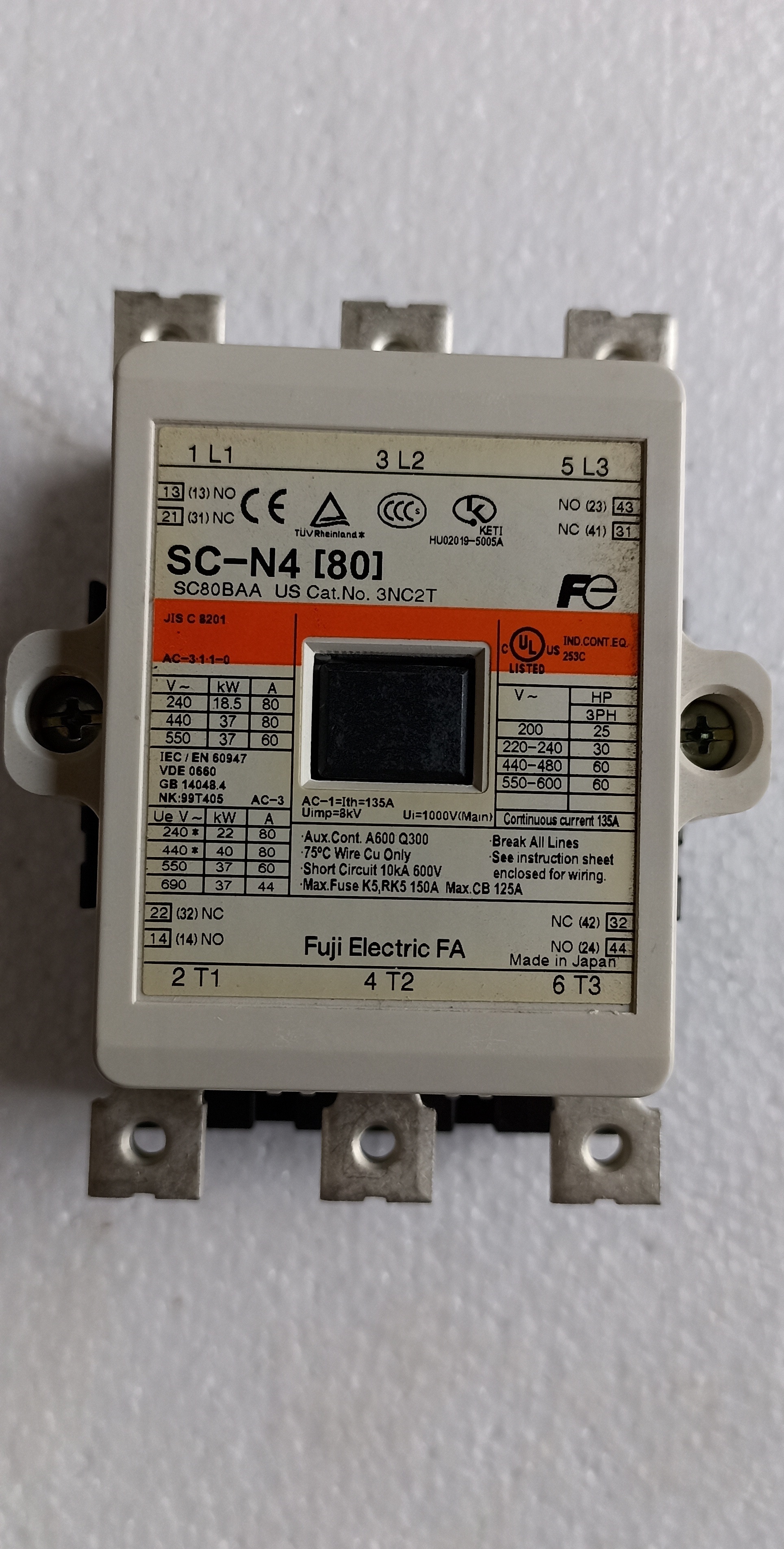

FUJI SC-N4 CONTACTOR

Get a Price/Quote

FUJI SC-N4 CONTACTOR Specification

Humidity %
Max. 85% RH (no condensation)

Mounting Type
DIN Rail/Panel Mount

Insulation Material
Polyamide (PA66)

Surface Finish
Molded Finish

Efficiency
High Efficiency

Feature
High Durability, Compact Design, Low Power Consumption

IP Rating
IP20

Connector Type
Screw

Operating Temperature
-5°C to +40°C

Power Factor
0.8 min

Shape
Rectangular

Overheating Protection
Yes, with Thermal Overload Relay (optional)

Product Type
Magnetic Contactor

Application
Motor Control, Switching, Industrial Automation

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
AC 690V

Energy Consumption
9W (AC Coil)

Output Type
Normally Open (NO)

Color
Black/Grey

Dimension (L*W*H)
110 x 120 x 130 mm

Weight
Approx. 2.1 kg

Size
SC-N4

Input Voltage
220-240VAC (Coil)

Phase
Three Phase

No Of Poles
3 Pole

Material
High-grade Plastic and Metal

Connection Type
Screw Terminal

Coil Voltage Options
AC 100V, 110V, 200V, 220V, 230V, 240V, 380V, 400V, 415V, 440V

Short-Time Withstand Current
1100A for 1 sec

Electrical Life
1 Million Operations (AC3)

Auxiliary Contacts
2NO+2NC (can be equipped)

Conventional Thermal Current (Ith)
110A

Rated Operational Current (AC3)
65A (AC3: 440V)

Mechanical Life
10 Million Operations

Altitude
Up to 2000 m

FUJI SC-N4 CONTACTOR Trade Information

Minimum Order Quantity
5 Number

Payment Terms
Cash Advance (CA), Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque

Sample Available
Yes

Main Export Market(s)
Western Europe, Central America, Australia, North America, South America, Middle East, Eastern Europe, Asia, Africa

Main Domestic Market
All India

About FUJI SC-N4 CONTACTOR

Raj Electricals Offering New Fuji SC-N4 Contactor At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Electric Contactor

Make :- Fuji

Ith :- 135A

Pole :- 3P

Model :- SC-N4 [80]

Condition :- New

Coil :- 380-400V At 50 Hz

400-440V At 60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

High Durability and Efficiency

Designed for long-term performance, the FUJI SC-N4 contactor operates efficiently under tough industrial conditions. With a mechanical life of up to 10 million operations and an electrical life of 1 million cycles at full load (AC3), this contactor ensures reduced maintenance and increased uptime in your facility. Its energy consumption is kept low at just 9W (AC coil), promoting cost-effective operation.

Versatile Mounting and Application

The SC-N4 is crafted for adaptability; featuring both DIN rail and panel mount options, it enables straightforward installation across a range of settings. Its screw terminal connection ensures secure, hassle-free wiring, making it an excellent choice for motor control, switching, and protection in industrial automation systems.

Reliable Protection and Safety

Equipped with optional thermal overload relay and IP20-rated protection, the FUJI SC-N4 offers reliable defense against overheating and external impacts. Its insulation material, Polyamide (PA66), combined with high-grade construction, guards components and personnel, helping to maintain system safety and integrity in demanding environments.

FAQ's of FUJI SC-N4 CONTACTOR:

Q: How do I mount the FUJI SC-N4 Contactor in my electrical panel?

A: The FUJI SC-N4 can be installed using either DIN rail or direct panel mounting, accommodating various wiring and layout preferences. The screw terminal connectors provide secure attachment, ensuring stability during operation.

Q: What benefits come from using auxiliary contacts (2NO+2NC) with this contactor?

A: Equipping auxiliary contacts enables additional control and signaling functions, enhancing system flexibility for interlocking, feedback, and remote monitoring purposes within motor control circuits.

Q: When should I use the thermal overload relay with the SC-N4 contactor?

A: The thermal overload relay (optional) should be used when motor or load protection against overheating is required, providing automatic interruption during abnormal temperature rises to safeguard equipment and ensure operational continuity.

Q: Where is the FUJI SC-N4 contactor best applied?

A: This contactor excels in motor control, switching, and industrial automation settings for three-phase systems. Its compact design, high durability, and robust protection features suit applications in manufacturing, processing, and automation facilities.

Q: What is the process for selecting the correct coil voltage for this contactor?

A: Choose the coil voltage based on your power supply-options range from AC 100V to 440V. Ensure compatibility with your control circuit to guarantee reliable actuation and long service life.

Q: How does the SC-N4 contribute to energy efficiency in industrial installations?

A: With a low power consumption of 9W for the AC coil and high efficiency output, the SC-N4 minimizes energy usage while maintaining reliable switching functions, helping to reduce operating costs over time.

Q: What is the maximum operating altitude and humidity specification for this contactor?

A: The SC-N4 contactor can operate at altitudes up to 2000 meters and withstands humidity levels of up to 85% RH without condensation, making it suitable for most global industrial environments.
