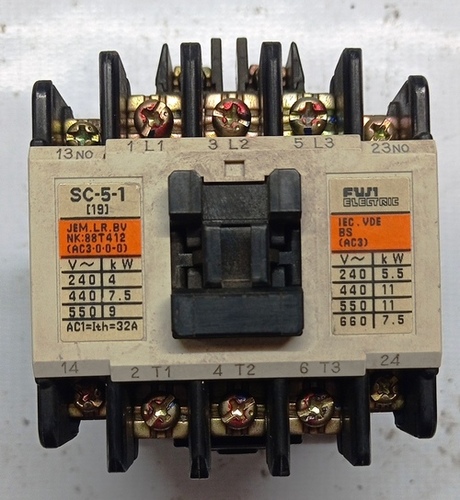

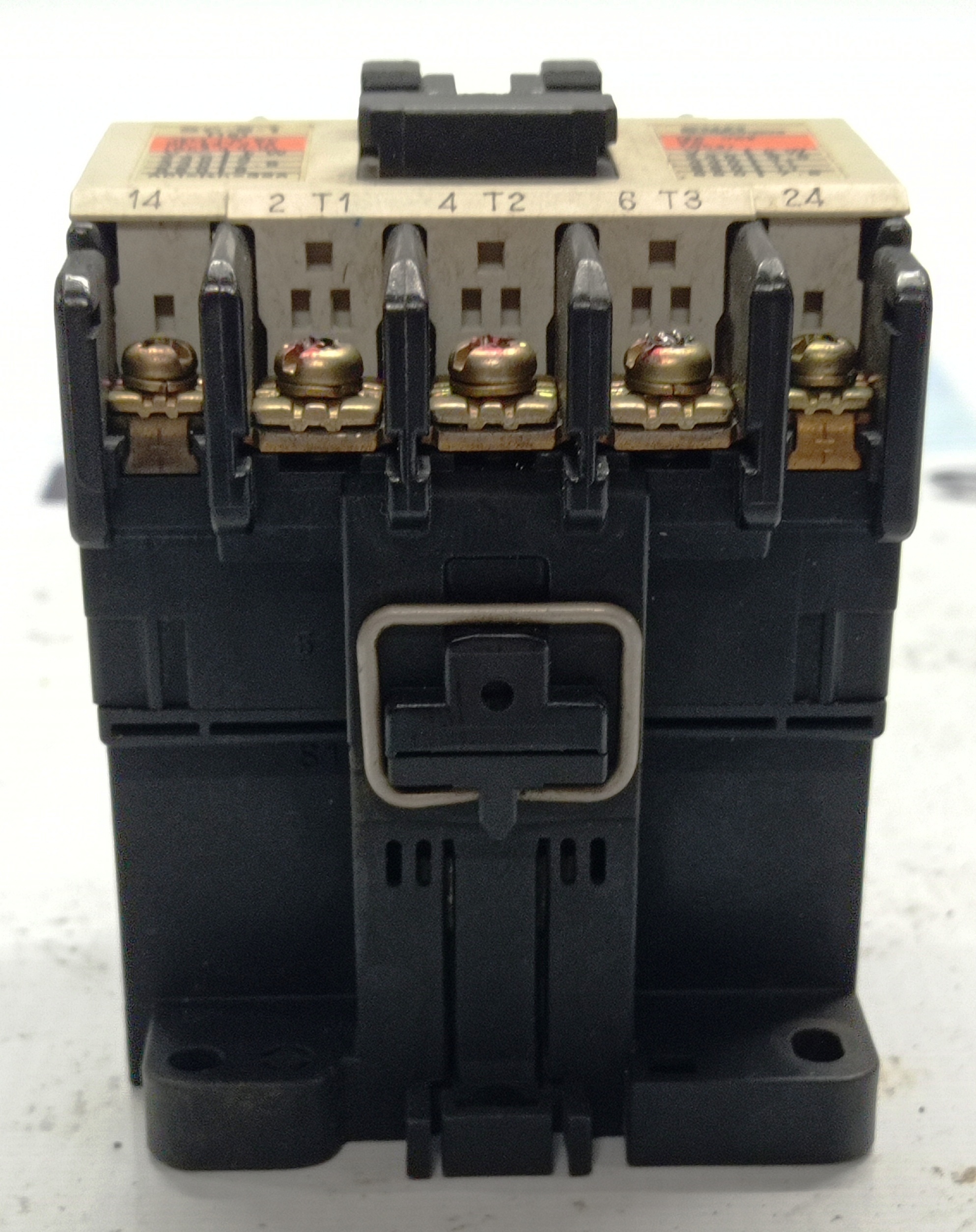

FUJI SC-5-1 (19) CONTACTOR

Name: FUJI SC-5-1 (19) CONTACTOR
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 10 Pieces

FUJI SC-5-1 (19) CONTACTOR Specification

Overheating Protection
Available (With Thermal Overload Relay - Optional)

Surface Finish
Molded Plastic Finish

Humidity %
5%-95% RH (non-condensing)

Operating Temperature
-5C to +40C

Shape
Rectangular

Insulation Material
Thermoplastic Resin

Mounting Type
DIN Rail/Panel Mount

Power Factor
0.9 (min)

Feature
High Reliability, Long Electrical Life, Compact Design

Efficiency
High Efficiency Switching

IP Rating
IP20

Connector Type
Screw Contacts

Product Type
Electromagnetic Contactor

Application
Industrial Motor Control, Switching Electrical Circuits

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
AC 690V

Energy Consumption
9 VA (approximate hold)

Output Type
NO + NC Contacts

Color
Black & White

Dimension (L*W*H)
132mm x 110mm x 149mm

Weight
7.4 kg

Input Voltage
110V AC (Coil Voltage)

Phase
Three Phase

Size
SC-5-1 (19)

No Of Poles
3P

Material
High-grade Plastic & Metal

Connection Type
Screw Terminal

Electrical Life
1 Million Operations (AC-3 Duty)

Contact Material
Silver Alloy Contacts

Shock Resistance
10G

Vibration Resistance
5G

Storage Temperature
-40C to +70C

Terminal Capacity
2.5 - 50 mm2

Mechanical Life
10 Million Operations

Coil Consumption
85-93 VA at Pick-up (AC)

Rated Current
150A AC-3

Auxiliary Contacts
1NO + 1NC

FUJI SC-5-1 (19) CONTACTOR Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About FUJI SC-5-1 (19) CONTACTOR

Raj Electricals Offering FUJI SC-5-1 (19) CONTACTOR At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Electric Contactor

Make :- Fuji

Ith :- 32A

Model :- SC-5-1 (19)

Condition :- Refurbished

Voltage :- 220V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Outstanding Performance for Industrial Needs

Rely on the FUJI SC-5-1 (19) Contactor for hassle-free switching and control of industrial motors and circuits. Designed to withstand high currents, its resilience is reflected in impressive durability metrics such as a 10 million mechanical operations lifespan, robust shock (10G) and vibration (5G) resistance, and efficient silver alloy contacts for high conductivity.

Designed for Durability and Safety

Engineered with high-grade thermoplastic resin and IP20-rated protection, this contactor mitigates dust ingress and accidental contact. The optional thermal overload relay prevents overheating, safeguarding connected equipment. Its wide storage (-40C to +70C) and operating (-5C to +40C) temperature ranges make it ideal for diverse applications.

Ease of Installation and Versatile Applications

Thanks to compact dimensions and dual mounting (DIN rail/panel), installation is straightforward. The contactor's screw terminal design and compatibility with wire sizes from 2.5 to 50 mm2 suit various industrial setups. It operates efficiently across a broad humidity range (5%-95% RH), handling motor loads reliably in demanding Indian environments.

FAQ's of FUJI SC-5-1 (19) CONTACTOR:

Q: How do I install the FUJI SC-5-1 (19) Contactor?

A: The contactor supports both DIN rail and panel mounting, allowing for flexible installation. Use the screw terminals to connect wires (2.5-50 mm2) securely, and ensure compatibility with your circuit's voltage and current requirements.

Q: What are the primary applications of this contactor?

A: The FUJI SC-5-1 (19) Contactor is typically used for industrial motor control, switching electrical circuits, and safeguarding equipment. Its robust design and long electrical life make it suitable for heavy-duty applications.

Q: When should the thermal overload relay be used?

A: The optional thermal overload relay should be added when you need extra protection against overheating, especially for motors or installations susceptible to high current levels. It enhances operational safety by interrupting current during overloads.

Q: Where can the FUJI SC-5-1 (19) Contactor be operated?

A: It can be operated in environments with temperatures from -5C to +40C and stored between -40C to +70C. It also tolerates ambient humidity from 5% to 95% RH (non-condensing), making it suitable for varied industrial settings across India.

Q: What benefits does this contactor offer over standard models?

A: This model features a high mechanical and electrical lifespan, reliable silver alloy contacts, excellent resistance to shocks and vibrations, IP20 safety protection, and optional thermal overload capabilities, ensuring longevity and dependable performance.

Q: How does the contactor handle energy consumption during operation?

A: The coil consumes between 85-93 VA at pick-up and approximately 9 VA during holding, enabling efficient operation and reduced power usage during continuous cycles.
