FUJI 125A 3P MCCB

Get a Price/Quote

MOQ : 1 Number

FUJI 125A 3P MCCB Specification

Phase
Three Phase

Mechanical Life
10,000 Operations

Breaking Capacity
25 kA

Rated Short Circuit Making Current
Approximately 50 kA

Rated Short Circuit Breaking Current
25 kA at 415V AC

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
DIN Rail or Panel Mounting

Function
Circuit Protection (Overload & Short Circuit)

Poles Number
3 Poles (3P)

Rated Voltage
415V AC

Rated Current
125A

Rated Frequency
50/60 Hz

Curves
Type C

Temperature Protection
Yes (with Thermal and Magnetic Trip)

Weight
Approx. 2.1 kg

Color
Grey/Black

Rated Impulse Withstand Voltage (Uimp)
8 kV

Mounting Position
Vertical/Horizontal

Degree of Protection
IP20 Front Side

Contact Position Indicator
Available

Auxiliary Accessories
Optional (Shunt Trip, Auxiliary Switch)

Rated Insulation Voltage (Ui)
690V AC

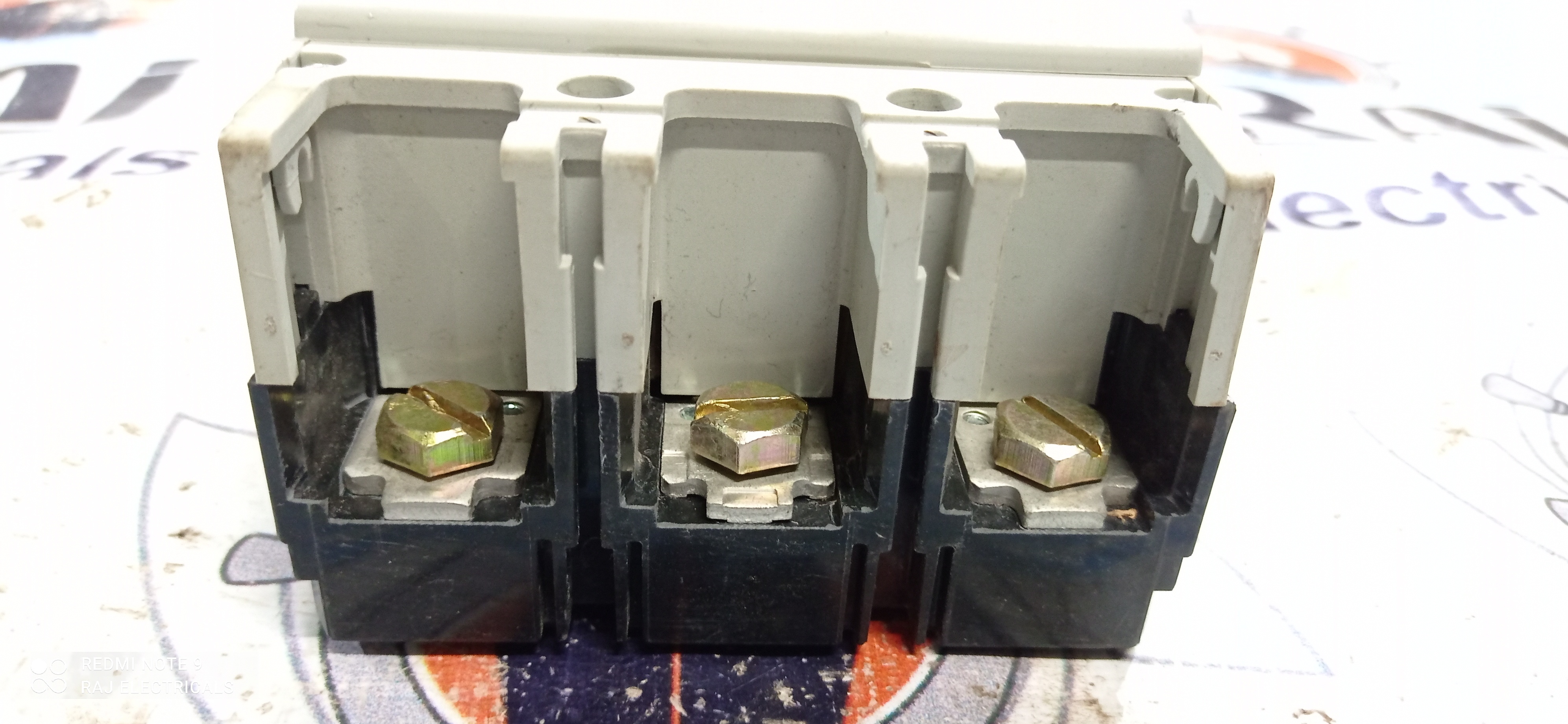

Terminal Type
Box Type/Lug

Frame Size
125AF

Trip Unit Type
Thermal-Magnetic

Operating Temperature Range
-5°C to +40°C

Standards Compliance
IEC 60947-2

FUJI 125A 3P MCCB Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

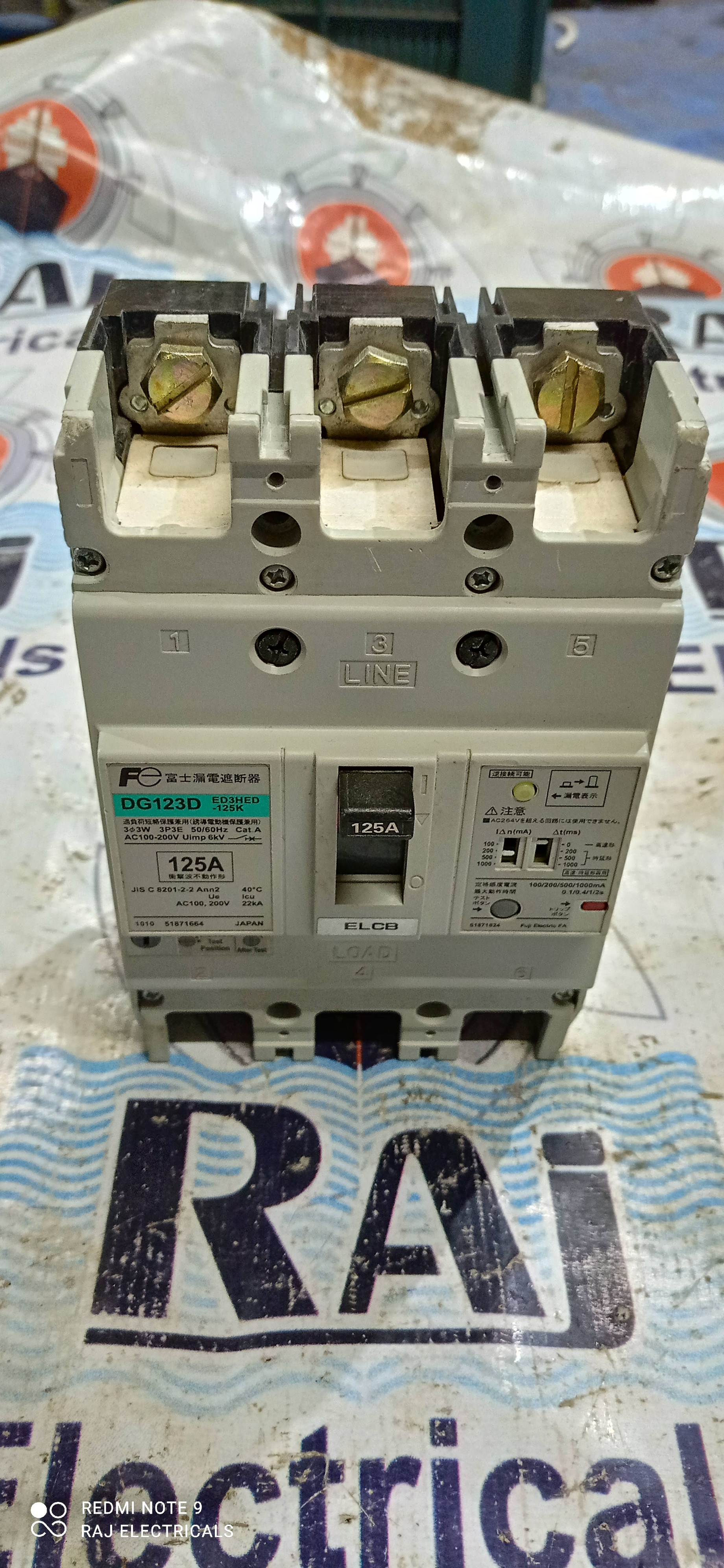

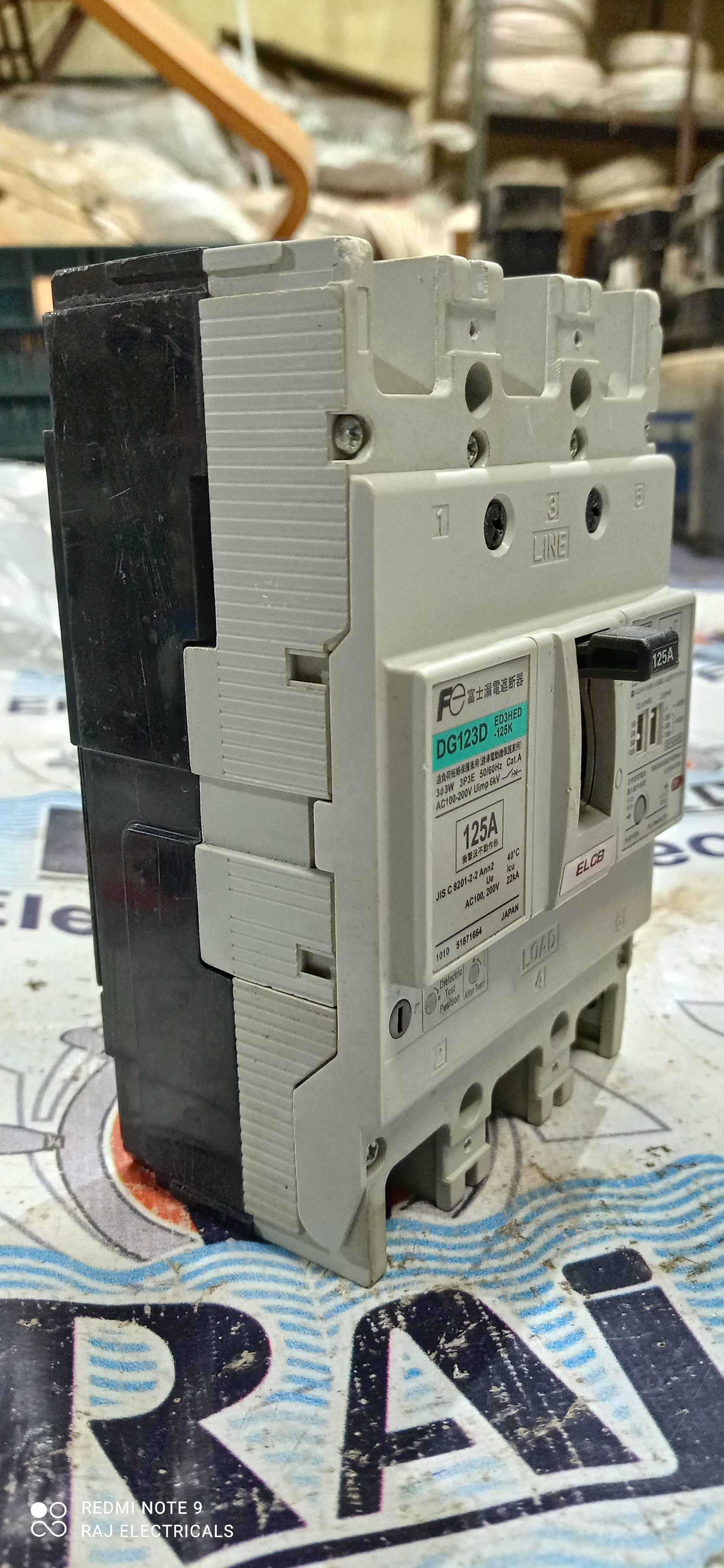

About FUJI 125A 3P MCCB

Fuji 125A 3P Mccb Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Type :- Moulded Case Circuit Breaker

Brand :- Fuji

Model Number :- DG123D

Ampere :- 125A

Number Of Pole :- 3P

Breaking Capacity :- 22 kA

Current Voltage :- 415V

Frequency :- 50 Hz

We Supply Industrial Product In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website:www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Reliable Triple-Phase Safety for Power Systems

Built for rigorous environments, the FUJI 125A 3P MCCB offers outstanding overload and short circuit protection for three-phase systems. Innovative thermal-magnetic trip mechanisms respond accurately to faults, safeguarding vital electrical infrastructure while adhering to international IEC 60947-2 standards.

Versatile Installation and Easy Integration

Choose between DIN rail and panel mounting to integrate this MCCB seamlessly into new or existing switchboards. Its box/lug terminals accommodate straightforward wiring, and the compact design (approx. 2.1 kg) fits efficiently in both confined and spacious enclosures, supporting export, distribution, and various project needs.

Enhanced Usability and Operator Safety

A front-facing contact position indicator offers immediate status checks, while the IP20 protection guards users against accidental contact. Optional auxiliary accessories, including shunt trips and auxiliary switches, provide flexibility for advanced system monitoring and control in demanding electrical networks.

FAQ's of FUJI 125A 3P MCCB:

Q: How does the FUJI 125A 3P MCCB provide protection for electrical circuits?

A: This MCCB employs a thermal-magnetic trip unit, reacting promptly to overloads and short circuits. The thermal element senses prolonged overcurrents, while the magnetic trigger responds instantly to high fault currents, helping prevent equipment and wiring damage.

Q: What are the installation options for the FUJI 125A 3P MCCB?

A: The MCCB can be mounted on either a DIN rail or directly onto panels, and it supports both vertical and horizontal orientations. Its box type/lug terminals facilitate straightforward connection, simplifying integration into various electrical setups in industrial or commercial applications.

Q: When should the trip unit type be selected for an application?

A: The thermal-magnetic trip unit of this MCCB is ideal for applications requiring both overload and short circuit protection. It is commonly chosen during system design or upgrades when comprehensive circuit protection and compliance with IEC 60947-2 are essential.

Q: Where is the FUJI 125A 3P MCCB best utilized?

A: This breaker is best suited for power distribution in industrial facilities, commercial buildings, and infrastructure projects, especially where three-phase, 415V AC circuits require reliable interruption capability and a high breaking capacity of up to 25 kA.

Q: What accessories are available for enhanced control and monitoring?

A: Optional add-ons, such as a shunt trip and auxiliary switch, are available for this MCCB. These accessories enable remote tripping or status indication, enhancing system monitoring, control, and integration with building management or automation systems.

Q: How does the degree of protection (IP20) benefit users?

A: The IP20 front degree of protection safeguards against accidental finger contact with live parts, significantly reducing the risk of electrical shocks and ensuring safer operation and maintenance for personnel.

Q: What is the process for verifying the MCCB's contact status?

A: A built-in contact position indicator on the front provides a clear visual cue, allowing users to quickly determine whether the circuit is open or closed, streamlining maintenance checks and improving overall safety management.
