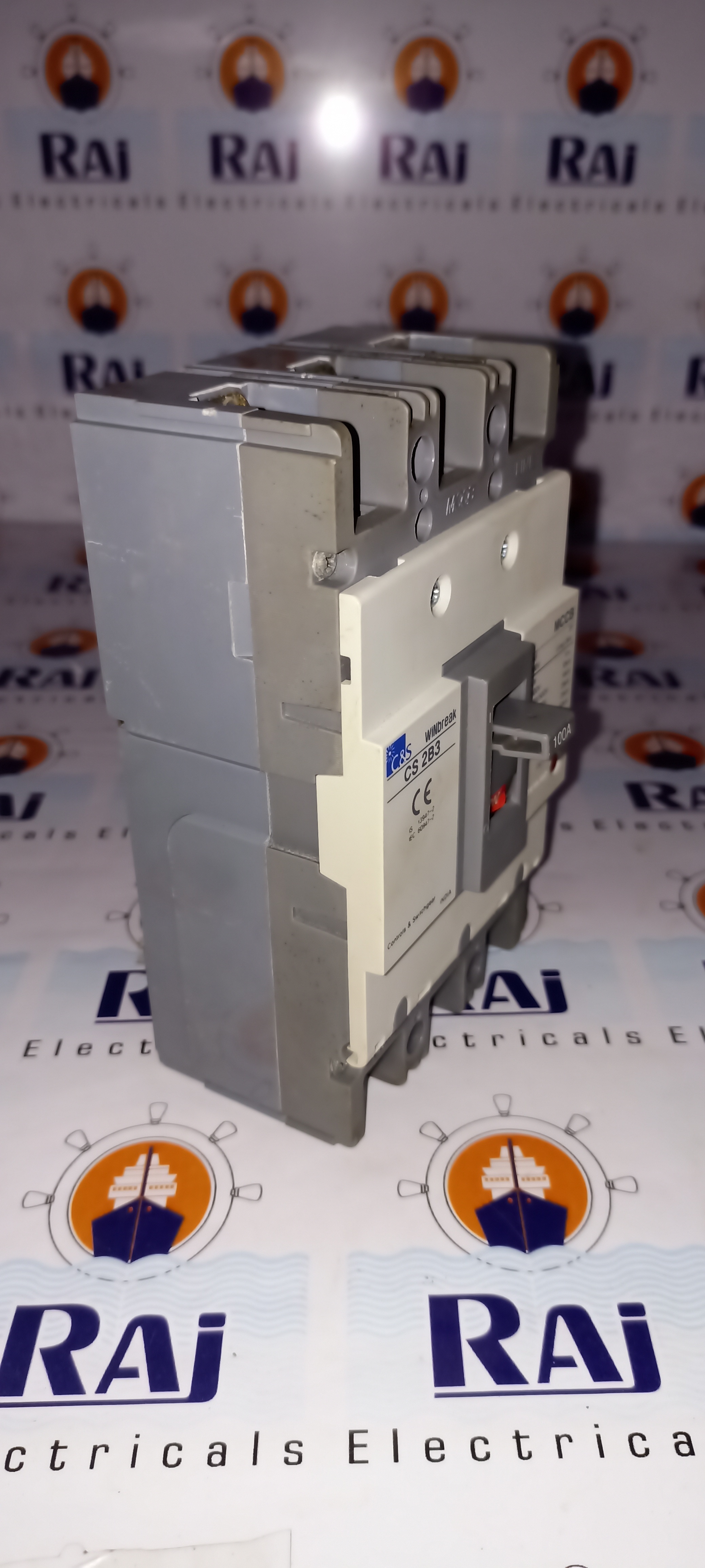

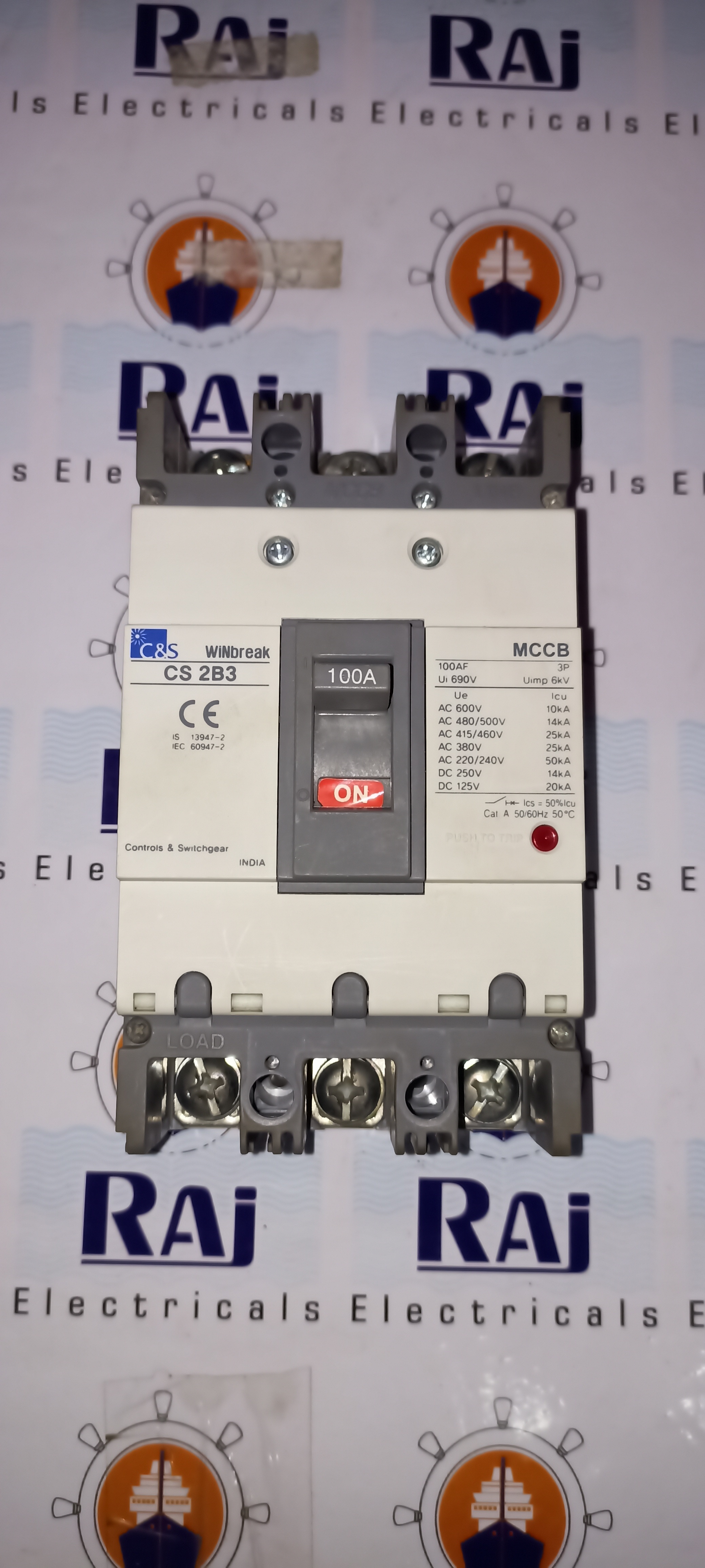

CandS 100A 3P MCCB

Get a Price/Quote

CandS 100A 3P MCCB Specification

Rated Short Circuit Making Current
25kA

Mechanical Life
10,000 Operations

Phase
Three Phase

Breaking Capacity
25kA

Rated Short Circuit Breaking Current
25kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounted

Function
Overload & Short Circuit Protection

Poles Number
3 Pole

Rated Voltage
415V AC

Rated Current
100A

Rated Frequency
50/60 Hz

Curves
Type C

Temperature Protection
Thermal & Magnetic Release

Weight
Approx. 1.4 kg

Color
Grey & Black

CandS 100A 3P MCCB Trade Information

Minimum Order Quantity
10 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About CandS 100A 3P MCCB

C&S 100A 3P Mccb Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Moulded Case Circuit Breaker

Make :- C&S

Ampere :- 100A

Number Of Pole :- 3P

Model Number :- CS 2B3

Breaking Capacity :- 25 kA

Voltage :- 415V AC

Frequency :- 50 Hz

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Reliable Protection for Industrial and Commercial Installations

The CandS 100A 3P MCCB is tailored for safeguarding high-power systems in factories, offices, and commercial complexes. Its 25kA breaking capacity and thermal-magnetic release ensure prompt disconnection during faults, minimizing potential damages. The device supports both panel mounting and flexible terminal connections, making it convenient for various installation requirements.

Versatile Design with Enhanced Safety Features

Equipped with an IP20 rating and available auxiliary contacts, this MCCB caters to diverse operational needs. Its adjustable current range and Type C curve provide precise protection, while the ability to withstand ambient temperatures up to 55C ensures resilience across wide-ranging environments. The device is also suitable for both vertical and horizontal mounting positions, maximizing installation options.

FAQ's of CandS 100A 3P MCCB:

Q: How does the CandS 100A 3P MCCB protect electrical circuits?

A: This MCCB employs both thermal and magnetic trip elements to safeguard against overloads and short circuits. The thermal release responds to prolonged overcurrents while the magnetic release reacts swiftly to sudden faults, ensuring comprehensive circuit protection.

Q: What are the mounting options for installing this MCCB?

A: The MCCB can be installed in both vertical and horizontal positions, and is designed for panel mounting. This flexibility allows integration into a variety of industrial and commercial electrical panels.

Q: Where is the CandS 100A 3P MCCB typically used?

A: It is primarily applied in industrial facilities, commercial buildings, and infrastructure requiring reliable three-phase overload and short-circuit protection for electrical circuits operating at up to 415V AC.

Q: When should the auxiliary contacts accessory be used with this MCCB?

A: Auxiliary contacts are optional accessories recommended when remote indication or interlocking with other control systems is needed. They provide additional monitoring and signaling capabilities for improved system management.

Q: What is the process for adjusting the current range of this MCCB?

A: The current range can be set between 80A and 100A using the adjustment dial or mechanism provided on the device. This should be done during installation to match the protection requirements of the connected load.

Q: What are the key benefits of using the CandS 100A 3P MCCB?

A: Key advantages include high breaking capacity (25kA), dual protection modes (thermal and magnetic), compatibility with auxiliary contacts, broad operating temperature range, and compliance with standard reference conditions for enhanced reliability and safety.
