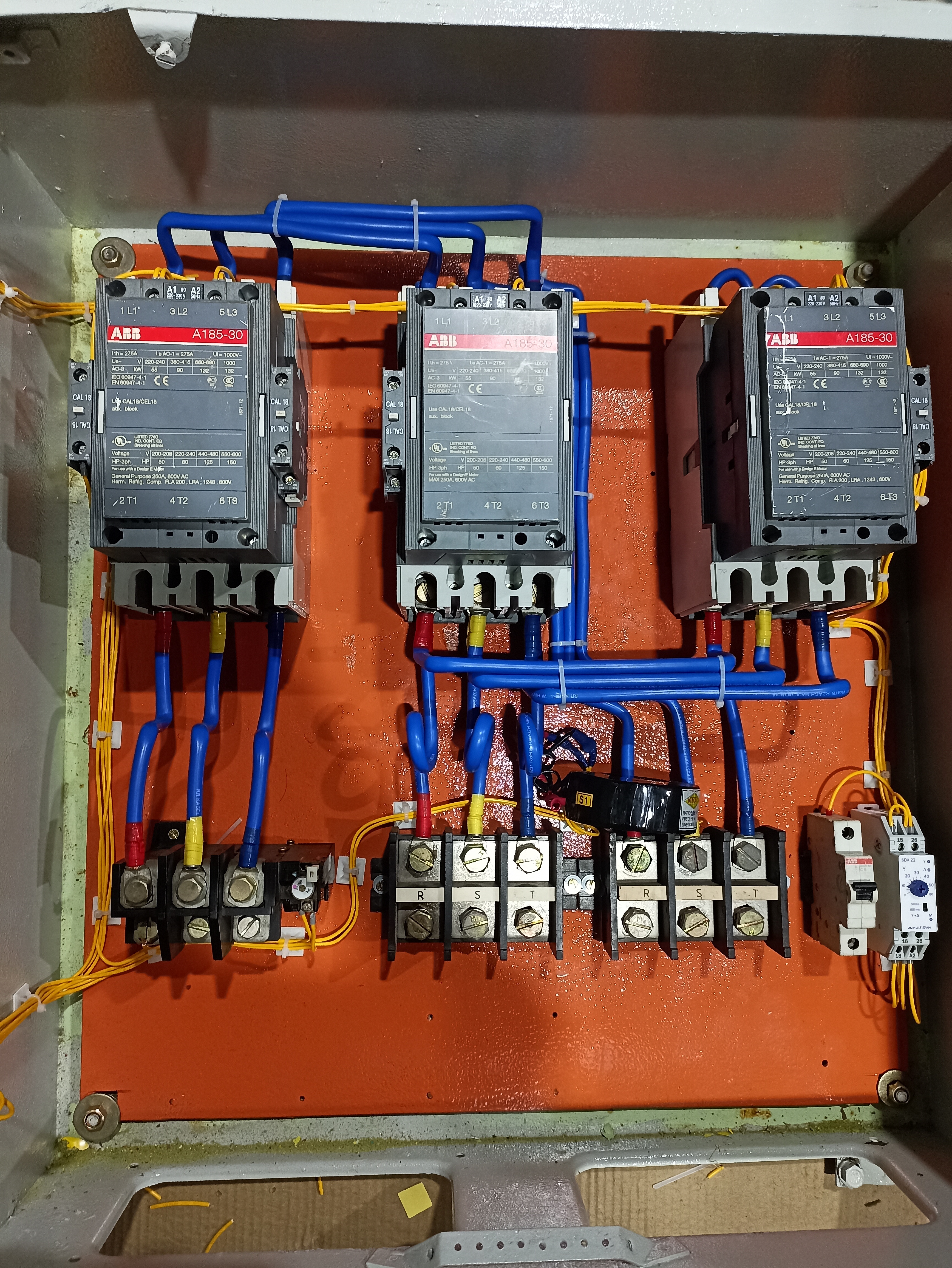

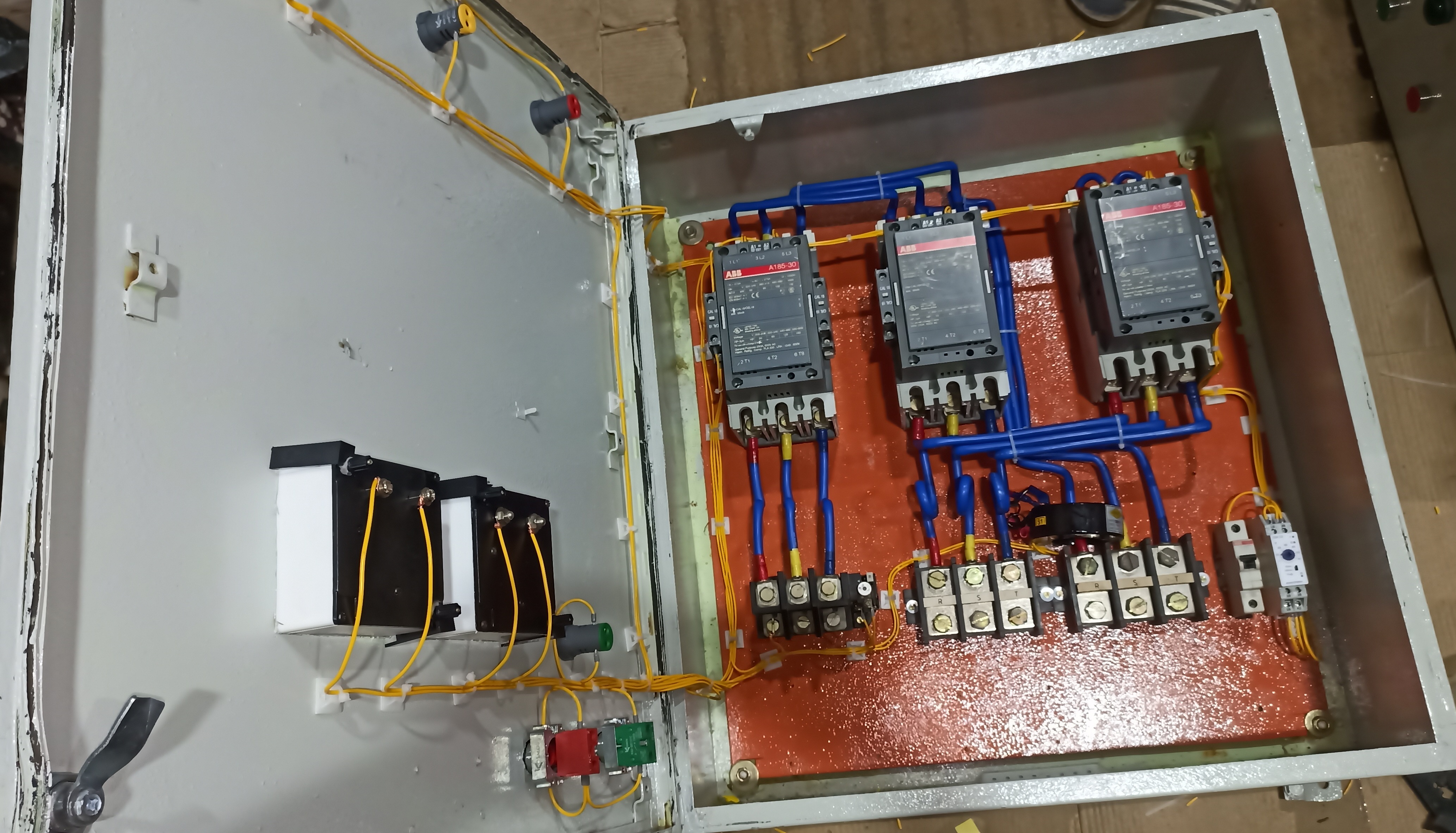

ABB A185-30 STAR-DELTA STARTER

Name: ABB A185-30 STAR-DELTA STARTER
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Piece

ABB A185-30 STAR-DELTA STARTER Specification

Shape
Rectangular

Insulation Material
Thermoplastic / Bakelite

Efficiency
High

IP Rating
IP20

Humidity %
5-95% RH

Surface Finish
Matte

Overheating Protection
YES

Operating Temperature
-25C to +60C

Connector Type
Cable Lug / Screw

Feature
Heavy Duty, Easy Installation

Mounting Type
Panel Mount

Power Factor
0.95

Product Type
Star-Delta Starter

Application
Motor Starting, Industrial Automation

Protection Level
High

Frequency (MHz)
50/60 Hz

Rated Voltage
690 V AC

Energy Consumption
Low

Output Type
AC

Color
Grey

Dimension (L*W*H)
410 x 250 x 200 mm

Weight
9.5 kg

Input Voltage
220-690 V AC

Size
Standard

Phase
Three Phase

Connection Type
Screw Terminal

Material
High Grade Plastic and Metal

No Of Poles
3 Pole

Auxiliary Contacts
2 NO + 2 NC

Short Circuit Rating
10 kA

Contactor Rated Current
185 A

Electrical Durability
1 Million Operations

Type of Cooling
Air Cooled

Ambient Air Temperature Range
-25C to +60C

Contactor Model
A185-30

Control Voltage
110-220 V AC

Mechanical Durability
10 Million Operations

ABB A185-30 STAR-DELTA STARTER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ABB A185-30 STAR-DELTA STARTER

ABB A185-30 STAR-DELTA STARTER Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- STAR-DELTA STARTER

Make :- ABB

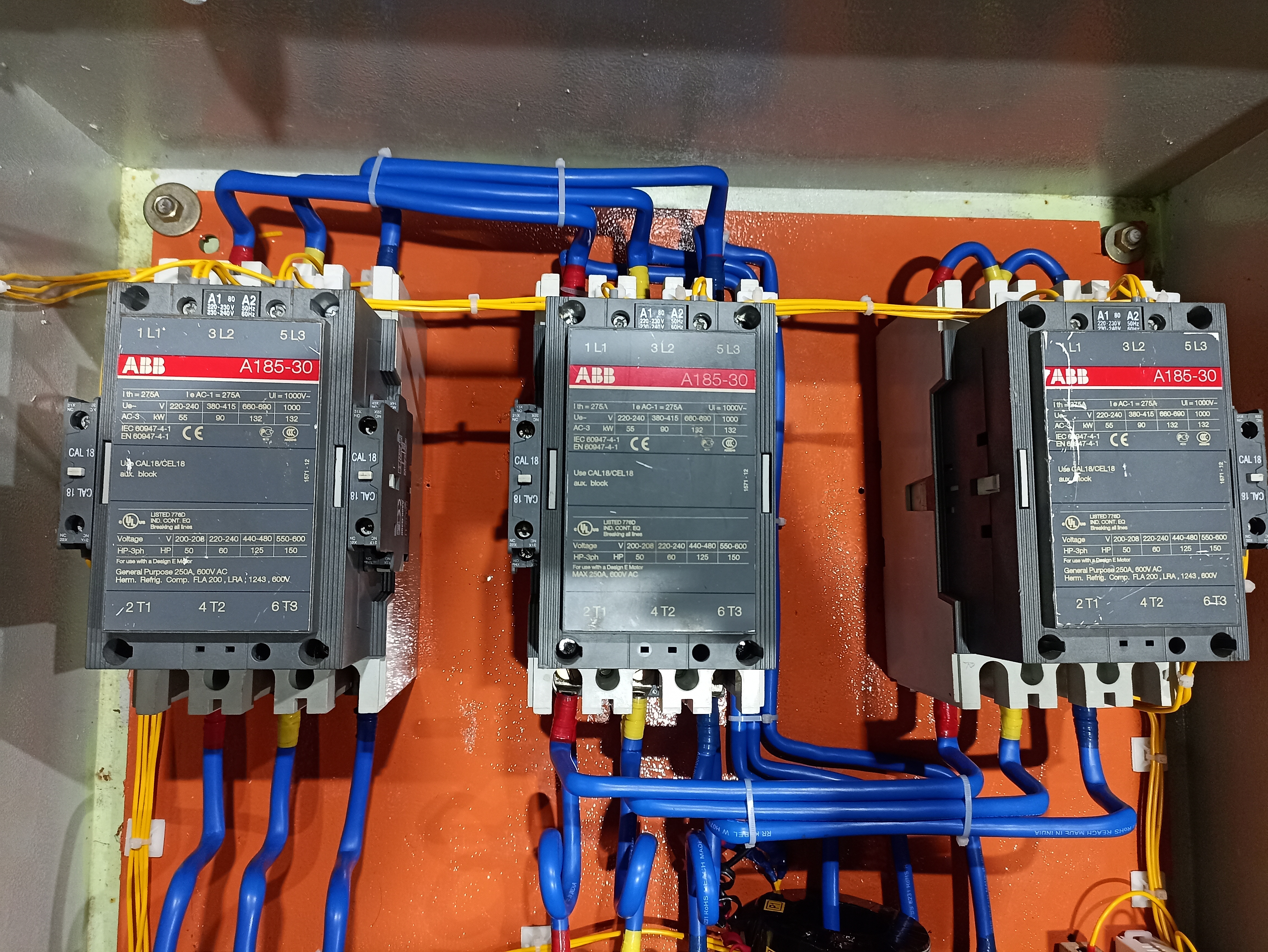

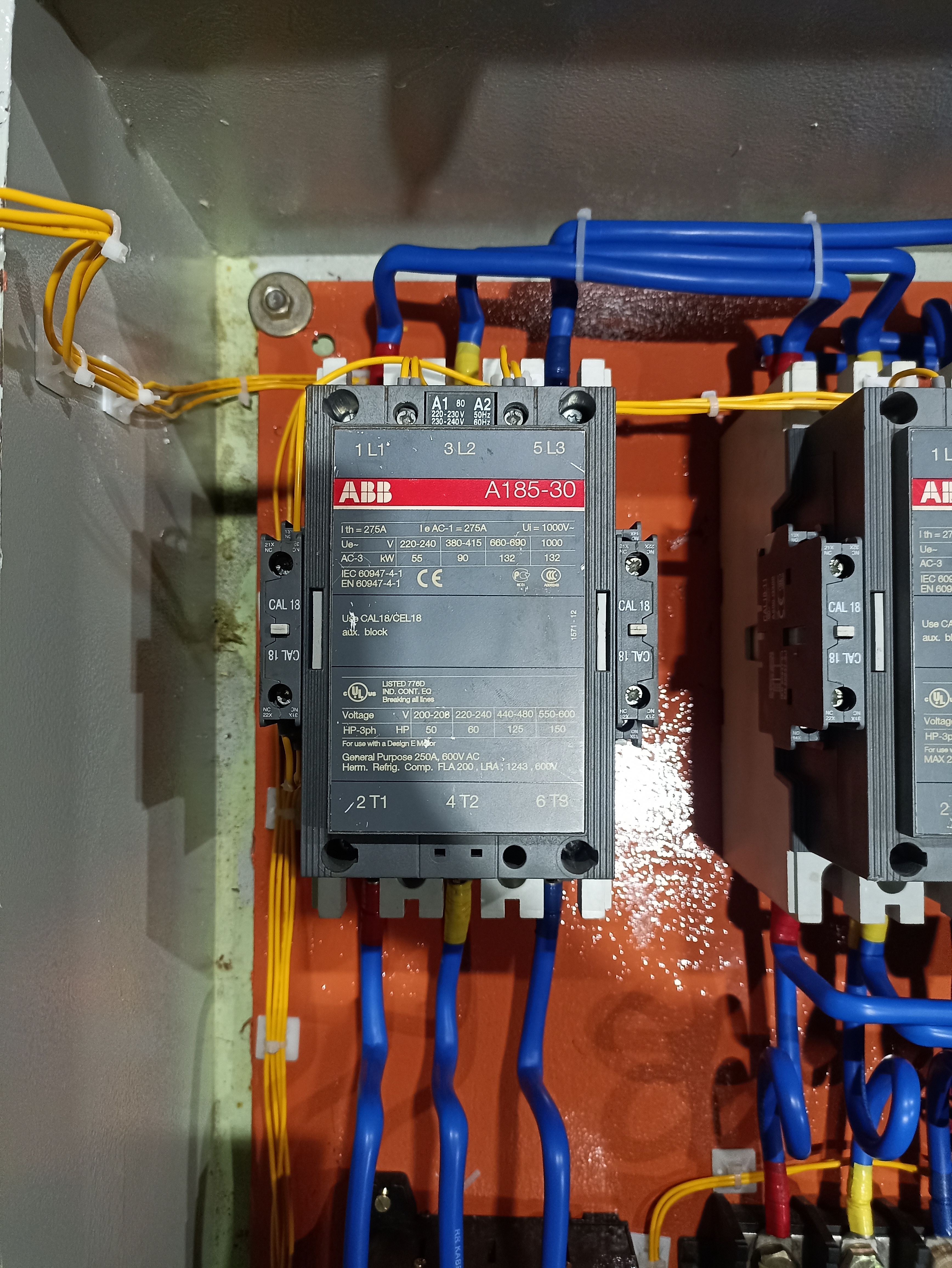

Contactor :- A185 - 30

Manufactured By :- Raj Electricals

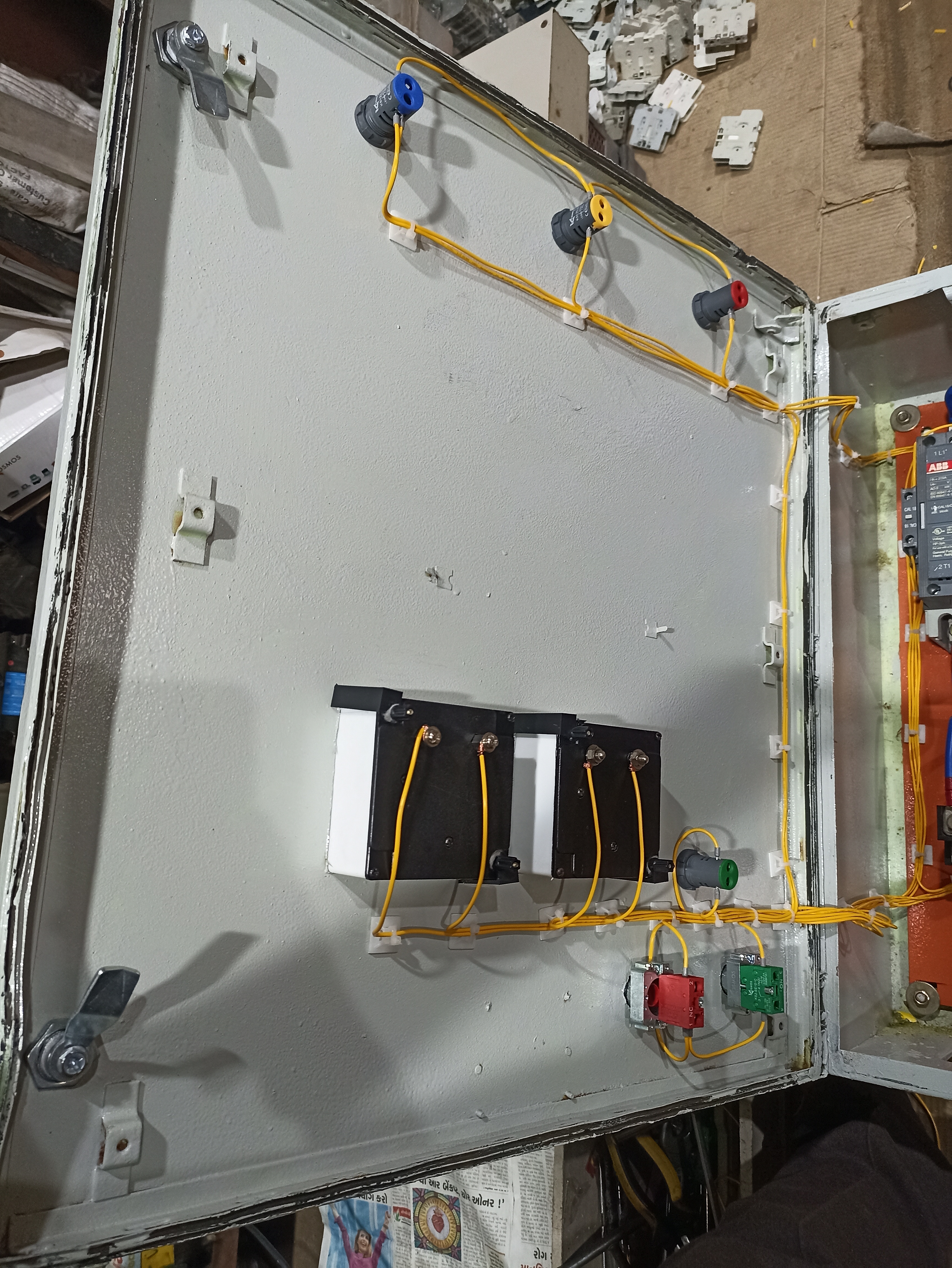

Accessories :- Digital Volt & Amp. Meter, Pushbutton, Indicator, RR Cable, Relay, Timer

Condition :- Refurbished

Voltage :- 220V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Robust Motor Starting Solution

The ABB A185-30 Star-Delta Starter is intentionally engineered for heavy-duty, continuous industrial use, making it ideal for demanding motor starting processes. With its high mechanical and electrical durability and an output optimized for reliable activation of three-phase motors, this starter ensures long-term performance and reduced maintenance cost. Its efficient air-cooled design and advanced durability rating enable it to withstand tough operational conditions.

Superior Protection and Efficiency

This star-delta starter delivers high-level electrical safety with a short-circuit rating up to 10 kA, an IP20 enclosure for secure operations, and integrated overheating protection. Additionally, its energy consumption is low, and its high efficiency (power factor 0.95) makes it an excellent choice for modern industries focused on sustainability and cost-effectiveness.

Easy Integration and Installation

Designed for simple, straightforward installation, the ABB A185-30 features standard panel mounting and user-friendly screw terminal connections, compatible with either cable lug or screw connectors. The matte surface finish, compact rectangular design, and auxiliary contacts (2 NO + 2 NC) contribute to flexible integration and control in diverse industrial settings.

FAQ's of ABB A185-30 STAR-DELTA STARTER:

Q: How does the ABB A185-30 Star-Delta Starter benefit industrial motor starting applications?

A: The A185-30 Star-Delta Starter provides soft, efficient starting and stopping of three-phase motors, helping to reduce inrush current and mechanical stress. This results in improved longevity of motors and a minimized risk of abrupt electrical faults in industrial environments.

Q: What are the main features that support safe and reliable operation?

A: This starter offers integrated overheating protection, a high short-circuit rating of 10 kA, and an IP20 protection level. Combined with high-quality insulation materials like thermoplastic and Bakelite, these features ensure safety, reliability, and durability during continuous operation.

Q: When should I use a star-delta starter like the ABB A185-30?

A: Deploy this starter for heavy-duty three-phase motors where reduced starting current and smooth acceleration are needed, particularly in applications such as industrial automation, pumps, and conveyors, operating within its 185 A and 690 V AC limits.

Q: Where can the ABB A185-30 Star-Delta Starter be mounted or installed?

A: The device is designed primarily for panel mounting and is suitable for indoor environments with ambient temperatures between -25C and +60C. Its compact dimensions and robust build make integration easy in standard industrial control panels.

Q: What is the installation process for this starter, and what connection types are supported?

A: Installation is straightforward due to its panel mount configuration, screw terminal connections, and compatibility with both cable lug and screw connectors. Follow vendor-specific wiring diagrams and ensure all terminals are securely fastened for safe operation.

Q: How does the device handle high humidity environments?

A: The A185-30 operates reliably in humidity levels ranging from 5% to 95% RH, making it suitable for a wide variety of industrial settings, even those with fluctuating atmospheric conditions.

Q: What are the maintenance requirements for the ABB A185-30?

A: Regularly inspect the starter for loose connections, signs of overheating, and accumulated dust. With high mechanical durability rated at 10 million operations, the device offers long intervals between servicing under standard usage conditions.
