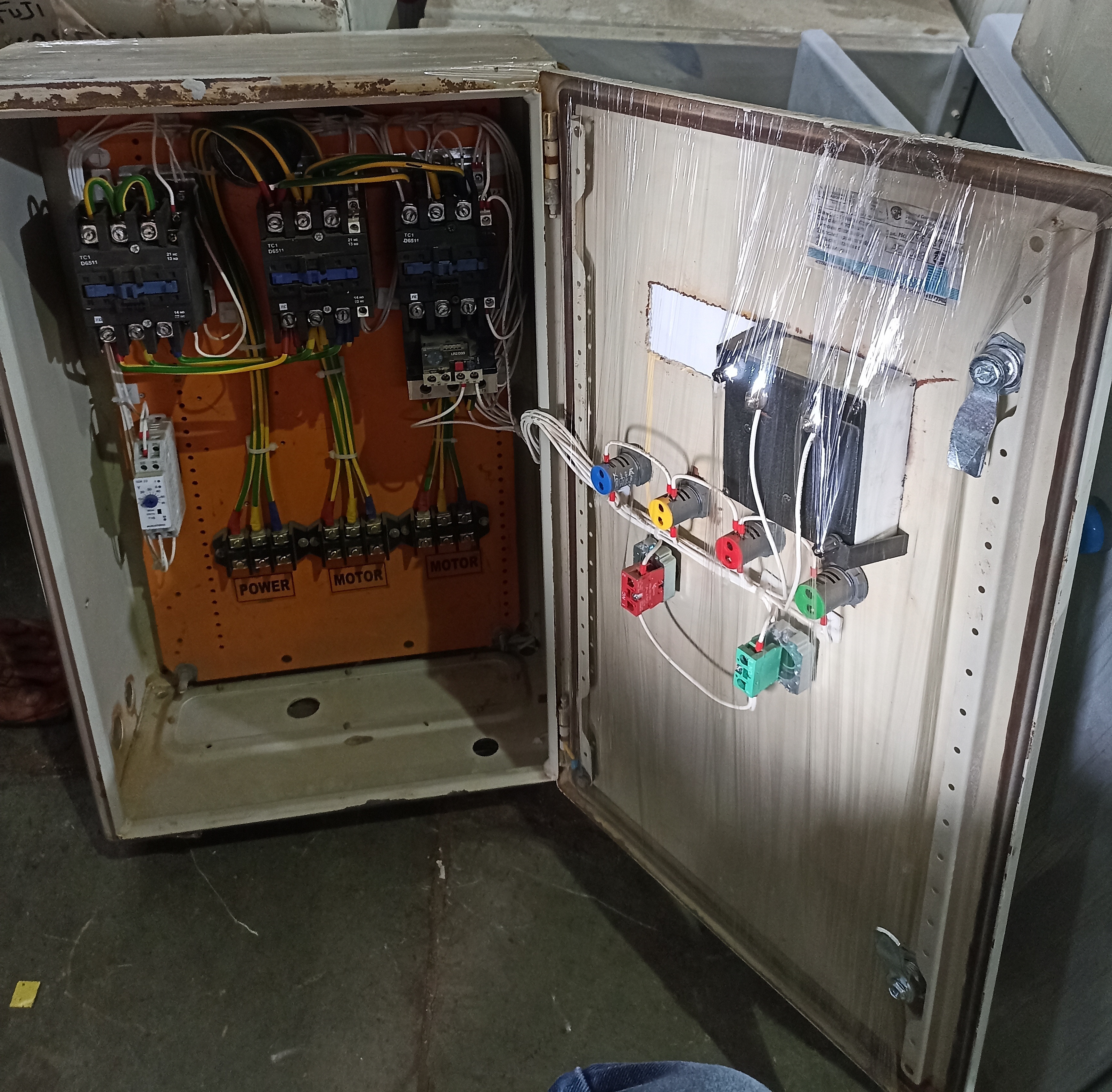

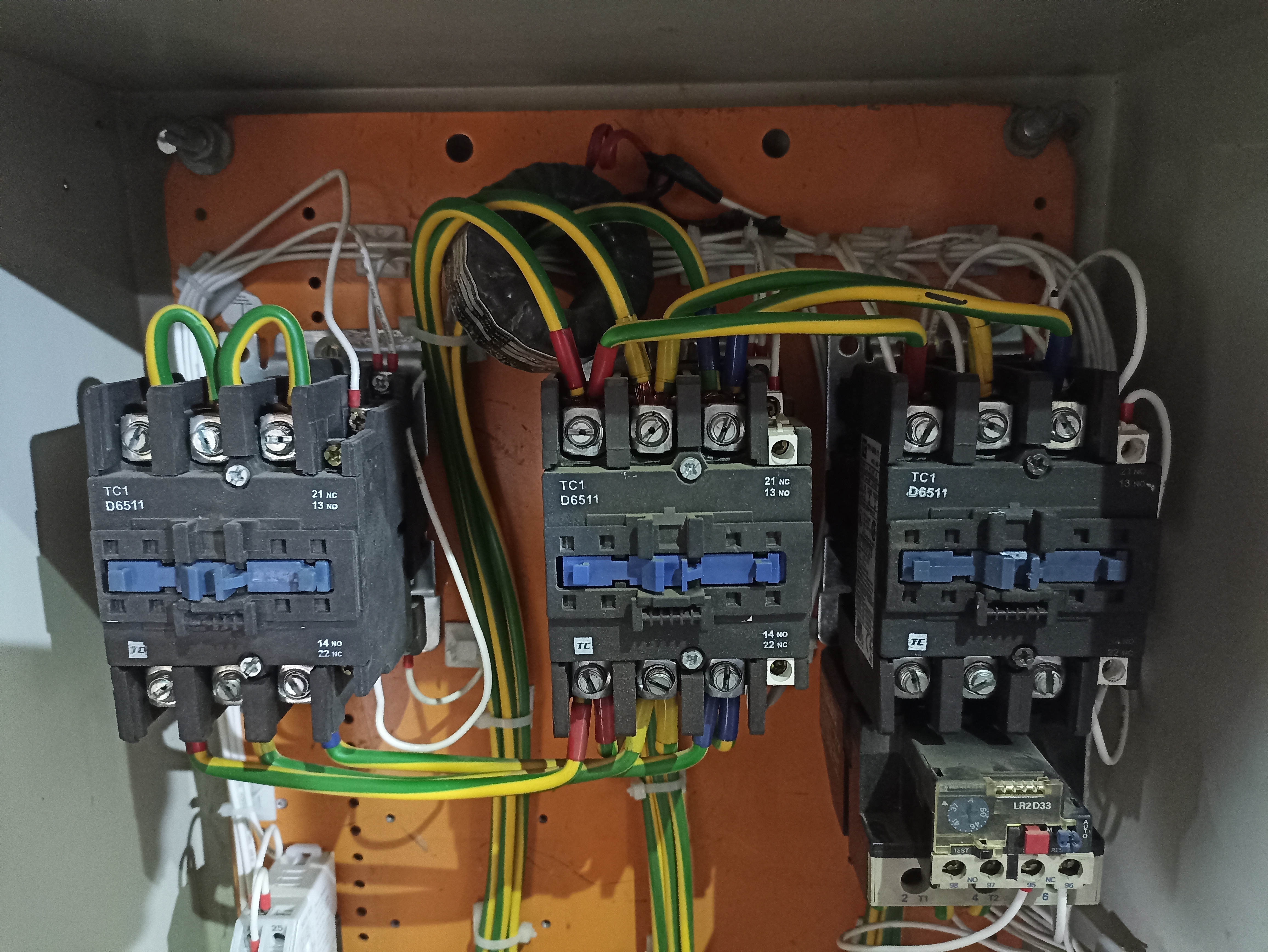

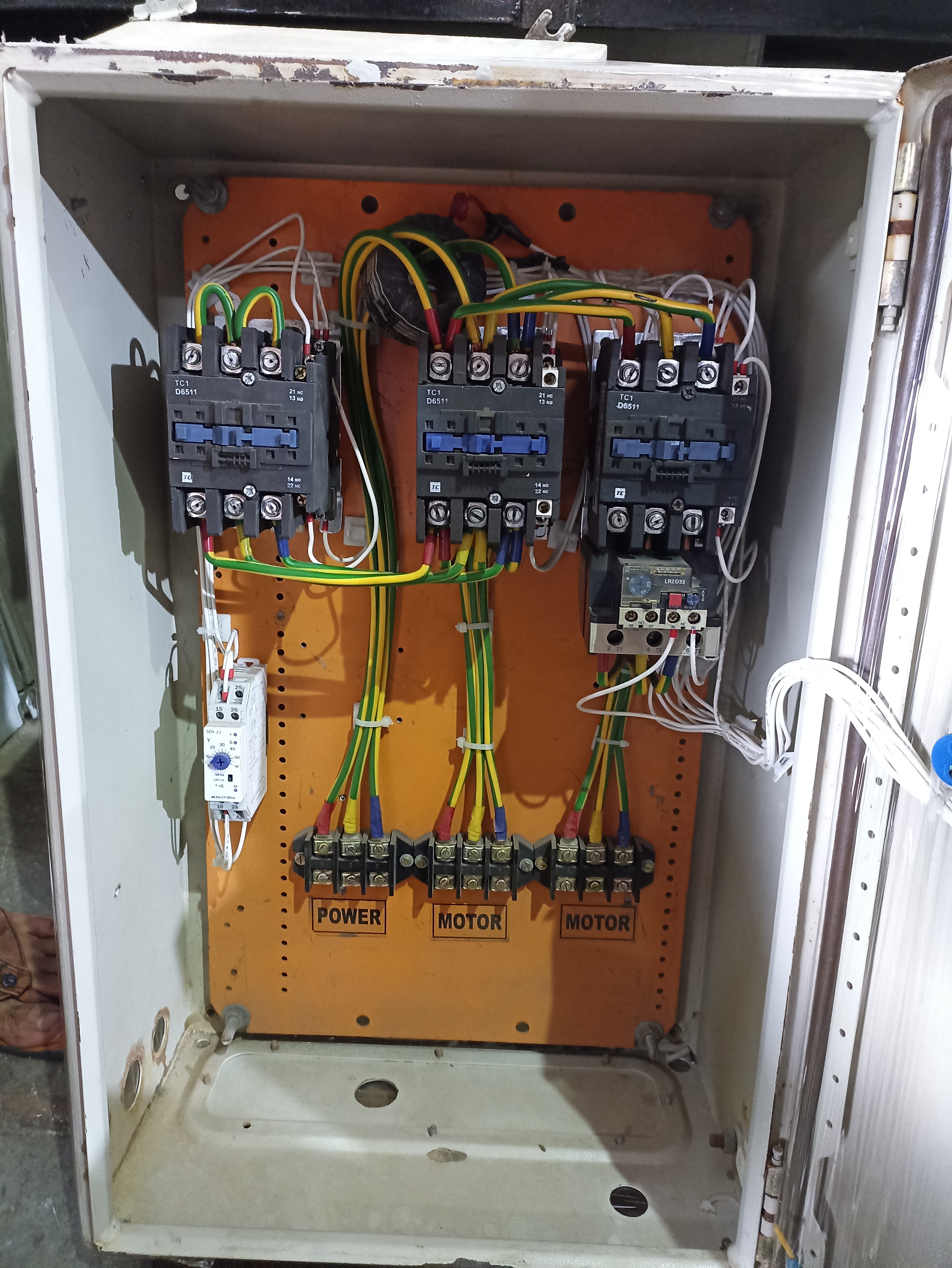

TC LC1D65 STAR-DELTA STARTER

Get a Price/Quote

MOQ : 1 Piece

TC LC1D65 STAR-DELTA STARTER Specification

Mounting Type
Wall Mounted

Operating Temperature
-5C to +50C

Feature
Shock Proof, Easy Installation, Durable

Power Factor
0.9

Overheating Protection
YES

Connector Type
Screw Type Terminal

Efficiency
Up to 95%

IP Rating
IP54

Humidity %
Up to 90% RH

Shape
Rectangular

Surface Finish
Powder Coated

Insulation Material
High Grade Plastic

Product Type
Star Delta Starter

Application
Industrial Motor Starting

Protection Level
IP54

Frequency (MHz)
50 Hz

Rated Voltage
415V AC

Energy Consumption
Low

Output Type
AC Output

Color
Grey & Blue

Dimension (L*W*H)
400 x 250 x 180 mm

Weight
8.5 kg

Phase
Three Phase

Size
Standard

Input Voltage
415 Volt

Connection Type
Terminal

Material
Flame Retardant Plastic and Copper

No Of Poles
3 Pole

Starter Type
Fully Automatic

Enclosure Type
Sheet Metal

Auxiliary Contact
2 NO + 2 NC

Conformity Standard
IS/IEC 60947

Short Circuit Protection
Provided

Current Rating
65A

Contact Life
1 Million Operations

Control Voltage
230V AC

TC LC1D65 STAR-DELTA STARTER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About TC LC1D65 STAR-DELTA STARTER

TC LC1D65 STAR-DELTA STARTER Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Star-Delta Starter

Make :- Telemecanique

Model :- LC1D 65

Manufactured by :- Raj Electricals

Condition :- Refurbished

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Superior Motor Protection and Efficiency

Engineered for industrial environments, the TC LC1D65 Star-Delta Starter delivers reliable motor protection and high operational efficiency of up to 95%. The enclosure's IP54 rating and flame-retardant materials ensure safety in tough applications, while integrated short-circuit and overheating protection safeguard your equipment. This starter's energy consumption is low while maximizing power factor and output reliability.

Designed for Easy Installation and Longevity

With its compact rectangular design, standard size, and wall-mounted installation, the TC LC1D65 is simple to set up using screw-type terminals. Built from high-grade materials for superior insulation and contact longevity (1 million operations), its powder-coated finish resists wear. The starter's robust structure and user-friendly features suit various industrial setups, enabling hassle-free operation and long service life.

FAQ's of TC LC1D65 STAR-DELTA STARTER:

Q: How is the TC LC1D65 Star-Delta Starter installed in an industrial setup?

A: The TC LC1D65 Star-Delta Starter is designed for easy wall-mounted installation using screw-type terminals. Its rectangular, standard size (400 x 250 x 180 mm) and terminal connection type make it convenient to install in most industrial electrical panels.

Q: What are the main benefits of using this starter for industrial motors?

A: Key benefits include reduced motor starting current, enhanced protection with built-in short-circuit and overheating safeguards, shock-proof and flame-retardant construction, and durable components facilitating up to 1 million operations. It also supports high efficiency with low energy consumption.

Q: When should a star-delta starter like TC LC1D65 be used?

A: The TC LC1D65 is best suited for starting three-phase induction motors in settings where limiting the starting current is crucial, such as in heavy industrial applications. Its fully automatic operation ensures smooth and safe motor startup every time.

Q: Where can this starter be deployed for optimal performance?

A: The starter is ideal for use in industrial environments across India, especially in facilities where motors are frequently started and require protection against electrical faults. The device's IP54 enclosure makes it suitable for areas with moderate dust and moisture.

Q: What process does the TC LC1D65 follow to start motors?

A: The starter initiates motors in star configuration to minimize inrush current, then transitions automatically to delta configuration for normal running. This controlled two-step process ensures efficient motor startup and protects components from stress.

Q: How does the starter ensure user safety and built-in protection?

A: With conformity to IS/IEC 60947 standards, the starter integrates IP54-rated sheet metal enclosure, flame-retardant housing, and high-grade insulation. Overheating protection, along with robust short-circuit capabilities, ensures safety for both equipment and operators.

Q: What materials contribute to the shock-proof and durable features of this product?

A: Constructed from flame-retardant plastic and copper, the starter provides excellent insulation and electrical safety. The surface is powder-coated for durability, and all contacts are designed for longevity, securing reliable and safe operation in demanding conditions.
