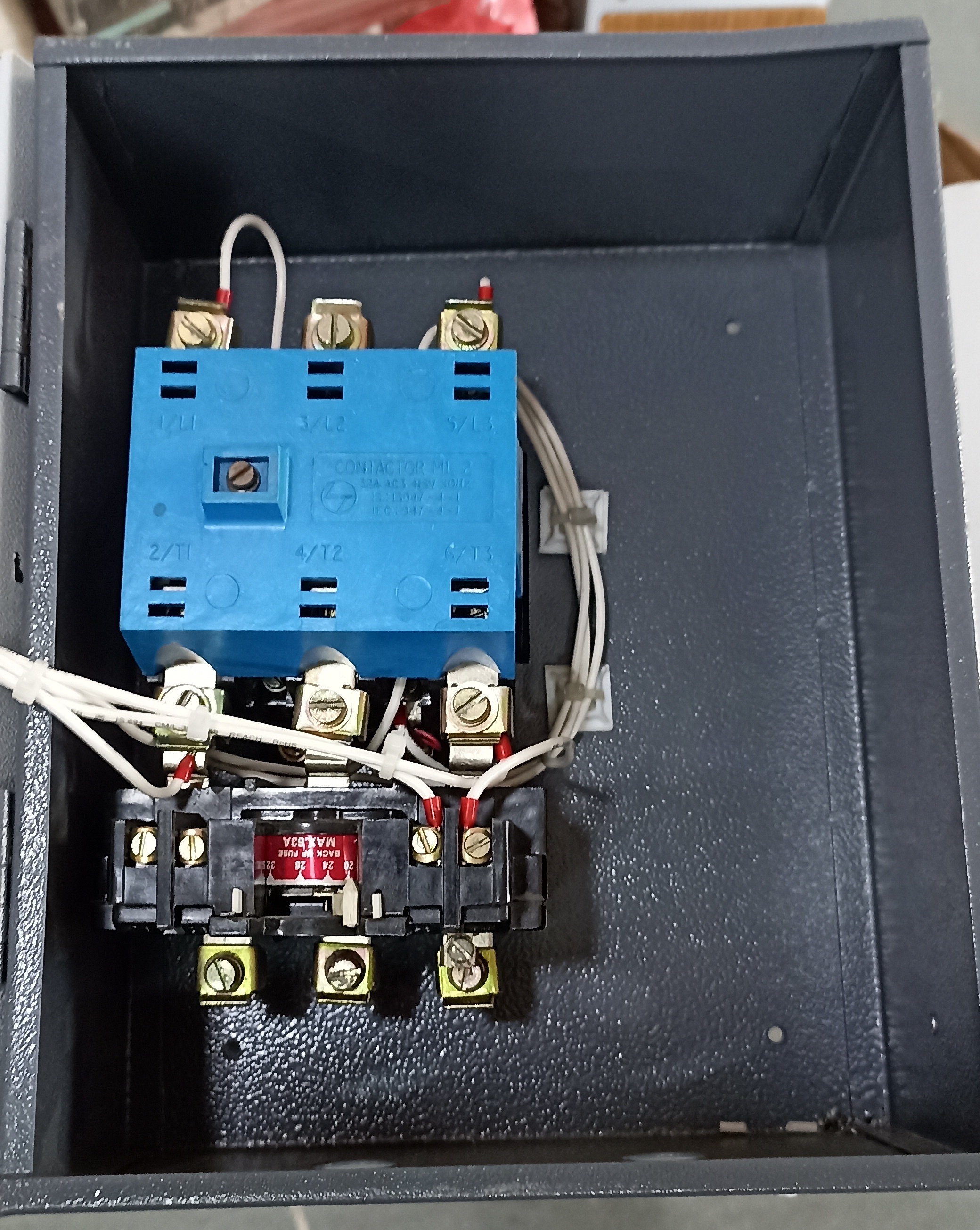

LandT ML-2 DOL STARTER

Get a Price/Quote

LandT ML-2 DOL STARTER Specification

Surface Finish
Powder Coated

IP Rating
IP20

Mounting Type
Wall Mount

Humidity %
Up to 95% RH

Power Factor
0.95

Feature
Reliable Performance, Easy to Install

Insulation Material
Thermoplastic

Overheating Protection
YES

Efficiency
High

Shape
Rectangular

Connector Type
Screw Connector

Operating Temperature
-5C to +55C

Product Type
DOL Starter

Application
Motor Starter/Industrial Motor Control

Protection Level
Thermal Overload, Short Circuit Protection

Frequency (MHz)
50 Hz

Rated Voltage
415 V AC

Energy Consumption
Low

Output Type
Motor Output

Color
Grey

Dimension (L*W*H)
220 mm x 140 mm x 115 mm

Weight
2.1 kg

Phase
Three Phase

Size
Standard

Input Voltage
415 V AC

Connection Type
Screw Type Terminal

No Of Poles
3

Material
ABS Plastic, Metal Parts

Start/Stop Button
Heavy Duty, Green/Red

Electrical Life
Up to 100,000 Operations

Suitable For
Three Phase Induction Motors

Control Voltage
230 V AC

Enclosure Type
Dust & Vermin Proof

Mechanical Life
Up to 1 Million Operations

Contact Material
Silver Alloy Contacts

Starter Type
Manual Type Direct-On-Line (DOL)

Rated Current
Up to 25 Amps

Auxiliary Contact
1 NO + 1 NC

LandT ML-2 DOL STARTER Trade Information

Minimum Order Quantity
5 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About LandT ML-2 DOL STARTER

L&T ML-2 Dol Starter Available In Stock At Raj Electricals, BHavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Dol Starter

Contactor :- L&T ML-2

Country Of Origin :- India

Relay Maximum Range :- 20-32A

Voltage :- 415V AC

Frequency :- 50/60 Hz

Power :- 15 Kw

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Reliable Motor Control for Industrial Needs

Designed specifically for three-phase induction motors, the LandT ML-2 DOL Starter delivers robust and secure performance for industrial motor control. Its comprehensive protection features, including thermal overload and short circuit safeguards, ensure enhanced safety and longevity of connected equipment.

Engineered for Durability and Efficiency

Built with a powder-coated, dust and vermin-proof enclosure, the LandT ML-2 starter withstands harsh industrial conditions. The use of silver alloy contacts and thermoplastic insulation material ensures high mechanical and electrical life, contributing to minimal maintenance and sustained efficiency.

Simple Installation and User-Friendly Operation

With a standard-sized, wall-mountable enclosure and screw connector terminals, this DOL starter is straightforward to install. Clearly marked, heavy-duty green and red push buttons make operation intuitive for users, further supported by auxiliary contacts for integration with control systems.

FAQs of LandT ML-2 DOL STARTER:

Q: How do I install the LandT ML-2 DOL Starter for my motor setup?

A: To install the LandT ML-2 DOL Starter, mount the unit securely on a wall using the provided fittings, then connect your three-phase motor wires to the screw-type terminals according to the supplied wiring diagram. Ensure power is off during installation, and verify all connections before switching on.

Q: What protection features are included in this DOL starter?

A: This starter offers comprehensive protection through built-in thermal overload and short circuit safeguards, ensuring that motors are shielded from electrical faults and overheating, thus extending both motor and starter lifespan.

Q: When should I use a direct-on-line manual starter such as the ML-2?

A: The ML-2 DOL Starter is ideal whenever you need to control small to medium-sized three-phase induction motors directly, especially in industrial and commercial setups where reliable manual switching and protection are crucial.

Q: Where can this DOL starter be used or installed?

A: It is suited for a wide range of industrial environments within India, particularly where three-phase motor control is necessarysuch as manufacturing plants, workshops, and agricultural processing unitsthanks to its dust and vermin-proof IP20-rated enclosure.

Q: What benefits does the LandT ML-2 Starter provide over standard starters?

A: This model offers high reliability, long mechanical and electrical lifespans, easy installation, and energy-efficient operation. Its durable enclosure and silver alloy contacts ensure dependable performance even in demanding environments.

Q: How does the overheating protection in the ML-2 operate?

A: The ML-2 incorporates a thermal overload relay that continuously monitors motor temperature, automatically disconnecting the motor in case of overheating to prevent potential damage or hazards.
