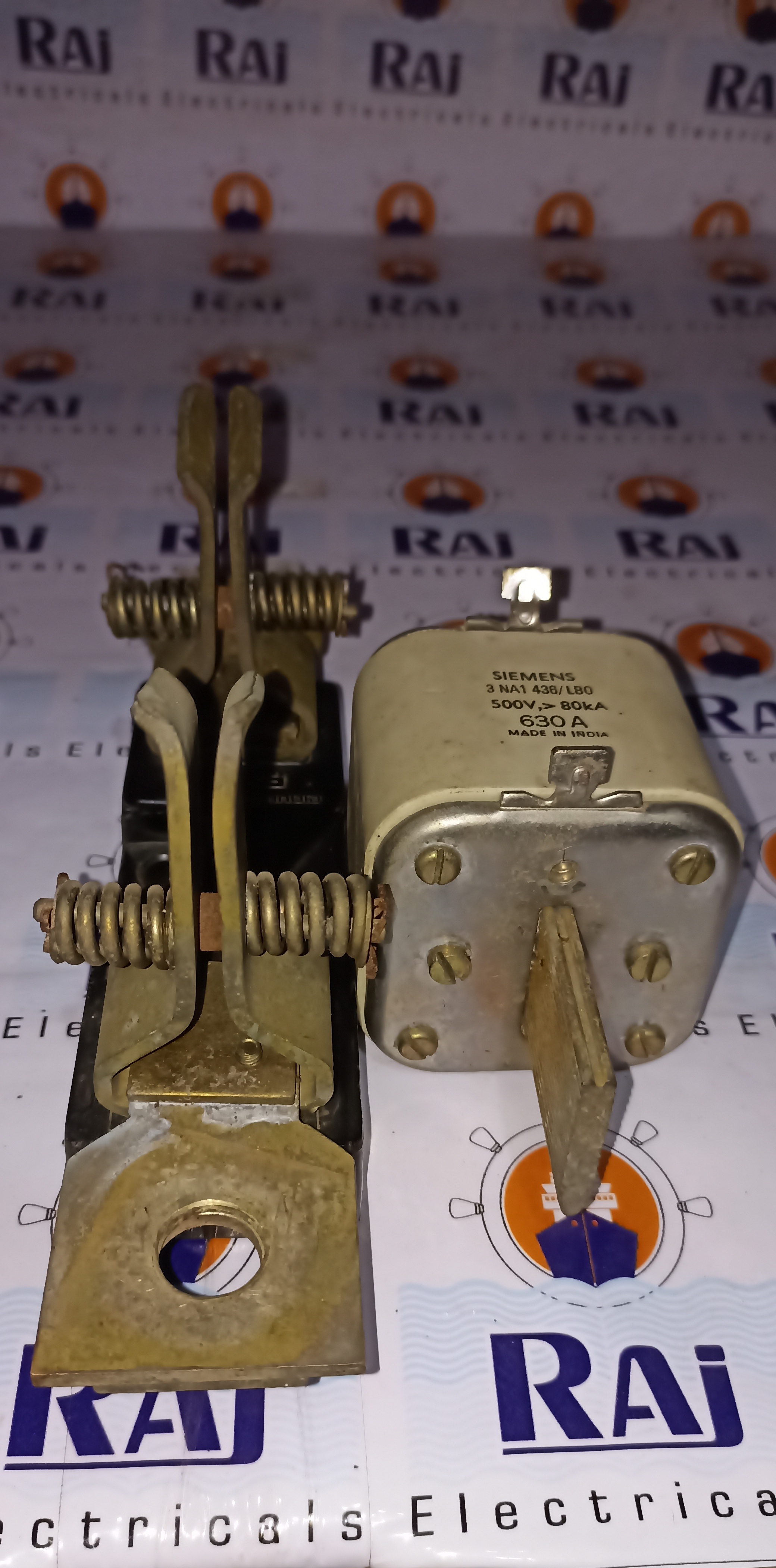

630A FUSE BASE

Get a Price/Quote

630A FUSE BASE Specification

Connector Type
Bolt/Screw Type

Humidity %
Up to 95% RH, non-condensing

IP Rating
IP20

Insulation Material
Porcelain/DMC

Surface Finish
Matt/Glazed

Feature
High conductivity, Heat-resistant base

Operating Temperature
-10C to +60C

Overheating Protection
YES

Shape
Rectangular

Efficiency
>99%

Mounting Type
DIN Rail/Panel Mount

Product Type
Fuse Base

Application
Industrial Electrical Protection

Protection Level
High

Frequency (MHz)
50/60 Hz

Rated Voltage
415 V AC

Output Type
Terminal Output

Color
Off White/Beige

Dimension (L*W*H)
285 mm x 90 mm x 76 mm

Weight
1.20 kg

Input Voltage
Up to 415 V

Size
630A

Phase
Three Phase

Connection Type
Screw Terminal

Material
DMC/Porcelain Base, Copper/Brass Contacts

No Of Poles
3 Poles

630A FUSE BASE Trade Information

Minimum Order Quantity
5 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Domestic Market
All India

About 630A FUSE BASE

Raj Electricals Offering Siemens 630A Fuse Base At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Fuse-Base

Make :- Siemens

Ampere :- 630A

Voltage :- 500V

Frequency :- 50 Hz

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Exceptional Electrical Protection

Built to handle demanding industrial environments, the 630A Fuse Base delivers reliable protection against overloads and short circuits. Its high mechanical endurance and superior contact materials ensure consistent performance, guarding equipment and personnel. This device is suitable for industrial setups seeking dependable electrical safety and high efficiency.

Versatile Installation & Safety Features

The fuse base accommodates DIN rail or panel mounting and features a robust rectangular design, making it ideal for a variety of industrial configurations. The heat-resistant and flame-retardant base provides additional safety, while the IP20 rating and corrosion resistance ensure long-term reliability under harsh conditions.

Compliance and Quality Assurance

Manufactured in accordance with IS:13703 and IEC:60269 standards, this fuse base guarantees quality and uniformity. Its components, including copper/brass contacts and porcelain/DMC insulation, are selected for optimal electrical conductivity and durability, ensuring that the product meets international safety and performance benchmarks.

FAQ's of 630A FUSE BASE:

Q: How do I install the 630A Fuse Base in my industrial facility?

A: Installation can be performed via DIN rail or panel mounting as per system requirements. Just ensure proper alignment and secure the base using screw or bolt-type connectors for robust contact. The rectangular design aids fitting into standard electrical panels.

Q: What makes the 630A Fuse Base suitable for high short circuit conditions?

A: The fuse base is engineered with a short circuit withstand capacity up to 80 kA and heavy-duty terminals made from electrolytic copper with tin plating, making it highly resilient during short circuit events and optimal for high-demand industrial applications.

Q: When should I use NH2 or NH3 fuse sizes with this fuse base?

A: The 630A Fuse Base is specifically designed to accept NH2 or NH3 size fuses, which are commonly used for industrial electrical protection. Refer to your system's current requirements and safety regulations to choose between NH2 or NH3 for your application.

Q: Where can this fuse base be deployed for maximum efficiency and safety?

A: It is ideal for deployment in three-phase industrial installations, especially those requiring reliable overload and short circuit protection, such as manufacturing facilities, substations, and high-power distribution boards.

Q: What is the process for maintaining and inspecting the fuse base?

A: Periodic inspection should involve checking terminal tightness, base integrity, and ensuring there is no visible corrosion or overheating. Mechanical endurance allows for over 2000 operations, so maintenance contributes to prolonged service life and sustained electrical safety.

Q: How does the fuse base benefit industrial electrical systems?

A: By offering high conductivity, flame retardance, corrosion resistance, and robust thermal properties, the fuse base minimizes downtime and equipment damage. Its efficient operation and mechanical endurance ensure long-term protection and reliability, reducing operational risks.
