250A FUSE-BASE

Get a Price/Quote

250A FUSE-BASE Specification

Insulation Material
Ceramic

Efficiency
High

IP Rating
IP20

Operating Temperature
-25C to +55C

Overheating Protection
YES

Shape
Rectangular

Mounting Type
Panel Mounted

Connector Type
Screw Type

Feature
Heavy Duty, Flame Retardant

Surface Finish
Smooth, Glossy

Humidity %
Up to 90% RH (non-condensing)

Product Type
Fuse Base

Application
Electrical Panel, Industrial Installations

Protection Level
High

Frequency (MHz)
50/60 Hz

Rated Voltage
500V AC

Output Type
Terminal Output

Color
White with Metallic Inserts

Dimension (L*W*H)
170mm x 60mm x 75mm

Weight
Approx. 380g

Input Voltage
500V max

Phase
Single Phase

Size
250A Fuse size standard

Connection Type
Screw Terminal

Material
High-grade Ceramic & Copper

No Of Poles
1 Pole

Standards Compliance
IS/IEC 60269 Compliant

Resistance to Tracking
Excellent

Mechanical Strength
Robust

Fuse Compatibility
Suitable for Blade/Link Type Fuses

Terminal Capacity
35mm² max cable size

250A FUSE-BASE Trade Information

Minimum Order Quantity
10 Number

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About 250A FUSE-BASE

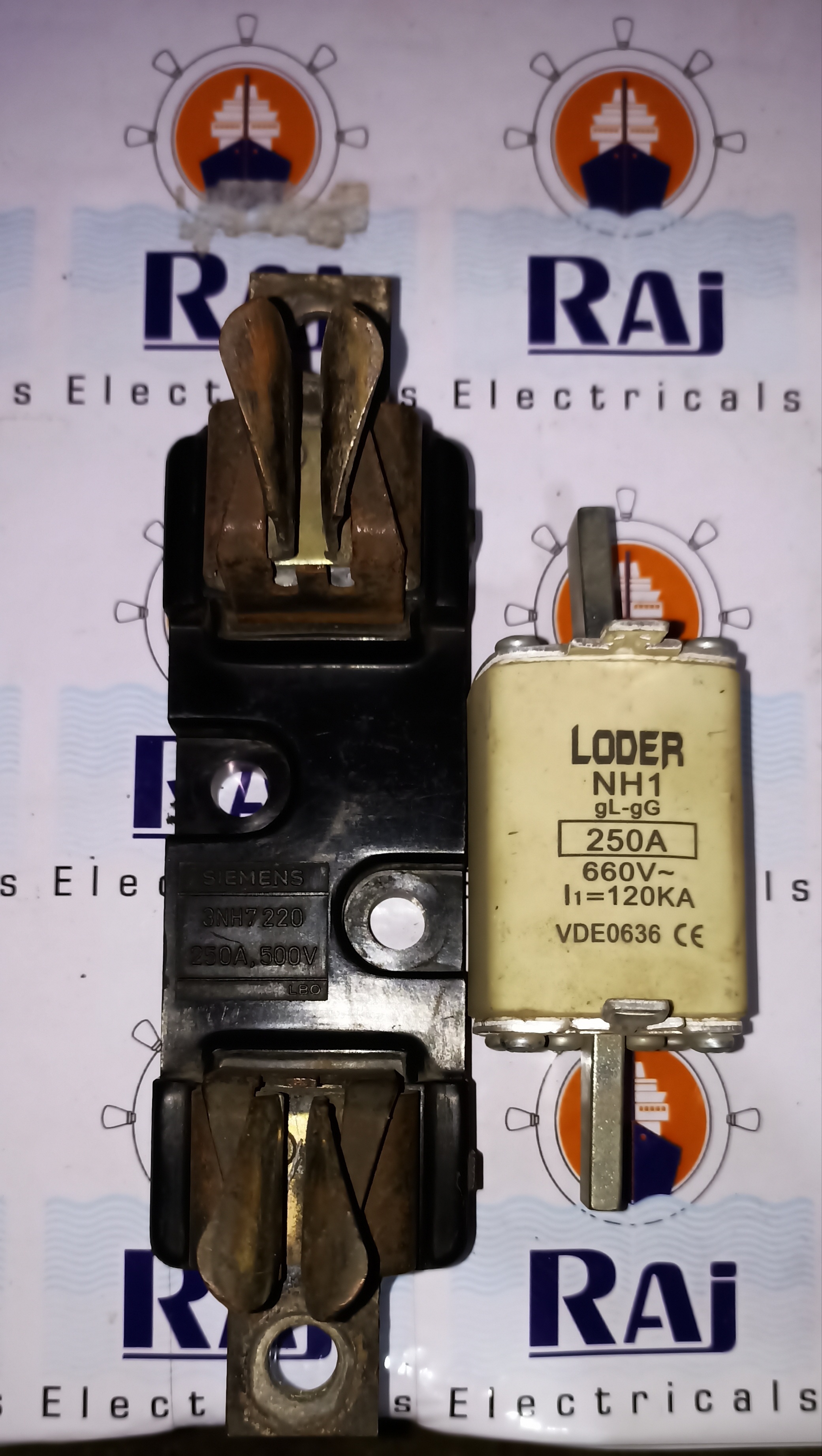

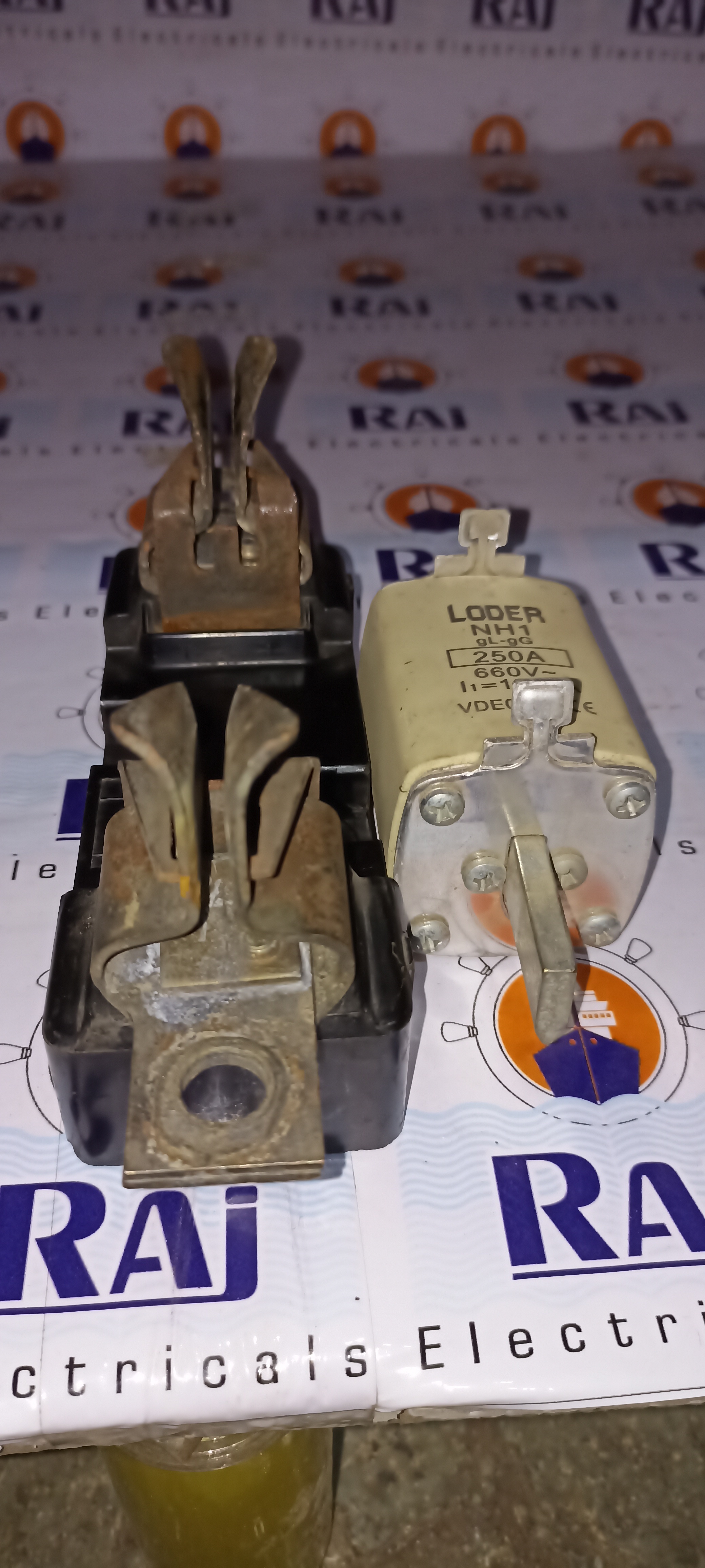

Siemens 250A Fuse-Base Available In Stock At Raj Electricals, Bhavnagar, Gujarat,

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Fuse-Base

Make :- Siemens

Ampere :- 250A

l1 :- 120 kA

Voltage :- 415V

We Supply Industrial Product In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Reliable Protection in Electrical Networks

Engineered to accommodate blade/link type fuses, the 250A Fuse-Base offers reliable overcurrent protection for industrial and panel installations. It complies with IS/IEC 60269 standards, features flame retardant properties, and resists tracking, providing assurance even in rigorous environments.

Durable Construction and High Performance

Built from top-grade ceramic and copper materials, this fuse-base exhibits remarkable strength and longevity. With a terminal capacity of 35mm2 and a glossy, smooth surface finish, it is designed for high efficiency and dependable connection stability under demanding operational temperatures and humidity.

FAQ's of 250A FUSE-BASE:

Q: How do I install the 250A Fuse-Base in an electrical panel?

A: Installation involves panel mounting the unit using appropriate fasteners and connecting your cables (up to 35mm2) to the screw terminals. Always ensure the power is off and suitable blade or link-type fuses are used for the application.

Q: What are the main benefits of using this fuse-base in industrial setups?

A: The fuse-base delivers reliable protection, high mechanical strength, superior thermal resistance, and flame retardancy, making it ideal for safeguarding industrial electrical systems against overcurrent and overheating hazards.

Q: When should I consider replacing the installed fuse or base?

A: Replace the fuse when it has been visibly damaged or blown due to overcurrent. Inspect and replace the base if cracks, warping, or severe discoloration are noticed, or if it no longer maintains a secure, efficient connection.

Q: Where is this 250A Fuse-Base typically utilized?

A: This product is designed for use in electrical panels and industrial installations, commonly found in manufacturing plants, distribution boards, and other high-load electrical systems, particularly where IS/IEC 60269 compliance is required.

Q: What is the process for selecting the appropriate fuse for this base?

A: Select a fuse that matches your system's operational voltage (up to 500V AC) and current rating (up to 250A), ensuring compatibility with blade or link-type fuses as specified for this base.

Q: How does the product handle high humidity and varying temperatures?

A: With an operating range from -25C to +55C and resilience up to 90% relative humidity (non-condensing), the fuse-base maintains high insulation and operational efficiency even in challenging environmental conditions.
