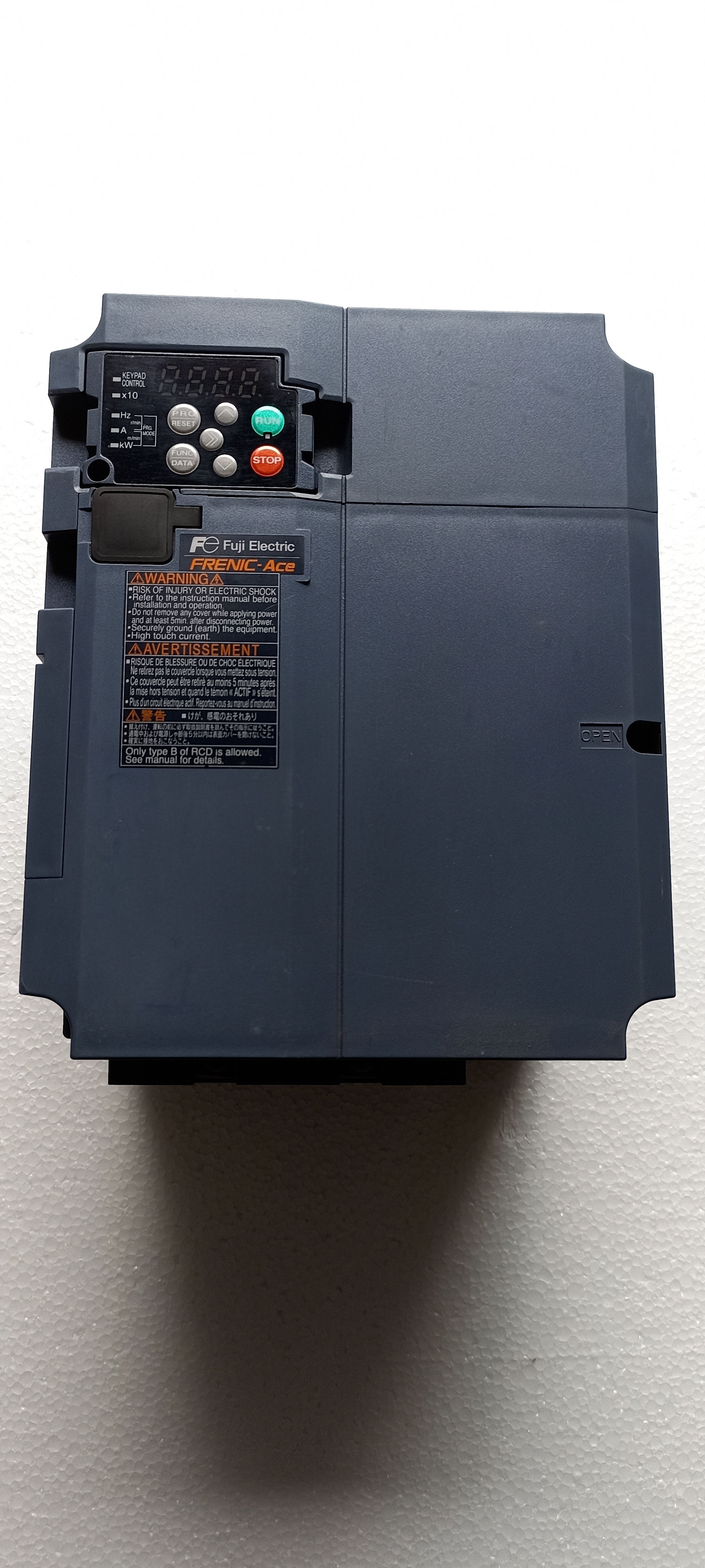

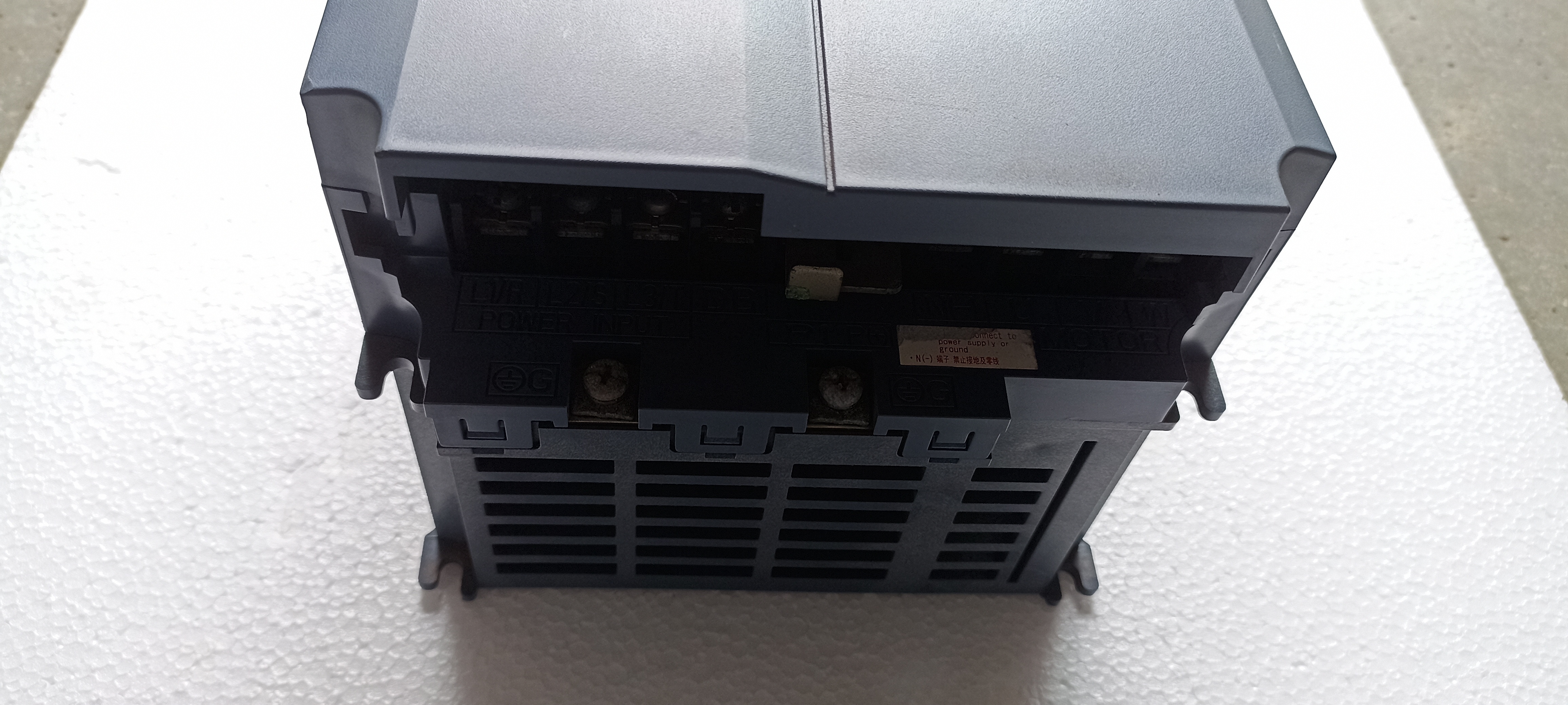

15 HP FUJI AC DRIVE

Name: 15 HP FUJI AC DRIVE
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Number

15 HP FUJI AC DRIVE Specification

Power Factor
>= 0.96

Overheating Protection
Yes, Built-in Thermal Protection

Efficiency
>= 98%

Operating Temperature
-10°C to +50°C

Connector Type
Screw Terminals

Surface Finish
Matte / Powder Coated

IP Rating
IP20

Insulation Material
Polycarbonate, High-Grade Insulation

Mounting Type
Wall / Panel Mount

Humidity %
Max. 90% RH (non-condensing)

Feature
Digital Display, Auto-Tuning, Energy-Saving Control

Shape
Rectangular

Product Type
AC Drive / Variable Frequency Drive (VFD)

Application
Industrial Motors, Pumps, Fans, Conveyor Systems

Protection Level
Overcurrent, Short-circuit, Under/Over Voltage, Phase Failure

Frequency (MHz)
50/60 Hz

Rated Voltage
415 V AC

Energy Consumption
Optimized Variable Control

Output Type
Three-Phase AC

Color
Grey

Dimension (L*W*H)
290mm x 180mm x 210mm

Weight
Approx. 9.5 kg

Size
Standard (for 15 HP)

Phase
Three Phase

Input Voltage
380~480 V AC

Connection Type
Terminal Block

Material
ABS Plastic Housing, Metal Chassis

No Of Poles
2

Input Phase
Three Phase

Communication Interface
RS485 (Modbus-RTU)

Cooling System
Forced Air Cooling (Fan)

Motor Power
15 HP (11 kW)

Control Method
Vector and V/F Control

Relay Outputs
2 Programmable Relay Outputs

Environmental Resistance
Resistance to Vibration and Dust

Model Number
FRN022G1S-4

Noise Level
<70 dB(A)

Analog Inputs
2 Analog (0-10V/4-20mA)

Braking Unit
Built-in

Digital Inputs
7 Multifunctional Digital Inputs

Carrier Frequency
1–15 kHz adjustable

Indirect Functions
PID Control, Sleep Mode, Energy Saving

Output Frequency Range
0.1 to 400 Hz

Standards Compliance
CE, UL, cUL

Display
LED Digital Keypad

Acceleration/Deceleration Time
0.1–6000 sec

15 HP FUJI AC DRIVE Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About 15 HP FUJI AC DRIVE

15 Hp Fuji Ac Drive Avaiable In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Brand :- Fuji

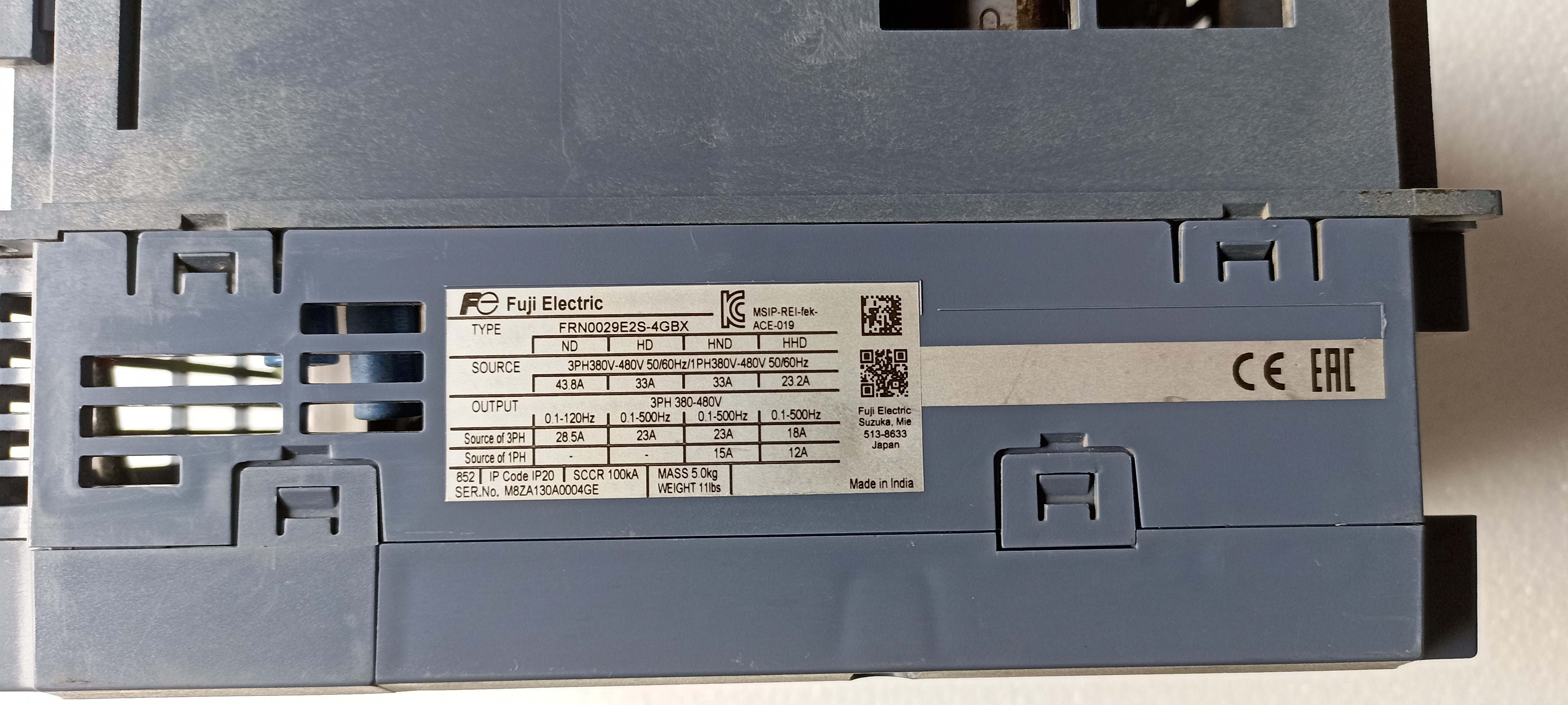

Model Number :- FRN0029E2S-4GBX

Horse Power :- 15

Output Frequency :- 25-50 Hz

Phase :- 3 Phase

Power Supply Voltage :- 220-380 Volt

Supply Frequency :- 50 Hz

We deal in all type of used & unused products which comes from ALANG ship recycling yard.

We Supply Our Products In All Over India And Also In Foreign Countries.

Advanced Motor Control for Industrial Applications

Engineered for versatility, the FRN022G1S-4 drive enables both vector and V/F control modes, delivering precise operation and dynamic response. Suitable for industrial systems such as motors, pumps, fans, and conveyors, its built-in PID and energy-saving functions help minimize operational costs and extend equipment lifespan.

Intuitive Digital Interface and Connectivity

The integrated digital LED keypad offers clear monitoring and straightforward adjustment of drive settings. With RS485 (Modbus-RTU) support, the unit allows seamless communication and remote configuration, making it suitable for integration into automated and networked industrial environments.

Reliable Protection and Long-Term Durability

Designed to withstand vibration and dust, the drive complies with international standards (CE, UL, cUL) for quality and safety. Overcurrent, phase failure, and thermal protections-along with a robust ABS housing and metal chassis-ensure optimal operation even in challenging conditions.

FAQ's of 15 HP FUJI AC DRIVE:

Q: How do I install the FUJI FRN022G1S-4 AC Drive for my industrial motor?

A: To install the drive, securely mount it on a wall or panel using the designated mounting points. Connect the three-phase input (380~480V AC) and outgoing motor leads via terminal blocks, and follow the wiring diagram provided in the user manual. Ensure connections to analog/digital inputs and relay outputs are in accordance with application requirements.

Q: What industrial applications can benefit from the FRN022G1S-4 AC Drive?

A: This drive is designed for motors powering pumps, fans, conveyor systems, and other industrial machinery. Its advanced control, energy-saving features, and robust protection make it suitable for environments demanding precise speed and torque regulation.

Q: Where is the best location to install the AC drive for optimal performance?

A: The drive should be installed in a well-ventilated industrial area, away from direct sunlight and excessive dust. Maintaining ambient temperatures between -10C and +50C and humidity below 90% RH (non-condensing) ensures reliable performance and longevity.

Q: What energy-saving and efficiency features does the drive offer?

A: The drive utilizes optimized variable control and auto-tuning to maximize energy efficiency, achieving a power factor of 0.96 and an overall efficiency of 98%. Sleep mode and PID control help minimize unnecessary power consumption.

Q: When should I adjust the acceleration and deceleration time settings?

A: Adjust the acceleration/deceleration time (0.1 to 6000 sec) based on your application's start/stop requirements and to prevent mechanical stress. For high-inertia loads, longer times help maintain smooth transitions and protect connected equipment.

Q: How does the built-in braking unit enhance the drive's operation?

A: The integrated braking unit ensures rapid and controlled stops of the connected motor, which is particularly useful in high-inertia or emergency stop scenarios. This feature improves safety and protects mechanical components.

Q: What benefits do the digital and communication features provide?

A: The LED digital keypad and RS485 (Modbus-RTU) interface enable easy monitoring, parameter adjustment, and remote communication. This streamlines system integration and simplifies troubleshooting, reducing downtime during maintenance.
