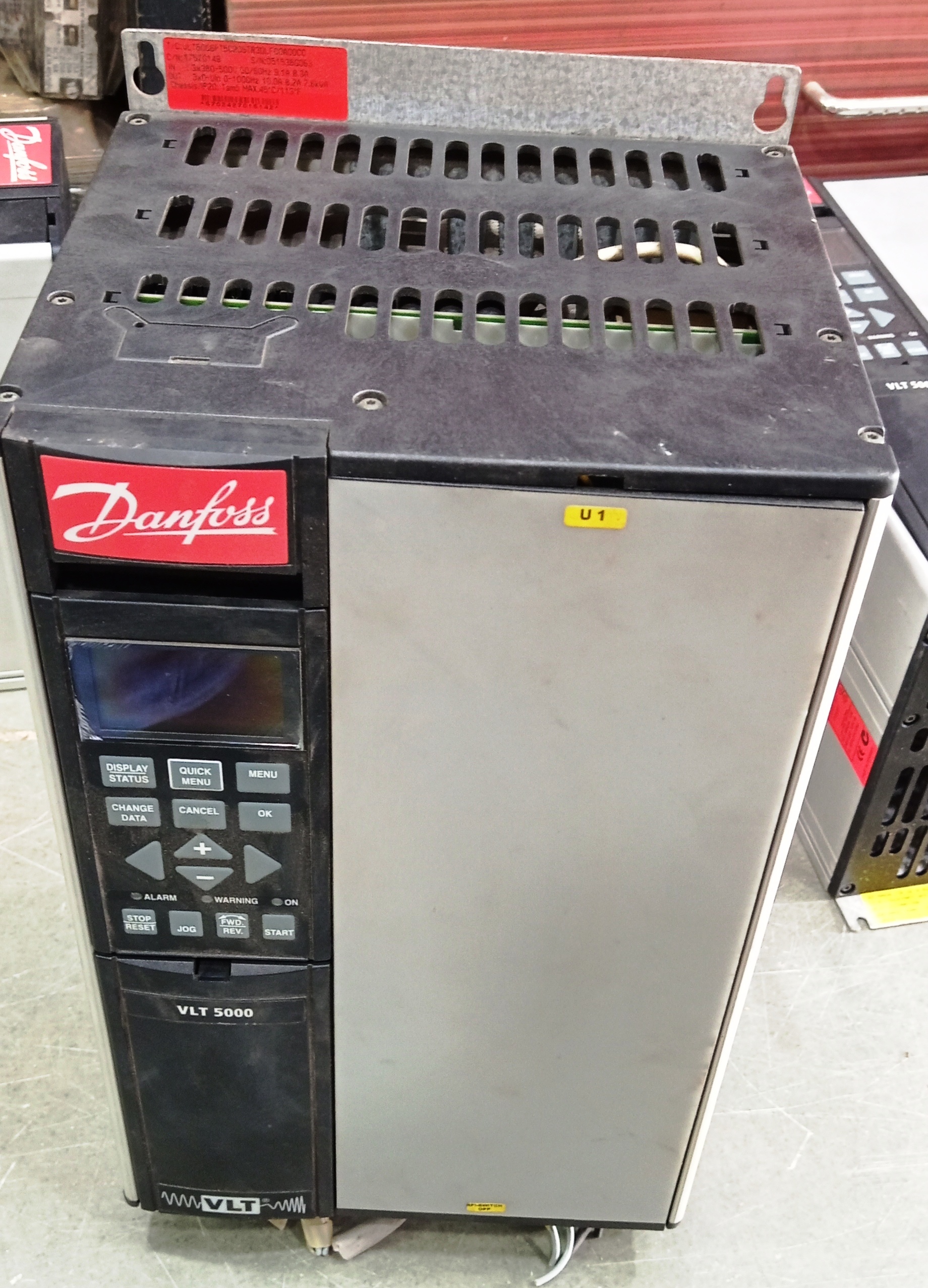

DANFOSS VLT 5000 11.5 KVA AC DRIVE

Get a Price/Quote

DANFOSS VLT 5000 11.5 KVA AC DRIVE Specification

Shape
Rectangular

Power Factor
>= 0.98

Insulation Material
High Grade Insulation

Humidity %
5% - 95%, Non-Condensing

Operating Temperature
-10C to +45C

Efficiency
>= 96%

Connector Type
Terminal Block

Overheating Protection
Yes (Integrated)

Surface Finish
Powder Coated

Feature
Digital Display, Programmable, Compact Design

IP Rating
IP20

Mounting Type
Panel / Wall Mount

Product Type
AC Drive

Application
Industrial Automation, Motors, Pumps, Fans

Protection Level
Overload, Short Circuit, Overvoltage

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480 V AC

Energy Consumption
Efficient, Variable as per Load

Output Type
Variable Frequency AC Output

Color
Grey / Black

Dimension (L*W*H)
275 mm x 185 mm x 210 mm

Weight
15 kg

Phase
Three Phase

Size
Standard

Input Voltage
380-480 V AC

Material
Metal & ABS

No Of Poles
3

Connection Type
Screw Terminal

Serviceability
Front Access for Maintenance

Noise Level
Low (<60 dB)

Standards Compliance
CE, UL

Communication Ports
RS485, Optional Fieldbus

Display Type
LED/LCD Digital

Altitude
Up to 1000 m without Derating

Torque Boost
Automatic

Storage Temperature
-25°C to +70°C

Motor Control Type
V/F and Vector Control

Start/Stop Control
Local/Remote

Control Panel
Detachable Keypad

Analog Inputs
2 (0-10V, 4-20mA)

Cooling Method
Forced Air Ventilation

Relay Outputs
Programmable Relays x 2

Power Rating
11.5 KVA / 15 HP

Braking Unit
Option for External Braking

Model Number
VLT 5000

Digital Inputs
5

Programming Method
Keypad / Serial Interface

DANFOSS VLT 5000 11.5 KVA AC DRIVE Trade Information

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About DANFOSS VLT 5000 11.5 KVA AC DRIVE

Raj Electricals Offering Danfoss VLT 5000 11.5 kvA Ac Drive At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

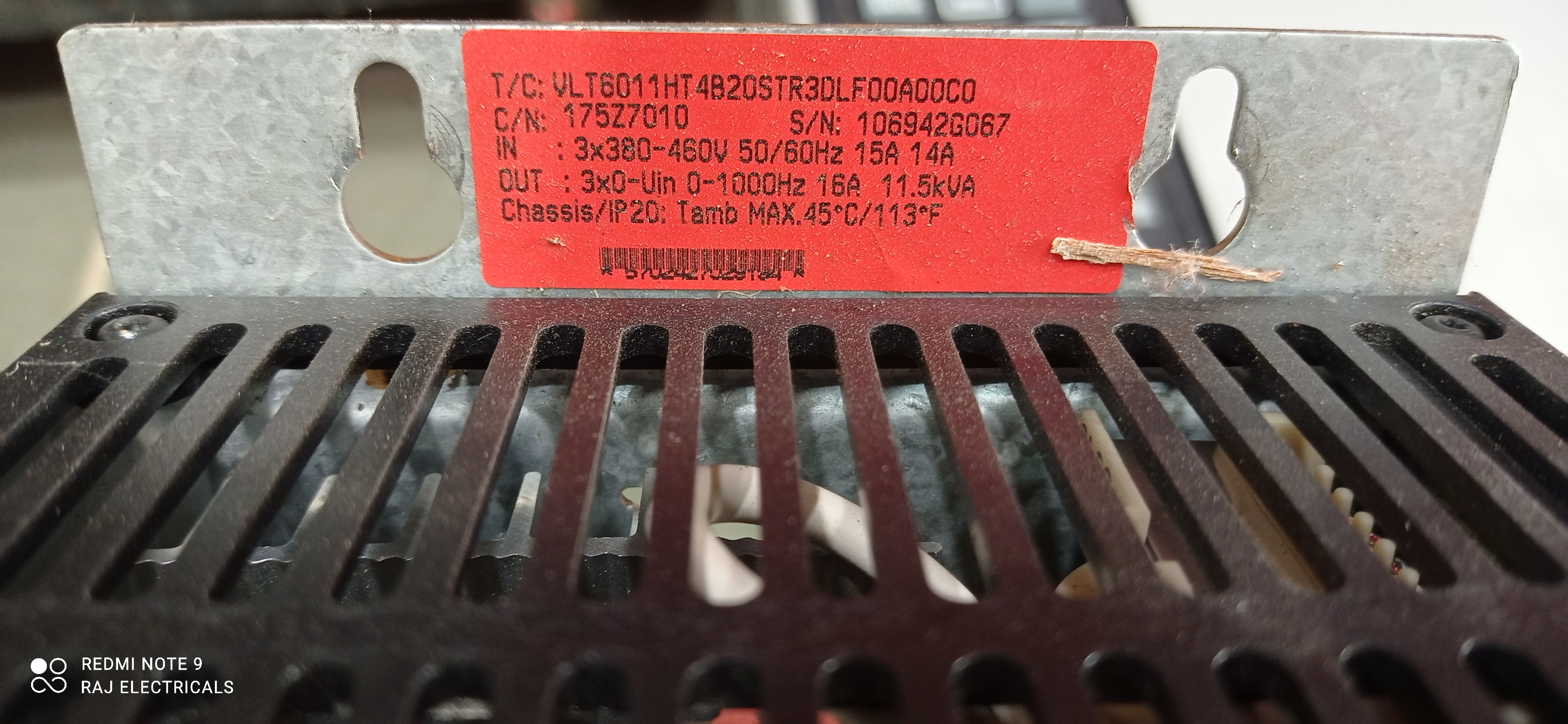

PRODUCT SPECIFICATION

T/C : VL6011HT4B20STR3DLF00A00C0

C/N : 175Z7010 S/N : 106942G067

IN : 3X380 -460V 50/60 HZ 15A 14A

OUT : 3X0-Uin 0-1000Hz 16A 11.5kvA

CHASSIS/IP20 : TAMB MAX. 45C/113F.

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Advanced Motor Control for Precision Applications

The VLT 5000 utilizes both V/F and vector control modes to ensure precise speed and torque management, suitable for demanding industrial uses like motors, pumps, and fans. Its automatic torque boost addresses variable load requirements, ensuring consistent performance across a range of applications.

Flexible Interface and Easy Programming

Users benefit from the VLT 5000's detachable keypad and programmable interfaces. With multiple analog and digital inputs, RS485 communication, and optional fieldbus, it integrates smoothly into existing automation systems. Programming is accessible via the keypad or serial interface for quick setup and adjustments.

Efficient Cooling and Noise Control

Forced air ventilation and a noise level below 60 dB combine to offer quiet, continuous operation in workplaces. The drive's compact, powder-coated design and robust construction meet industrial standards, allowing panel or wall mounting to fit diverse settings.

FAQ's of DANFOSS VLT 5000 11.5 KVA AC DRIVE:

Q: How do I program and set up the DANFOSS VLT 5000 AC Drive for my application?

A: Programming the VLT 5000 is managed via its detachable keypad or through a serial interface. You can configure motor parameters, operation modes, and input/output settings using the digital display, making setup straightforward for varied industrial tasks.

Q: What are the main benefits of using V/F and vector control with this drive?

A: V/F and vector control enable precise regulation of motor speed and torque, optimizing efficiency for applications like pumps, fans, and general automation. This flexibility helps reduce energy consumption and provides stable performance despite varying loads.

Q: When should I use the external braking unit with the VLT 5000?

A: Use the external braking unit when rapid motor stopping is required or if your system deals with high inertia loads. It enhances stopping performance and prevents motor overrun, contributing to safer and more controlled operation.

Q: Where can the VLT 5000 be installed and what are the mounting options?

A: The VLT 5000 is designed for both panel and wall mounting. Its robust, powder-coated enclosure with IP20 rating makes it suitable for industrial environments, provided installation follows recommended temperature and humidity limits.

Q: What safety and protection features are included for reliable operation?

A: The drive offers integrated protection against overload, short circuit, overvoltage, and overheating. It also maintains high energy efficiency and complies with CE and UL standards, ensuring safe and reliable operation in demanding conditions.

Q: How does the forced air ventilation cooling system work in this drive?

A: The forced air ventilation system rapidly dissipates heat generated during operation, maintaining optimal internal temperatures even in continuous use. This ensures consistent performance and extends the lifespan of the drive components.
