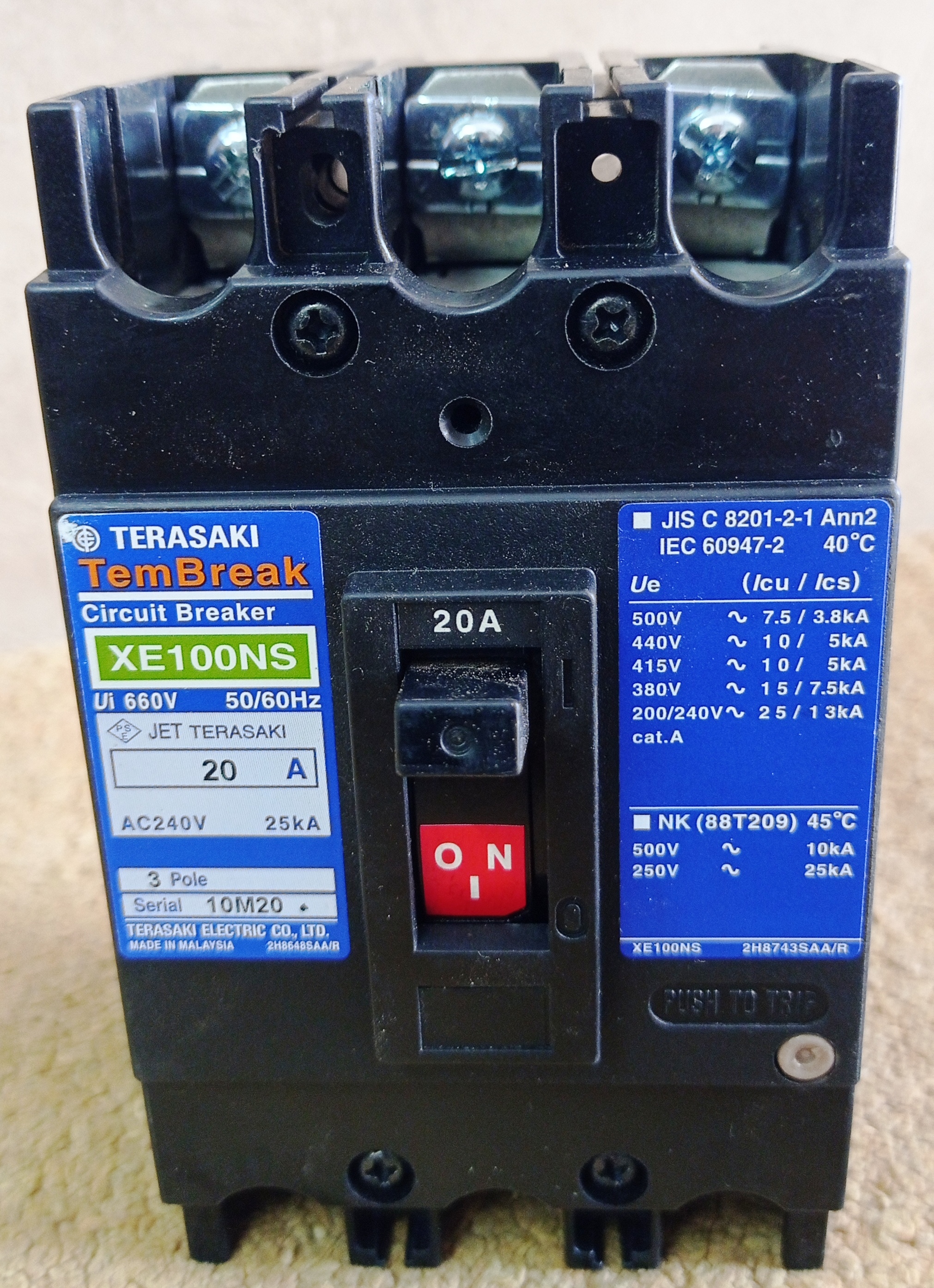

TERASAKI (XE100NS) 20AMP MCCB

Get a Price/Quote

MOQ : 100 Pieces

TERASAKI (XE100NS) 20AMP MCCB Specification

Phase
Three Phase

Mechanical Life
10,000 operations

Breaking Capacity
36 kA

Rated Short Circuit Making Current
80 kA

Rated Short Circuit Breaking Current
36 kA at 415V AC

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting

Function
Circuit Protection, Overload and Short Circuit Protection

Poles Number
3 Pole

Rated Voltage
415V AC

Rated Current
20 Ampere

Rated Frequency
50/60 Hz

Curves
IEC Standard

Temperature Protection
Yes, with Thermal and Magnetic Trip

Weight
Approximately 1.2 kg

Color
Black/Grey

Enclosure Protection
IP20 Front

Connection Type
Cable or Busbar

Operating Temperature
-10°C to +60°C

Terminal Type
Screw Terminals

Model
XE100NS

Trip Unit Type
Fixed Thermal Magnetic

Electrical Life
5,000 cycles

TERASAKI (XE100NS) 20AMP MCCB Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
100 Pieces Per Day

Delivery Time
2 Days

Sample Available
Yes

Main Domestic Market
All India

About TERASAKI (XE100NS) 20AMP MCCB

MCCB stands for Molded Case Circuit Breaker. It is another type of electrical protection device which is used when load current exceeds the limit of a miniature circuit breaker. The MCCB provides protection against overload, short circuit faults and is also used for switching the circuits.

Reliable Circuit Protection for Demanding Environments

With the TERASAKI XE100NS 20AMP MCCB, achieve robust protection for your three-phase electrical installations. Its fixed thermal-magnetic trip unit swiftly responds to overloads and short circuits, preventing costly damage and downtime. Suitable for panel mounting, it offers IP20 front enclosure protection and accommodates both cable and busbar installations-ideal for flexible, secure setups.

Engineered for Longevity and Safety

Benefit from a circuit breaker with a mechanical lifespan of 10,000 operations and electrical endurance of 5,000 cycles. Its design meets IEC standards, ensuring both safety and reliability. The XE100NS supports operation in challenging temperatures from -10C to +60C, making it perfect for diverse environments.

FAQ's of TERASAKI (XE100NS) 20AMP MCCB:

Q: How do I install the TERASAKI XE100NS 20AMP MCCB in my system?

A: The TERASAKI XE100NS 20AMP MCCB is designed for panel mounting and can be connected using either cable or busbar through screw terminals. Ensure all power is off before installation and follow the guidelines outlined in the product manual for safety and proper wiring.

Q: What types of protection does this MCCB provide?

A: This MCCB offers both overload and short circuit protection using a fixed thermal-magnetic trip unit. It is also equipped with temperature protection and complies with IEC standards, ensuring reliable safeguarding of electrical systems.

Q: When should I consider replacing the XE100NS MCCB?

A: Consider replacing the MCCB after it has reached its mechanical life of 10,000 operations or electrical life of 5,000 cycles, or if it exhibits any signs of malfunction such as failure to trip during faults or visible damage.

Q: Where can the XE100NS 20AMP MCCB be used?

A: The XE100NS is suitable for industrial and commercial applications where robust circuit protection for three-phase systems is needed. It accommodates a rated voltage of 415V AC, making it ideal for a wide range of electrical distribution panels.

Q: What is the process for resetting the MCCB after a trip event?

A: After resolving the cause of the trip (overload or short circuit), ensure the MCCB is in the OFF position, then switch it back to ON. For persistent issues, inspect the wiring and connected devices before resetting.

Q: How does the MCCB benefit my electrical system?

A: The XE100NS safeguards your equipment and infrastructure by rapidly disconnecting circuits during faults, thereby reducing downtime, preventing equipment damage, and ensuring efficient, reliable power distribution.
