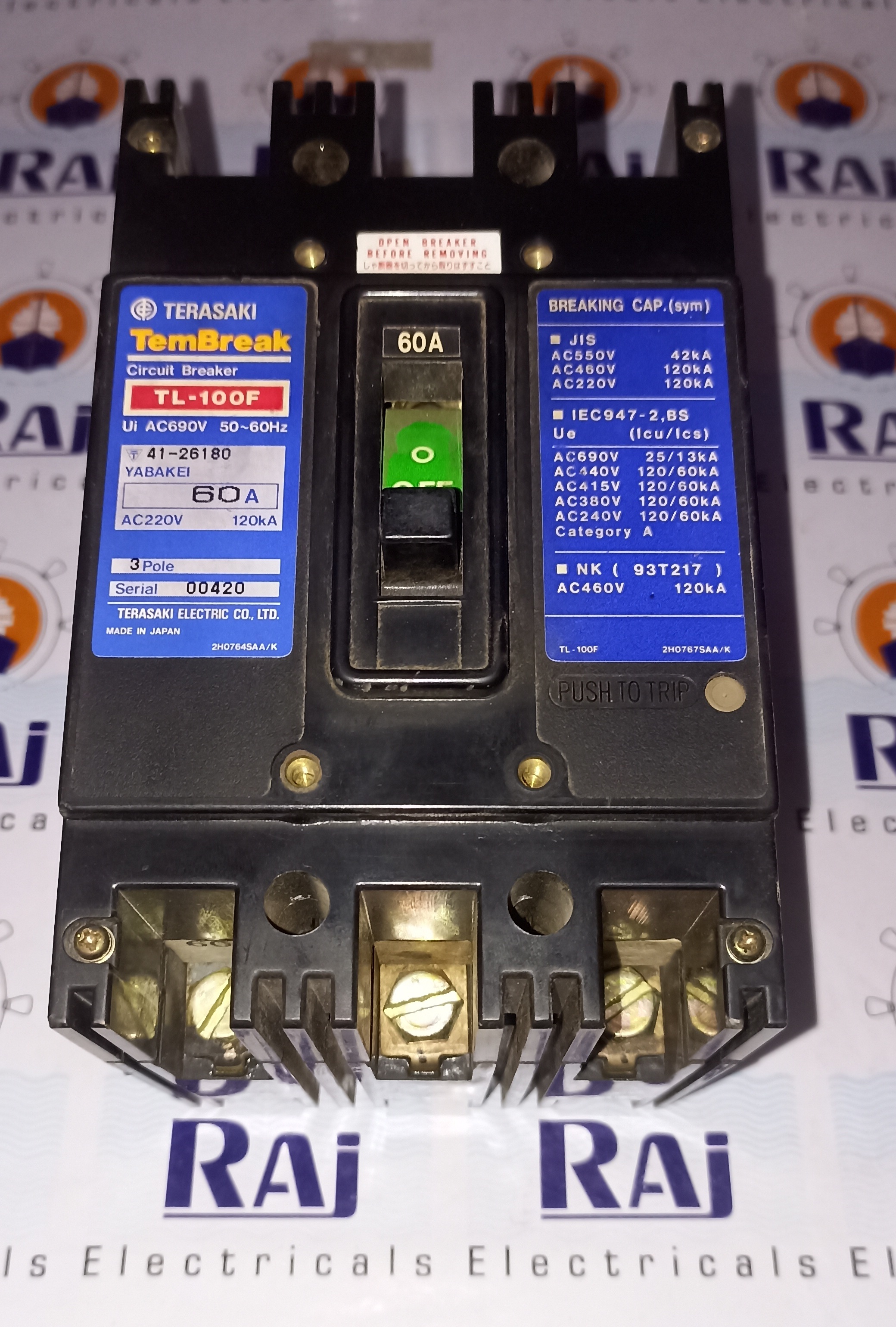

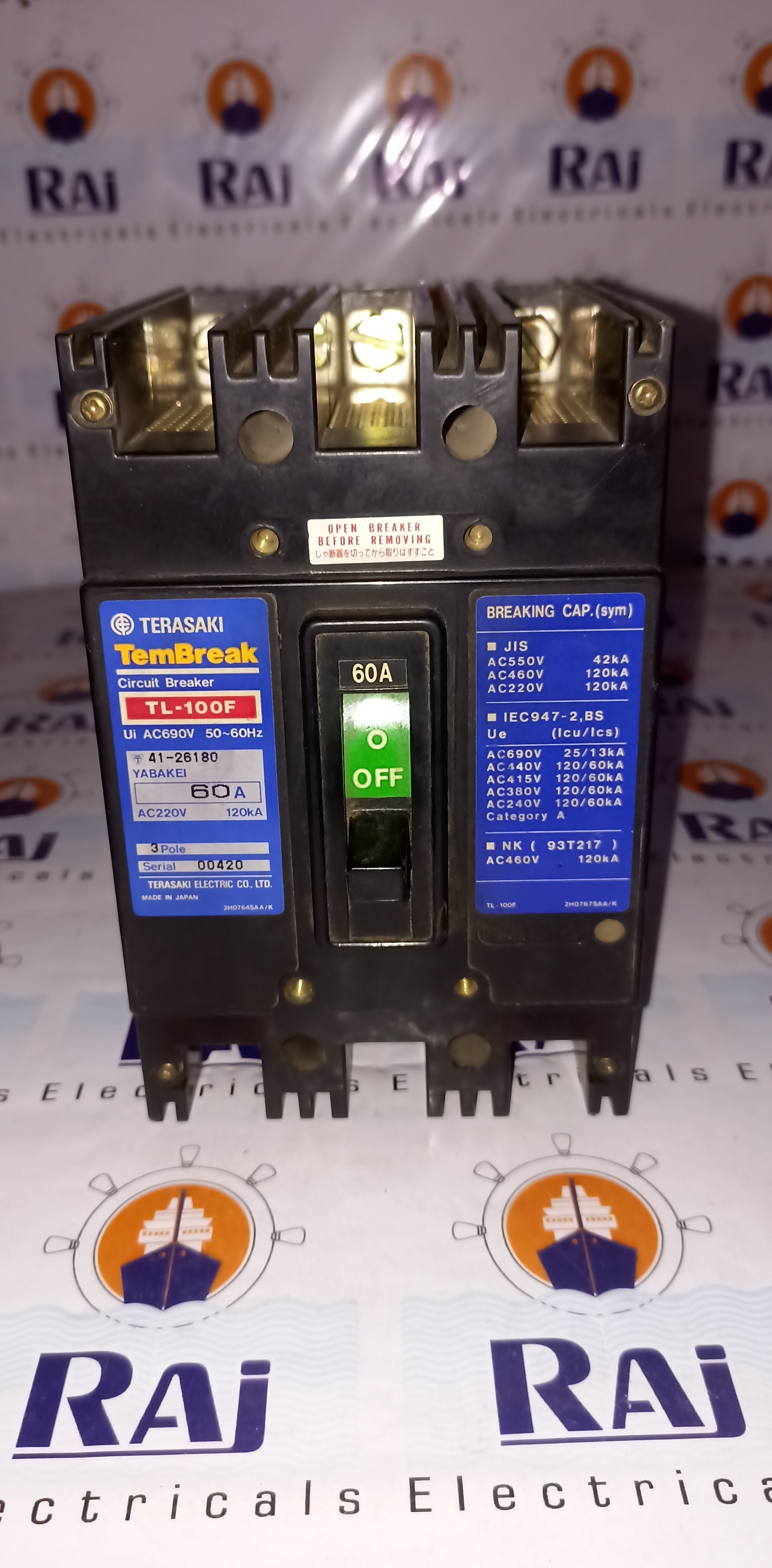

TERASAKI (TL-100F) 60A 3P MCCB

Name: TERASAKI (TL-100F) 60A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

TERASAKI (TL-100F) 60A 3P MCCB Specification

Rated Short Circuit Breaking Current
25 kA at 415V AC

Rated Short Circuit Making Current
50 kA

Phase
Three Phase

Breaking Capacity
25 kA

Mechanical Life
10,000 operations

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mount / Fixed

Function
Overload and Short Circuit Protection

Poles Number
3P

Rated Voltage
AC 415V

Rated Current
60A

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
Yes

Weight
Approx. 1.5 kg

Color
Grey / Black

Connection Type
Screw Terminal

Trip Unit Type
Thermal Magnetic

Operating Temperature
-5C to +40C

Model
TL-100F

Mounting Orientation
Vertical / Horizontal

IP Rating
IP20

Auxiliary Contacts
Optional

TERASAKI (TL-100F) 60A 3P MCCB Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About TERASAKI (TL-100F) 60A 3P MCCB

Raj Electricals Offering TERASAKI (TL-100F) 60A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Terasaki

Ampere :- 60A

Pole :- 3P

Model :- TL-100F

Condition :- Refurbished

Breaking Capacity :- 60 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Enhanced Safety with Reliable Protection

The TL-100F MCCB safeguards your electrical equipment from overloads and short circuits, thanks to its efficient thermal magnetic trip mechanism. Its high breaking capacity ensures it can handle sudden surges, providing peace of mind for both personal and industrial applications.

Versatile Design for Flexible Installation

This MCCB supports both vertical and horizontal mounting, along with panel-mount or fixed installation options. The screw terminal connection type and optional auxiliary contacts offer adaptability, making it suitable for a variety of electrical distribution systems.

FAQ's of TERASAKI (TL-100F) 60A 3P MCCB:

Q: How does the TERASAKI TL-100F MCCB provide protection in my electrical system?

A: The TL-100F uses a thermal magnetic trip unit to automatically disconnect the circuit in the event of overloads or short circuits, helping to prevent equipment damage and fire hazards.

Q: What is the installation process for the TL-100F 60A 3P MCCB?

A: This MCCB can be panel-mounted in either a vertical or horizontal orientation using screw terminals. Its compact design allows for easy integration into existing or new distribution panels.

Q: Where can I use the TL-100F MCCB?

A: The TL-100F is suitable for industrial, commercial, or large residential three-phase systems operating at AC 415V and 50/60 Hz, particularly where reliable overload and short-circuit protection is required.

Q: What are the benefits of using a C Curve MCCB like the TL-100F?

A: A C Curve ensures the MCCB responds swiftly to both moderate and high inrush currents, balancing protection and minimizing nuisance tripping-a significant advantage for motor-driven or inductive load applications.

Q: When should the auxiliary contacts option be considered?

A: Auxiliary contacts should be considered when you need remote signaling or integration into monitoring systems, helping to track the status of the MCCB or trigger additional control logic.

Q: What is the expected mechanical life of the TL-100F?

A: The TL-100F is designed for up to 10,000 mechanical operations, ensuring long-term reliability and reduced maintenance needs in demanding environments.
