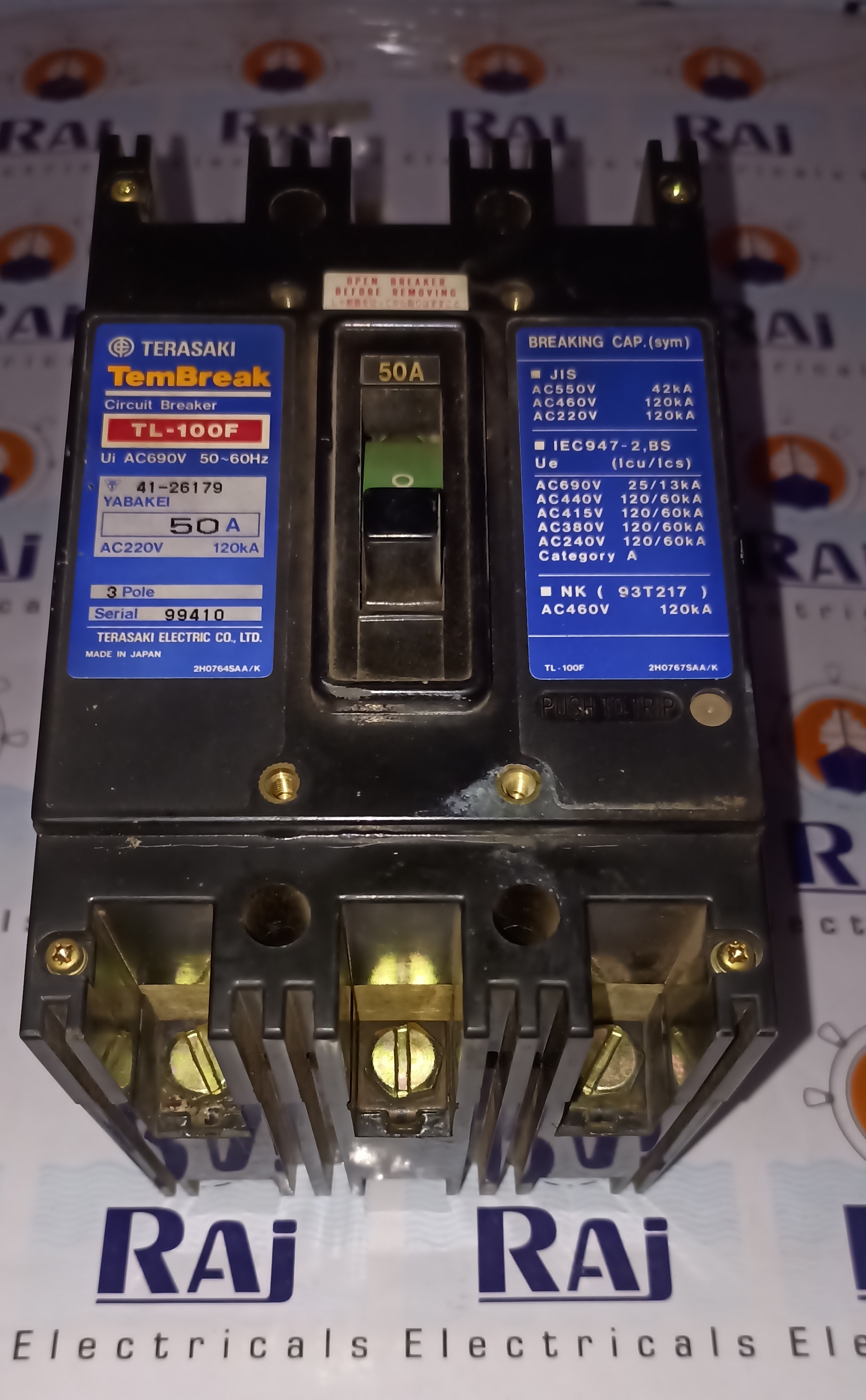

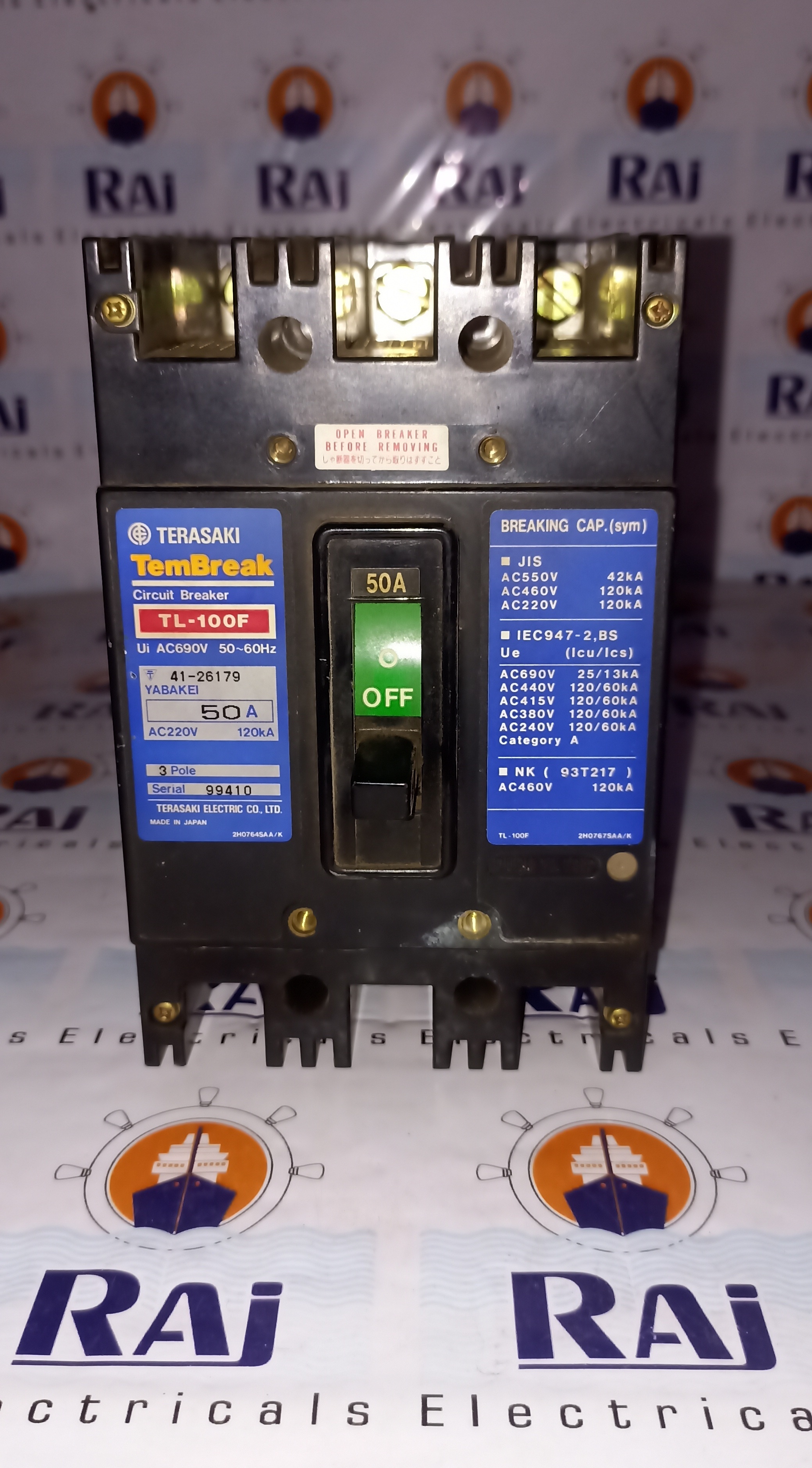

TERASAKI (TL-100F) 50A 3P MCCB

Name: TERASAKI (TL-100F) 50A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

TERASAKI (TL-100F) 50A 3P MCCB Specification

Rated Short Circuit Making Current
50 kA

Breaking Capacity
25 kA

Phase
Three Phase

Mechanical Life
10,000 Operations

Rated Short Circuit Breaking Current
25 kA at 415V AC

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mount

Function
Circuit Protection (Overload, Short Circuit)

Poles Number
3P

Rated Voltage
AC 415V

Rated Current
50A

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
Thermal-Magnetic Trip Unit

Weight
Approx. 1.2 kg

Color
Grey/Black

Trip Unit Type
Fixed Thermal and Magnetic Trip Unit

Storage Temperature
-40C to +70C

Tightening Torque
2.5 Nm

Insulation Voltage
690V AC

Operating Temperature Range
-5C to +40C

Terminal Capacity
Up to 35 mm2

Protection Degree
IP20

Standards Compliance
IEC 60947-2

Mounting Orientation
Any (Vertical/Horizontal)

Accessories Compatibility
Auxiliary Switch, Alarm Switch (Optional)

TERASAKI (TL-100F) 50A 3P MCCB Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About TERASAKI (TL-100F) 50A 3P MCCB

Terasaki (TL-100F) 50A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Terasaki

Ampere :- 50A

Pole :- 3P

Model :- TL-100F

Condition :- Refurbished

Breaking Capacity :- 60 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Optimal Electrical Protection

The TL-100F delivers trusted circuit protection to safeguard electrical installations from overloads and short circuits. Its C curve response is ideal for industrial applications where both quick and delayed tripping is necessary, protecting sensitive equipment from damage while minimizing supply interruptions.

Versatile Installation Options

Designed for ease of use, this MCCB can be installed in any orientation-vertical or horizontal-and supports panel mounting. Its generous terminal capacity (up to 35 mm2) and compact 3P construction suit a variety of wiring configurations in modern electrical panels.

Comprehensive Safety Compliance

Assembled in adherence to IEC 60947-2 standards, the TL-100F ensures high safety and reliability. The breaker's IP20 enclosure protects against accidental contact, while optional auxiliary and alarm switches enhance monitoring and system control capabilities.

FAQ's of TERASAKI (TL-100F) 50A 3P MCCB:

Q: How do I install the TERASAKI TL-100F 50A 3P MCCB in my panel?

A: You can install the MCCB using the panel mount option in either vertical or horizontal orientation. Ensure that terminal tightening is done to 2.5 Nm and the cable does not exceed a 35 mm2 cross-section for safe and reliable connections.

Q: What are the primary functions and benefits of using the TL-100F MCCB?

A: This MCCB protects circuits from overload and short circuit conditions. Its thermal-magnetic trip unit provides fast disconnection during faults, reducing equipment damage and enhancing operator safety.

Q: When should I consider using the TL-100F over other circuit breakers?

A: Use the TL-100F when needing a 50A, three-phase breaker with high breaking capacity (25 kA at 415V AC), compliance with IEC 60947-2, and flexible mounting options in commercial or industrial environments.

Q: Where is it suitable to use this MCCB, considering its operating temperature and protection degree?

A: The breaker is ideal for environments maintaining -5C to +40C temperatures, such as industrial plants or commercial buildings. The IP20 protection makes it safe for indoor, panel-mounted applications.

Q: What process should I follow to ensure accessory compatibility with the MCCB?

A: When adding auxiliary or alarm switches, verify they are specified for the TL-100F model. Install as per the manufacturer's instructions to maintain performance and compliance.

Q: How does the TL-100F enhance system monitoring and control?

A: With optional auxiliary and alarm switch accessories, users can remotely monitor and receive alerts about breaker status or tripping events, contributing to effective system management.
