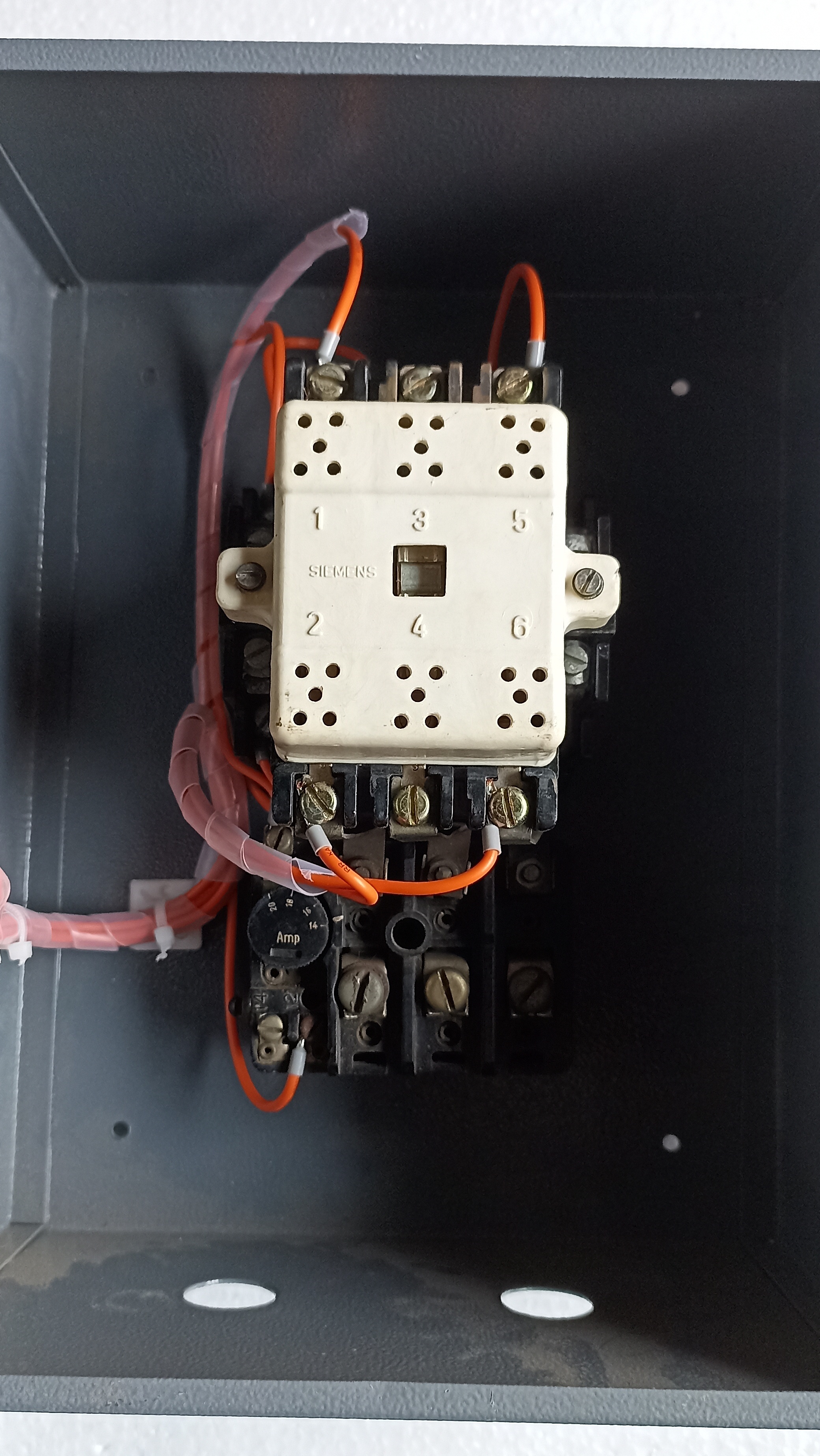

SIEMENS SIZE-2 DOL STARTER

Get a Price/Quote

SIEMENS SIZE-2 DOL STARTER Specification

Efficiency
High

Power Factor
0.95

Insulation Material
PVC/Polycarbonate

Connector Type
Copper/Brass Connectors

IP Rating
IP 42

Surface Finish
Powder Coated

Operating Temperature
-10C to +55C

Shape
Rectangular

Mounting Type
Wall Mount

Humidity %
Up to 90% RH (Non-Condensing)

Overheating Protection
Thermal Overload Relay Provided

Feature
Heavy Duty, Reliable, High Breaking Capacity, Quick Reset

Product Type
Direct On Line (DOL) Motor Starter

Application
Industrial Motor Control, Pump Panels, Compressors, Industrial Automation

Protection Level
Protection Class I, Separate Enclosure

Frequency (MHz)
50 Hz

Rated Voltage
415 V AC

Energy Consumption
Low

Output Type
ON/OFF Motor Starter

Color
Grey & Black

Dimension (L*W*H)
270 x 145 x 190 mm

Weight
4.2 kg

Input Voltage
415 V

Phase
Three Phase

Size
Size-2

No Of Poles
3

Material
High Grade Sheet Metal & Engineering Plastic

Connection Type
Screw Terminal

Coil Voltage
230 V AC

Display Type
LED Indication (ON/OFF/Trip)

Control Supply Frequency
50/60 Hz

Mechanical Life
>1 Million Operations

Terminals
Heavy Duty, Sufficient Cable Space

Electrical Life
0.5 Million Operations

Max Motor Load Capacity
22 kW (30 HP)

Contactor Type
Air Break Electromagnetic Contactor

Enclosure Type
Sheet Steel Dust/Water Resistant

Flame Retardant
Yes

Auxiliary Contacts
1 NO + 1 NC

Short Circuit Protection
Built-in Thermal Overload Relay

SIEMENS SIZE-2 DOL STARTER Trade Information

Minimum Order Quantity
5 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About SIEMENS SIZE-2 DOL STARTER

Siemens Size-2 Dol Starter Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Dol Motor Starter

Make :- Siemens

Contactor :- Siemens Size-2 Contactor

Relay :- 14-20A

Voltage :- 415V AC

Frequency :- 50/60 Hz

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Heavy-Duty Industrial Reliability

The SIEMENS SIZE-2 DOL Starter is engineered from high-grade sheet metal and engineering plastic, offering exceptional durability in even the harshest industrial environments. Its mechanical life exceeds 1 million operations, ensuring a dependable solution for continuous motor control needs.

Comprehensive Motor Protection

Integrated with a built-in thermal overload relay, this starter offers advanced short circuit and overheating protection. The LED status display instantly indicates ON, OFF, or Trip conditions, allowing users to take timely action and safeguard costly equipment.

High Efficiency and User-Friendly Design

Featuring heavy-duty terminals with ample cable space and copper/brass connectors, this DOL starter streamlines installation and maintenance. Its low energy consumption, high efficiency, and quick reset function enhance operational convenience while supporting sustainable, cost-effective motor operation.

FAQ's of SIEMENS SIZE-2 DOL STARTER:

Q: How does the SIEMENS SIZE-2 DOL Starter protect motors from short circuits or overheating?

A: The starter includes a built-in thermal overload relay that automatically disconnects the motor during overload or overheating situations, providing effective short-circuit and overcurrent protection.

Q: What types of applications is this DOL starter best suited for?

A: It is ideal for industrial motor control in pump panels, compressors, and various automation systems, especially where frequent and reliable motor starting is required.

Q: Where can I mount the SIEMENS SIZE-2 DOL Starter?

A: This starter is designed for wall-mounted installation, making it suitable for both new and existing industrial electrical panels in factories, workshops, or pump rooms.

Q: What are the benefits of the LED indication feature?

A: The integrated LED indicators provide a clear visual status of the motor (ON, OFF, Trip), enabling quick fault detection and minimizing downtime by ensuring rapid troubleshooting.

Q: When should I reset the starter after a trip event?

A: Once the cause of the trip (such as overload or overheating) has been addressed and the motor has cooled down, the quick reset function can be used to restore motor operation safely.

Q: What type of terminals and connectors does the starter use?

A: The DOL starter is equipped with heavy-duty screw terminals and uses high-quality copper or brass connectors to ensure reliable, secure, and durable electrical connections.

Q: How does the enclosure design enhance safety and longevity?

A: Its flame-retardant, sheet steel enclosure provides IP 42-rated protection against dust and water, preventing environmental damage and ensuring user safety even in humid (up to 90% RH) industrial settings.
