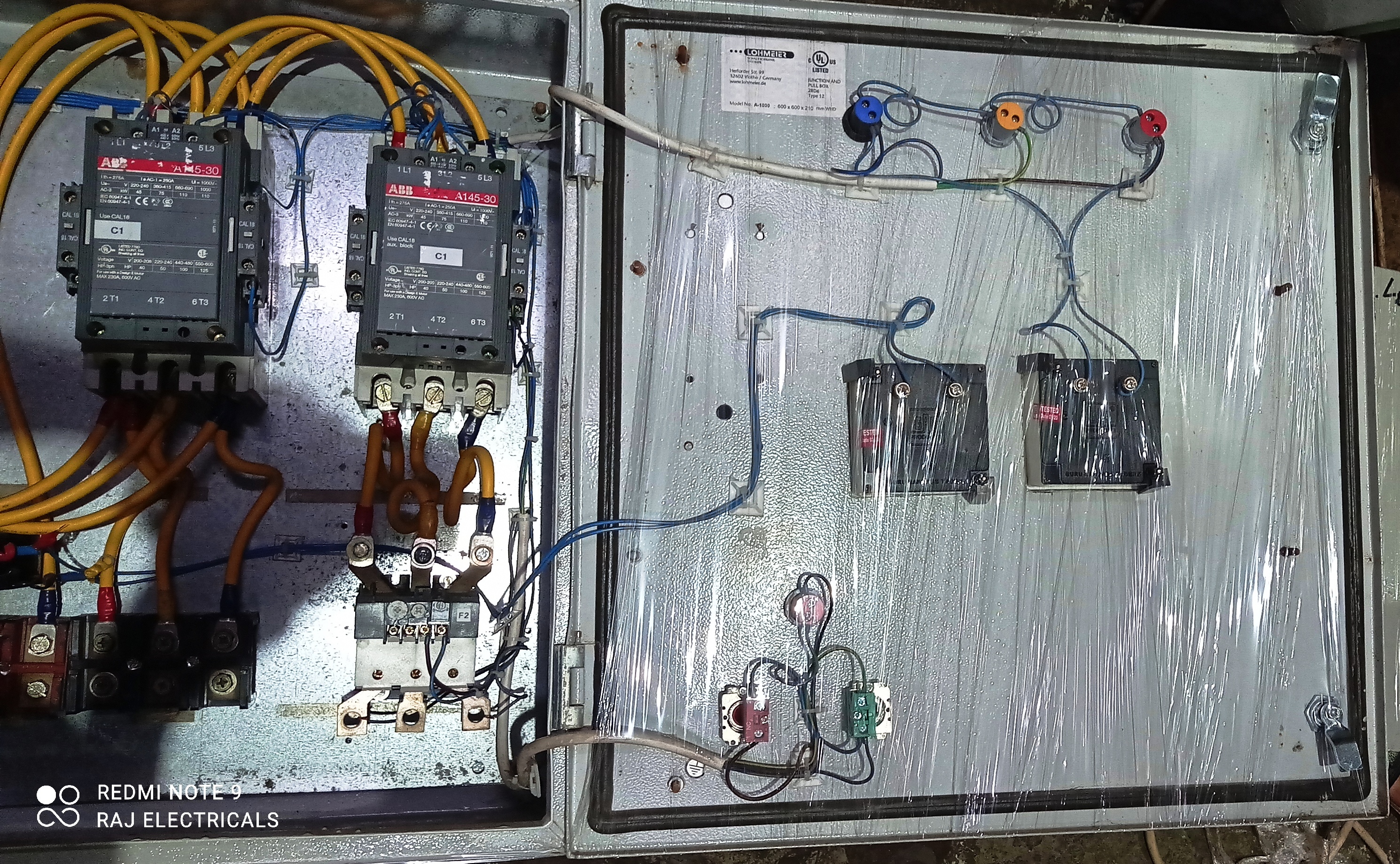

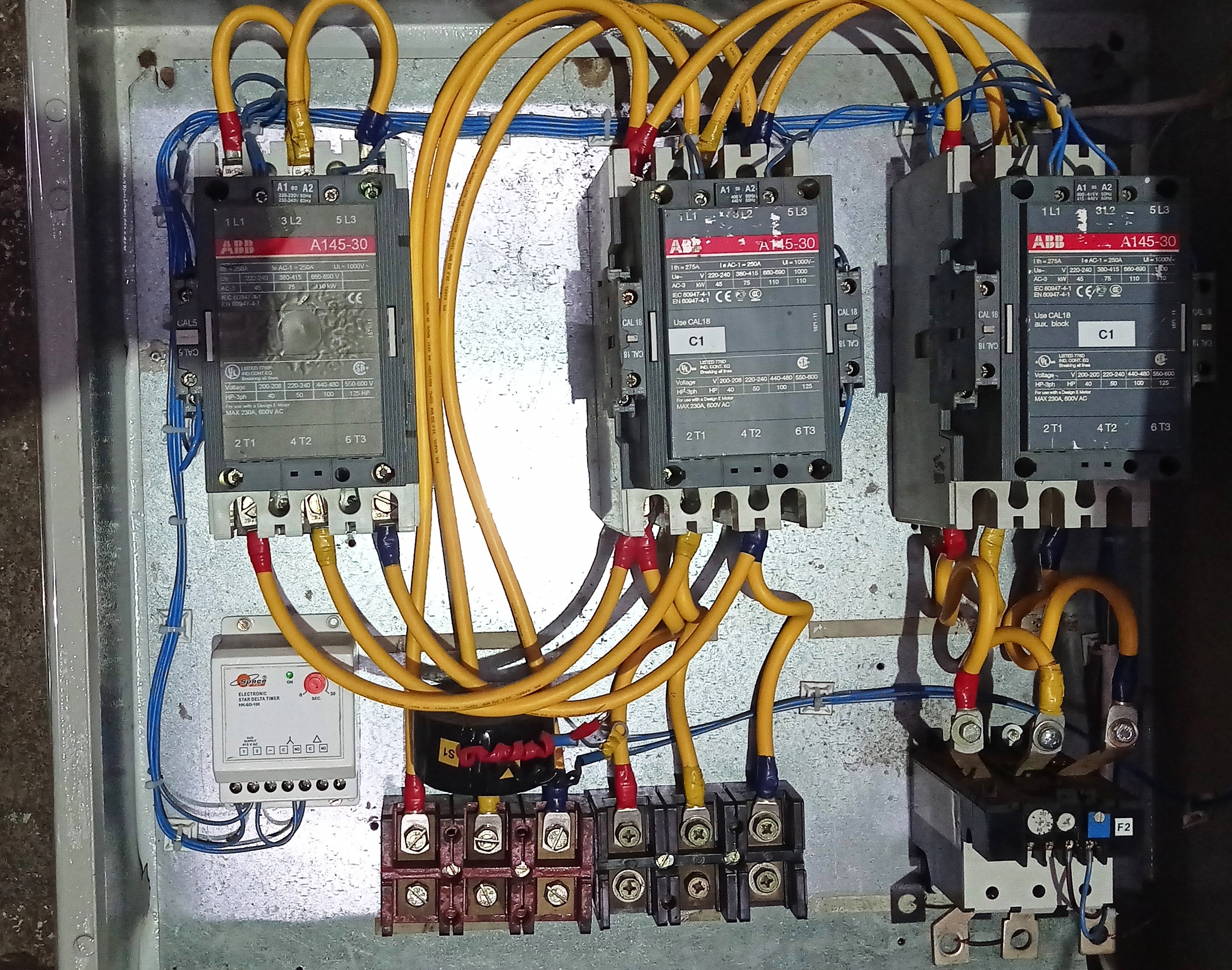

ABB A 145-30 SATR DELTA STARTER

Get a Price/Quote

ABB A 145-30 SATR DELTA STARTER Specification

Insulation Material
Thermoplastic

Shape
Rectangular

Efficiency
High

Overheating Protection
YES

Humidity %
5-95% (non-condensing)

Mounting Type
Panel Mounting

Power Factor
0.95

Operating Temperature
-25C to +55C

Feature
Reliable operation, Compact design, High durability

Surface Finish
Matt

IP Rating
IP20

Connector Type
Screw Clamp

Product Type
Delta Starter

Application
Motor Control, Industrial Automation

Protection Level
High

Frequency (MHz)
50-60 Hz

Rated Voltage
690 V AC

Energy Consumption
Low

Output Type
Contact Output

Color
Grey

Dimension (L*W*H)
285 x 169 x 227 mm

Weight
18 kg

Phase
Three Phase

Size
Standard

Input Voltage
110-250 V AC/DC

Connection Type
Screw Terminal

Material
High-grade plastic and metal

No Of Poles
3

Conventional Free Air Thermal Current (Ith)
250 A

Model Number
A 145-30

Auxiliary Contacts
2 NO + 2 NC

Coil Consumption
80 VA (inrush), 8 VA (holding)

Standards Compliance
IEC/EN 60947-4-1

Rated Operational Power (AC-3) at 400 V
75 kW

Short Circuit Protection
1250 A gG/gL fuse

Mechanical Durability
5 million operations

Control Voltage
110 to 250 V AC/DC

Electrical Durability
1 million operations

ABB A 145-30 SATR DELTA STARTER Trade Information

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About ABB A 145-30 SATR DELTA STARTER

Star/Delta starters are probablyA the most common reduced voltage starters. They are used in an attempt to reduce the start current applied to the motor during start as a means of reducing the disturbances and interference on the electrical supply.

Exceptional Motor Control Solution

The ABB A 145-30 SATR Delta Starter effortlessly manages high-power motors, making it suitable for various industrial automation tasks. With rated operational power of 75 kW at 400 V and outstanding electrical and mechanical durability, it provides consistent performance and safe operation. Its advanced protection levels safeguard equipment and personnel, ensuring reliable operation in even harsh conditions.

Compact and Durable Design

Engineered for longevity, the starter features a compact rectangular build, high-grade materials, and a matt surface finish. Its rugged thermoplastic insulation and IP20 rating protect against dust and accidental contact, while the screw terminal connection streamlines installation for manufacturers, suppliers, and traders. With mechanical durability rated for 5 million operations, maintenance cycles are reduced, boosting uptime.

Flexible and Efficient Operation

Supporting input voltages from 110 to 250 V AC/DC and a wide operating temperature range of -25C to +55C, the ABB A 145-30 is adaptable to diverse environments. Its low energy consumption, high efficiency, and reliable contact output deliver cost-effective motor control for critical processes. The panel-mount setup and versatile auxiliary contacts allow integration into varied motor circuits, optimizing automation and control.

FAQ's of ABB A 145-30 SATR DELTA STARTER:

Q: How does the ABB A 145-30 SATR Delta Starter ensure motor protection in industrial applications?

A: The starter is equipped with advanced overheating protection, short circuit protection utilizing a 1250 A gG/gL fuse, and conforms to IEC/EN 60947-4-1 standards. Its rugged housing and IP20 rating enhance safety by preventing accidental contact and ingress of dust.

Q: What is the process for installing the ABB A 145-30 SATR Delta Starter?

A: Installation is straightforward due to its screw terminal connection and panel mounting design. Ensure input voltage is within 110-250 V AC/DC, mount the starter securely, and wire the input and output as per the supplied manual for optimal operation and safety.

Q: Where is this delta starter typically used?

A: The ABB A 145-30 SATR Delta Starter is primarily used in motor control for industrial automation, including manufacturing plants, process industries, and facilities requiring dependable three-phase motor operation and protection.

Q: What are the main benefits of using the ABB A 145-30 SATR Delta Starter?

A: Key benefits include high reliability, long operational life, efficient energy usage, and robust protection features. Its compact design enables space-saving installation, while its durable build reduces maintenance frequency and extends equipment lifespan.

Q: When should the delta starter be chosen over other motor starters?

A: The delta starter is ideal for applications demanding high-power motor control (up to 75 kW at 400 V) with reliable protection, efficient start-up, and where high mechanical and electrical durability are required for frequent start/stop operations.

Q: How is durability ensured in the ABB A 145-30 SATR Delta Starter?

A: With a mechanical durability rating of 5 million operations and electrical durability of 1 million operations, along with high-grade construction materials, the starter withstands intensive use in demanding industrial environments.

Q: What auxiliary contacts are included, and how do they aid operation?

A: The ABB A 145-30 SATR Delta Starter features 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts. These allow for enhanced circuit flexibility, providing options for additional control and signaling within motor automation setups.
