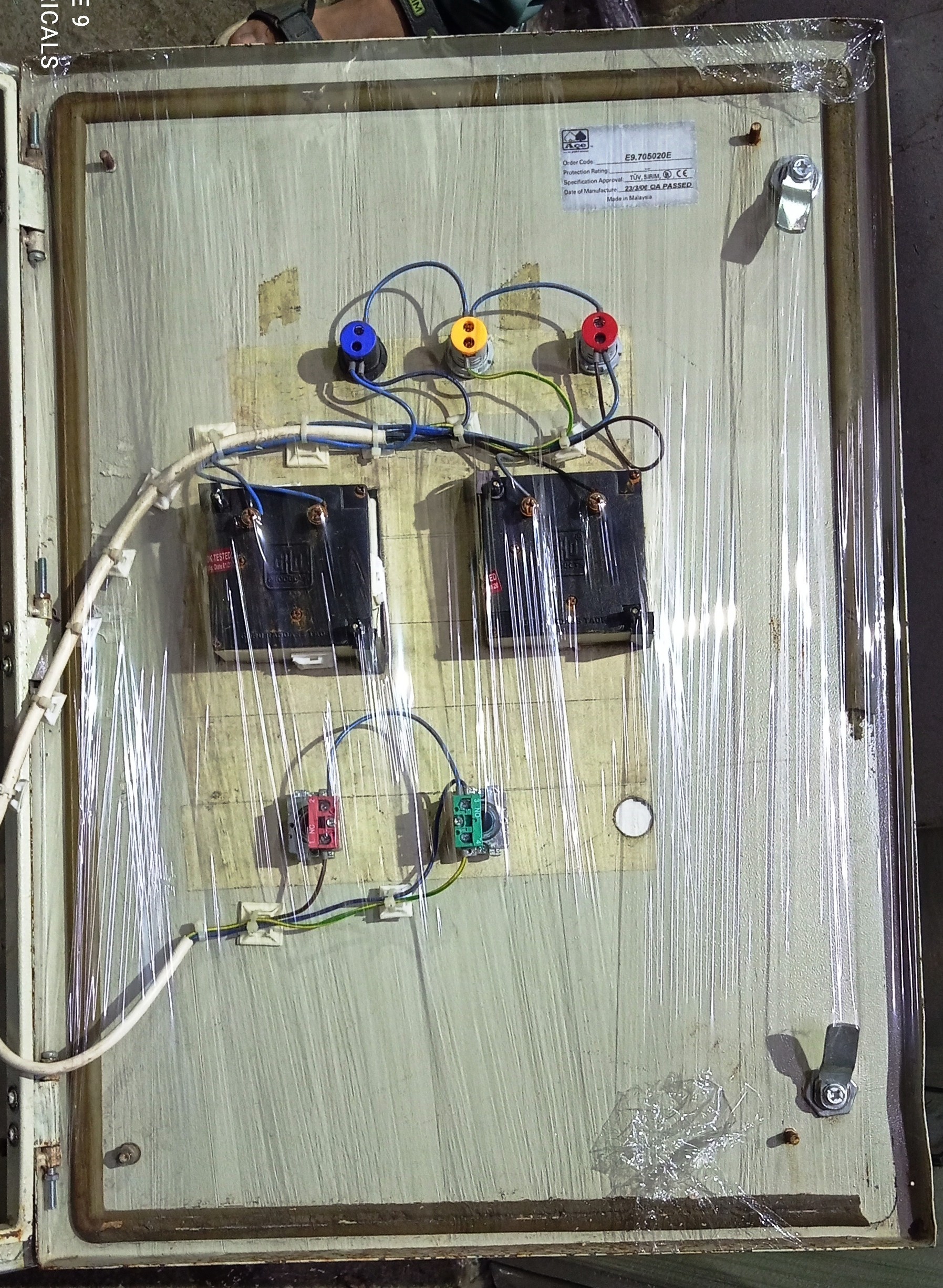

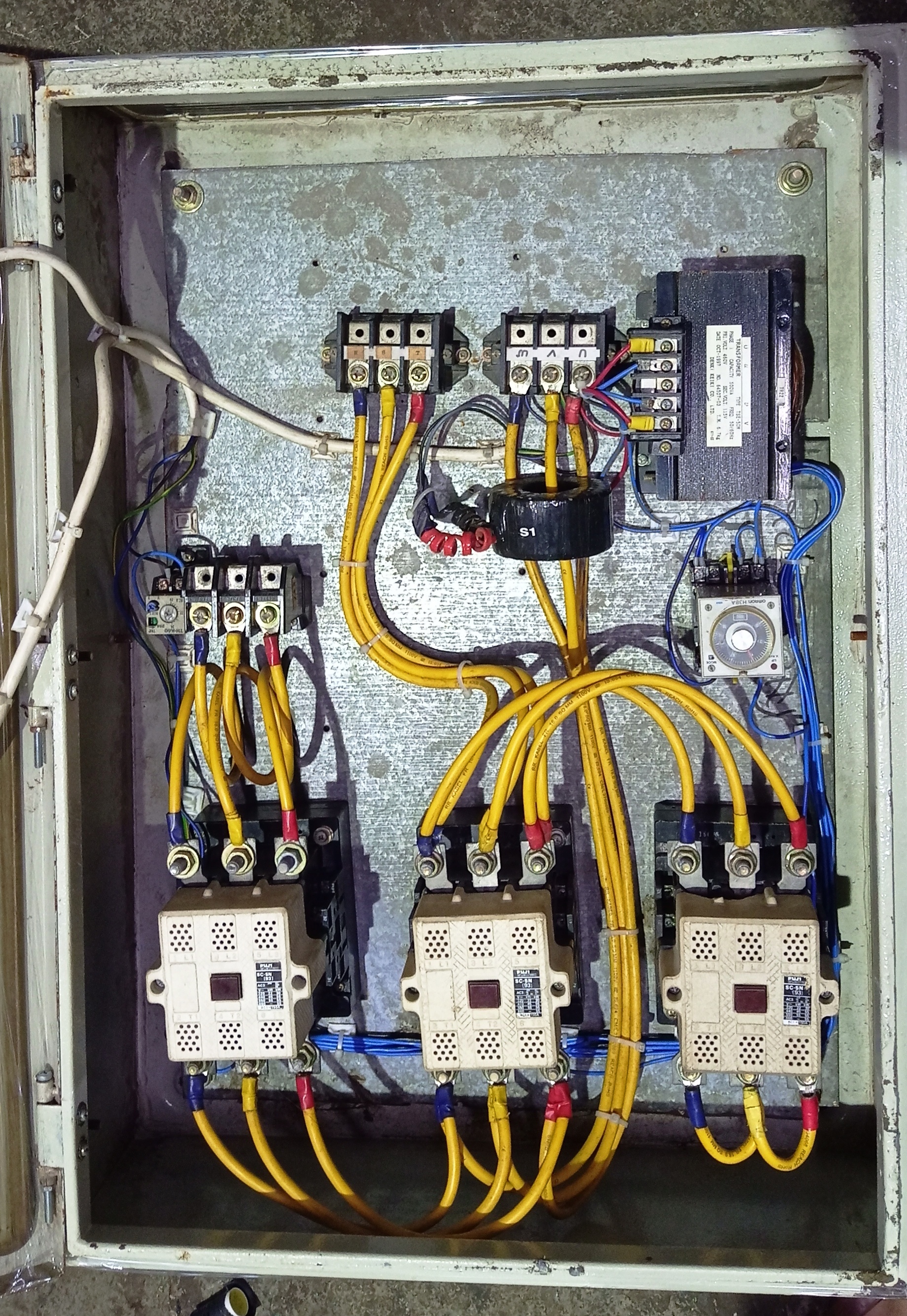

FUJI SC-5N STAR DELTA STARTER

Get a Price/Quote

FUJI SC-5N STAR DELTA STARTER Specification

Insulation Material
Thermoplastic

Feature
Reliable Operation, Compact Design, Easy Installation

Overheating Protection
YES

Connector Type
Screw Type

IP Rating
IP20

Operating Temperature
-5C to +50C

Surface Finish
Powder Coated

Shape
Rectangular

Humidity %
Up to 95%

Power Factor
0.8

Efficiency
High

Mounting Type
Panel Mount

Product Type
Star Delta Starter

Application
Motor Starting; Industrial Automation

Protection Level
High

Frequency (MHz)
50/60 Hz

Rated Voltage
415 V AC

Energy Consumption
Low

Output Type
Three Phase

Color
Grey

Dimension (L*W*H)
420 mm x 270 mm x 160 mm

Weight
5.2 kg

Size
Standard

Phase
Three Phase

Input Voltage
415 V AC

Material
High Grade Plastic and Metal

Connection Type
Screw Terminal

No Of Poles
3 Pole

Rated Current
9-15A

Coil Voltage
230/415 V AC

Control Voltage
110V/220V/415V AC

Electrical Life
100,000 Operations at Rated Load

Auxiliary Contacts
1NO + 1NC

Enclosure Type
Dust Proof

Mechanical Life
1 Million Operations

Starting Method
Star-Delta Operation

FUJI SC-5N STAR DELTA STARTER Trade Information

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About FUJI SC-5N STAR DELTA STARTER

Star/Delta starters are probably the most common reduced voltage starters. They are used in an attempt to reduce the start current applied to the motor during start as a means of reducing the disturbances and interference on the electrical supply.

Reliable Star-Delta Operation for Industrial Motors

The FUJI SC-5N utilizes the renowned star-delta starting method to minimize starting current and enhance motor longevity. This operation is ideal for heavy-duty industrial tasks, ensuring smoother acceleration and protection against electrical stress. With a mechanical life of up to 1 million operations and robust construction, this starter guarantees consistent and reliable motor startup even in challenging industrial settings.

Engineered for Longevity and Safety

Built from high-grade materials, the SC-5N features a dust-proof, powder-coated enclosure and insulation using thermoplastic to deliver durability and safety. Overheating protection, high protection level (IP20), and excellent electrical life at rated load ensure that your operations run smoothly. Compact dimensions and easy panel mounting facilitate installation, making it a practical choice for both new and retrofit projects.

FAQ's of FUJI SC-5N STAR DELTA STARTER:

Q: How does the FUJI SC-5N Star Delta Starter improve motor starting efficiency?

A: By using the star-delta operation method, the FUJI SC-5N significantly reduces the starting current and mechanical stress on three-phase motors. This results in smoother startups, enhanced motor life, and improved overall efficiency in industrial environments.

Q: What benefits does the dust-proof enclosure and high protection level offer?

A: The dust-proof enclosure and IP20 rating prevent contaminants from entering the starter, safeguarding internal components against damage and ensuring reliable operation even in harsh industrial conditions.

Q: When should I use the SC-5N Star Delta Starter for motor control?

A: This starter is best utilized for three-phase motors requiring reduced starting current, particularly in industrial automation, manufacturing, and processing applications. It is suitable for installations where high reliability and frequent start-stop operations are demanded.

Q: Where can the FUJI SC-5N be installed?

A: The SC-5N is designed for panel mounting in industrial/commercial environments. Its compact size and standardized dimensions allow for straightforward integration into new setups or existing control panels.

Q: What is the process for connecting the FUJI SC-5N to my motor?

A: Connection is made via screw terminals for input and output, following standard wiring practices for star-delta starters. Ensure compatibility with coil voltage and control voltage requirements, and observe correct wiring for auxiliary contacts to enable reliable operation.

Q: How does overheating protection work in this starter?

A: Integrated overheating protection continuously monitors the temperature, automatically interrupting operation if overheating is detected. This safeguards both the motor and the control panel, reducing potential downtime and maintenance costs.
