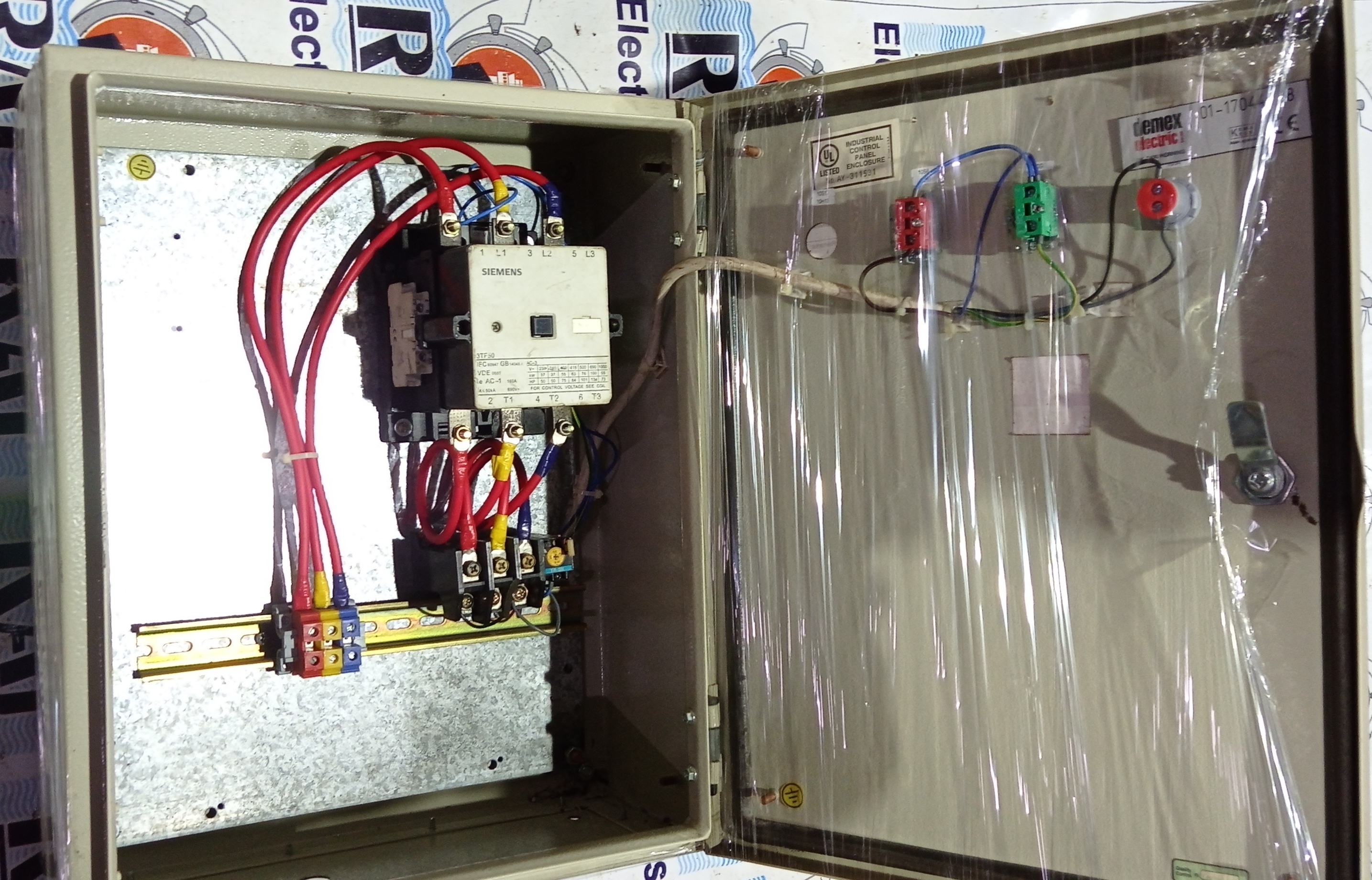

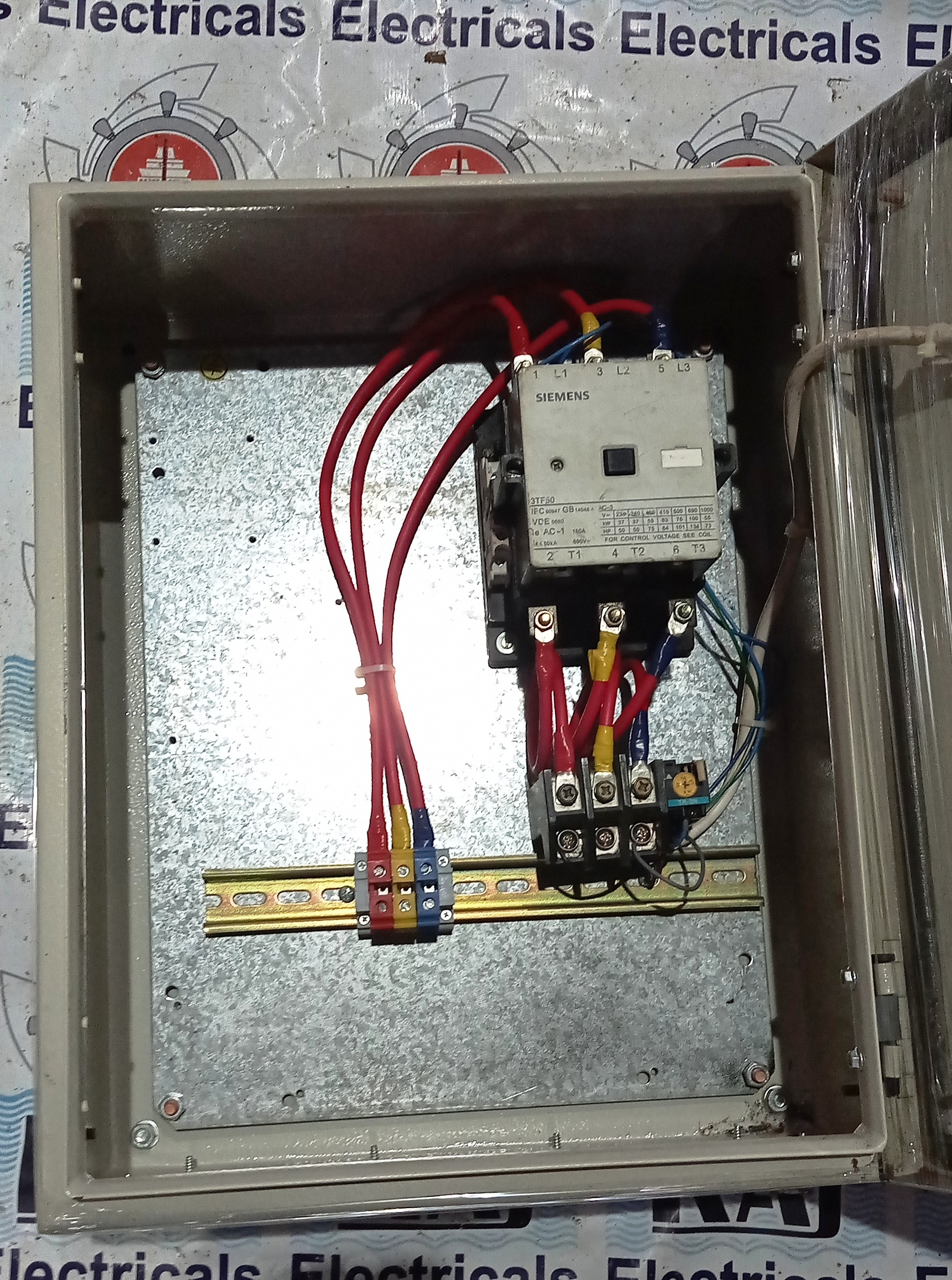

SIEMENS 3TF 50 DOL STARTER

Get a Price/Quote

SIEMENS 3TF 50 DOL STARTER Specification

Shape
Rectangular

Overheating Protection
YES

Mounting Type
Wall Mounted

Feature
Overload Protection, Easy Installation

Operating Temperature
-5C to 55C

Efficiency
High

Connector Type
Screw Type

Insulation Material
Thermoplastic

Humidity %
5 to 95% RH

IP Rating
IP20

Power Factor
0.95

Surface Finish
Smooth Coated

Product Type
DOL Starter

Application
Motor Control, Industrial

Protection Level
High

Frequency (MHz)
50 Hz

Rated Voltage
415 VAC

Energy Consumption
Low

Output Type
Direct

Color
Grey & Black

Dimension (L*W*H)
240 mm x 120 mm x 140 mm

Weight
4.8 kg

Input Voltage
230/415 VAC

Size
Standard

Phase
Three Phase

Connection Type
Screw Terminal

No Of Poles
3

Material
High-grade Plastic & Metal

Thermal Overload Relay
Integrated

Contactor Type
3TF50 Series

Starter Coil Voltage
220-240V AC

Enclosure Type
Dustproof

Control Supply Voltage
230/240V AC

Mechanical Life
> 1 Million Operations

Conforms To
IS/IEC Standards

Minimum Order Quantity
1 Piece

Short Circuit Protection
Yes

SIEMENS 3TF 50 DOL STARTER Trade Information

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About SIEMENS 3TF 50 DOL STARTER

A DOL starter (also known as a direct on line starter or across the line starter) is a method of starting a 3 phase induction motor. In a DOL Starter, an induction motor is connected directly across its 3-phase supply, and the DOL starter applies the full line voltage to the motor terminals.

Integrated Protection & Durable Build

Engineered with advanced short circuit and thermal overload protection, the SIEMENS 3TF 50 DOL Starter ensures optimal safety for your motors. The use of high-quality materials and a sturdy dustproof, smooth-coated enclosure promote longevity and reliable operation even in demanding industrial environments.

Efficient & User-Friendly Design

Enjoy easy installation thanks to its standardized dimensions and wall-mounted configuration. With screw-type terminals and a straightforward connection process, the starter supports efficient maintenance. Its IP20 rating and high insulation enhance protection for both users and motors during operation.

Wide Application Versatility

Optimized for industrial and motor control uses, the 3TF 50 DOL Starter accommodates a broad voltage input (230/415 VAC) and performs reliably in ambient conditions from -5C to 55C and up to 95% humidity. It is ideal for diverse applications requiring enhanced motor safety and robust operational reliability.

FAQ's of SIEMENS 3TF 50 DOL STARTER:

Q: How does the SIEMENS 3TF 50 DOL Starter protect motors against short circuits and overloads?

A: The device incorporates integrated short circuit protection and a thermal overload relay, which automatically disconnects the motor circuit in case of faults or excessive temperature, ensuring your motor is safeguarded from damage.

Q: What is the process for installing the SIEMENS 3TF 50 DOL Starter?

A: Installation is straightforward thanks to its wall-mounted design and screw-type terminals. Simply mount the enclosure, connect input and output power cables according to the wiring diagram, and ensure proper grounding for optimal safety.

Q: When should this starter be used in industrial applications?

A: This starter is best suited for direct-on-line (DOL) starting of three-phase motors in environments demanding high mechanical life and reliable overload protection, such as factories, workshops, and process industries.

Q: What are the key benefits of using this DOL starter over other models?

A: Users benefit from enhanced motor safety, improved installation efficiency, high energy savings, and compliance with IS/IEC standards. Its durable construction and extended mechanical life make it a cost-effective solution for motor control.

Q: Where can the SIEMENS 3TF 50 DOL Starter be installed safely?

A: Thanks to its IP20 dustproof enclosure and broad operating temperature range, it can be installed in various indoor industrial settings that require consistent performance and reliable protection for three-phase motors.

Q: What is the operating voltage and compatibility for this starter?

A: It supports an input voltage of 230/415 VAC and a control coil voltage of 220-240V AC, making it compatible with most standard three-phase industrial motor systems.
