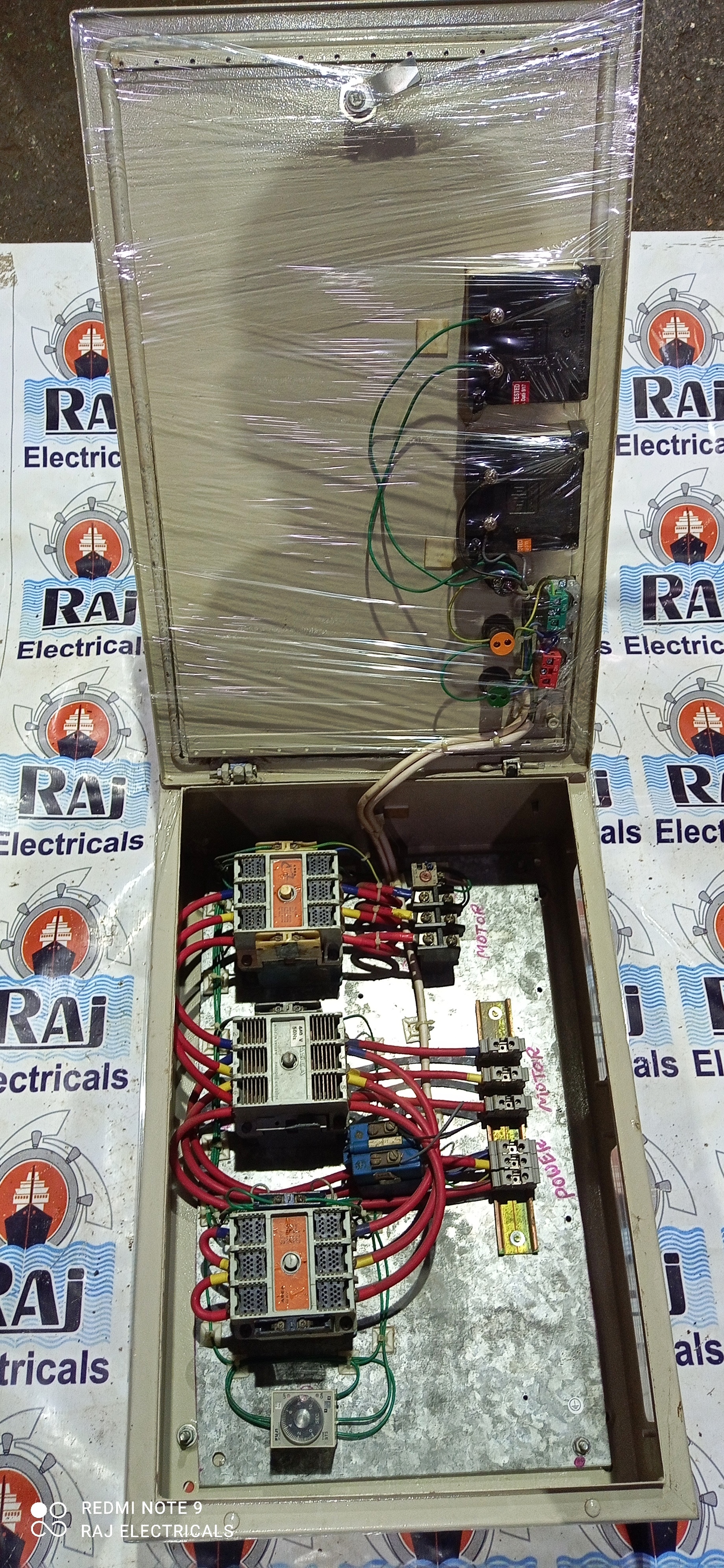

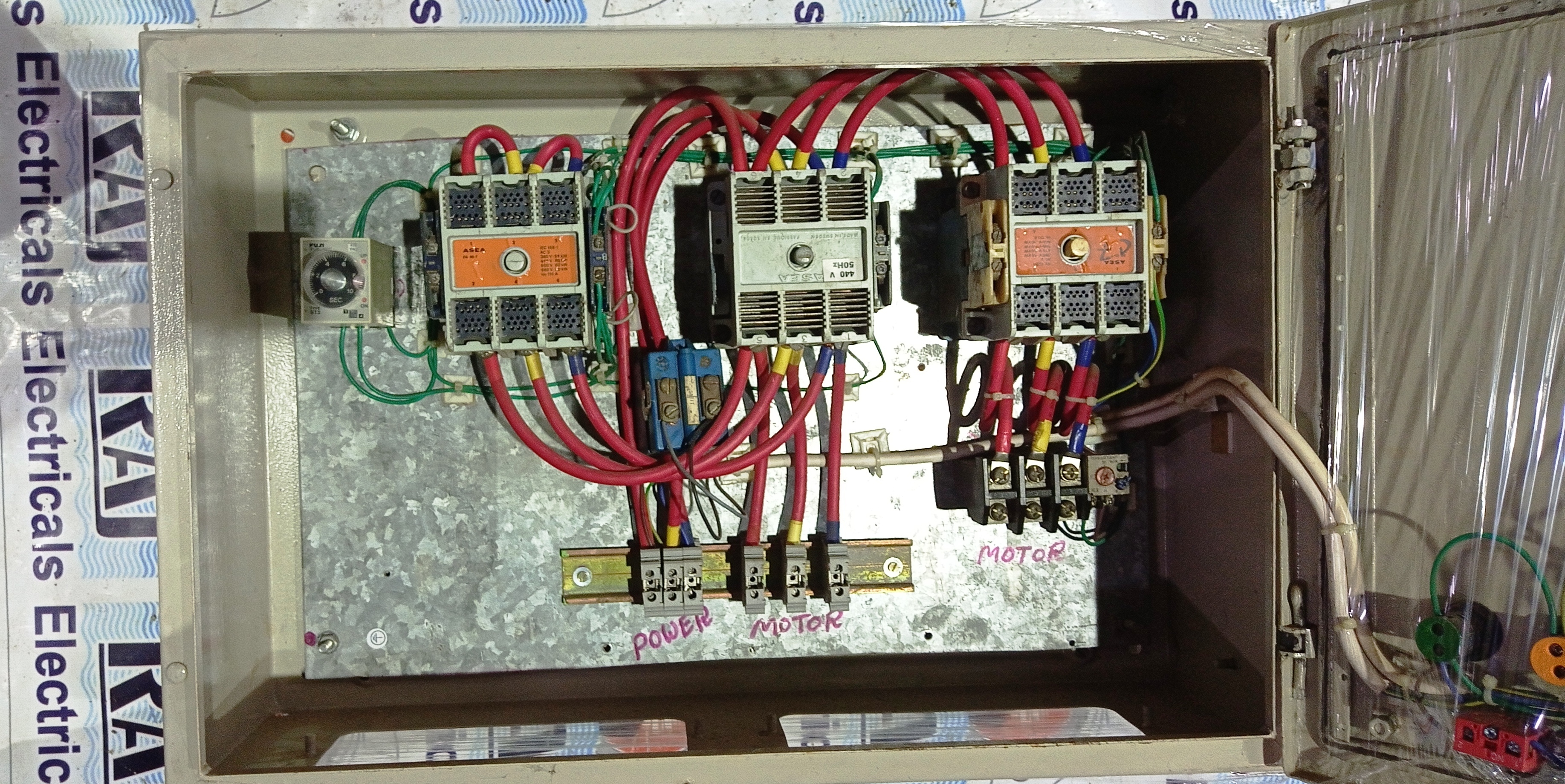

ASEA - 80 STAR DELTA STARTER

Get a Price/Quote

ASEA - 80 STAR DELTA STARTER Specification

Humidity %
Max 95% RH (non-condensing)

Connector Type
Copper Lugs

Efficiency
High

Overheating Protection
Provided

Operating Temperature
-10C to +50C

Power Factor
0.8

Mounting Type
Wall Mounted

IP Rating
IP42

Shape
Rectangular

Insulation Material
Bakelite

Feature
Auto/Manual Switch, Phase Failure Protection

Surface Finish
Powder Coated

Product Type
Star Delta Starter

Application
Motor Starter for Induction Motors

Protection Level
Overload, Short Circuit

Frequency (MHz)
50 Hz

Rated Voltage
415 V AC

Energy Consumption
Low

Output Type
Direct-on-line Motor Starting

Color
Grey

Dimension (L*W*H)
300 x 200 x 150 mm

Weight
3.2 kg

Input Voltage
415 V

Phase
Three Phase

Size
Standard Industrial

Material
Sheet Metal Enclosure, Copper Contacts, Bakelite

Connection Type
Screw Terminal

No Of Poles
3

Cable Entry
Knockout Provided

Switch Type
Push Button

Standards Complied
IS/IEC 60947-4-1

Enclosure Type
Dust & Moisture Protected

Starting Method
Star Delta Auto Switch Over

Auxiliary Contacts
1 NO + 1 NC

Suitable for Motor Range
10 HP to 30 HP

Mechanical Life
>1 million operations

Starting Time
Adjustable 3-20 seconds

Coil Voltage
230/415 V

Control Voltage
230 V AC

Interlocking
Electrical & Mechanical Interlock

Relay Type
Thermal Overload Relay

ASEA - 80 STAR DELTA STARTER Trade Information

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About ASEA - 80 STAR DELTA STARTER

Star/Delta starters are probablyA the most common reduced voltage starters. They are used in an attempt to reduce the start current applied to the motor during start as a means of reducing the disturbances and interference on the electrical supply.

Reliable Motor Starting

This starter is built for industrial motors with a star-delta auto switch over mechanism, allowing smooth transition and reduced starting current. Its adjustable timing enables tailored motor operation, making it suitable for various applications within the 10 HP to 30 HP range.

Effective Protection & Safety

Equipped with a thermal overload relay and comprehensive interlocking systems, the ASEA - 80 Starter offers enhanced protection against overheating, short circuits, and phase failure. Adhering to IS/IEC 60947-4-1 standards, it ensures safe and efficient operation in industrial environments.

Durable Design & Ease of Installation

Constructed from sheet metal and bakelite for insulation, the enclosure is powder-coated for longevity and rated IP42, safeguarding against dust and moisture. Wall mounting and knockout cable entry facilitate straightforward installation and maintenance.

FAQ's of ASEA - 80 STAR DELTA STARTER:

Q: How does the ASEA - 80 Star Delta Starter safeguard motor operation?

A: The starter features a thermal overload relay and comprehensive interlocking (both electrical and mechanical) systems that protect motors against overload, short circuits, and phase failure, ensuring safe and reliable performance.

Q: What is the suitable motor range for using this starter?

A: This starter is designed for three-phase induction motors rated from 10 HP to 30 HP, making it ideal for various medium duty industrial applications.

Q: When should I adjust the starting time, and how is it configured?

A: Adjust the starting time (between 3 to 20 seconds) based on your motor's load and site requirements to optimize start-up performance and minimize electrical stress. Configuration is typically done during installation by qualified personnel using the provided adjustment controls.

Q: Where can the ASEA - 80 Star Delta Starter be installed?

A: Its wall-mounted, powder-coated, and IP42 enclosure makes it suitable for indoor industrial settings, offering protection against dust and moisture. Ensure a location with adequate ventilation and accessibility for safe operation.

Q: What are the benefits of the auto/manual switch feature?

A: The auto/manual switch enables flexible operation, allowing for automatic switching or manual intervention, which is beneficial during maintenance or troubleshooting situations.

Q: How does the product maintain high efficiency and reliability?

A: Made with copper contacts and bakelite insulation, combined with a robust enclosure and an energy efficient design, the starter is engineered for a mechanical life exceeding one million operations, supporting high performance and minimal downtime.

Q: What is the process for connecting cables to the starter?

A: Cable entry is made easy using the knockout provided, and connections are secured via screw terminals compatible with copper lugs, ensuring reliable and safe electrical connections.
