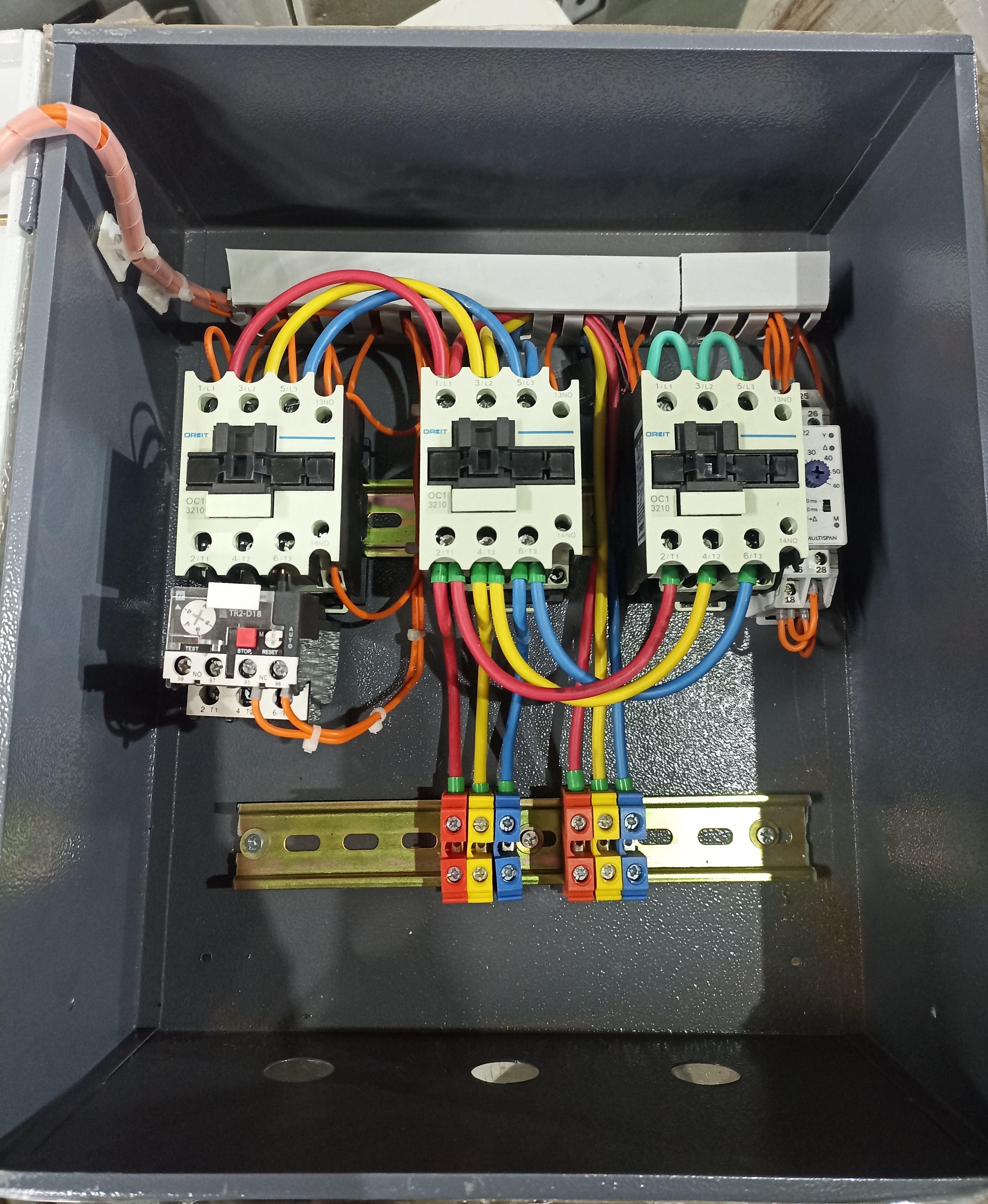

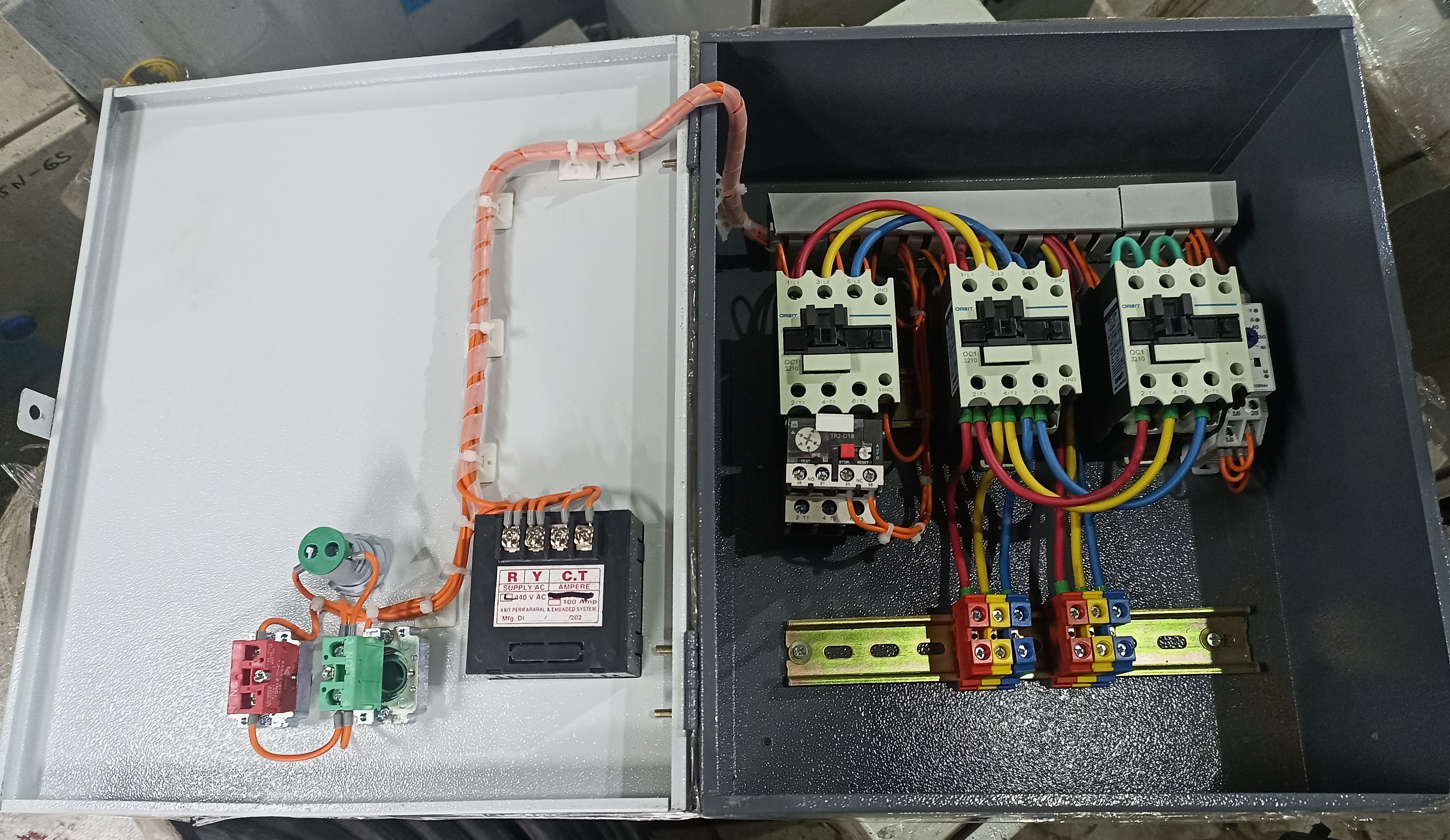

ORBIT 32A STAR-DELTA STARTER

Name: ORBIT 32A STAR-DELTA STARTER
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Piece

ORBIT 32A STAR-DELTA STARTER Specification

Operating Temperature
-10C to +55C

Surface Finish
Powder Coated

Power Factor
0.9 Lagging

Overheating Protection
Yes, Built-in Thermal Overload Relay

Shape
Rectangular

Humidity %
Up to 95% RH non-condensing

Efficiency
High

IP Rating
IP 42

Feature
Auto/Manual Reset, Compact Design, Robust Construction

Insulation Material
Bakelite / DMC

Mounting Type
Wall Mounted

Connector Type
Brass Terminal

Product Type
Star Delta Starter

Application
Industrial Motor Starter

Protection Level
Overload, Short Circuit

Frequency (MHz)
50 Hz

Rated Voltage
415 V AC

Energy Consumption
Low

Output Type
Motor Output (Three Phase)

Color
Grey

Dimension (L*W*H)
320 x 220 x 170 mm

Weight
4.5 kg

Size
Standard (as per dimension)

Input Voltage
415 V AC

Phase
Three Phase

Material
Sheet Metal Body & High Grade Electrical Components

Connection Type
Screw Terminal

No Of Poles
3 Pole

Mechanical Life
Over 1 million operations

Reset Type
Manual / Auto Selectable

Starter Rating
32A

Relay Range
22A to 32A

Control Voltage
230V AC

Enclosure Type
Dust & Vermin Proof

Suitable Motor Rating
Up to 20 HP (15 kW) at 415V

Auxiliary Contact
Available

Indication Lamps
ON, OFF, TRIP Indication

ORBIT 32A STAR-DELTA STARTER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ORBIT 32A STAR-DELTA STARTER

ORBIT 32A Contactor STAR-DELTA STARTER Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- STAR-DELTA STARTER

Make :- ORBIT

Ith :- 32A

Pole :- 3P

Model :- OC1 3210

Condition :- Refurbished

Voltage :- 220V AC

Frequency :- 50-60 Hz

Manufactured By :- Raj Electricals

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Reliable Motor Protection and Control

The ORBIT 32A Star-Delta Starter provides advanced overload, short-circuit, and overheating protection to extend the life of your industrial motors. Its built-in thermal overload relay and selectable manual/auto reset make it especially suitable for continuous heavy-duty operations.

Efficient and User-Friendly Design

Designed for ease of installation and operation, the starter features ON, OFF, and TRIP indication lamps for instant status updates, screw terminal connections, and a wall-mounted rectangular shape. Its compact, powder coated enclosure ensures efficient use of space and durability in harsh environments.

Versatile Applications Across Industry

With compatibility for motors up to 20 HP (15 kW) and a wide operating temperature range, this starter meets various industrial requirements. The device supports three-phase motors and is suitable for applications demanding high reliability and safety, such as manufacturing plants and processing units.

FAQ's of ORBIT 32A STAR-DELTA STARTER:

Q: How does the ORBIT 32A Star-Delta Starter protect my motor?

A: The starter is equipped with a thermal overload relay for overload protection, as well as short-circuit and overheating protection mechanisms. The built-in relay monitors the current, and in case of abnormal conditions, it trips the circuit to safeguard your motor.

Q: What types and sizes of motors is this starter suitable for?

A: It is designed for industrial three-phase motors up to 20 HP (15 kW) at 415V. This makes it suitable for a variety of machinery in sectors such as manufacturing, agriculture, and processing.

Q: When should I use the manual or auto reset feature?

A: The manual reset is ideal when you want to inspect the system after a trip before restarting. Auto reset is useful in applications requiring automatic restarting after brief interruptions, ensuring minimal downtime.

Q: Where should I install the ORBIT 32A Star-Delta Starter?

A: This starter is meant for wall mounting in dry, protected environments. Its IP42 dust and vermin proof enclosure allows it to operate reliably in industrial settings with up to 95% RH non-condensing humidity.

Q: What is the process for connecting the starter to my motor?

A: Connect the motor output to the three-pole terminals using the screw or brass connector, ensuring all connections are secure and conform to the provided wiring diagram. The control circuit operates at 230V AC, while the main circuit receives 415V AC.

Q: How do the indication lamps support operation and maintenance?

A: The ON, OFF, and TRIP indication lamps provide clear visual feedback on the starter's status, helping operators easily monitor equipment and respond swiftly to system faults or trips.

Q: What are the main benefits of using the ORBIT 32A Star-Delta Starter?

A: Key benefits include high operational efficiency, robust protection schemes, simple installation, versatile reset options, and reliable performance over prolonged use, making it a valuable choice for safeguarding and enhancing motor lifespan in industrial environments.
