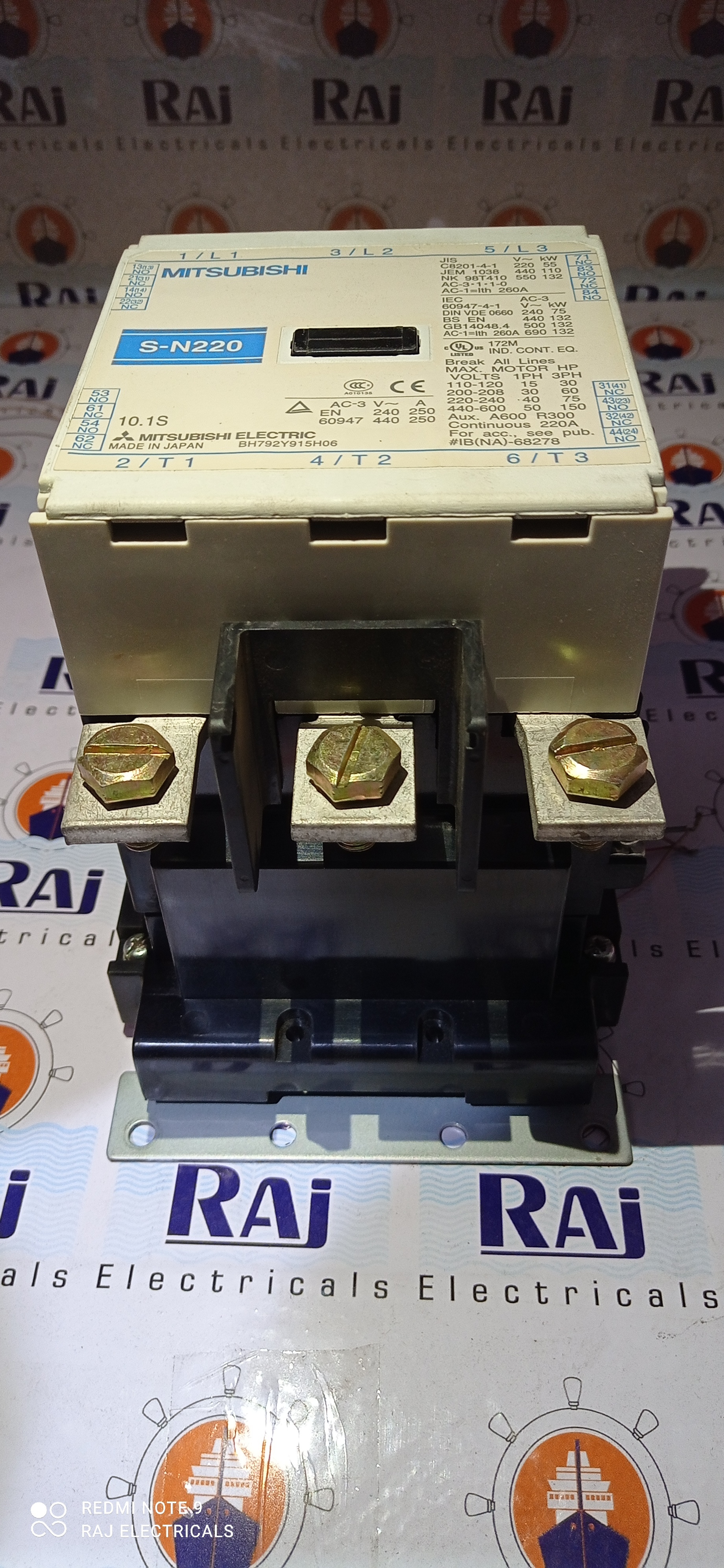

MITSUBISHI S-N 220 CONTACTOR

Get a Price/Quote

MITSUBISHI S-N 220 CONTACTOR Specification

Insulation Material
Thermoset Resin

Overheating Protection
YES

Surface Finish
Smooth

IP Rating
IP20

Connector Type
Screw Type

Efficiency
High

Humidity %
5% to 95% RH

Shape
Rectangular

Feature
High Durability, Reliable Operation, Arc Protection

Operating Temperature
-5°C to +40°C

Mounting Type
DIN Rail / Panel Mounting

Power Factor
0.75

Product Type
Power Contactor

Application
Industrial Motor Control, Power Distribution

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
690V AC

Energy Consumption
16W (AC coil)

Output Type
AC

Color
Grey & Black

Dimension (L*W*H)
190 x 141 x 157 mm

Weight
8.2 kg

Input Voltage
AC 220V / 230V

Size
S-N220

Phase
Three Phase

Material
High Grade Plastic & Metal

No Of Poles
3P

Connection Type
Screw Terminal

Electrical Endurance
1 Million Operations

Contact Material
Silver Alloy

Short Circuit Withstand Capacity
10 kA

Ambient Storage Temperature
-40°C to +70°C

Mechanical Endurance
10 Million Operations

Coil Voltage Range
110-220V AC

Main Contact Rated Current
220A

Auxiliary Contacts
2NO + 2NC

MITSUBISHI S-N 220 CONTACTOR Trade Information

Minimum Order Quantity
3 Number

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About MITSUBISHI S-N 220 CONTACTOR

Raj Electricals Offering Mitsubishi S-N 220 Contactor At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Magnetic Contactor

Make :- Mitsubishi

Model :- S-N 220

AC-1 = Ith :- 260A

Auxiliary Contacts NO :- 2

Auxiliary Contacts NC :- 2

Voltage :- 380-480V

Frequency :- 50-60 Hz

We Supply Industrial Product In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

High Performance and Reliability

Designed for industrial motor control and power distribution, the MITSUBISHI S-N 220 Contactor delivers exceptional reliability. Its high mechanical endurance of 10 million operations and silver alloy contacts ensure long-lasting performance even under intensive use. The contactor's smooth surface finish and robust IP20 protection enhance operational safety and longevity in challenging environments.

Flexible Mounting and Versatile Application

This contactor supports both DIN rail and panel mounting, providing flexibility for various installation needs. Suitable for use in three-phase systems, it accommodates a broad range of operating temperatures and humidity levels. Its auxiliary contacts and modular design allow seamless integration into different industrial setups, including automated assemblies and power management systems.

Advanced Protection Features

With built-in arc protection, overheating prevention, and high-grade insulation made from thermoset resin, the S-N 220 ensures operator safety and equipment reliability. The short circuit withstand capacity of 10 kA and IP20 rating add layers of safety, making this contactor a dependable choice for safeguarding equipment and personnel in electrical installations.

FAQ's of MITSUBISHI S-N 220 CONTACTOR:

Q: How do I install the MITSUBISHI S-N 220 contactor in my system?

A: The S-N 220 contactor can be installed using either DIN rail or panel mounting methods. It features screw terminals for secure electrical connections. Ensure the power is switched off, follow the provided wiring diagrams, and fit the contactor securely to maintain safety and performance.

Q: What environmental conditions can this contactor operate and be stored in?

A: The operating temperature ranges from -5C to +40C, and the device can be stored safely from -40C to +70C. It also manages high humidity (5% to 95% RH), making it suitable for diverse industrial environments.

Q: What benefits does the S-N 220 provide for industrial applications?

A: This contactor offers high durability, reliable switching, and efficient energy consumption (16W AC coil). Its arc and overheat protection, silver alloy contacts, and long endurance make it ideal for critical motor control and power distribution tasks.

Q: When should I use the auxiliary contacts (2NO + 2NC)?

A: Auxiliary contacts are used for control and signaling functions within an electrical circuit. The 2NO (normally open) and 2NC (normally closed) aux contacts in the S-N 220 allow for flexible integration with system feedback, interlocking, and safety relay logic.

Q: Where is the S-N 220 typically applied?

A: It is widely used in industrial motor control centers, automated machinery, and power distribution panels. Its robust design makes it suitable for protection and control in manufacturing and utility environments.

Q: What are the safety features of the MITSUBISHI S-N 220 contactor?

A: Safety features include IP20 protection against accidental contact, arc protection, and built-in overheating protection. High-grade insulation materials and smooth surface finish support safe installation and operation.

Q: What process ensures the contactor's reliability during frequent operations?

A: The S-N 220 is built to withstand high mechanical (10 million) and electrical (1 million) operations. Its use of quality materials such as silver alloy contacts and thermoset resin insulation contribute to consistent performance over extended periods.
