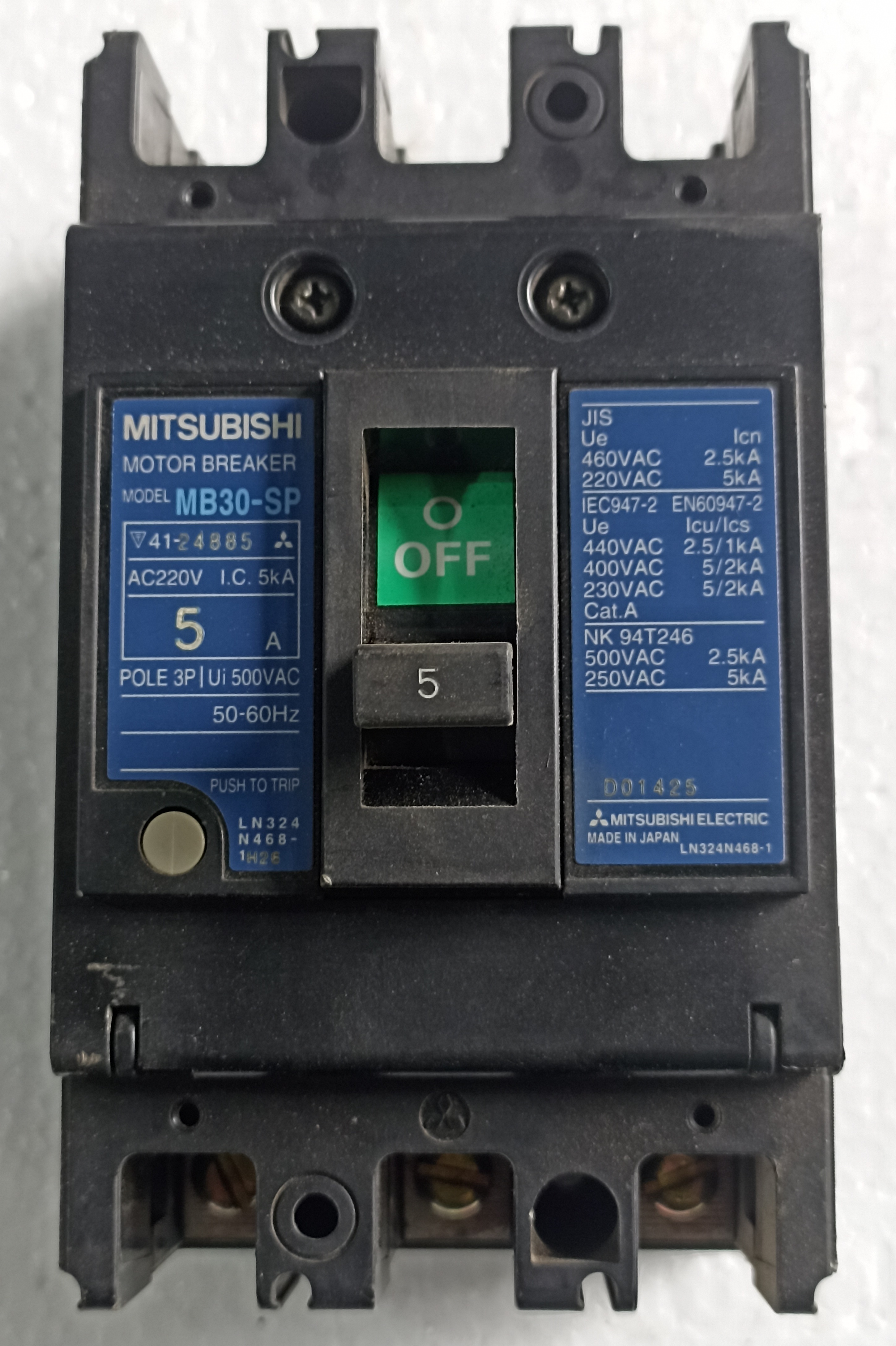

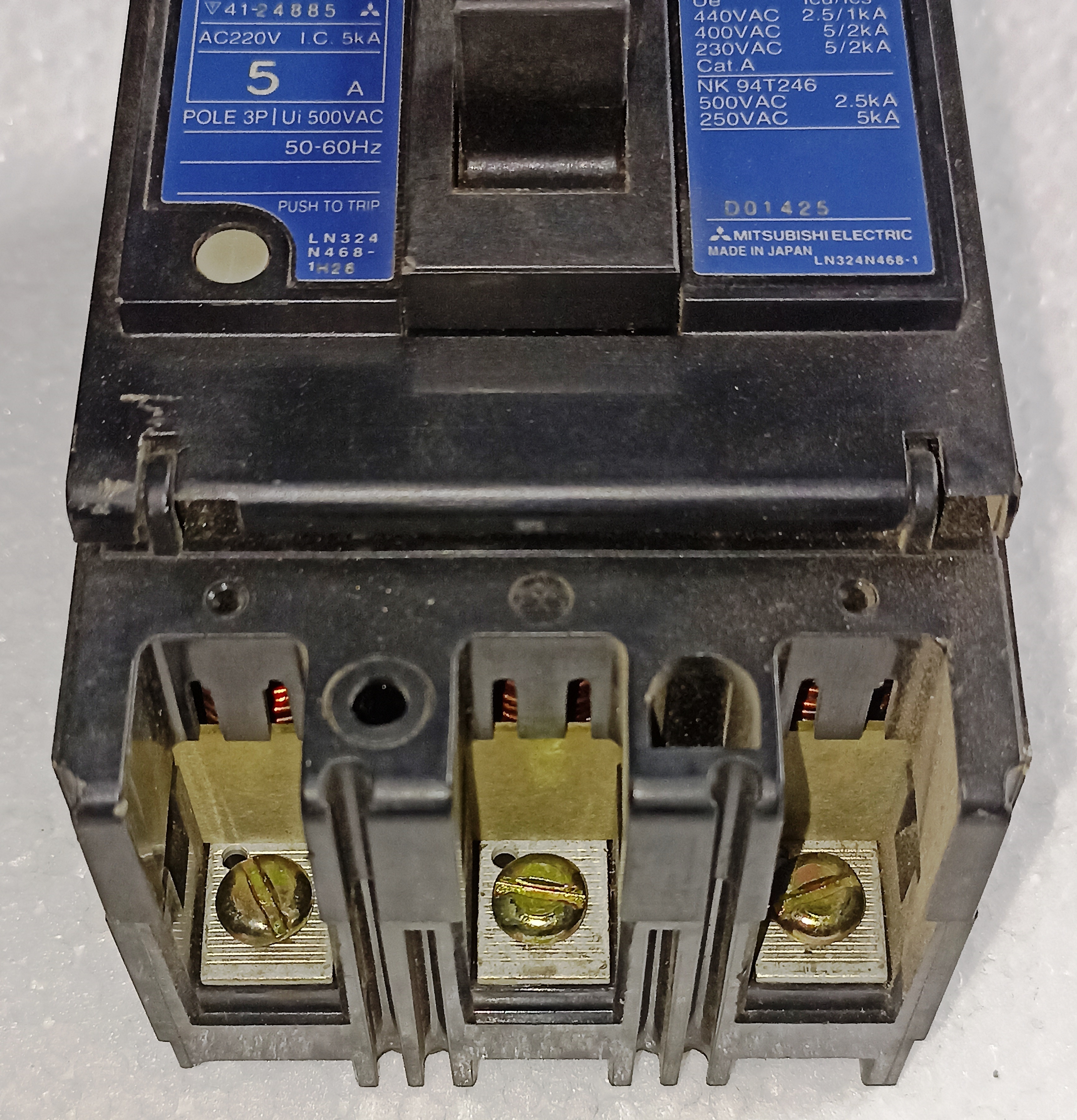

MITSUBISHI (MB30-SP) 5A 3P MCCB

Name: MITSUBISHI (MB30-SP) 5A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 10 Pieces

MITSUBISHI (MB30-SP) 5A 3P MCCB Specification

Rated Short Circuit Breaking Current
18kA

Breaking Capacity
18kA at 415V AC

Mechanical Life
10,000 operations

Phase
Three Phase

Rated Short Circuit Making Current
18kA

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
DIN Rail or Panel Mounting

Function
Circuit Protection (Overload & Short Circuit)

Poles Number
3P

Rated Voltage
415V AC

Rated Current
5A

Rated Frequency
50/60Hz

Curves
C Type

Temperature Protection
Thermal & Magnetic Trip

Weight
Approx. 530g

Color
Grey/Black

Model
MB30-SP

Terminal Type
Screw Terminal

Application
Industrial, Commercial Electrical Panels

Auxiliary Contacts
Optional

Operating Temperature Range
-5C to +40C

Standards Compliance
IEC 60947-2

IP Rating
IP20

Trip Unit Type
Fixed Thermal-Magnetic

MITSUBISHI (MB30-SP) 5A 3P MCCB Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About MITSUBISHI (MB30-SP) 5A 3P MCCB

MITSUBISHI (MB30-SP) 5A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- MITSUBISHI

Ampere :- 5A

Pole :- 3P

Model :- MB30-SP

Condition :- Refurbished

Breaking Capacity :- 5 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Reliable Circuit Protection

The MITSUBISHI MB30-SP MCCB safeguards electrical systems against overload and short circuit conditions using advanced fixed thermal-magnetic trip technology. With a 5A current rating and 18kA breaking capacity, it is ideal for demanding applications in industrial and commercial sectors, ensuring operational stability and equipment safety.

Flexible Installation Options

Engineered for convenience, the MB30-SP supports both DIN rail and panel mounting, adapting effortlessly to new or existing electrical panel setups. Screw terminals enable secure and straightforward wiring, while optional auxiliary contacts provide additional functionality based on user needs.

Designed for Performance and Compliance

Adhering to IEC 60947-2 standards and rated for operation at 415V AC in three-phase systems, this MCCB demonstrates superior mechanical endurance with up to 10,000 switching cycles. The IP20 protection rating ensures safety against accidental contact, and its robust design performs reliably across a wide temperature range.

FAQ's of MITSUBISHI (MB30-SP) 5A 3P MCCB:

Q: How is the MITSUBISHI MB30-SP 5A 3P MCCB installed in an electrical panel?

A: The MB30-SP can be installed using either DIN rail mounting or direct panel mounting, allowing for flexibility in various electrical panel configurations. Its screw terminal connections facilitate secure and quick wiring during installation.

Q: What types of applications is the MB30-SP suitable for?

A: This MCCB is designed for both industrial and commercial electrical panels, where protection against circuit overload and short circuit conditions is critical. Its 5A, 3-pole capacity makes it suitable for managing electrical distribution in three-phase power systems.

Q: When should the auxiliary contacts be used with the MB30-SP?

A: Auxiliary contacts are optional and can be utilized when additional signaling or remote switching is required, such as for status monitoring, alarms, or integration with control systems in advanced applications.

Q: Where does the MB30-SP comply in terms of safety standards?

A: The MB30-SP adheres to IEC 60947-2 standards, ensuring it meets international requirements for circuit breaker safety and performance. This compliance is crucial for installations in regulated industrial or commercial environments.

Q: How does the MB30-SP provide circuit protection?

A: It uses a fixed thermal-magnetic trip unit that detects both overload and short circuit events. The thermal element responds to sustained overcurrents, while the magnetic component reacts to sudden high-current faults, disconnecting the circuit swiftly to prevent equipment damage.

Q: What is the process for resetting the breaker after a trip?

A: After addressing the cause of the trip, simply switch the breaker handle to the 'OFF' position and then back to 'ON' to restore functionality. Ensure all faults are rectified to prevent repetitive tripping.

Q: What benefits does the IP20 rating offer for this MCCB?

A: An IP20 rating ensures protection against finger contact and similar objects greater than 12.5mm. While it does not guard against water, it is suitable for indoor environments, reducing the risk of accidental electrical contact and enhancing user safety.
