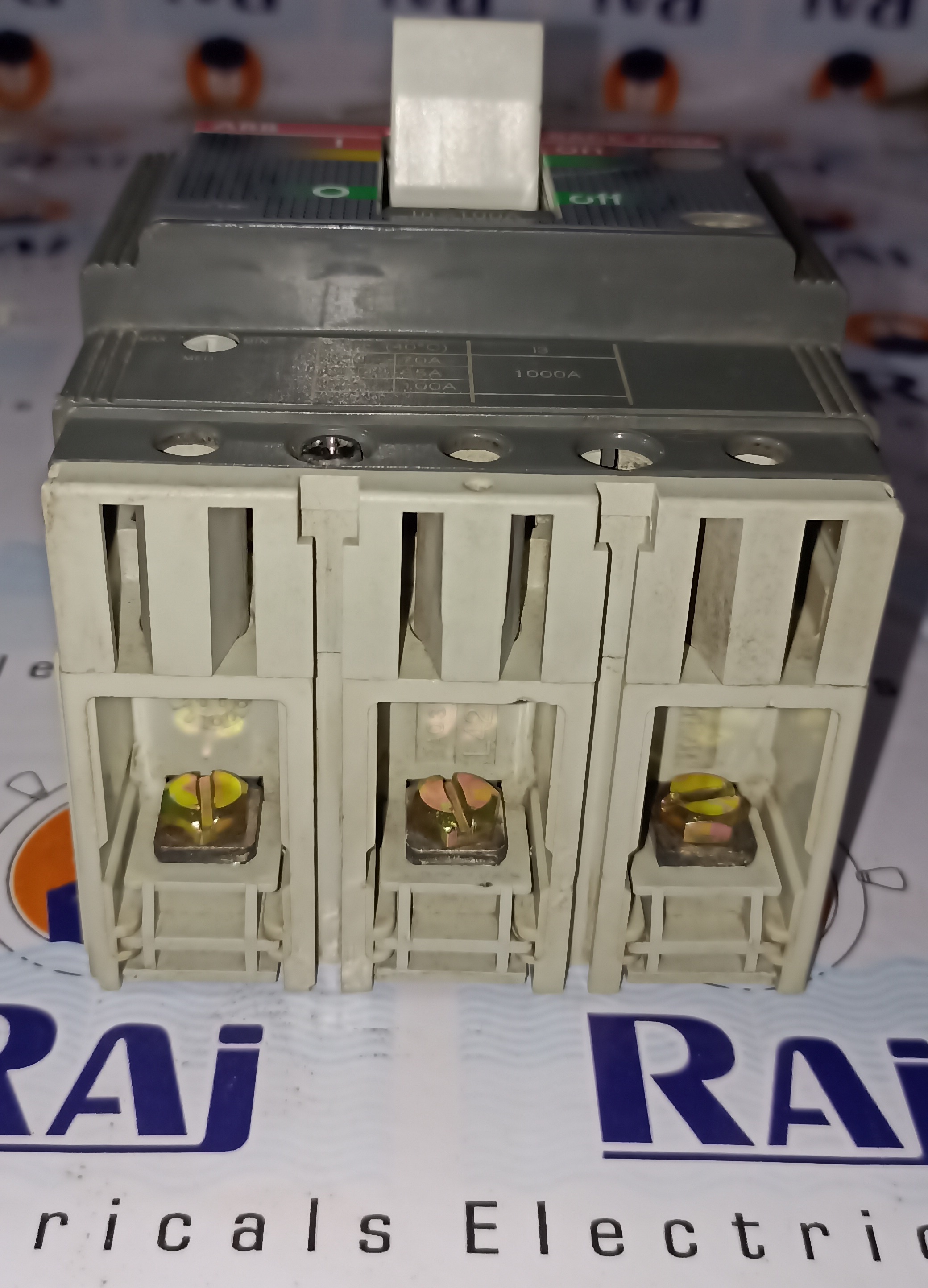

ABB SACE TMAX 100A 3P MCCB

Name: ABB SACE TMAX 100A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 10 Pieces

ABB SACE TMAX 100A 3P MCCB Specification

Phase
Three Phase

Rated Short Circuit Making Current
72 kA

Mechanical Life
10,000 operations

Rated Short Circuit Breaking Current
36 kA

Breaking Capacity
36 kA

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounted

Function
Circuit Protection

Poles Number
3P

Rated Voltage
415V AC

Rated Current
100A

Rated Frequency
50/60 Hz

Curves
Type C

Temperature Protection
Yes (Thermal-Magnetic)

Weight
Approx. 2.1 kg

Color
Black & Grey

Utilization Category
AC-22A

Series
SACE Tmax

Service Condition
Indoor

Protection Class
IP20

Auxiliary Contacts
Available (optional)

Operating Temperature Range
-25C to +70C

Terminal Type
Screw Terminals

Frame Size
T1

Mounting Position
Vertical/Horizontal

Trip Unit Type
Thermal Magnetic

Operation Mode
Manual

Rated Impulse Withstand Voltage (Uimp)
6 kV

ABB SACE TMAX 100A 3P MCCB Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ABB SACE TMAX 100A 3P MCCB

ABB SACE TMAX 100A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- ABB

Ampere :- 100A

Pole :- 3P

Model :- SACE TMAX

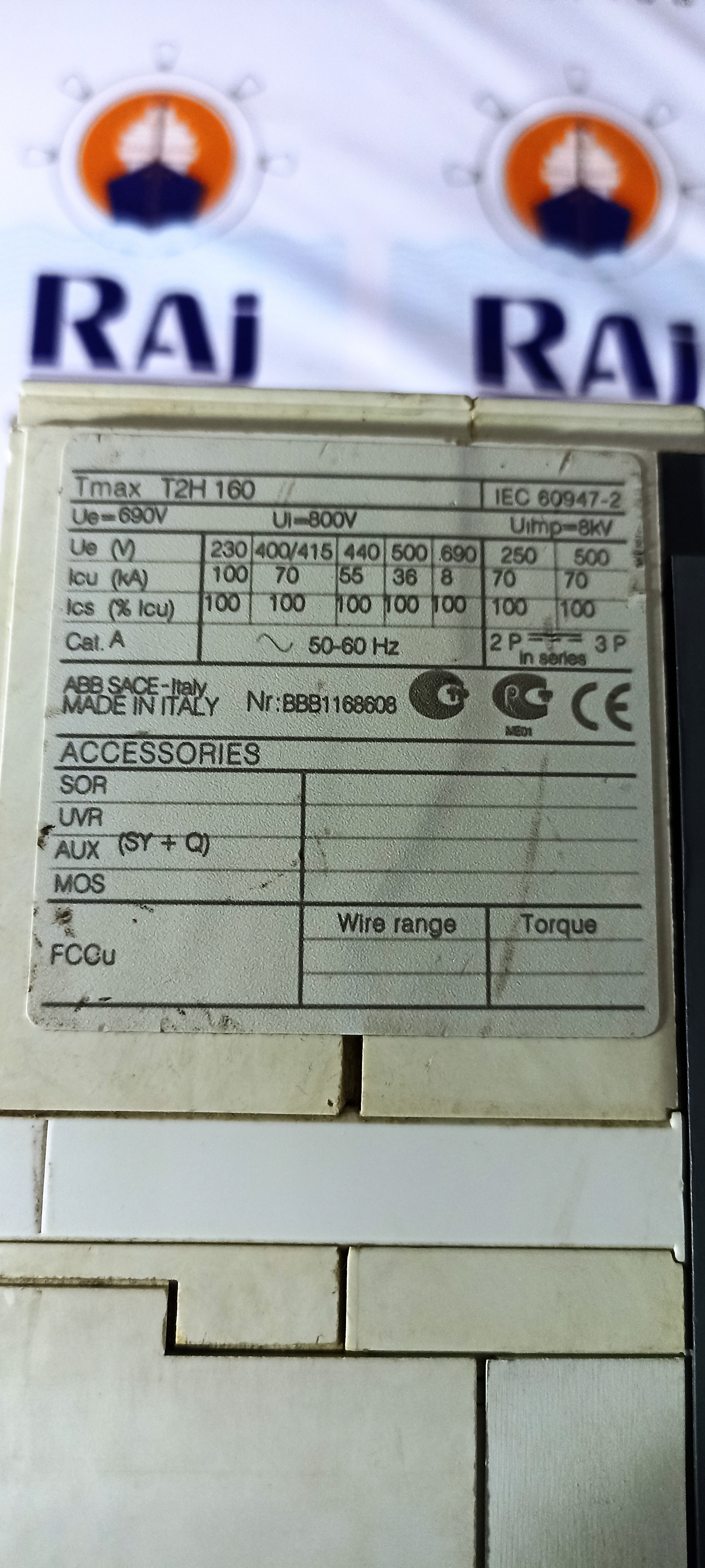

Model Number :- Tmax T2H 160

Condition :- Refurbished

Breaking Capacity :- 55 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Versatile Protection for Industrial and Commercial Power Systems

Benefit from robust overcurrent and short-circuit defense with the ABB SACE Tmax T1 MCCB, ideal for three-phase installations in diverse applications. Its durable construction ensures consistent performance even in demanding environments, with a high breaking capacity and reliable manual operation to safeguard equipment and infrastructure.

Reliable Performance in Extreme Conditions

With an impressive operating temperature range from -25C up to +70C, the SACE Tmax T1 MCCB ensures stable operation in both cold storage and heat-intensive facilities. Its IP20 protection and versatile mounting orientation further enhance its adaptability for a wide variety of indoor installations.

FAQ's of ABB SACE TMAX 100A 3P MCCB:

Q: How does the thermal-magnetic trip unit enhance circuit protection in the ABB SACE Tmax T1 MCCB?

A: The thermal-magnetic trip unit provides two types of protection-thermal for overloads and magnetic for short circuits. This dual mechanism ensures precise response to varying electrical faults, helping to prevent equipment damage and maintain system reliability.

Q: What is the recommended process for mounting the ABB SACE Tmax T1 MCCB?

A: The SACE Tmax T1 MCCB is designed for flexible installation; it can be mounted either vertically or horizontally on panel boards using standard screw terminals, making it adaptable to different switchgear arrangements in commercial or industrial settings.

Q: When should auxiliary contacts be considered for this MCCB?

A: Auxiliary contacts are optional and should be installed when remote indication or interlocking is needed. They enhance monitoring and allow for advanced control functions in automated systems or integration with building management systems.

Q: Where is the ideal location for installing this MCCB?

A: This MCCB is intended for indoor service conditions and should be panel-mounted in a suitable enclosure, providing optimal protection and accessibility within industrial plants, commercial buildings, or manufacturing units.

Q: What are the usage benefits of choosing the SACE Tmax T1 MCCB for three-phase systems?

A: Key benefits include high breaking and making capacities (36 kA and 72 kA), dependable manual operation, support for 415V AC three-phase power, and robust mechanical life (10,000 operations), ensuring maximum safety and long-lasting performance in high-demand applications.

Q: How does the IP20 protection class contribute to the MCCB's usability?

A: IP20 ensures the device is protected from solid foreign objects greater than 12.5 mm, such as fingers, making it safer to handle during installation and maintenance in indoor environments.
