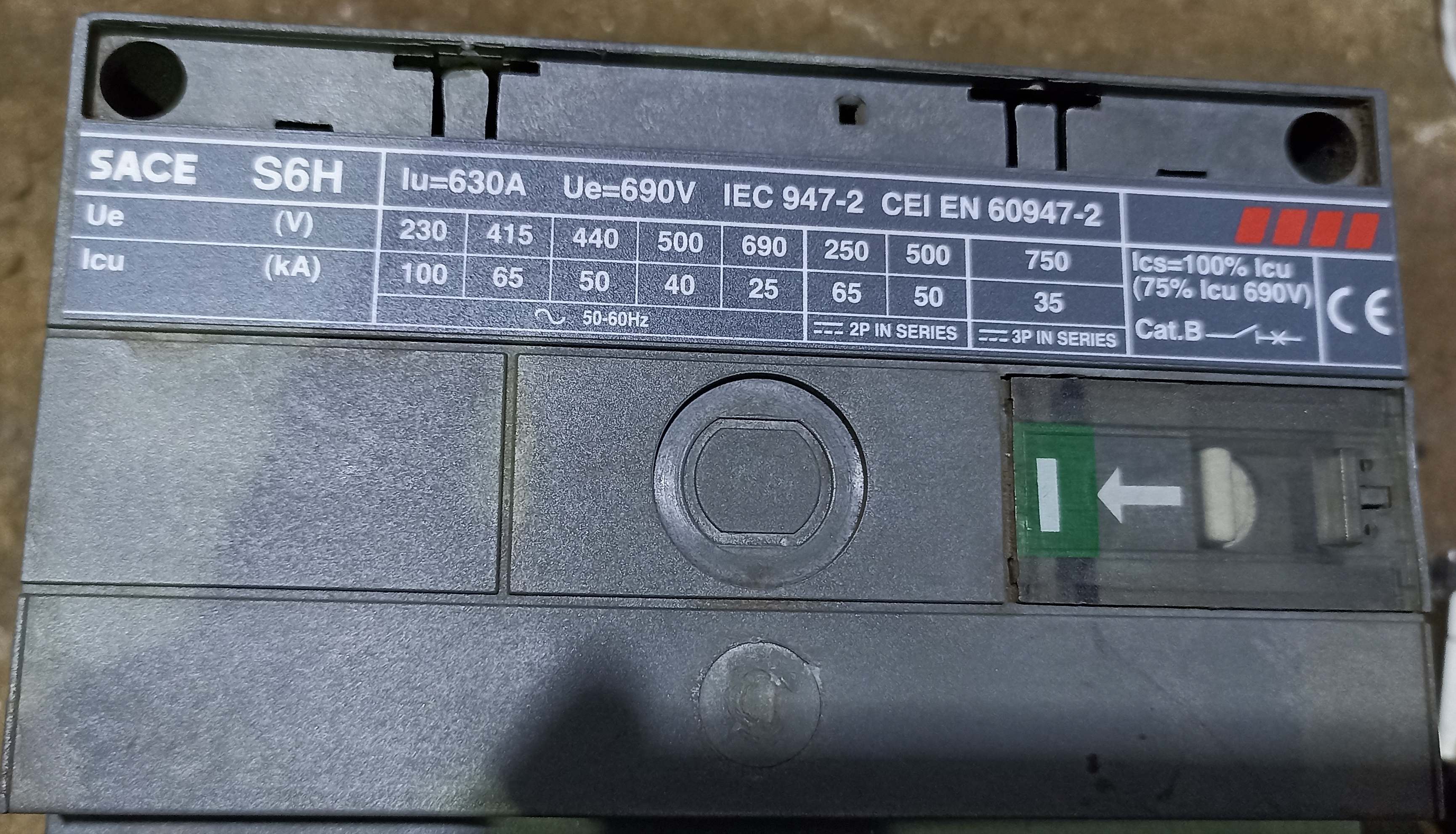

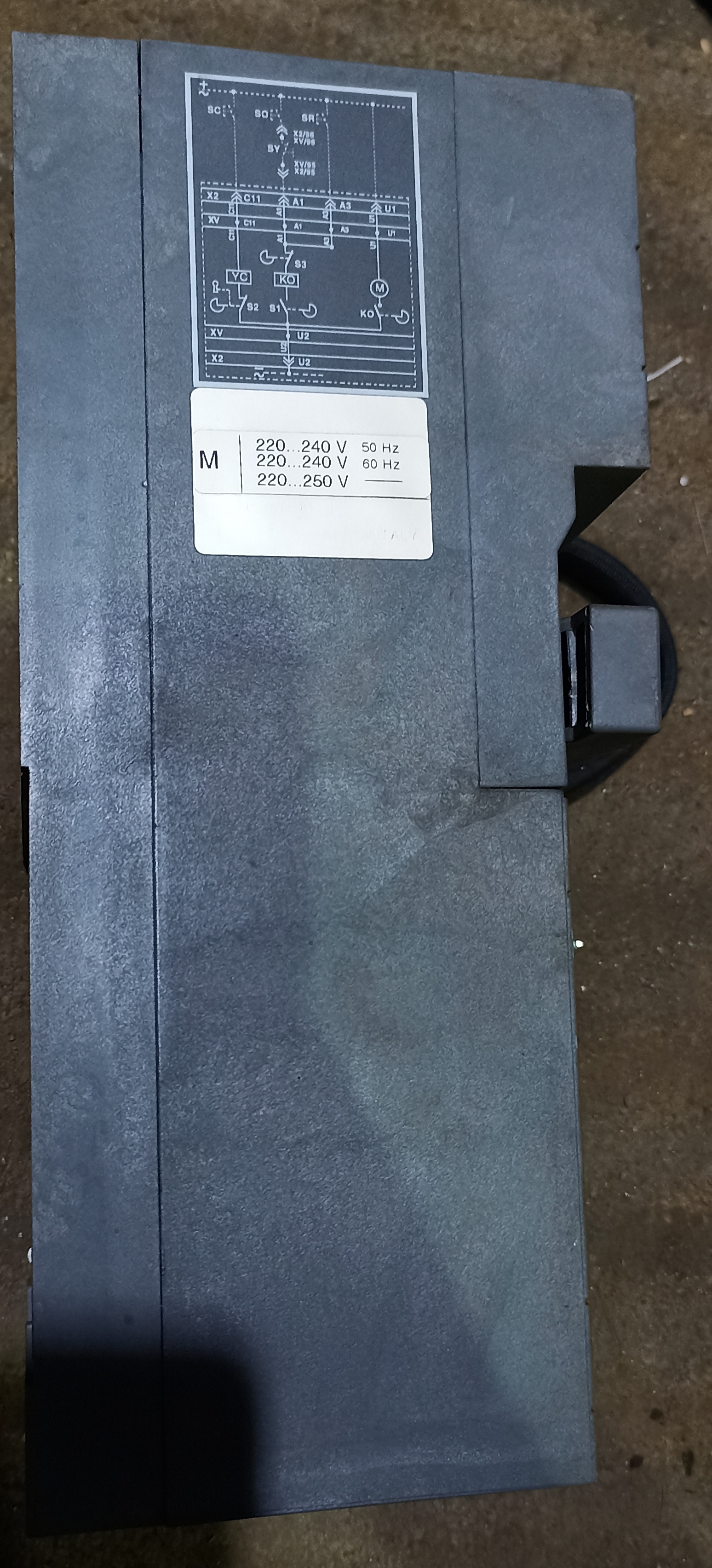

ABB (SACE S6H) 630A 3P MCCB

Name: ABB (SACE S6H) 630A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Piece

ABB (SACE S6H) 630A 3P MCCB Specification

Breaking Capacity
36 kA (Icu at 415V AC)

Mechanical Life
10,000 cycles

Rated Short Circuit Breaking Current
36 kA

Phase
Three Phase

Rated Short Circuit Making Current
72 kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Fixed, Plug-in, Withdrawable

Function
Protection against overload and short circuit

Poles Number
3P

Rated Voltage
690 V AC

Rated Current
630A

Rated Frequency
50/60 Hz

Curves
Standard trip curve

Temperature Protection
Thermal-magnetic trip unit

Weight
Approx. 10 kg

Color
Grey

Service Breaking Capacity (Ics)
25 kA at 415V AC

Standards Compliance
IEC 60947-2

Protection Degree
IP20

Utilization Category
A

Adjustment Range of Magnetic Release
8x - 15x In

Operating Temperature Range
-25C to +70C

Rated Impulse Withstand Voltage (Uimp)
8 kV

Terminal Type
Front terminal

Accessories
Shunt trip, Under voltage trip, Auxiliary contacts (optional)

Adjustment Range of Thermal Release
504-630A

Trip Indication
Yes (trip window)

Mounting Type
Panel mounting

ABB (SACE S6H) 630A 3P MCCB Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ABB (SACE S6H) 630A 3P MCCB

Raj Electricals Offering ABB (SACE S6H) 630A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- ABB

Ampere :- 630A

Pole :- 3P

Model :- SACE S6H

Condition :- Refurbished

Breaking Capacity :- 50 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Robust Performance in Demanding Environments

The ABB SACE S6H 630A 3P MCCB operates reliably within extreme temperature ranges from -25C to +70C, making it ideal for harsh Indian conditions. Its protection degree of IP20 ensures enhanced safety in electrical panels. This MCCB supports 3-phase systems, with a rated current of 630A, and provides consistent performance across standard industrial frequencies of 50/60 Hz.

Flexible Installation and Compatibility

With panel mounting, fixed, plug-in, and withdrawable installation options, the SACE S6H adapts seamlessly to a variety of switchboard designs. The front terminal layout enables straightforward wiring and maintenance. It is compatible with key accessories such as shunt trip, undervoltage trip, and auxiliary contacts, enhancing its monitoring and control features.

Comprehensive Protection and Reliability

Built to IEC 60947-2 standards, the MCCB integrates a thermal-magnetic trip unit to protect against both overload and short circuit events. It features an adjustable thermal release (504-630A) and a magnetic release settable from 8x to 15x In. Its high service and ultimate breaking capacities (25/36 kA at 415V AC) guarantee security for critical applications.
