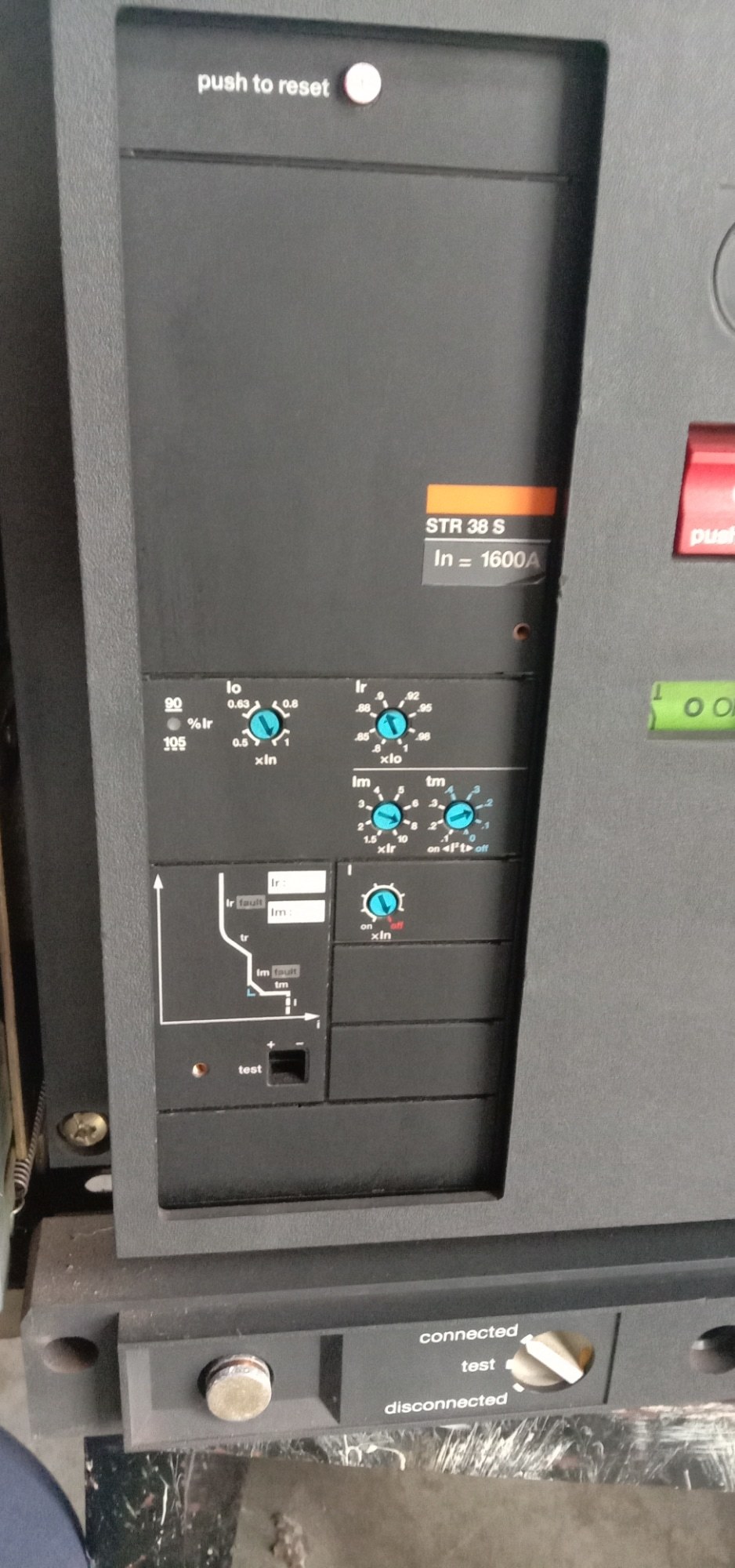

MERLIN GERIN 1600A AIR CIRCUIT BREAKER

Get a Price/Quote

MOQ : 100 Pieces

MERLIN GERIN 1600A AIR CIRCUIT BREAKER Specification

Rated Short Circuit Breaking Current
65 kA

Mechanical Life
10,000 operations

Breaking Capacity
65 kA at 415V

Rated Short Circuit Making Current
143 kA peak

Phase
Three Phase

Product Type
Air Circuit Breaker

Installation Options
Fixed or Drawout

Function
Protection against overloads and short circuits

Poles Number
3P or 4P

Rated Voltage
690V AC

Rated Current
1600A

Rated Frequency
50/60 Hz

Curves
L, S, I, G (Long time, Short time, Instantaneous, Ground fault)

Temperature Protection
Available

Weight
Approx. 75 kg

Color
Grey

Trip Unit Type
Electronic / Micrologic

Rated Insulation Voltage
1000V

Utilization Category
Category B

Control Voltage
110/220V AC or DC

Protection Degree
IP30

Auxiliary Contacts
Available

Mounting
Vertical or Horizontal

Connection Type
Front/Rear

Operating Temperature Range
-5°C to +40°C

MERLIN GERIN 1600A AIR CIRCUIT BREAKER Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
100 Pieces Per Day

Delivery Time
2 Days

Sample Available
Yes

Main Domestic Market
All India

About MERLIN GERIN 1600A AIR CIRCUIT BREAKER

Air circuit breaker is acircuit breaker for the purpose of protecting low voltage circuit, mainly for energizing and cutting off high current. It is used as the master of a factory and building, and as a main circuit breaker of a ship, and it is possible to attach various accessories according to the purpose.

Advanced Circuit Protection

The breakers electronic and Micrologic trip units provide comprehensive protection against electrical faults, including overloads, short circuits, and ground faults. With selectable protection curves (L, S, I, G), users can tailor responses to specific installation requirements, enhancing system reliability and safety.

Flexible Installation and Connectivity

Engineered for versatility, the breaker allows both vertical and horizontal mounting. Its adaptable design supports front or rear connections and offers fixed or drawout installation, simplifying integration into a wide range of electrical systems and panels.

Durable and Reliable Operation

Built for longevity, the unit features a mechanical life of up to 10,000 operations and withstands demanding environments, operating within a wide temperature range. Its robust construction and IP30 protection degree ensure consistent performance and safety for critical infrastructure.

FAQs of MERLIN GERIN 1600A AIR CIRCUIT BREAKER:

Q: How does the MERLIN GERIN 1600A Air Circuit Breaker protect electrical systems from faults?

A: This air circuit breaker is equipped with electronic or Micrologic trip units that detect overloads, short circuits, and ground faults, automatically interrupting current flow to prevent equipment damage and enhance overall system safety.

Q: What installation options are available for this circuit breaker?

A: Users can choose between fixed or drawout installations, and the breaker supports both vertical and horizontal mounting. Front and rear connections are offered for ease of panel integration.

Q: When should I select the L, S, I, or G protection curves?

A: Select the L (long time) curve for overload protection, S (short time) for short circuit protection, I (instantaneous) for immediate fault clearance, and G (ground fault) to detect earth leakage. The choice depends on your systems specific protection requirements.

Q: Where can the MERLIN GERIN 1600A Air Circuit Breaker be used?

A: It is suitable for commercial and industrial applications requiring reliable protection for three-phase electrical systems, with rated voltages up to 690V AC and insulation voltage of 1000V.

Q: What are the benefits of auxiliary contacts in this circuit breaker?

A: Auxiliary contacts allow for integration with external monitoring and control systems, enabling status indication and remote operation, thereby enhancing operational efficiency and flexibility.

Q: Is temperature protection available with this breaker and what is the operating range?

A: Yes, temperature protection is included, safeguarding against thermal overloads. The device operates reliably within a temperature range of -5C to +40C.
