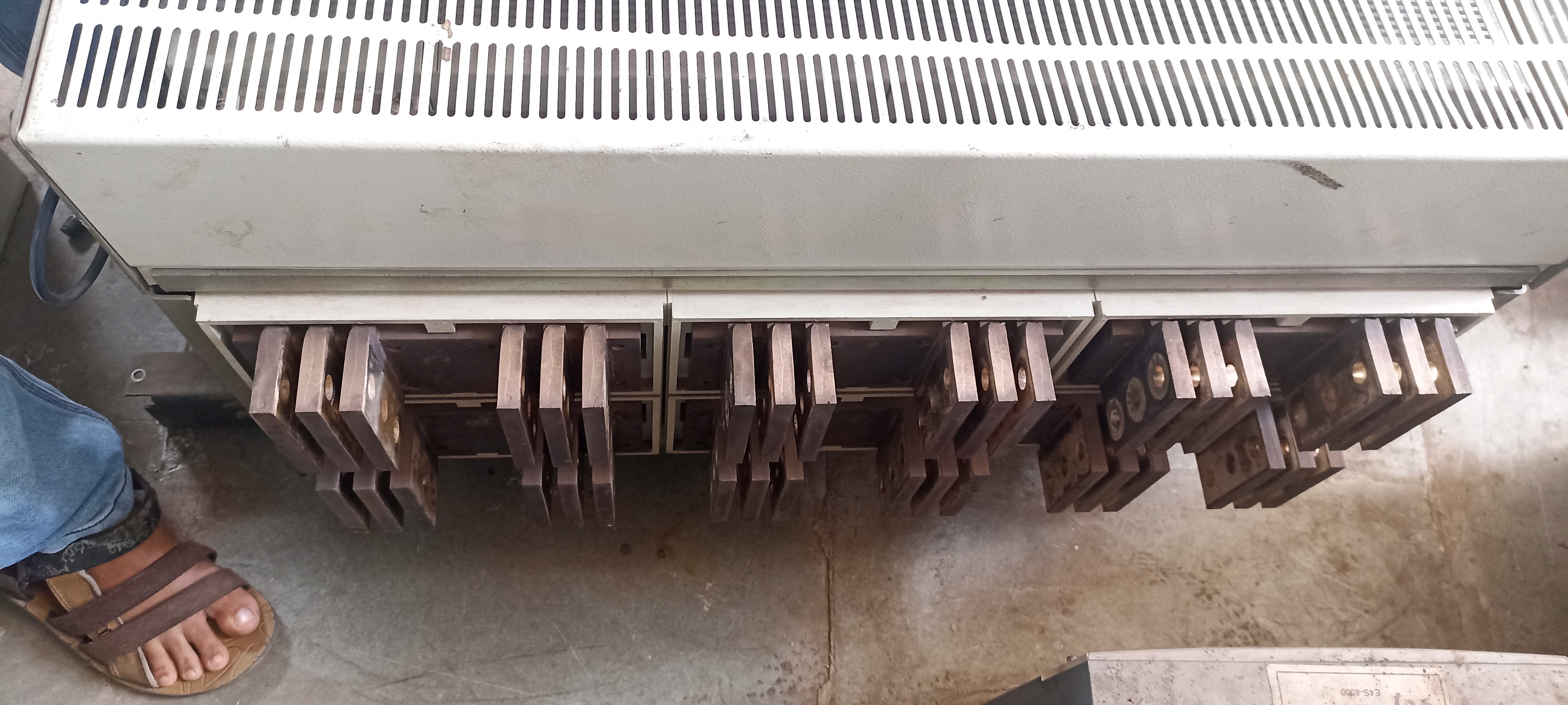

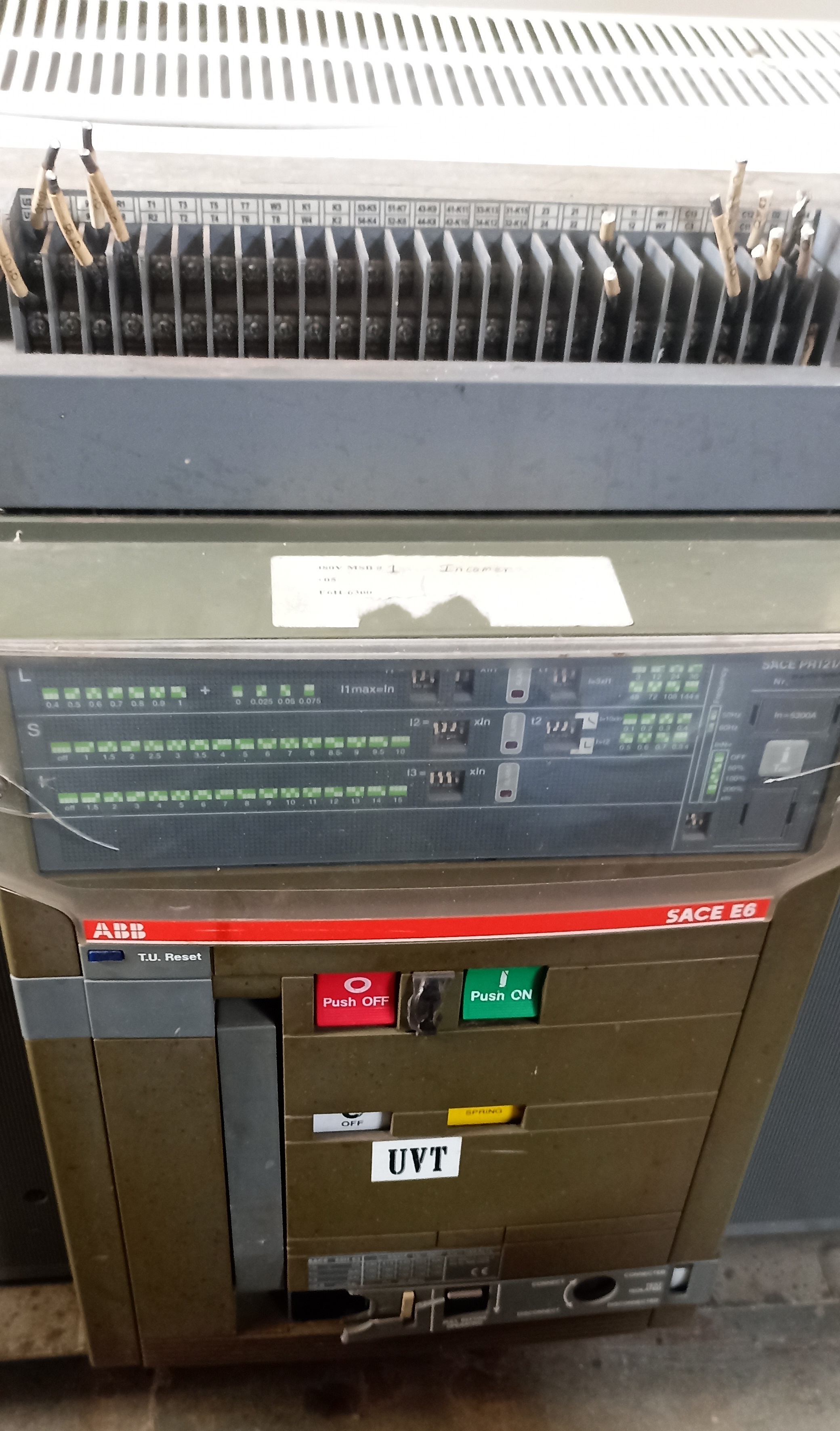

ABB 6300A 3P AIR CIRCUIT BREAKER (ACB)

Get a Price/Quote

MOQ : 1 Number

ABB 6300A 3P AIR CIRCUIT BREAKER (ACB) Specification

Phase
Three Phase

Mechanical Life
Up to 20,000 operations

Rated Short Circuit Breaking Current
Up to 100 kA

Breaking Capacity
85~100 kA (Icu), Model Dependent

Rated Short Circuit Making Current
Up to 220 kA (peak)

Product Type
Air Circuit Breaker (ACB)

Installation Options
Fixed or Draw-out

Function
Overcurrent, Short Circuit, and Earth Fault Protection

Poles Number
3 Poles

Rated Voltage
690V AC

Rated Current
6300A

Rated Frequency
50/60 Hz

Curves
Type L/S/H (Depending on Model)

Temperature Protection
Integrated Overload and Thermal Protection

Weight
Approx. 100-120 kg

Color
Grey/Black

Series/Model
Emax 2 or Equivalent (For Reference)

Electrical Life
Up to 10,000 operations

Auxiliary Contacts
Available (Configurable)

Protection Degree
IP20/IP30 (as per enclosure)

Trip Type
Electronic / Microprocessor based

Control Supply Voltage
24V / 48V / 110V / 220V AC/DC (as per model)

Indicator
ON/OFF/Trip Position Indication

Remote Operation
Available (Motorized Spring Charging Mechanism)

Operating Voltage Range
AC/DC auxiliary voltage options

Standards Compliance
IEC 60947-2

Mounting Type
Horizontal or Vertical

Interlock Facility
Electrical and Mechanical Interlocks supported

Ambient Operating Temperature
-5°C to +55°C

ABB 6300A 3P AIR CIRCUIT BREAKER (ACB) Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About ABB 6300A 3P AIR CIRCUIT BREAKER (ACB)

Raj Electricals Offering ABB 6300A 3P ACB (Air Circuit Breaker) At Bhavnagar, Gujarat, India

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Air Circuit Breaker (ACB)

Make :- ABB

Ampere :- 6300A

Number Of Poles :- 3P

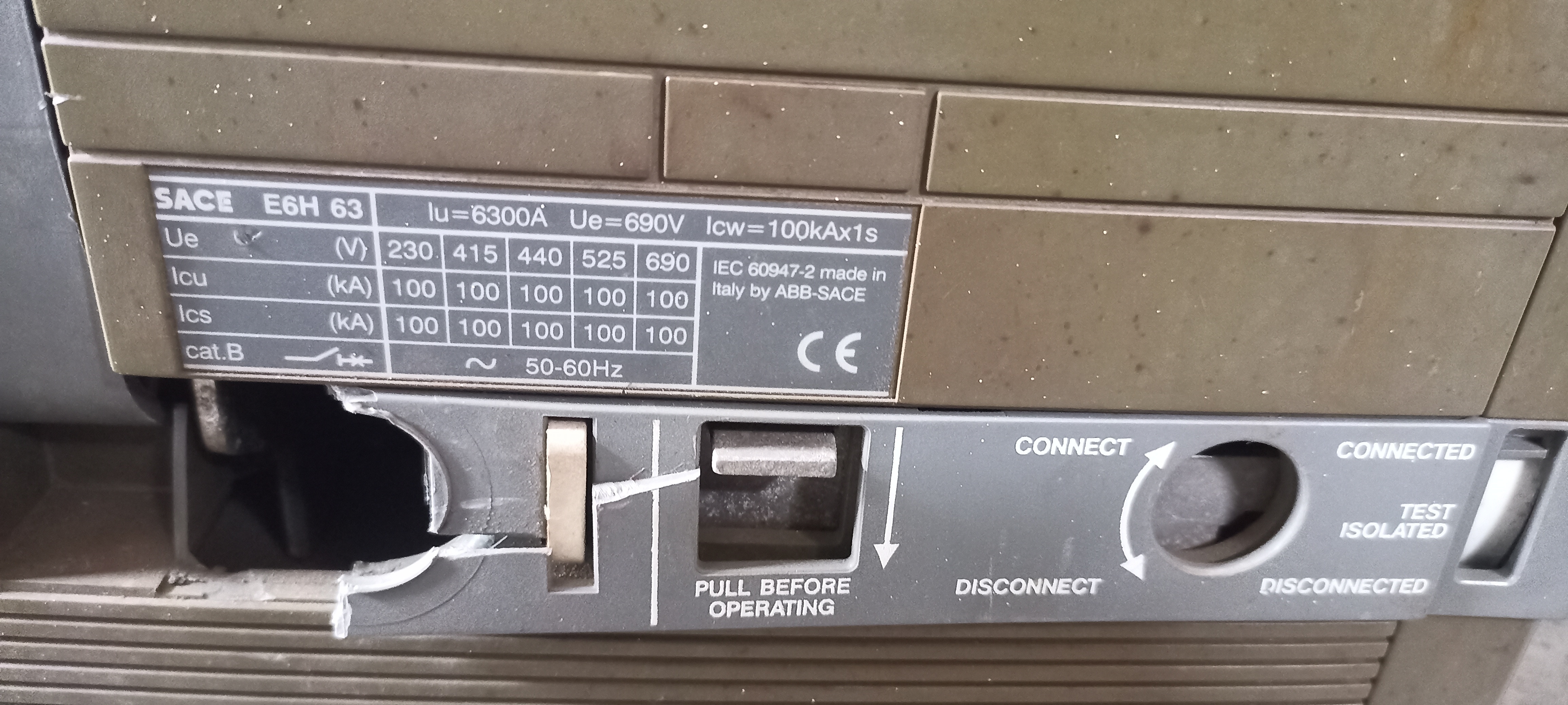

Model Number :- SACE E6H 63

Ue :- 690V

Icw :- 100 kA

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Versatile Protection and Safety

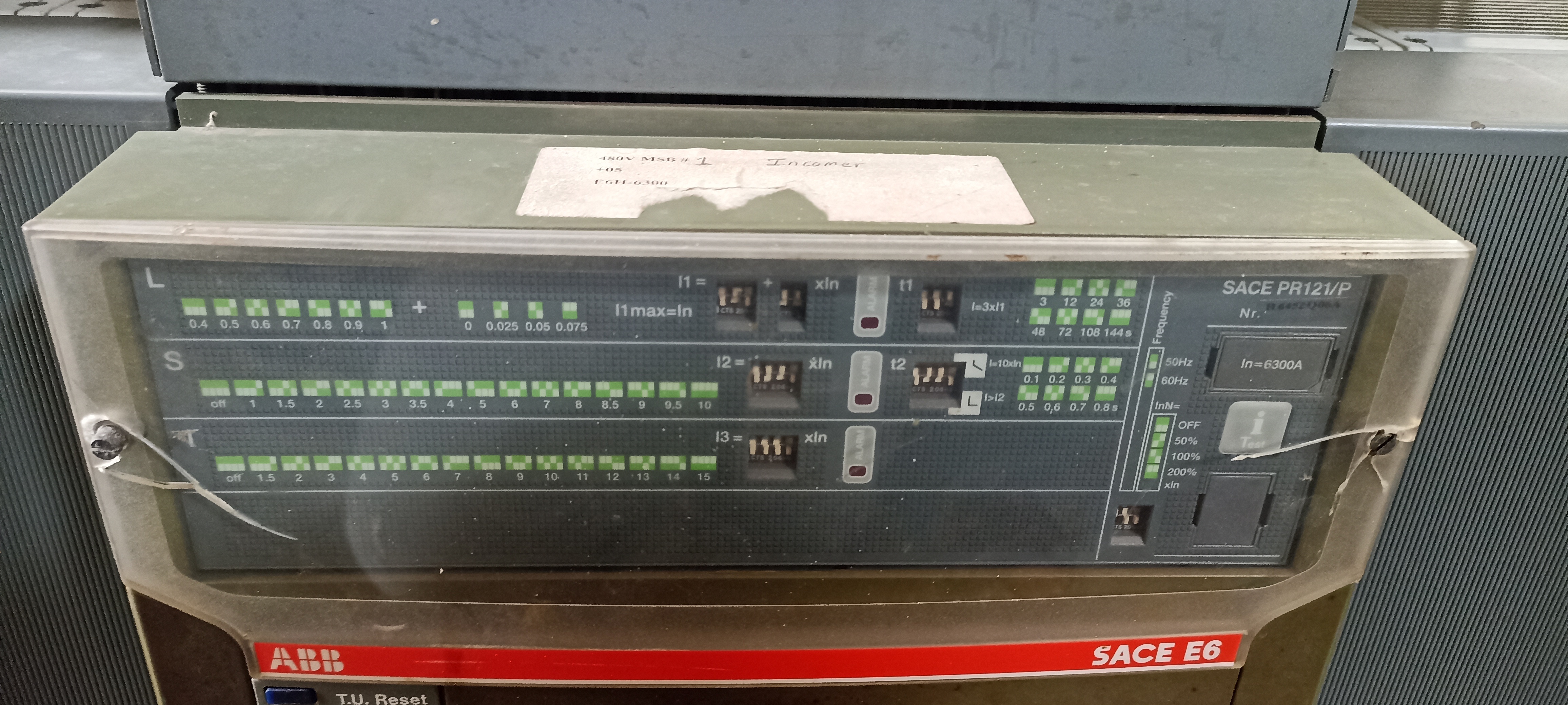

Equipped with integrated overload, thermal, and earth fault protection, the ABB 6300A ACB safeguards your electrical systems from a wide spectrum of hazards. Its electronic/microprocessor trip mechanisms ensure rapid and accurate fault response, enhancing overall operational security for critical infrastructure.

Flexible Installation and Operation

Installers benefit from the circuit breaker's adaptable mounting options-horizontal or vertical-as well as fixed or draw-out configurations. The model supports AC/DC auxiliary voltages and a variety of control supply voltages, making it easy to integrate into existing electrical systems or new projects.

Advanced Monitoring and Control

With configurable auxiliary contacts, ON/OFF/Trip position indicators, and remote operation (motorized spring charging), the ABB 6300A ACB provides comprehensive system monitoring. Electrical and mechanical interlocks deliver enhanced safety, while the IP20/IP30 protection degree ensures safe operation in diverse environments.

FAQ's of ABB 6300A 3P AIR CIRCUIT BREAKER (ACB):

Q: How does the ABB 6300A 3P Air Circuit Breaker enhance system safety?

A: The ACB offers high-level protection against overcurrent, short circuits, and earth faults using electronic/microprocessor-based trip units, ensuring immediate response to electrical faults and minimizing equipment damage.

Q: What installation options are available for this air circuit breaker?

A: The breaker can be installed in either fixed or draw-out formats, accommodating both horizontal and vertical mounting positions to suit various switchgear designs and layouts.

Q: When is remote operation necessary for the ABB 6300A ACB?

A: Remote operation, supported by a motorized spring charging mechanism, is ideal for settings where breakers must be controlled at a distance for safety or automation, such as substations or critical infrastructure installations.

Q: Where can this ACB be used regarding operational environments?

A: It is suitable for use in industrial, commercial, and utility environments, with operational ambient temperatures ranging from -5C to +55C and protection degrees up to IP30 for secure installation.

Q: What is the typical process for configuring auxiliary contacts on this breaker?

A: Auxiliary contacts are configurable based on application needs, allowing integration with alarms, monitoring systems, and control circuits. Configuration is typically performed during installation by a qualified technician.

Q: What are the benefits of the indicator and interlock facilities?

A: ON/OFF/Trip position indicators enable quick status verification, while electrical and mechanical interlocks prevent unauthorized or unsafe operation, thus ensuring personnel and equipment safety.

Q: What is the electrical and mechanical endurance of the ABB 6300A ACB?

A: This air circuit breaker is engineered for longevity, with an electrical life of up to 10,000 operations and a mechanical life of up to 20,000 operations, supporting reliable long-term usage.
