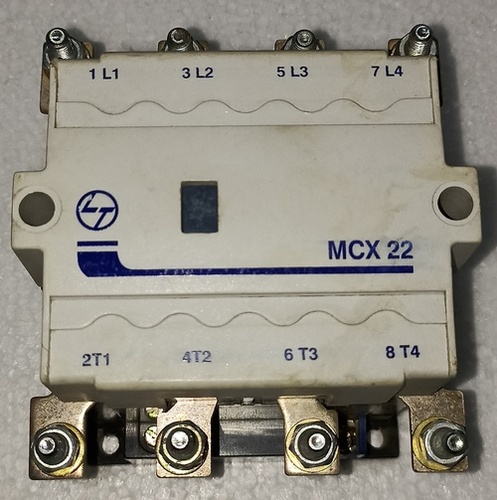

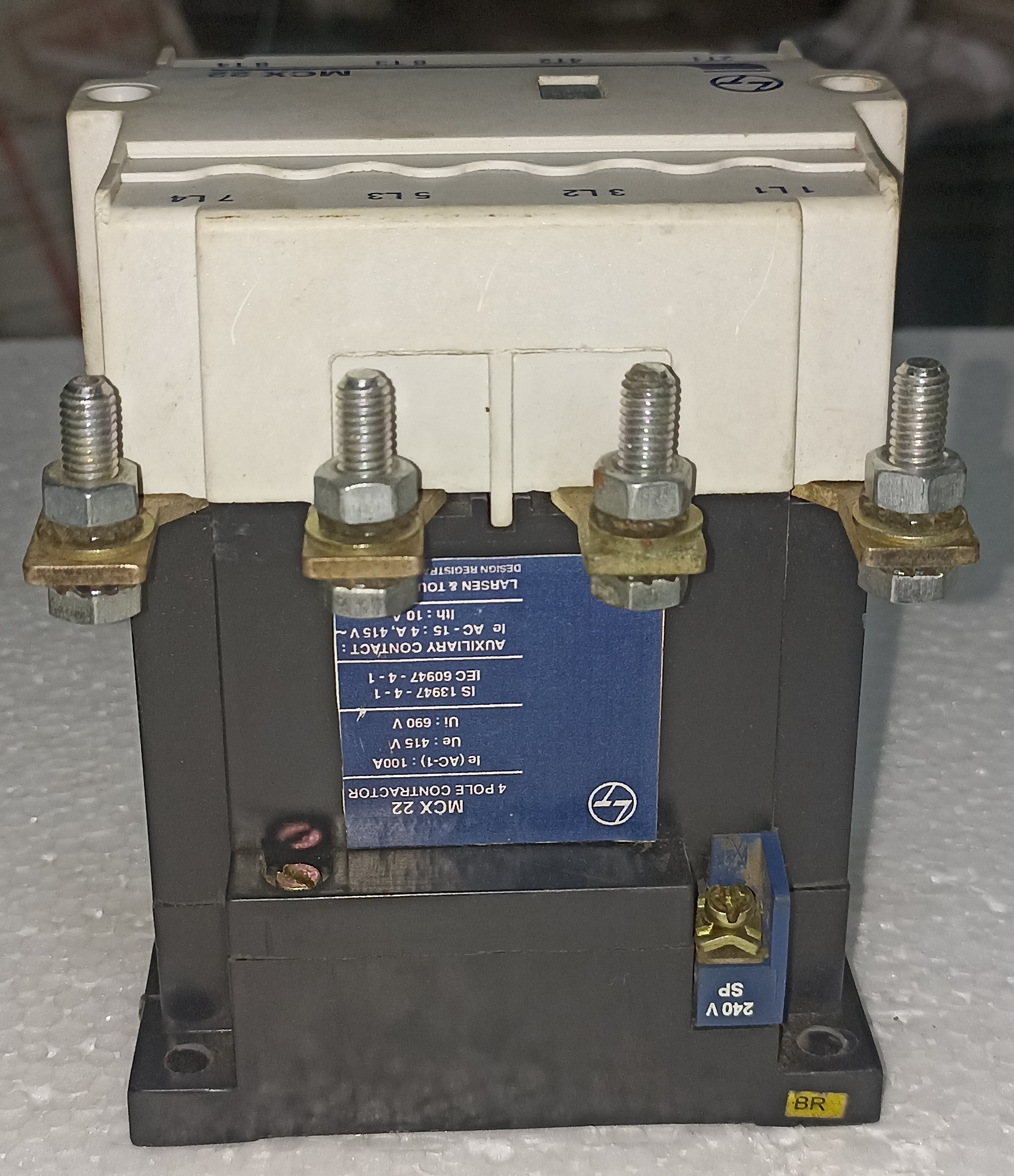

LT MCX-22 4-POLE CONTACTOR

Name: LT MCX-22 4-POLE CONTACTOR
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

LT MCX-22 4-POLE CONTACTOR Specification

Surface Finish
Smooth

IP Rating
IP20

Connector Type
Screw Connector

Feature
DIN Rail Mount, High Electrical Life, Compact Design, Low Noise Operation

Overheating Protection
No (Available with Add-On Accessory)

Shape
Rectangular

Power Factor
>=0.8

Efficiency
High

Insulation Material
Flame Retardant Plastic

Humidity %
95% Maximum

Operating Temperature
-5C to +55C

Mounting Type
DIN Rail / Panel Mounting

Product Type
LT MCX-22 Contactor

Application
Industrial Motor Control, Power Distribution

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
690V AC

Energy Consumption
4.8 VA (Pick-up), 3.4 VA (Holding)

Output Type
NO+NC Contacts

Color
White/Grey

Dimension (L*W*H)
85 mm x 57 mm x 83 mm

Weight
350 g

Phase
Three Phase

Input Voltage
220V AC (Coil Voltage)

Size
Standard

Connection Type
Screw Terminal

No Of Poles
4 Pole

Material
High Grade Plastic, Copper Contacts

Standards Compliance
IEC 60947-4-1

Mechanical Life
10 Million Operations

Electrical Life
1 Million Operations

Conventional Thermal Current (Ith)
32A

Auxiliary Contacts
2 NO + 2 NC (Configurable)

Rated Operational Current (AC-3)
22A at 400V

Maximum Switching Power
11 kW at 400V

Coil Characteristics
Low Power Consumption, High Sensitivity

LT MCX-22 4-POLE CONTACTOR Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About LT MCX-22 4-POLE CONTACTOR

Raj Electricals Offering LT MCX-22 4-POLE CONTACTOR Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

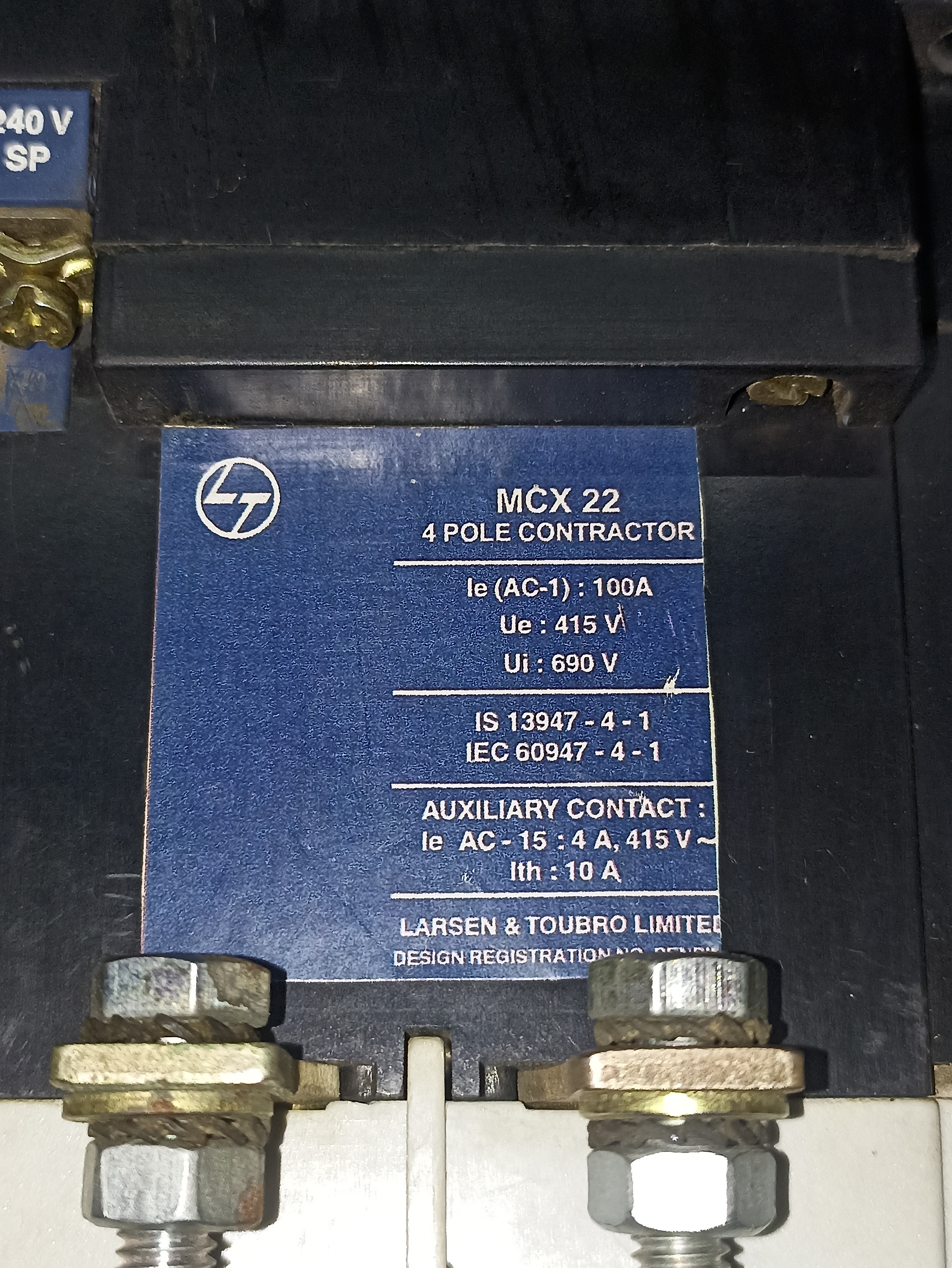

Product Specification :-

Type :- Electric Contactor

Make :- L&T

AC1 :- 100A

Pole :- 4P

Model :- MCX-22

Condition :- Refurbished

Voltage :- 220V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Reliable Industrial Motor Control

The LT MCX-22 contactor ensures high performance in industrial motor control applications with its impressive mechanical (10 million cycles) and electrical (1 million cycles) lifespan. Copper contacts and a flame retardant plastic body provide enhanced durability and operational safety even in demanding conditions, minimizing downtime and maintenance costs.

Energy Efficient with High Switching Capacity

This contactor combines low power coil consumption (4.8 VA pick-up, 3.4 VA holding) with high sensitivity, enabling efficient energy use. Its maximum switching power reaches 11 kW at 400V, making it suitable for substantial three-phase loads without compromising efficiency or safety standards.

Versatile and Easy to Install

The LT MCX-22 offers flexibility with its standard DIN rail or panel mounting options and screw terminals for secure connections. Its compact, rectangular design allows space-saving installation in control panels. Configurable NO/NC auxiliary contacts further increase application versatility for various power distribution needs.

FAQ's of LT MCX-22 4-POLE CONTACTOR:

Q: How can the LT MCX-22 4-pole contactor be mounted in industrial control panels?

A: The LT MCX-22 contactor can be installed using either DIN rail or panel mounting, which offers flexibility according to your panel layout requirements. Its compact dimensions and screw terminal connections make the installation straightforward and secure.

Q: What types of loads and applications is this contactor suitable for?

A: This 4-pole contactor is ideal for industrial motor control, power distribution systems, and applications where reliable switching of three-phase loads up to 11 kW at 400V is required.

Q: When should auxiliary contacts be configured, and what options are available?

A: You can configure the auxiliary contacts (2 NO + 2 NC) as needed for signal feedback, interlocking, or control circuit applications during installation, providing flexibility for diverse operational requirements.

Q: Where does the LT MCX-22 meet compliance and safety standards?

A: The contactor is fully compliant with IEC 60947-4-1 and provides an IP20-rated level of protection, ensuring its suitability in industrial environments where safety and standardization are critical.

Q: What process should be followed for electrical connection and operation?

A: Electrical connection involves securing incoming and outgoing wires to the screw terminals. The coil (rated at 220V AC) should be energized to operate the contactor, allowing safe and reliable switching of the main circuit.

Q: How does the LT MCX-22 benefit my industrial setup?

A: Its high electrical and mechanical life, low power consumption, and configurable auxiliary contacts reduce operational costs, enhance system reliability, and support efficient energy management in rigorous industrial environments.
