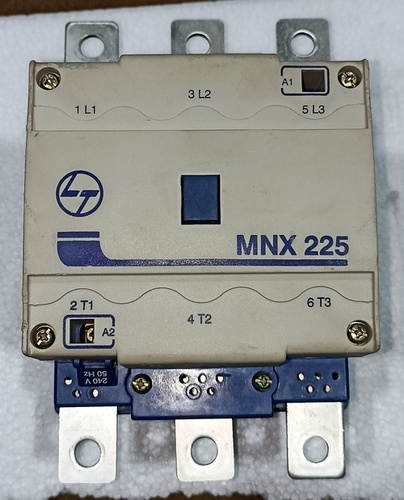

LT MNX-225 CONTACTOR

Name: LT MNX-225 CONTACTOR
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 3 Pieces

LT MNX-225 CONTACTOR Specification

Surface Finish
Matte Finish

Mounting Type
DIN Rail / Panel Mount

IP Rating
IP20

Connector Type
Screw Terminal

Overheating Protection
YES

Operating Temperature
-5C to +55C

Feature
High Durability, Arc Quenching, Low Power Consumption

Humidity %
Up to 95% (non condensing)

Efficiency
Up to 98%

Insulation Material
Thermoplastic

Shape
Rectangular

Power Factor
0.8

Product Type
Power Contactor

Application
Motor Control, Power Circuit Switching

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
690V AC

Energy Consumption
10 VA (Coil Consumption)

Output Type
Normally Open / Normally Closed

Color
Grey

Dimension (L*W*H)
136 x 120 x 113 mm

Weight
3.8 kg

Phase
Three Phase

Size
MNX-225

Input Voltage
230V AC / 415V AC (Coil Voltage Options)

No Of Poles
3 Pole

Material
Flame Retardant Plastic and Copper

Connection Type
Screw/Clamp Terminal

Rated Current
225A AC3

Standards Compliance
IEC 60947-4-1

Auxiliary Contacts
1 NO + 1 NC (optional)

Mechanical Life
3 Million Operations

Electrical Life
1 Million Operations

Torque for Terminal
5.5 Nm

Contact Material
Silver alloy

Control Voltage
110V/230V/415V AC

LT MNX-225 CONTACTOR Trade Information

Minimum Order Quantity
3 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About LT MNX-225 CONTACTOR

Raj Electricals Offering L&T MNX-225 CONTACTOR At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Electric Contactor

Make :- L&T

AC1 :- 300A

Model :- MNX-225

Condition :- Refurbished

Voltage :- 220V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Robust Construction and Long Life

Crafted with flame-retardant plastic, copper, and a matte surface finish, the LT MNX-225 Contactor is built for longevity. It combines a mechanical life of 3 million operations with a high electrical endurance, ensuring dependable performance in industrial settings.

Flexible and Efficient Performance

Engineered for efficiency, this contactor achieves up to 98% operational efficiency and features low coil energy consumption (10 VA). With multi-voltage control options (110V/230V/415V AC) and a reliable IP20-rated enclosure, it adapts readily to varied installation requirements.

FAQ's of LT MNX-225 CONTACTOR:

Q: How is the LT MNX-225 Contactor typically installed and connected?

A: The LT MNX-225 Contactor can be mounted on a DIN rail or panel, providing installation flexibility based on your setup. Connection is facilitated via screw or clamp terminals with a recommended torque of 5.5 Nm, ensuring secure and reliable wiring for stable operation.

Q: What are the main applications for this contactor?

A: This device is designed primarily for motor control and power circuit switching in industrial systems. Its high current rating and robust build make it suitable for protection and automation tasks in manufacturing plants and commercial electrical panels.

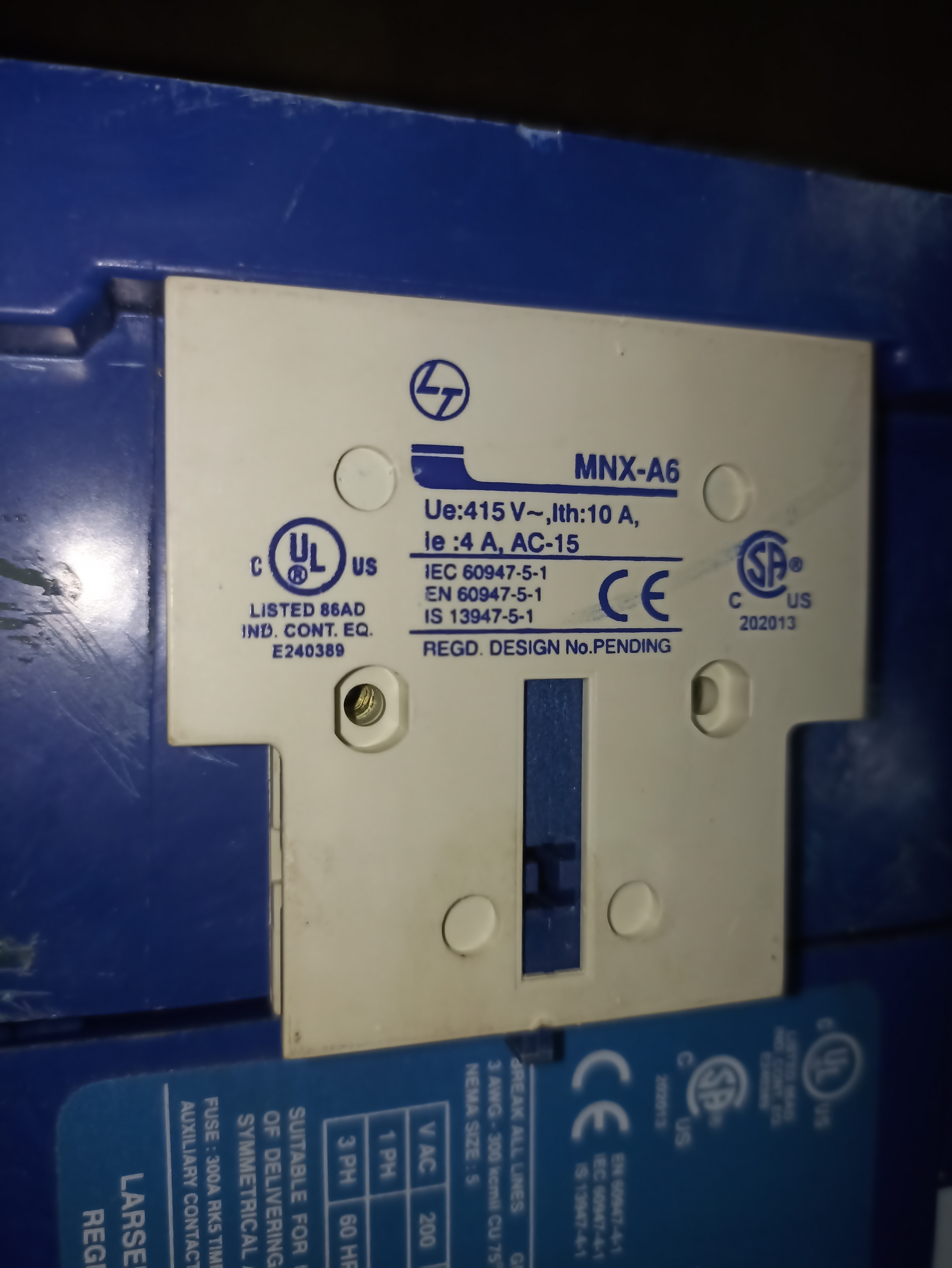

Q: When should auxiliary contacts (1 NO + 1 NC) be used?

A: Auxiliary contacts are useful for signaling, interlocking, and control purposes. They allow external devices like indicators or alarms to be connected, or can be used as feedback signals for automation systems, enhancing control and system safety.

Q: Where can the LT MNX-225 Contactor be used regarding environmental conditions?

A: With an operating temperature range from -5C to +55C and humidity tolerance up to 95% (non-condensing), the MNX-225 is suitable for most industrial environments in India or similar climates, provided it is installed in ventilated, IP20-protected enclosures.

Q: What are the key benefits of using this contactor in control panels?

A: The contactor offers high durability, arc quenching, low power consumption, and reliable overheating protection. It supports multiple voltages and features robust silver alloy contacts, contributing to reduced maintenance and long-term cost efficiency.

Q: How does the LT MNX-225 comply with safety and international standards?

A: This model is compliant with IEC 60947-4-1 standards and features IP20-rated housing, flame-retardant insulation, and built-in overheating protection, ensuring safe and standard-conforming operations.
