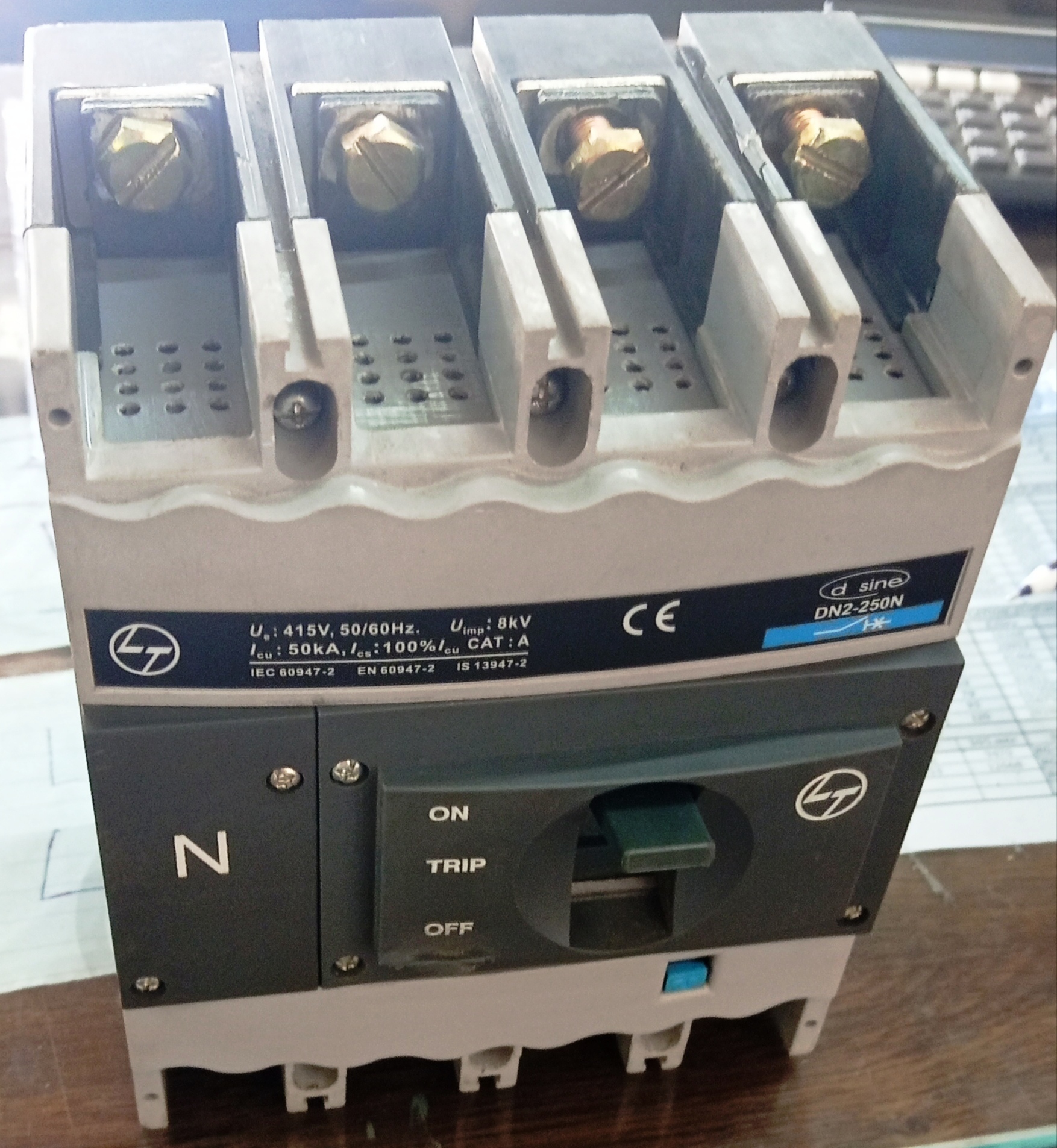

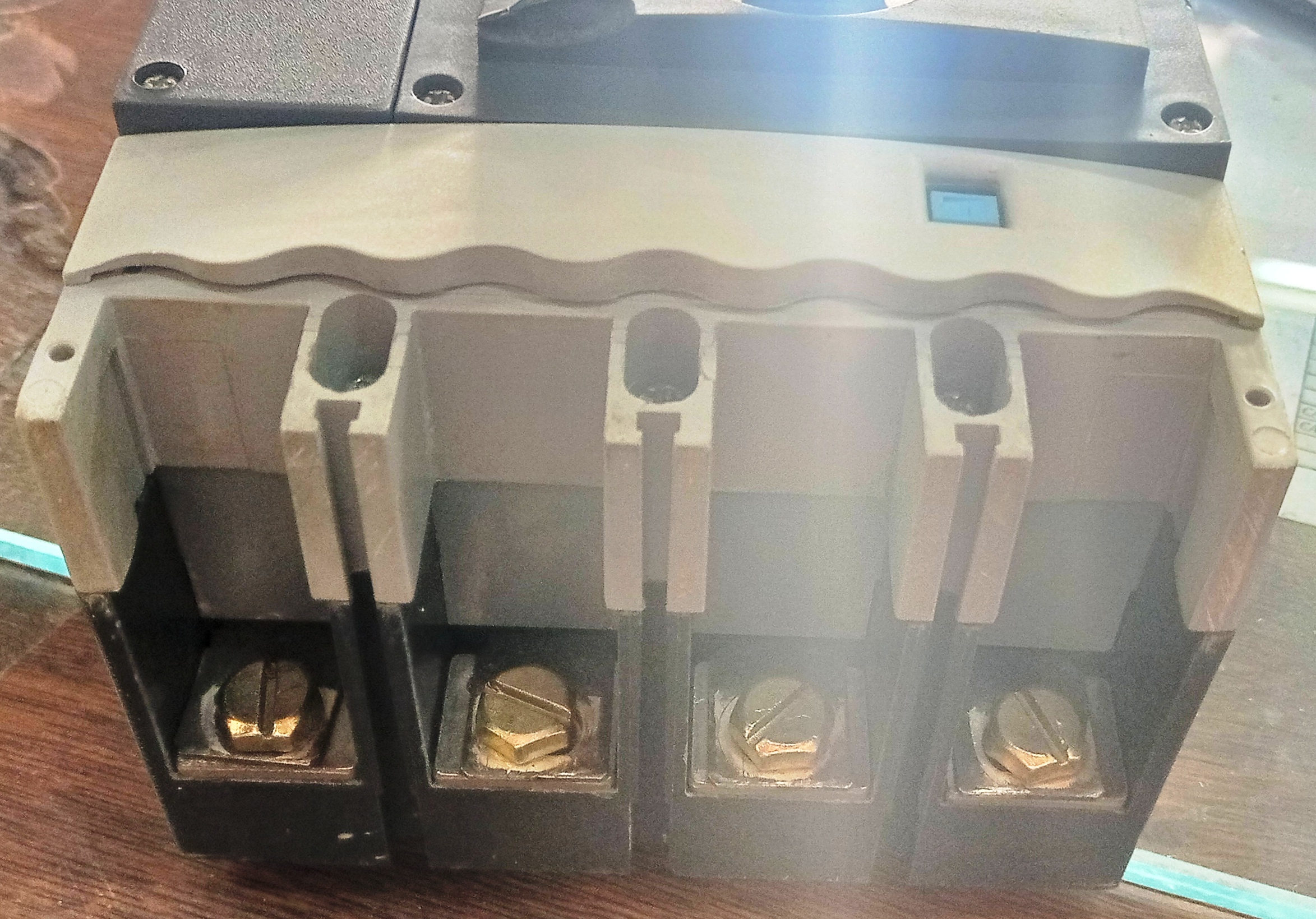

LT 200A 4P MCCB

Get a Price/Quote

MOQ : 1 Number

LT 200A 4P MCCB Specification

Mechanical Life
10,000 Operations

Phase
Three Phase

Rated Short Circuit Making Current
36kA

Rated Short Circuit Breaking Current
25kA

Breaking Capacity
25kA at 415V AC

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting

Function
Protection, Control & Isolation

Poles Number
4 Pole

Rated Voltage
415V AC

Rated Current
200A

Rated Frequency
50/60 Hz

Curves
Thermal Magnetic

Temperature Protection
Yes (Overload & Short Circuit Protection)

Weight
Approx 2.4 kg

Color
Grey

Mounting Orientation
Vertical & Horizontal

Trip Unit Type
Fixed or Adjustable

Accessories Options
Auxiliary Switch, Shunt Release, Under Voltage Release

Terminal Type
Screw Type

Utilization Category
AC-22A

Protection Class
IP20

Operating Temperature
-5°C to +55°C

Dielectric Strength
2.5kV for 1 Minute

LT 200A 4P MCCB Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About LT 200A 4P MCCB

L&T 200A 4P Mccb Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Type :- Moulded Case Circuit Breaker

Brand :- L&T

Ampere :- 200

Number Of Poles :- 4

Model Number :- DN2-250N

Voltage :- 220V AC

Frequency :- 50 Hz

We Supply Industrial Product In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website:www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Versatile Electrical Protection Solution

The LT 200A 4P MCCB provides dependable circuit protection for three-phase systems, featuring advanced thermal magnetic curves for overload and short-circuit safeguarding. Compatible with diverse panel setups, it suits a wide range of industrial and commercial power applications requiring 200A-rated breakers.

Comprehensive Accessory Options

Enhance operational flexibility with optional auxiliary switches, shunt release, and under voltage release. These accessories allow seamless integration with control and signaling circuits, reinforcing monitoring, remote control, and safety interlocking in your electrical setup.

Robust Safety and Construction Standards

Built with a strong screw-type terminal design and a reliable IP20 protection class, the MCCB ensures user safety during operations. It maintains dielectric strength up to 2.5kV for one minute and delivers excellent mechanical life, achieving up to 10,000 operations, making it a durable solution for high-demand environments.

FAQ's of LT 200A 4P MCCB:

Q: How does the LT 200A 4P MCCB provide protection for electrical systems?

A: The LT 200A 4P MCCB safeguards electrical circuits using a thermal magnetic trip unit, which detects overloads and short circuits. This mechanism effectively isolates faulty sections, preventing damage and enhancing installation safety.

Q: What accessory options are available with the LT 200A 4P MCCB?

A: This MCCB can be supplied with auxiliary switches, shunt release, and under voltage release devices. These options enable enhanced monitoring, signaling, and automated control functions in your panel installations.

Q: When should I consider using the adjustable trip version instead of the fixed trip type?

A: The adjustable trip unit is ideal for setups where precise current protection settings are needed for varying load profiles, allowing more tailored protection compared to the fixed trip version, which is suitable for consistent loads.

Q: Where is the optimal mounting orientation for this MCCB in the panel?

A: The LT 200A 4P MCCB supports both vertical and horizontal mounting orientations, providing flexibility to accommodate different panel space layouts and installation requirements.

Q: What process ensures the MCCB's reliability during operation?

A: The MCCB undergoes stringent manufacturing processes, ensuring compliance with protection class IP20 and achieving a dielectric strength of 2.5kV for one minute, resulting in durable performance under demanding electrical conditions.

Q: How can the MCCB's auxiliary functions benefit overall system safety and control?

A: Auxiliary functions such as the auxiliary switch, shunt release, and under voltage release enable reliable status indication, controlled tripping, and safe shutdown under loss of supply, thereby increasing safety and operational efficiency.

Q: What are the key benefits of using the LT 200A 4P MCCB for protection and isolation?

A: This MCCB offers high breaking and making capacities, excellent mechanical durability, efficient overload and short circuit protection, and compatibility with three-phase, 415V AC systems, delivering consistent protection and convenient control for critical installations.
